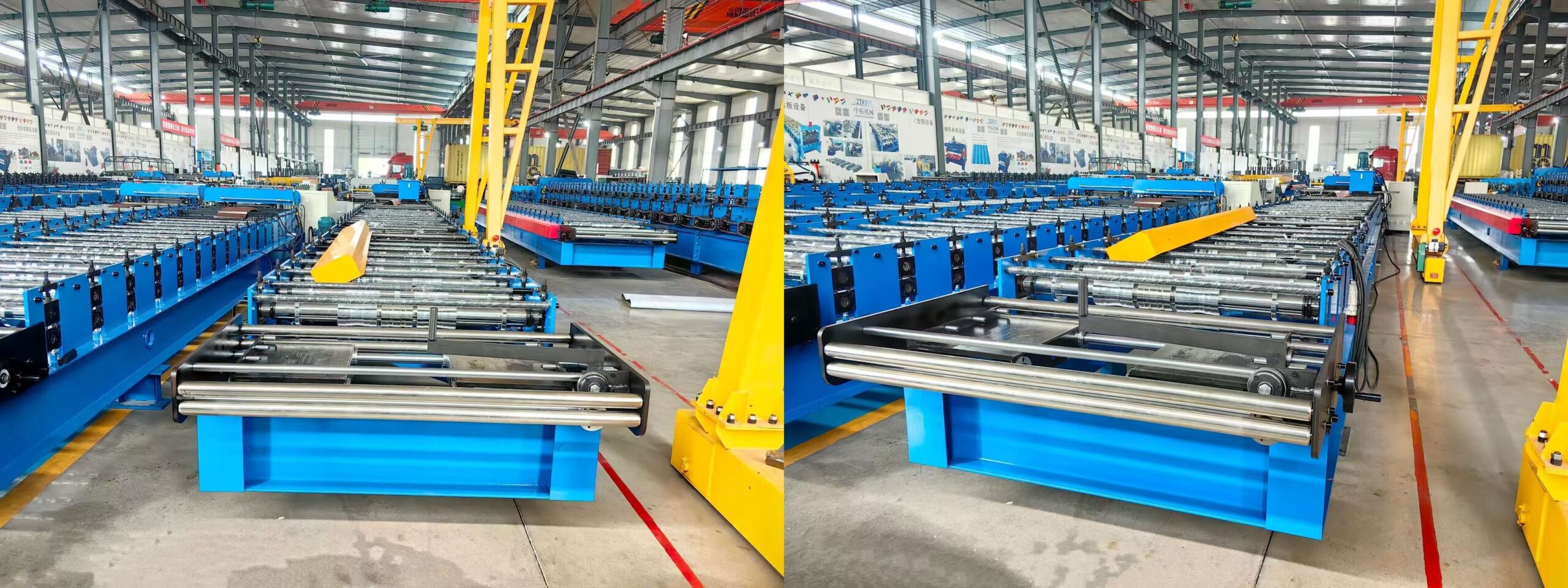

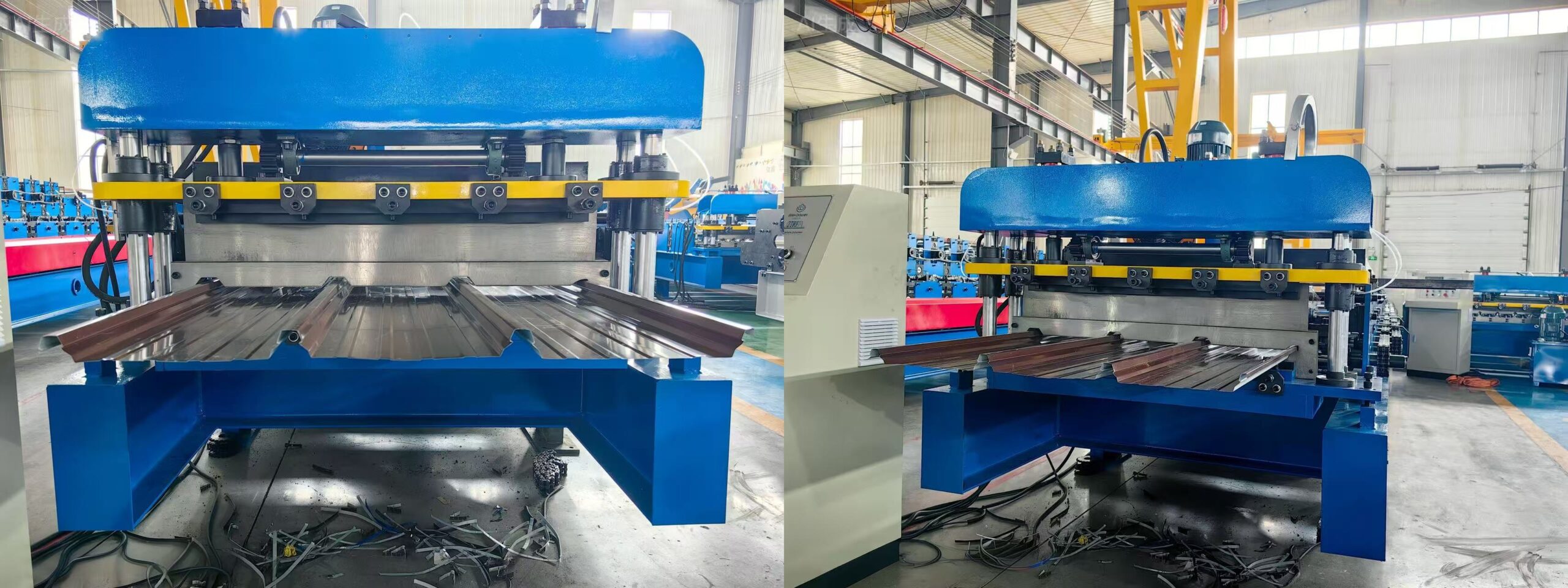

The Trapezoid Metal Roofing Sheet Making Machine for Colored Steel Sheet, also commonly known as the trapezoidal tile pressing machine or trapezoidal cold bending forming machine, is an automated equipment that processes metal coil into trapezoidal cross-section roof panels. It efficiently and accurately shapes flat color steel plates, galvanized plates and other raw materials into trapezoidal tiles with specific peaks and valleys through continuous rolling process, and is an indispensable core production equipment in modern steel structure construction.

Application scenarios：

• industrial building
Widely used on the roofs of large industrial plants, workshops, and logistics warehouses, its high strength and good drainage performance meet the needs of industrial production environments.
• Civilian and Residential
Suitable for roofs of prefabricated houses, simple steel sheds, villas, and residential projects, combining aesthetics and practicality.
• commercial building
The structural advantages of trapezoidal panels are particularly prominent in the roofs of large-span buildings such as supermarkets, exhibition halls, and sports venues.

Pattern diagram:

Product Attributes :

Main Features：

The trapezoidal roof tile forming machine is widely used in the construction industry due to its unique design and advanced technology.
1. High strength and excellent performance
• High structural strength: The trapezoidal cross-section design is its core advantage. Compared to other waveforms such as arcs, trapezoidal structures can provide better bending and compression resistance, making them suitable for large-span roofs.
• Anti corrosion and durability: The tiles produced are usually made of colored coated steel plates or galvanized steel plates, which have undergone special surface treatment and have excellent anti-corrosion and anti rust properties, with a long service life.
• High forming accuracy: Adopting a split type forming process and high-precision rollers (such as 45 # steel plated with hard chromium or Cr12 material) to ensure that the trapezoidal tile peaks are vertical, valleys are flat, and dimensions are accurate after forming.

2. Efficient production and intelligent control
• Continuous production: The operating speed of the equipment is usually between 8-40 meters per minute, which can achieve uninterrupted continuous production and significantly increase production capacity.
• Servo tracking cutting: Equipped with an advanced servo tracking cutting system, it can achieve precise cutting without stopping the host, ensuring a smooth and burr free cut while avoiding efficiency losses caused by cutting during shutdown.
• PLC intelligent control: Through PLC and touch screen human-machine interface, operators can easily set production parameters (such as length and quantity), and the equipment runs automatically, reducing operational difficulty and labor costs.
