Today, as public buildings such as airport terminals, high-speed rail stations, and large exhibition centers demand higher standards for metal enclosure systems, Standing Seam metal roofs have become the preferred solution for architects and project owners due to their excellent waterproof performance, outstanding wind resistance, and elegant modern aesthetics. The Standing Seam Roof Sheet Roll Forming Machine, as the core equipment for producing upright lock edge roof panels, is helping metal enclosure system manufacturers seize the growth opportunities in the high-end construction market with its high-precision molding, stable operation, and flexible adaptation capabilities.

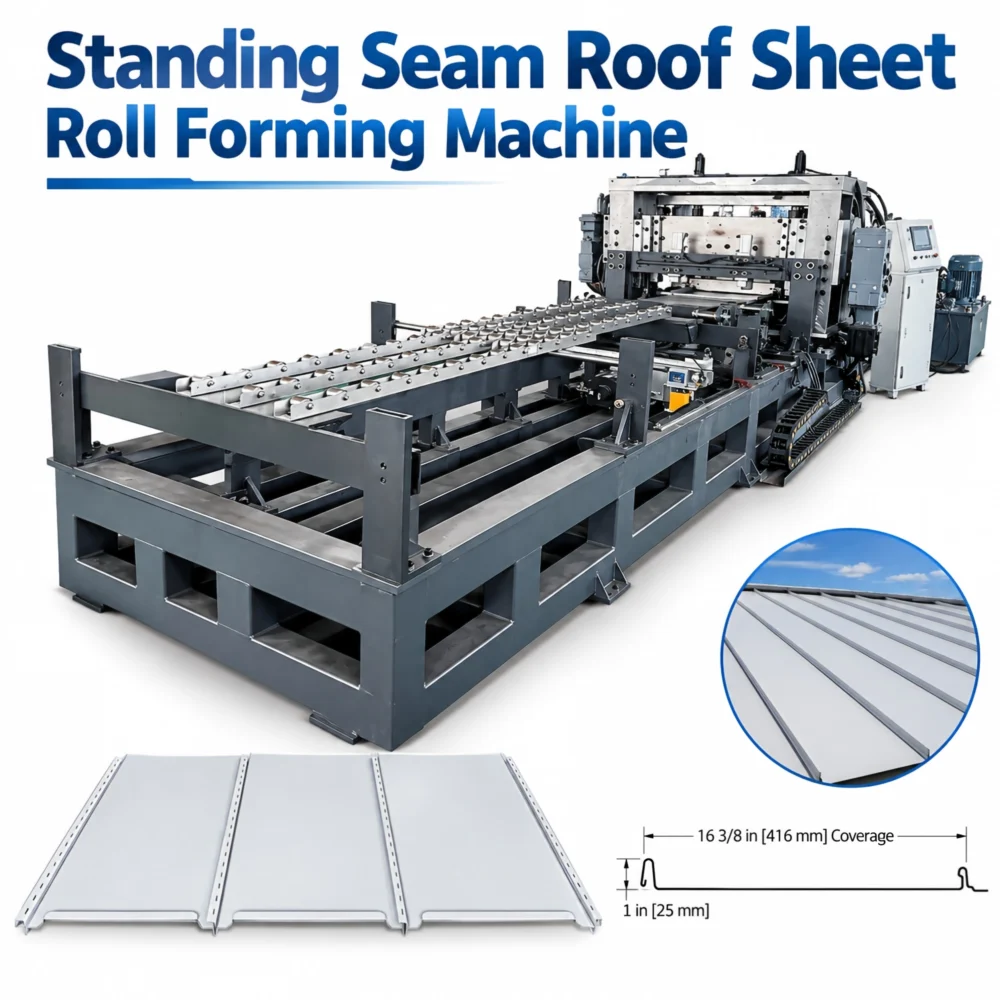

What is an upright lock edge forming machine?

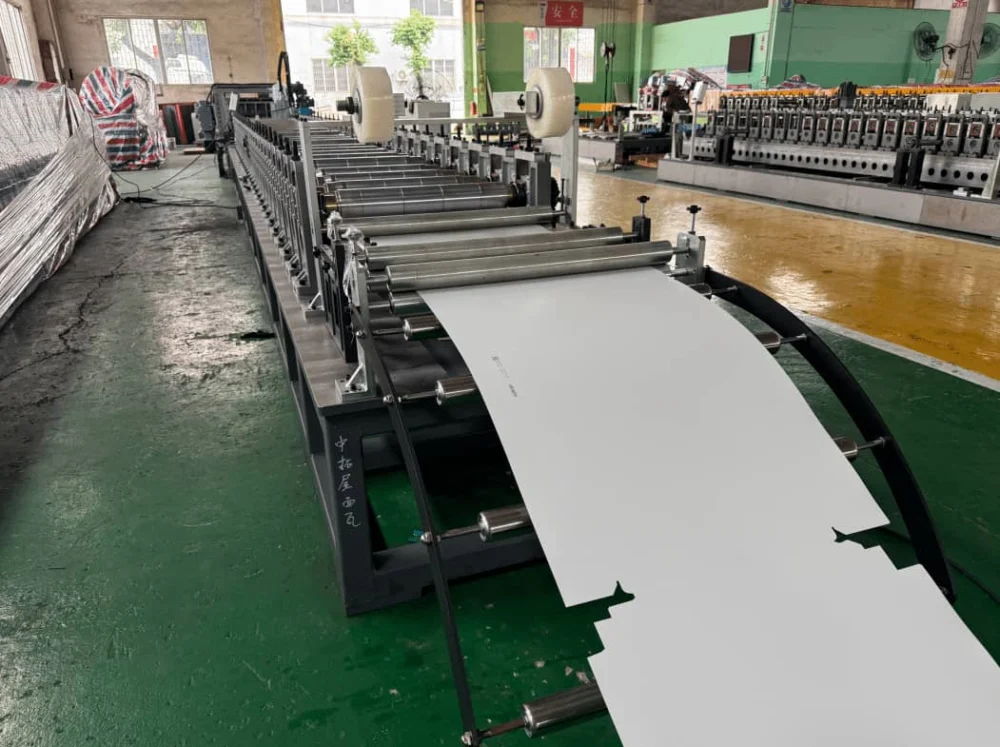

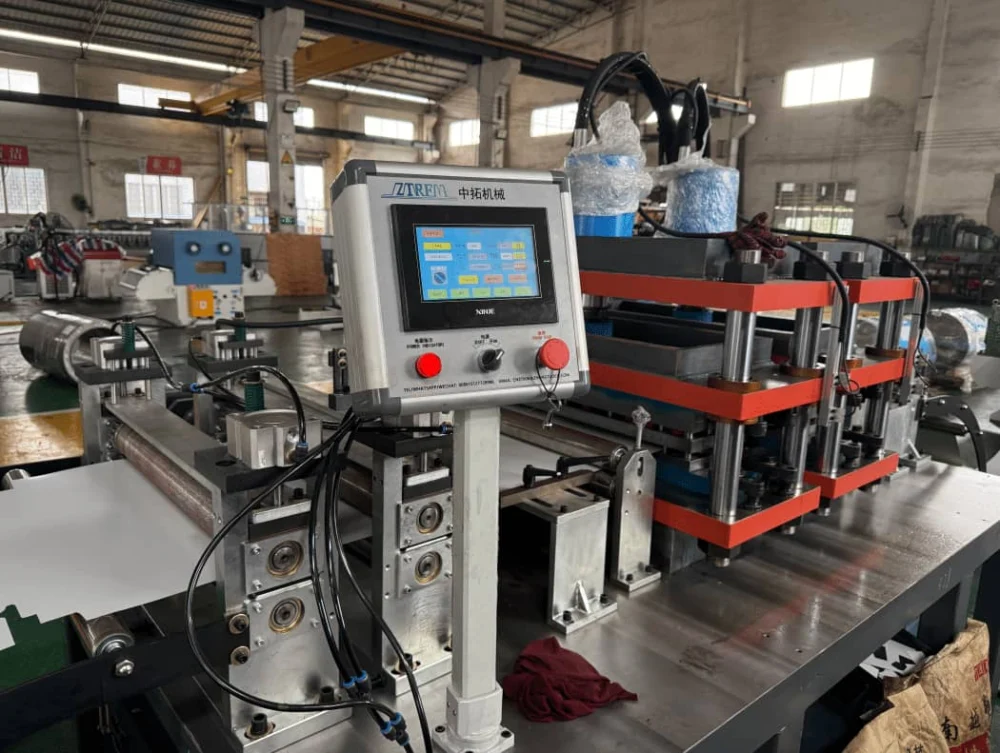

The Standing Seam Roll Forming Machine is a professional cold bending equipment that gradually rolls metal coils into roof panels with upright locking features through multiple precision arranged rollers. The equipment continuously cold bends metal coils at room temperature without the need for high temperature heating, effectively maintaining the integrity of the material coating and structural strength.
The standard production process is: uncoiling → feeding guidance → roll forming → cutting to length → finished product output. The entire production line is coordinated by a PLC control system, and operators can set parameters such as board length and production quantity through a touch screen, achieving intelligent production management.
Core Advantages：
1. High precision molding, stable quality
The equipment adopts 45 # high-quality steel rollers, which are quenched and plated with hard chromium on the surface. Combined with precision machining and assembly processes, it ensures the accuracy of the cross-sectional dimensions and surface quality of the finished roof panels. The rolling mill is processed by CNC machining (rough turning, quenching, precision grinding, and fine turning), with a hardness of HRC58-62, ensuring the stability of the formed contour during long-term operation. The cutting adopts a hydraulic shearing system, and the cutting tool is made of Cr12MoV material. The incision is flat and free of burrs, and the cutting tolerance can be controlled within ± 1mm.
2. Flexible adaptation to multiple materials
The equipment supports the processing of various metal coils with a thickness of 0.4-0.8mm, including pre coated color coated steel plates (PPGI), galvanized steel plates (GI), aluminum magnesium manganese alloy plates, aluminum plates, and copper plates. The feed width can be customized according to customer needs, suitable for various specifications such as 600mm, 610mm, 1220mm, etc.

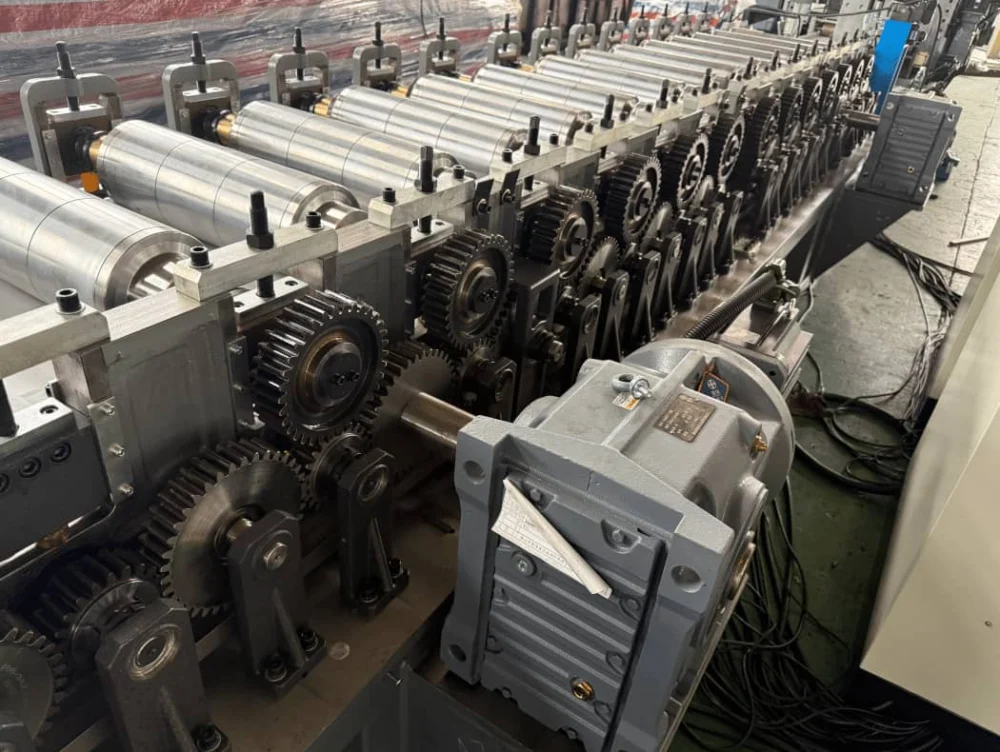

3. Stable and efficient production capacity
The equipment adopts a sprocket or gearbox transmission system, and the production speed is usually 0-20 meters per minute. High performance configurations can achieve higher production capacity. In fully automatic operation mode, only 1-2 operators are needed to manage the entire production line. The molding process is usually 12 passes, which gradually deforms the board and ensures uniform stress, ensuring the accuracy of edge locking and the flatness of the board.
Application Areas：
The board produced by the upright lock edge forming machine is widely used in various high-end construction scenarios:

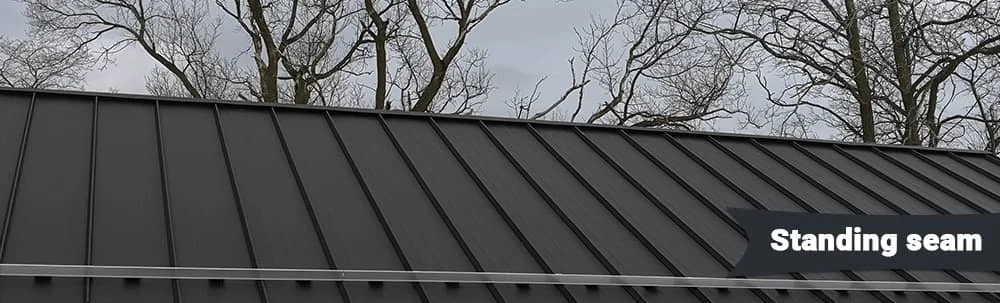

• residential building
The application of vertical locking systems in the high-end residential market is also continuously growing. Owners are increasingly recognizing the comprehensive advantages of metal roofs in terms of durability, energy efficiency, and aesthetics
• Exhibition and Cultural Sports Architecture
The complex roof design of large exhibition complexes and cultural sports venues requires strict precision in sheet metal forming and flexibility in installation. The application technology of the upright lock edge pressed metal plate waterproofing system in large-span irregular buildings is mature and easy to construct, making it an ideal solution to solve the waterproofing problem of irregular roofs.
• Commercial and Industrial Buildings
Commercial complexes, industrial plants, and logistics warehouses also benefit from the long service life and low maintenance costs of vertical locking systems. The system's adaptability to climate change makes it a reliable choice for areas with frequent extreme weather events.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.4-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free)
|
||
|

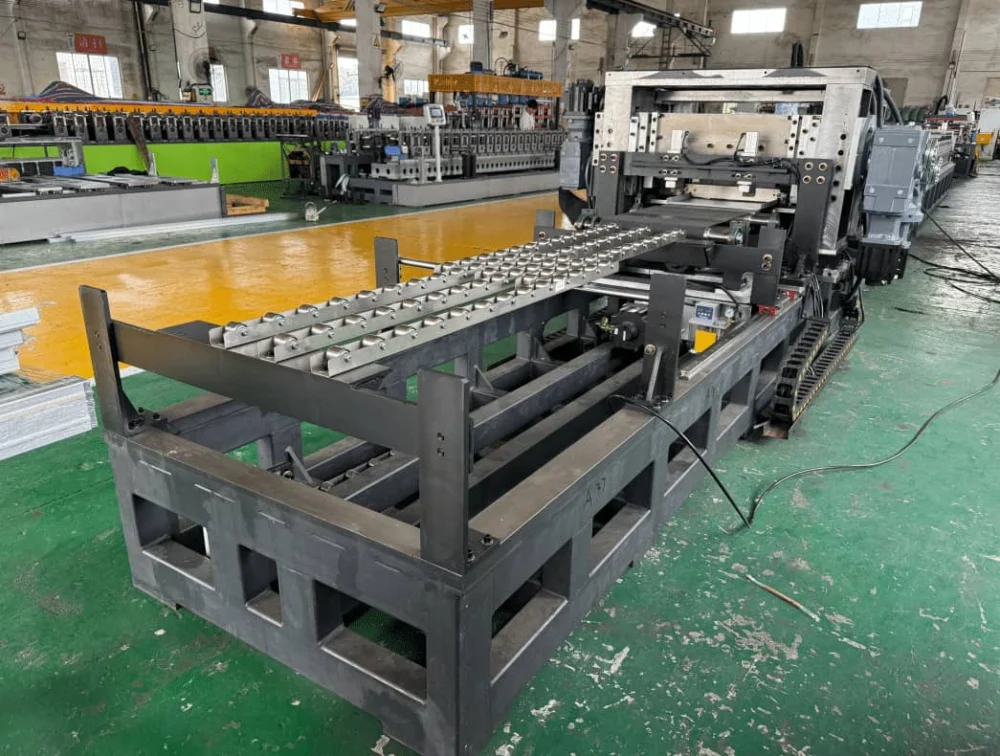

3.Main body
|
Roller station
|
12 or Due to your requirement profile
|
||
|
Diameter of shaft
|
Due to your requirement profile
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
Chain or as your requirement
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|

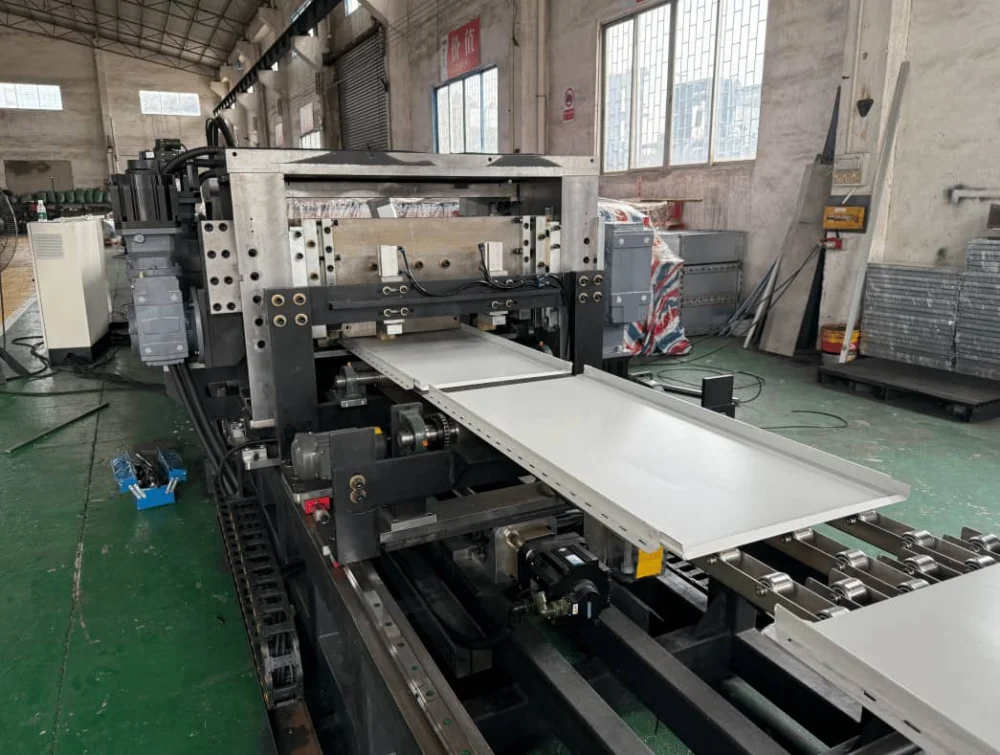

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW(normally)
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20m/min
|
Provide customized
|
||

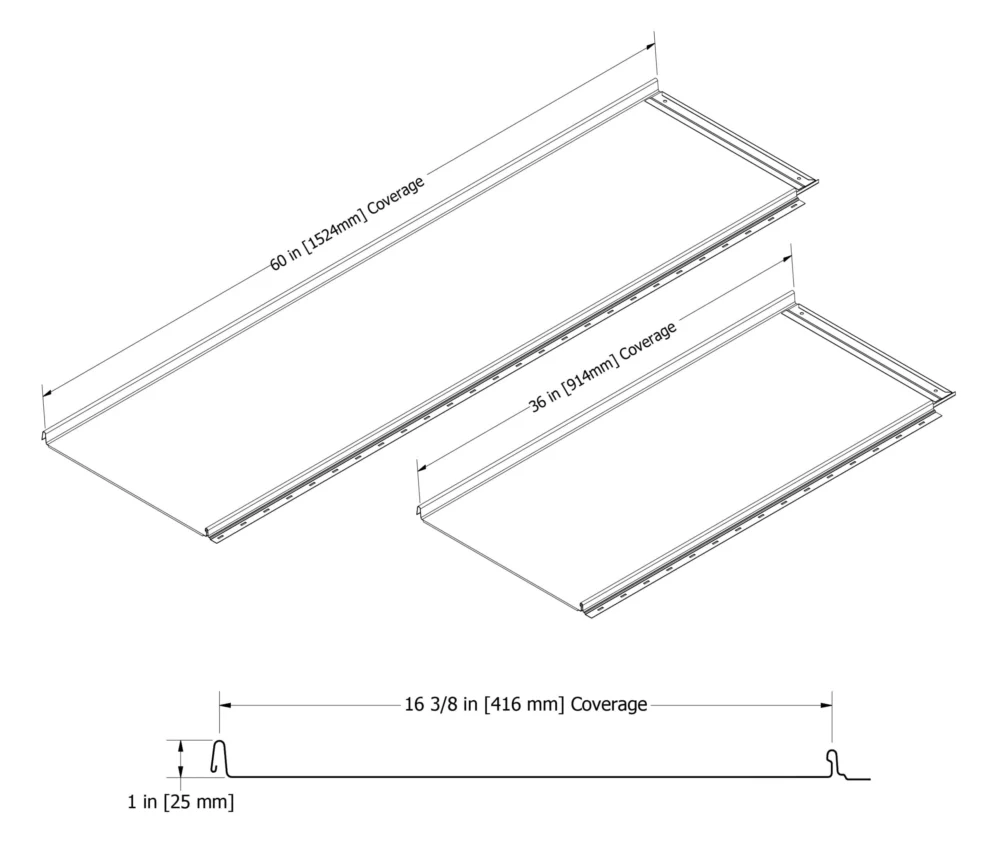

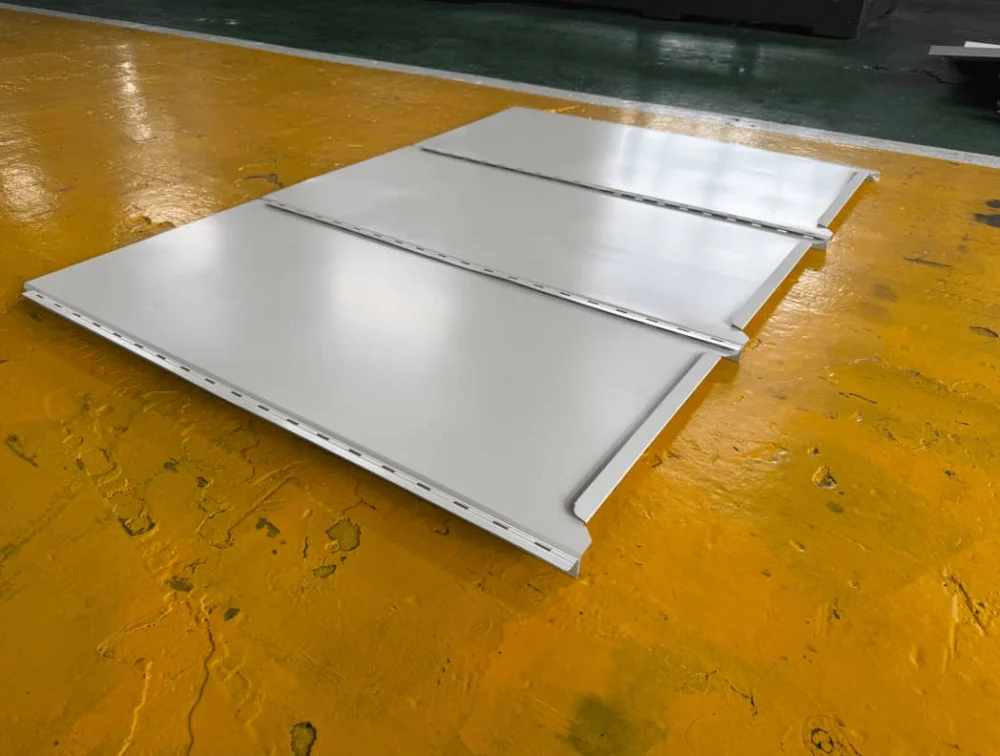

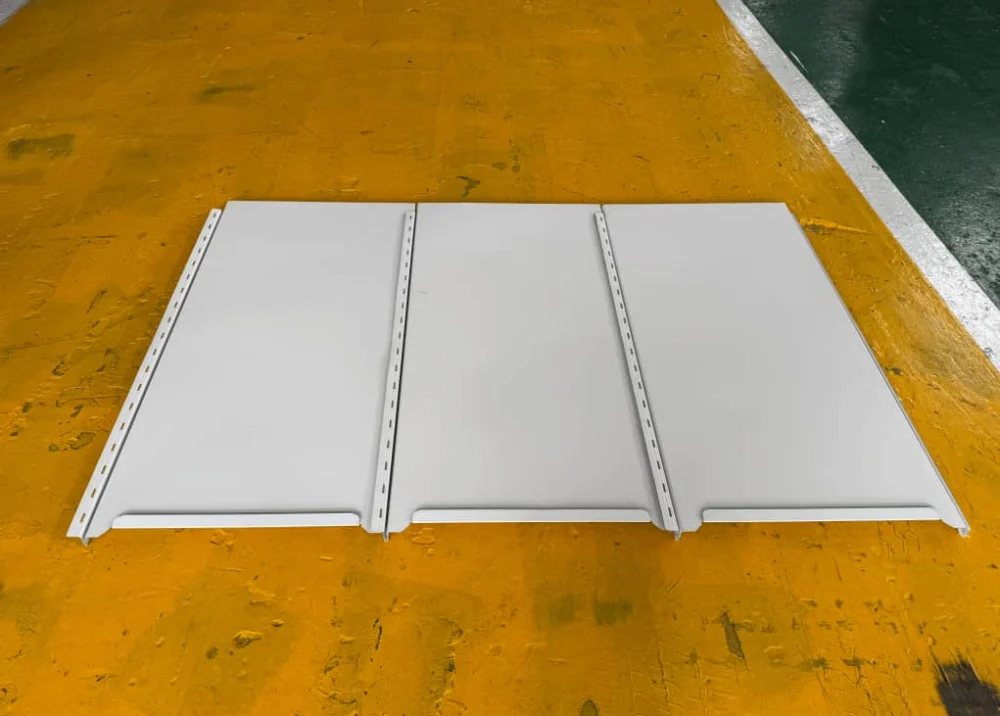

Pattern diagram:
Frequently Asked Questions (FAQ)：

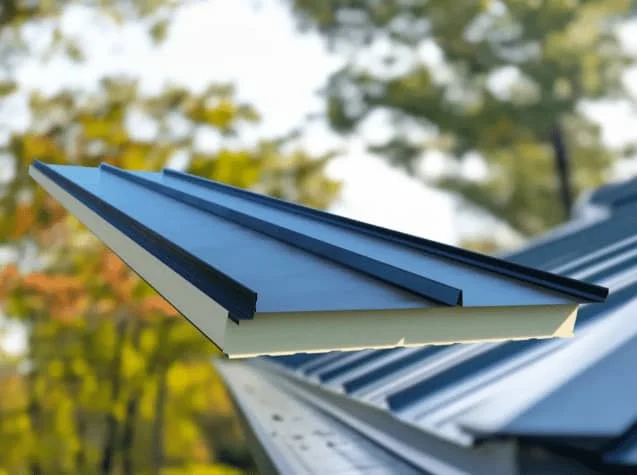

Q1: What types of boards can be produced by an upright lock edge forming machine?
The equipment can produce various board types such as standard upright lock edge roof panels and Snap Lock upright lock edge panels. We can also customize the production of tapered panels and curved panels according to customer needs. We can design customized rolling mill molds for customers by providing plate drawings or samples.
Q2: What raw materials does the device support?
The device supports various metal coils such as pre coated color coated steel plate (PPGI), galvanized steel plate (GI), aluminum magnesium manganese alloy plate, aluminum plate, and copper plate. The applicable thickness range is 0.4-0.8mm, depending on the material and board type.
Q3: How to ensure the forming accuracy of the equipment?
Accuracy assurance comes from multiple levels: the rolling mill is made of high-quality 45 # steel, which undergoes CNC machining (rough turning, quenching, precision grinding, and fine turning) and hard chrome plating to ensure accurate forming contours; Real time monitoring and adjustment of production parameters by PLC closed-loop control system; The hydraulic shearing system, in conjunction with the sizing device, achieves a cutting tolerance of ± 1mm.
Q4: Does the device support portable/mobile configuration?
support. Some models adopt a detachable design, which can be divided into multiple components for easy transportation, suitable for on-site molding production on construction sites, especially for projects where ultra long boards cannot be transported by road.
Contact Us：
From the magnificent roofs of airport terminals to the streamlined enclosures of high-speed rail stations, from the complex shapes of convention centers to the modern facades of commercial buildings, the upright lock edge metal roof system is serving an increasing number of high-end construction projects worldwide with its excellent waterproof performance, outstanding wind resistance, and elegant architectural aesthetics. A reliable and accurate Standing Seam Roof Sheet Roll Forming Machine is the core equipment for metal enclosure system manufacturers to seize opportunities in the high-end construction market and enhance competitiveness. If you need equipment solutions and quotations tailored to your specific needs, please feel free to contact us at any time.
