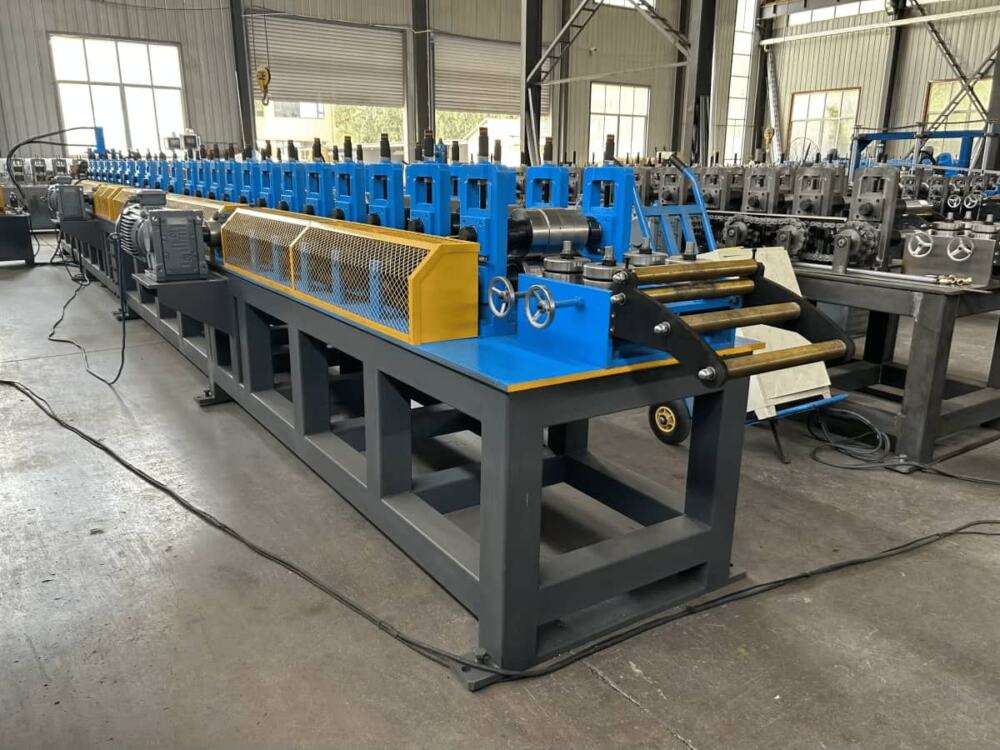

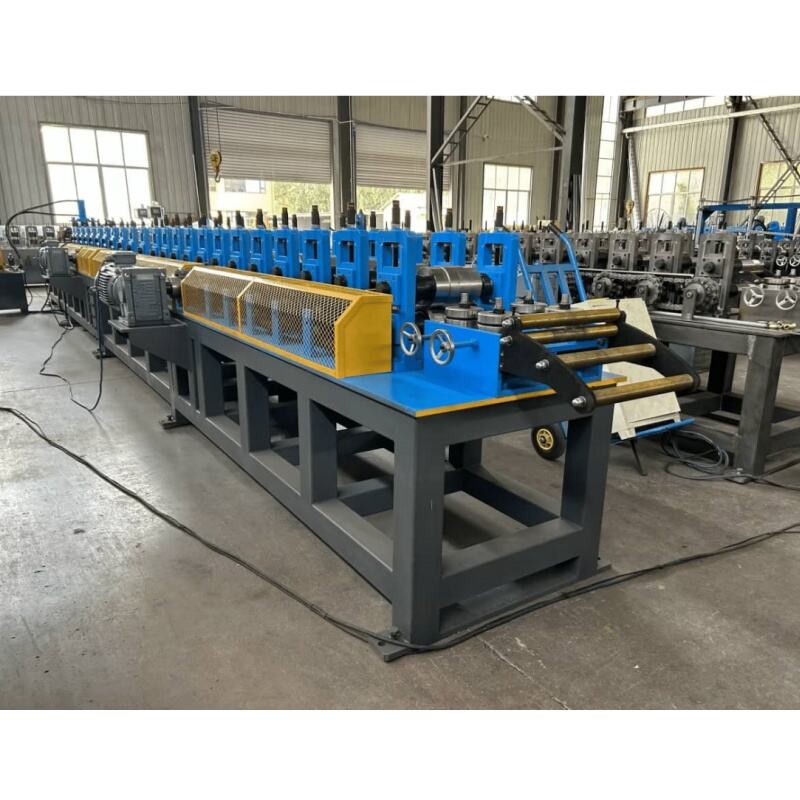

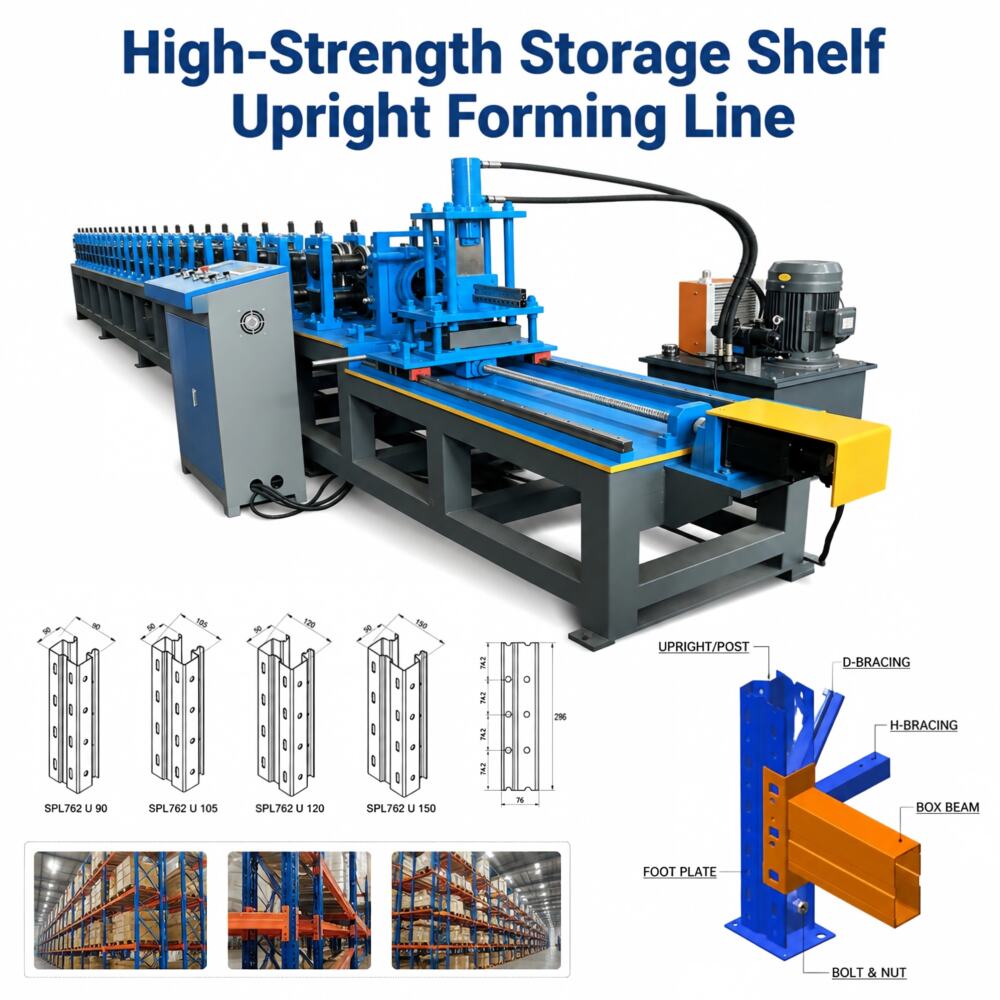

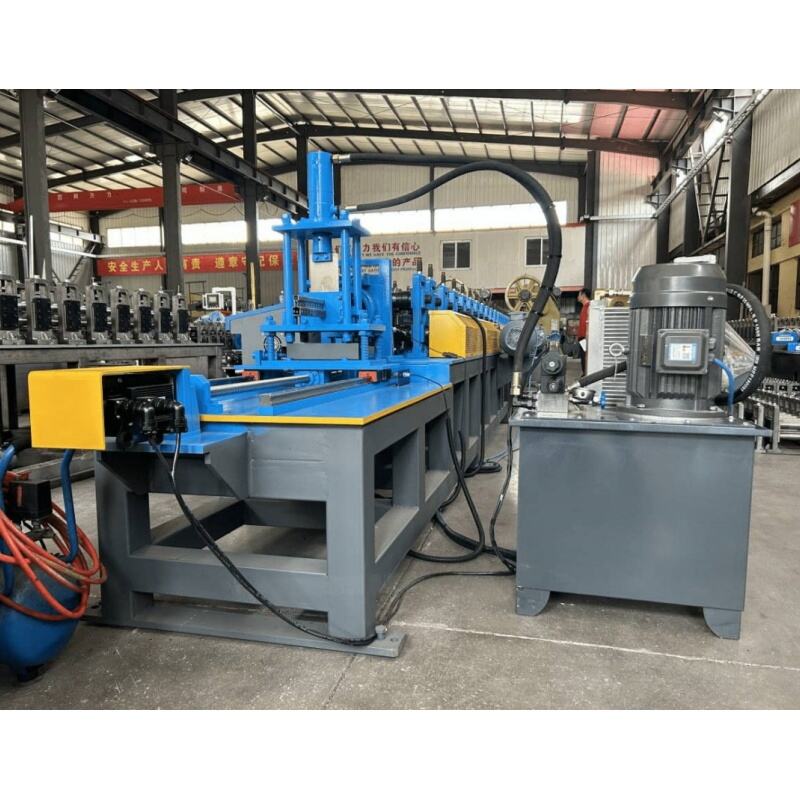

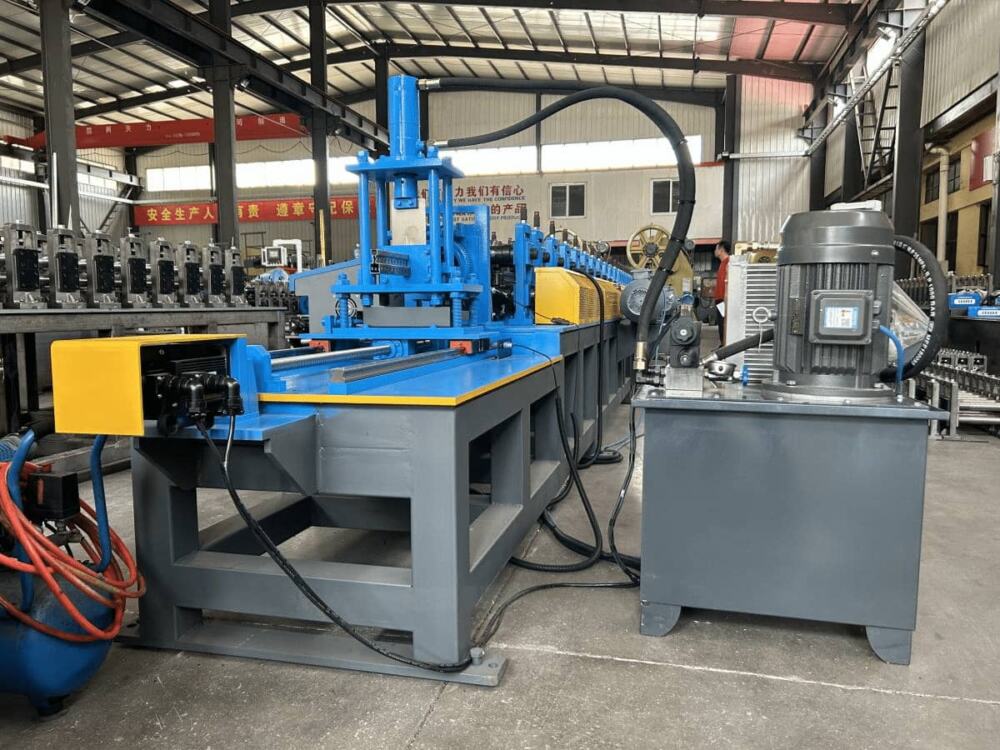

With the rapid development of intelligent logistics and modern manufacturing, the warehousing and logistics industry is experiencing unprecedented expansion. As the core load-bearing component of a warehouse racking system, the processing precision and production efficiency of rack uprights directly affect the safety and delivery cycle of warehousing facilities. High-Strength Storage Shelf Upright Forming Line are professional cold bending forming equipment that efficiently transforms metal coils into high-quality rack uprights, providing solid product support for various warehouse racking systems.

Core Features：

1. Fully automated continuous production, superior efficiency

2. Intelligent PLC control system, easy operation

3. Precision forming molds, stable quality

4. Integrated punching and cutting, unified process

5. Quick changeover, flexible adaptation

Product Attributes :

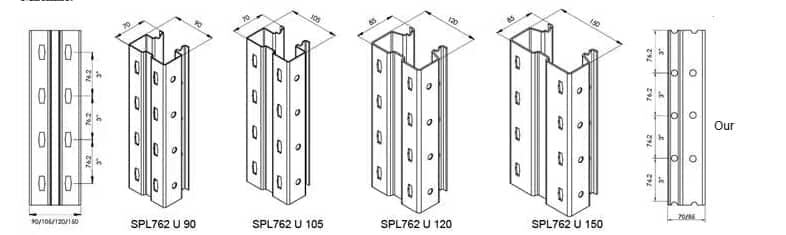

Pattern drawing：

Application Scenarios

The uprights produced by the High-Strength Storage Shelf Upright Forming Line – Advanced Cold Roll Technology are widely used in the following fields:

• Warehouse and Logistics Centers:

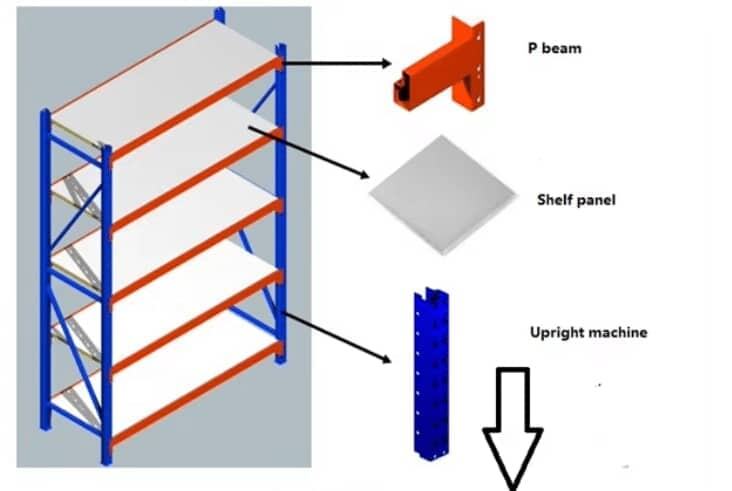

Providing core upright components for heavy-duty and medium-duty racks in modern warehousing systems, supporting the stable operation of the entire warehousing system.

• E-commerce Warehousing and Distribution Centers:
Meeting the dense warehousing demands brought about by the rapid expansion of the e-commerce industry, providing high-precision, high-load-bearing rack uprights.

• Supermarkets and Shopping Malls:
Producing uprights for supermarket shelves, shopping mall display shelves, and merchandise display shelves.

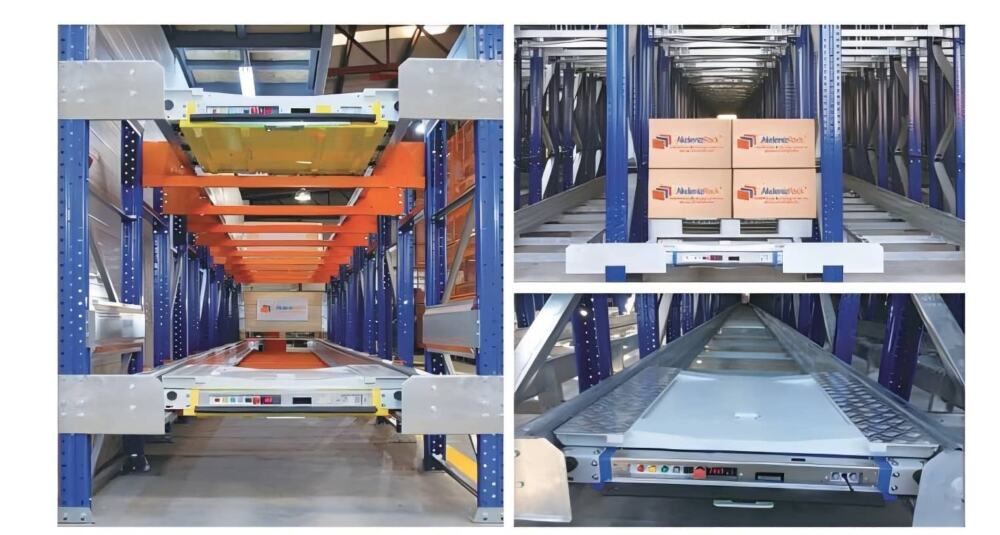

• Intelligent Automated Warehouses:
Providing precision upright components for high-end warehousing systems such as automated warehouses and cold chain racks.

• Industrial Manufacturing Enterprises:
Using racks for material storage and workpiece placement in factory workshops and production lines.

• Grain Storage:
Providing high-quality, high-density storage rack uprights for modern grain warehouses, ensuring the structural stability and space utilization of grain storage.

Equipment Process Flow：

The complete production process of the High-Strength Storage Shelf Upright Forming Line – Advanced Cold Roll Technology:

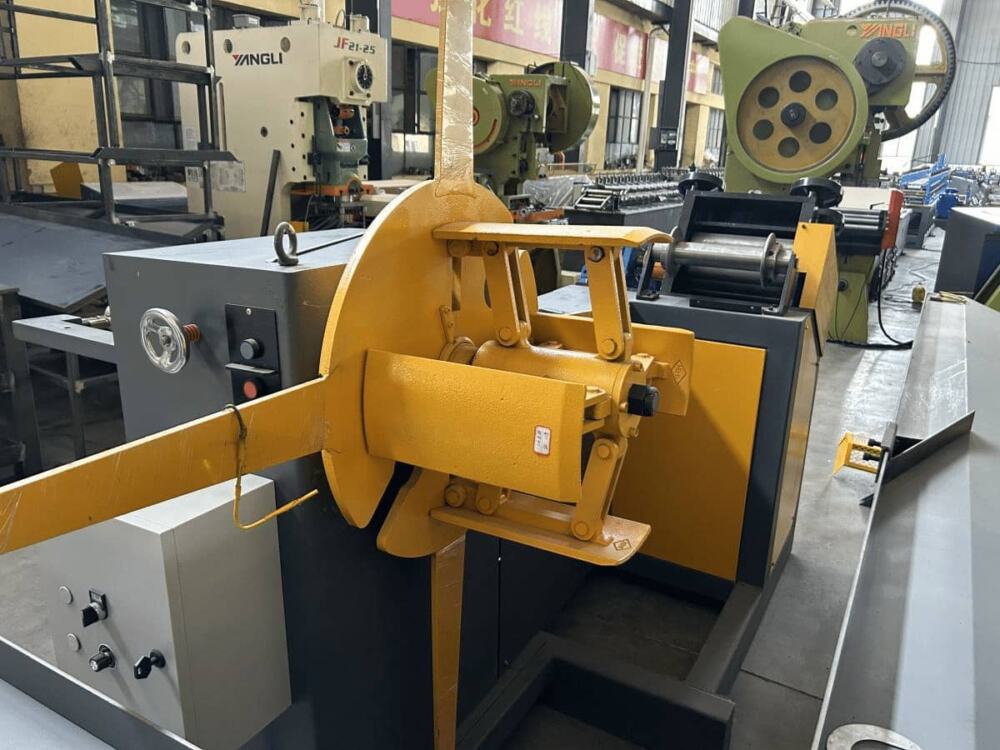

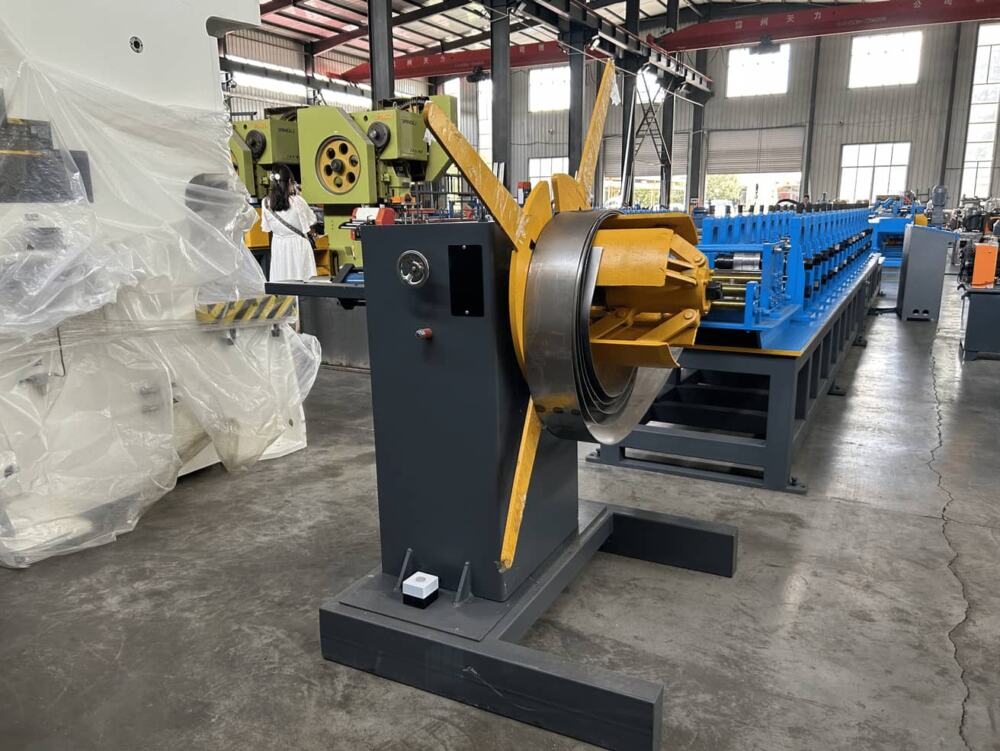

Step 1: Uncoiling and Unwinding
Metal coils (cold-rolled coils, galvanized coils, etc.) are uncoiled using an unwinding device. The outer diameter of the coil can reach Φ1250mm.

Step 2: Leveling and Guiding
The uncoiled metal strip undergoes leveling treatment by a leveling device to eliminate coil stress and surface unevenness, providing a flat sheet for subsequent processing. A guide frame corrects and guides the strip.

Step 3: Servo Feeding and Punching
The leveled strip is fed into the punching station by a high-precision servo feeding system. Automatic continuous punching is performed according to the preset hole shape (round hole, diamond hole, etc.) and hole spacing. The hole position deviation can be controlled within 0.3mm.

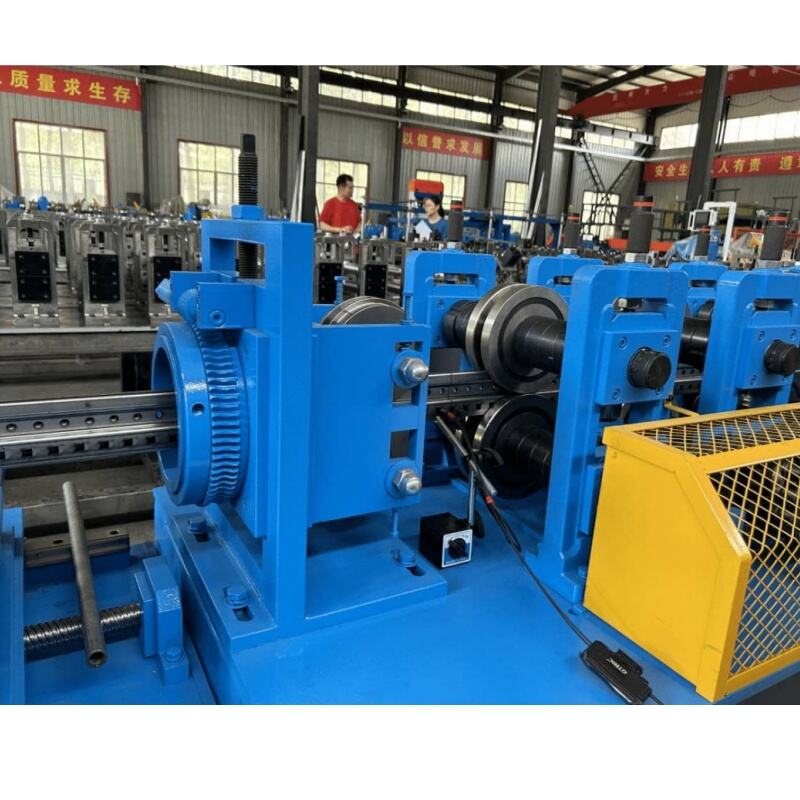

Step 4: Cold Bending and Forming
The punched strip enters the forming machine and is continuously rolled by multiple sets (usually 16-28 passes) of precision rollers, gradually bending and deforming it to the designed cross-sectional shape at room temperature. The forming process proceeds at a uniform speed, ensuring product dimensional accuracy and surface quality. Dimensional accuracy can be strictly controlled within ±0.5mm.

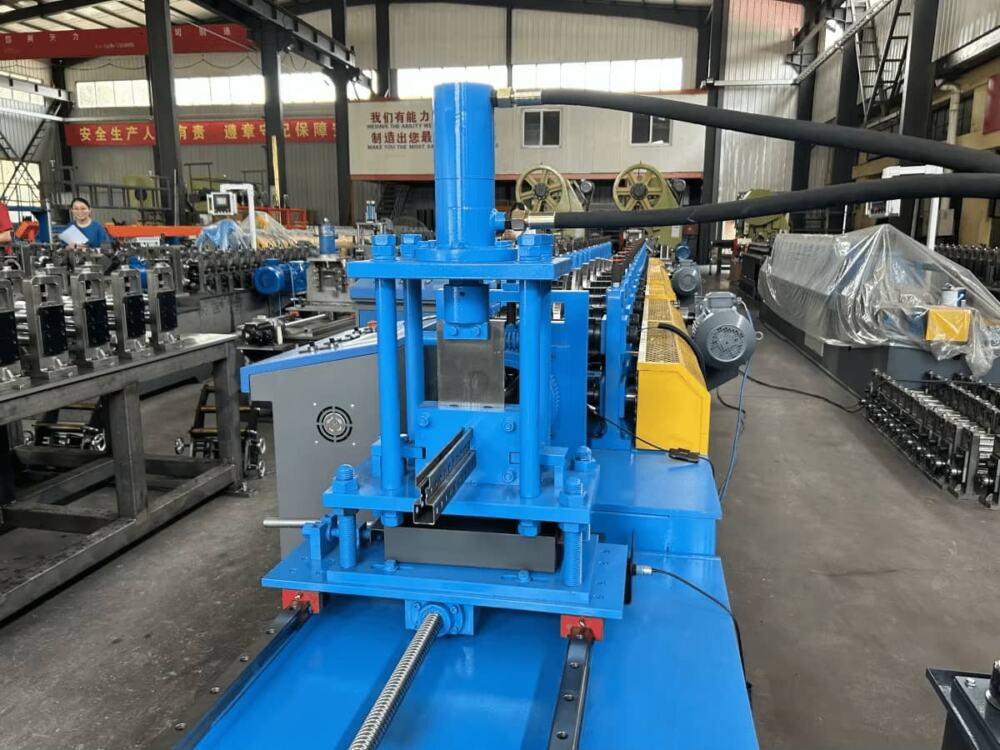

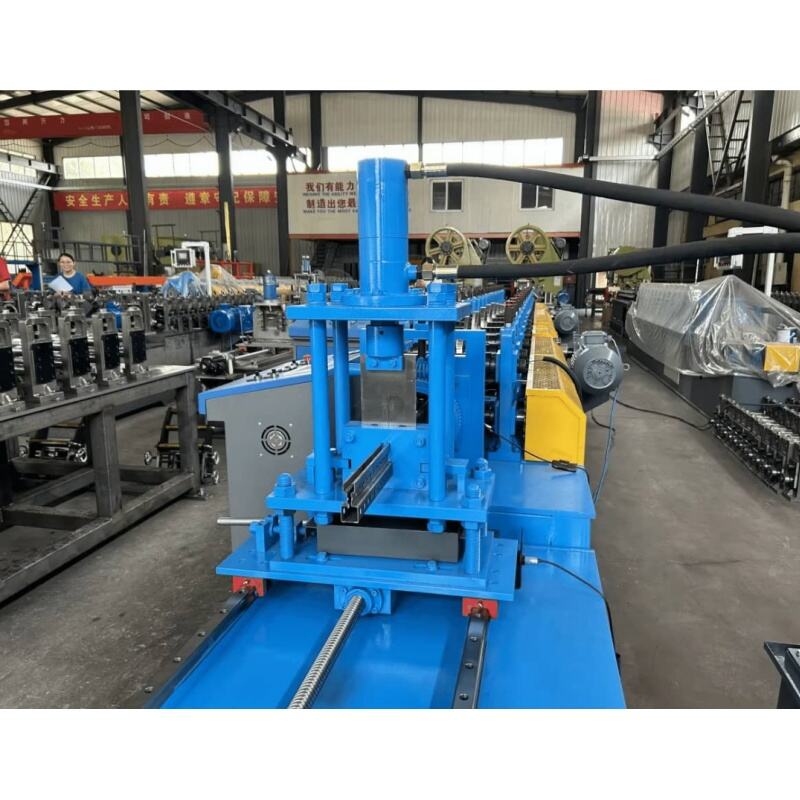

Step 5: Cutting to Length

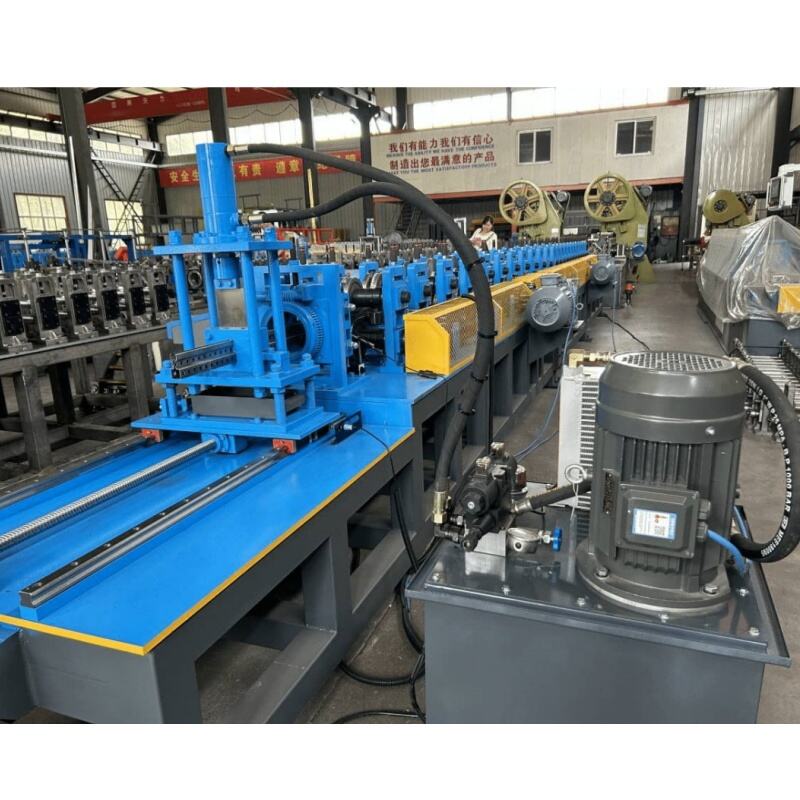

Once the continuously formed rack uprights reach the preset length, a hydraulic or servo-driven cutting system automatically completes the cutting to length. The cutting accuracy can reach ±1mm, meeting order requirements for different length specifications. Some models can be equipped with an automatic stacker crane to automatically receive the cut uprights and stack them.

Contact Us：

Choosing a rack upright forming machine means choosing a highly efficient, precise, and stable rack upright production solution. Whether you’re involved in large-scale logistics and warehousing projects or serving the construction of e-commerce distribution centers, this equipment can help you gain a competitive edge in the fierce market. Welcome to contact us for a customized solution!
