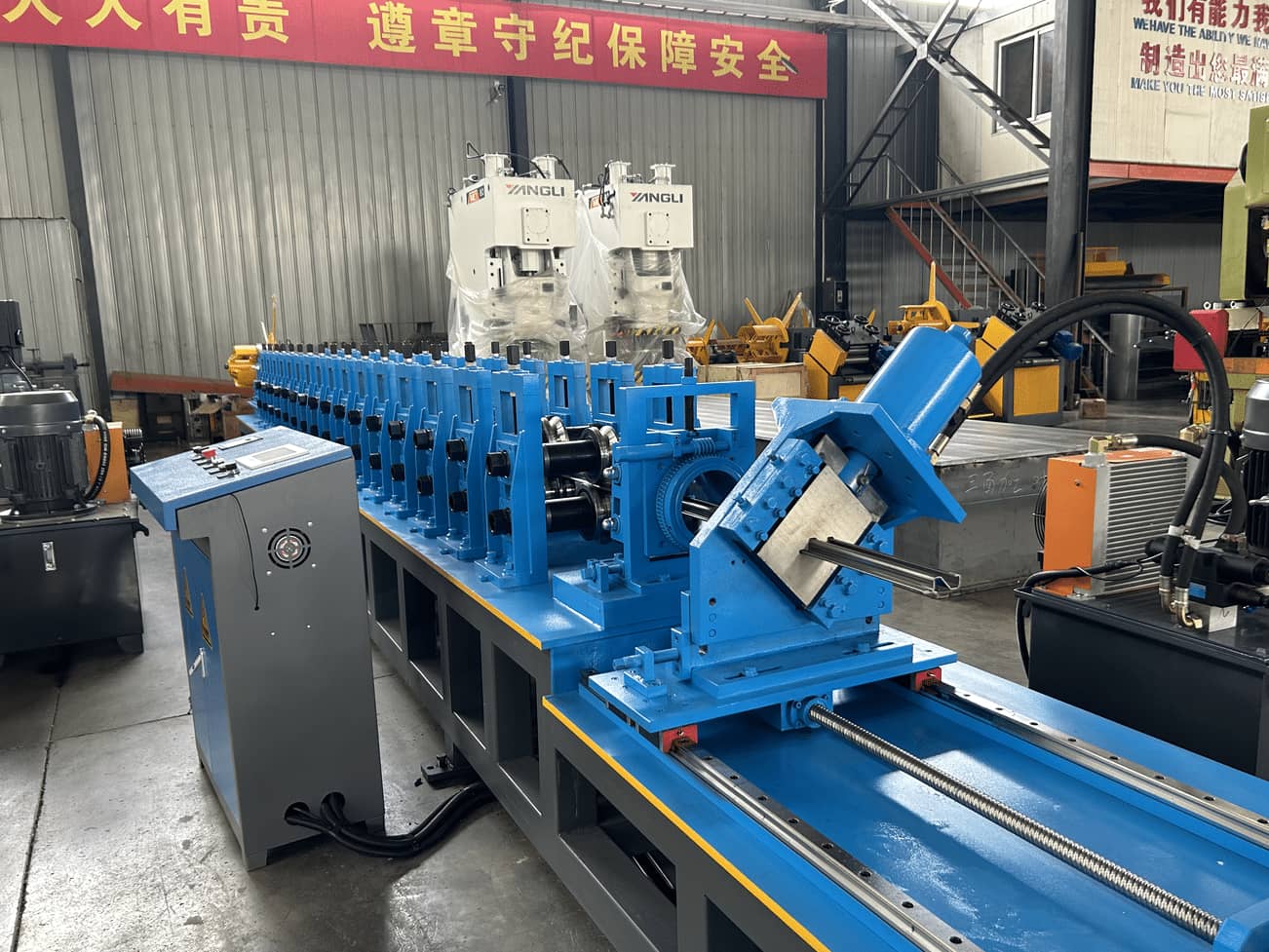

Z Beam Steel Storage Shelf Rack Roll Forming Machine are an assembled medium-sized storage shelf system with cold-rolled steel Z-shaped columns as the core load-bearing components, widely used in retail, logistics, and small and medium-sized storage scenarios. Its structure consists of three parts: Z-shaped columns, crossbeams, and laminated boards. The columns are made of cold-rolled steel plates and formed by rolling, with a cross-section in the shape of a “Z” and excellent bending and torsion resistance; The crossbeam is connected to the column through a snap fit, and the layer board can be made of steel, mesh, or wood, achieving flexible combination.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:1.5-2.7mm
|
||
|

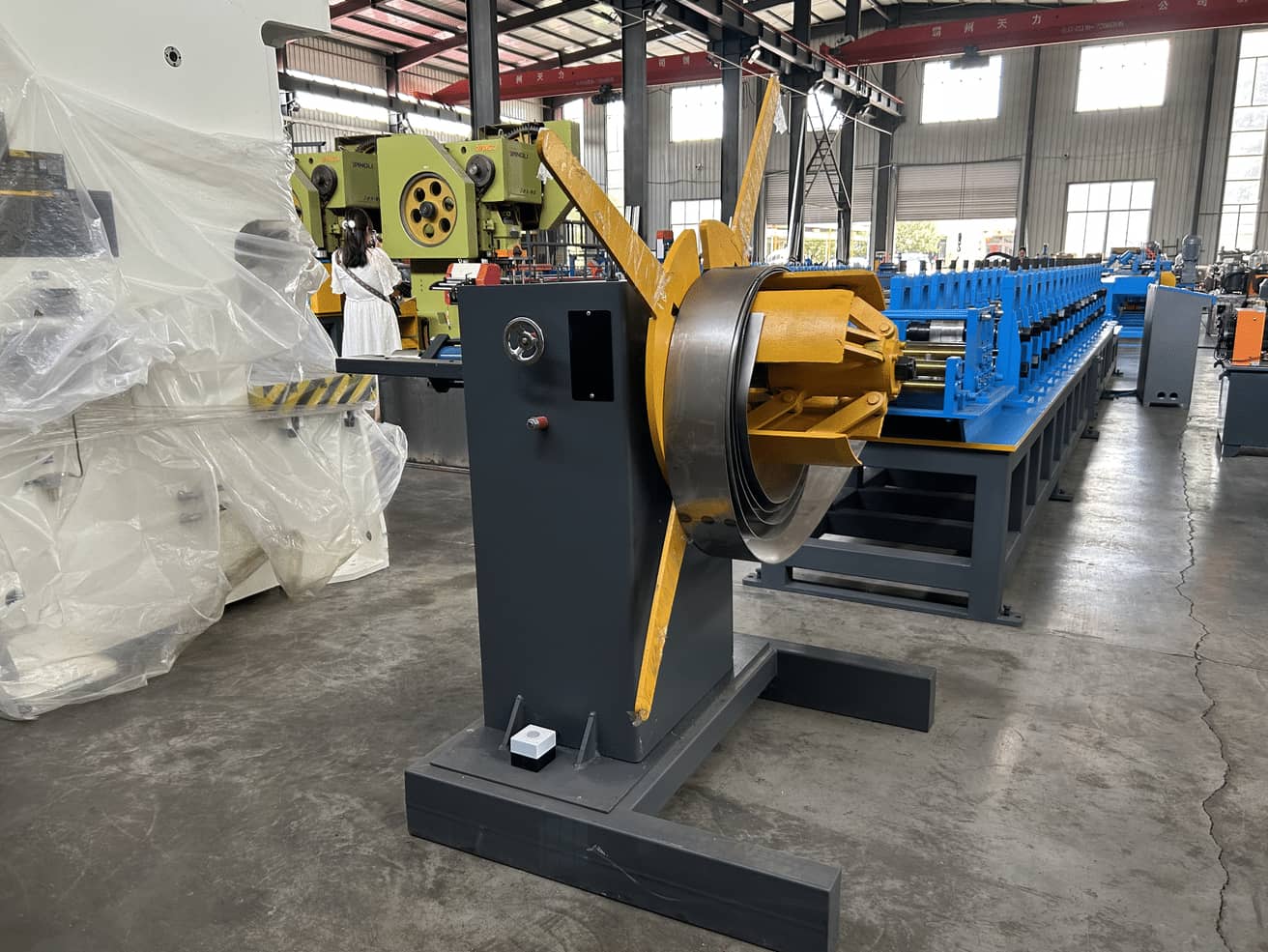

2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
16 rows(As your requirement)
|
||
|
Diameter of shaft
|
70mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
70m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Core Features：
1.High structural strength:
Z-shaped section design can effectively disperse stress, improve bending resistance and load-bearing capacity.
2.Lightweight:
Compared to traditional square tubes, Z-shaped aluminum profiles are lighter and easier to handle and install.
3.Easy installation:
modular, snap on or bolted connections are commonly used, supporting quick disassembly and assembly.
4.Adjustable floor height:
The common pitch is 50mm or 75mm, making it easy to adapt to different product heights.
Core application scenarios
• Supermarket and retail shelf columns/hanging boards:
Z-shaped cross-sectional structures have good bending and load-bearing performance, suitable for key load-bearing components such as columns and hanging boards in supermarket shelves, especially widely used in heavy-duty or medium-sized storage supermarkets.
• Logistics warehousing shelving system:
used to manufacture columns and beams for high-density storage systems such as attic shelves, through shelves, and drive in shelves, to enhance overall structural stability.
• Industrial shelves and pallet supports:
Used in factories and warehouses to support heavy pallets or equipment, Z-shaped components can effectively distribute loads and extend shelf life.
• Supporting structure for new energy and photovoltaic brackets:
Some Z-shaped components are used as connectors or support beams for photovoltaic brackets, achieving rapid installation and high durability.
