In the field of industrial construction, trapezoidal tiles have become the preferred choice for roofs of large steel structures such as factories and warehouses due to their excellent drainage performance, high bearing strength, and simple and atmospheric industrial aesthetics. Facing the growing market demand and fierce industry competition, how to improve production efficiency and reduce operating costs has become the core concern of every building materials manufacturer.

We present to you a Trapezoid Double Layer Roofing Sheet Tile Making Roll Forming Machine, a “efficiency beast” specially designed for efficient production. It maximizes the concept of “one machine for multiple uses” and achieves double output with a compact structure, helping you stay one step ahead on the road to cost reduction and efficiency improvement.

A wise choice for dual energy and doubled efficiency with one machine

Traditional single-layer equipment occupies a large area and has limited production efficiency. Our double-layer trapezoidal roof tile forming machine innovatively integrates two independent forming systems on one host, completely subverting the traditional production mode.
1.Double output, efficiency leap:
The equipment can process two color steel plates at the same time, producing two different types of trapezoidal tiles at once, such as producing TR40 type on the upper layer and TR45 type on the lower layer. Double your production efficiency directly, and within the same amount of time, your production capacity will far exceed that of your competitors.
2.Save space and reduce costs:
The exquisite double-layer design concentrates the functions of two machines into one, reducing the footprint by nearly 40%. This not only saves you valuable factory space, but also means significant savings in operating costs such as water, electricity, and labor.
3.Independent operation, flexible switching:
The upper and lower forming systems can work simultaneously or independently. Through advanced PLC intelligent control system, operators can easily choose single-layer or double-layer mode on the touch screen, switch with one click, meet the diverse needs of different orders, and achieve unprecedented flexibility in production scheduling.

Widely compatible to meet diverse industrial needs

Our double-layer trapezoidal roof tile forming machine has strong material adaptability and panel customization capabilities.
1.Wide range of materials:
It can process various metal materials such as color coated steel plates, galvanized plates, aluminum plates, etc. with a thickness of 0.3mm to 1.2mm, meeting different strength requirements from lightweight to heavy-duty roofs.
2.Diverse board types:
In addition to standard trapezoidal tiles (such as TR40, TR45, TR60, etc.), by replacing the rollers, various commonly used industrial board types such as IBR corrugated tiles and wall panels can also be produced, achieving true “one machine for multiple uses”.

Widely applicable, empowering the future of industrial architecture

The trapezoidal tiles produced by this device are an ideal choice for the following building scenarios due to their excellent performance:
• Large industrial plants:
providing sturdy and durable roofing solutions for heavy machinery, automobile manufacturing, chemical and other enterprises.
• Logistics warehousing center:
Its large-span and high load-bearing characteristics perfectly meet the construction needs of large warehouses.
• Public facilities:
Suitable for public buildings such as sports centers, exhibition centers, and aircraft hangars that have high roof standards.

Product Attributes :

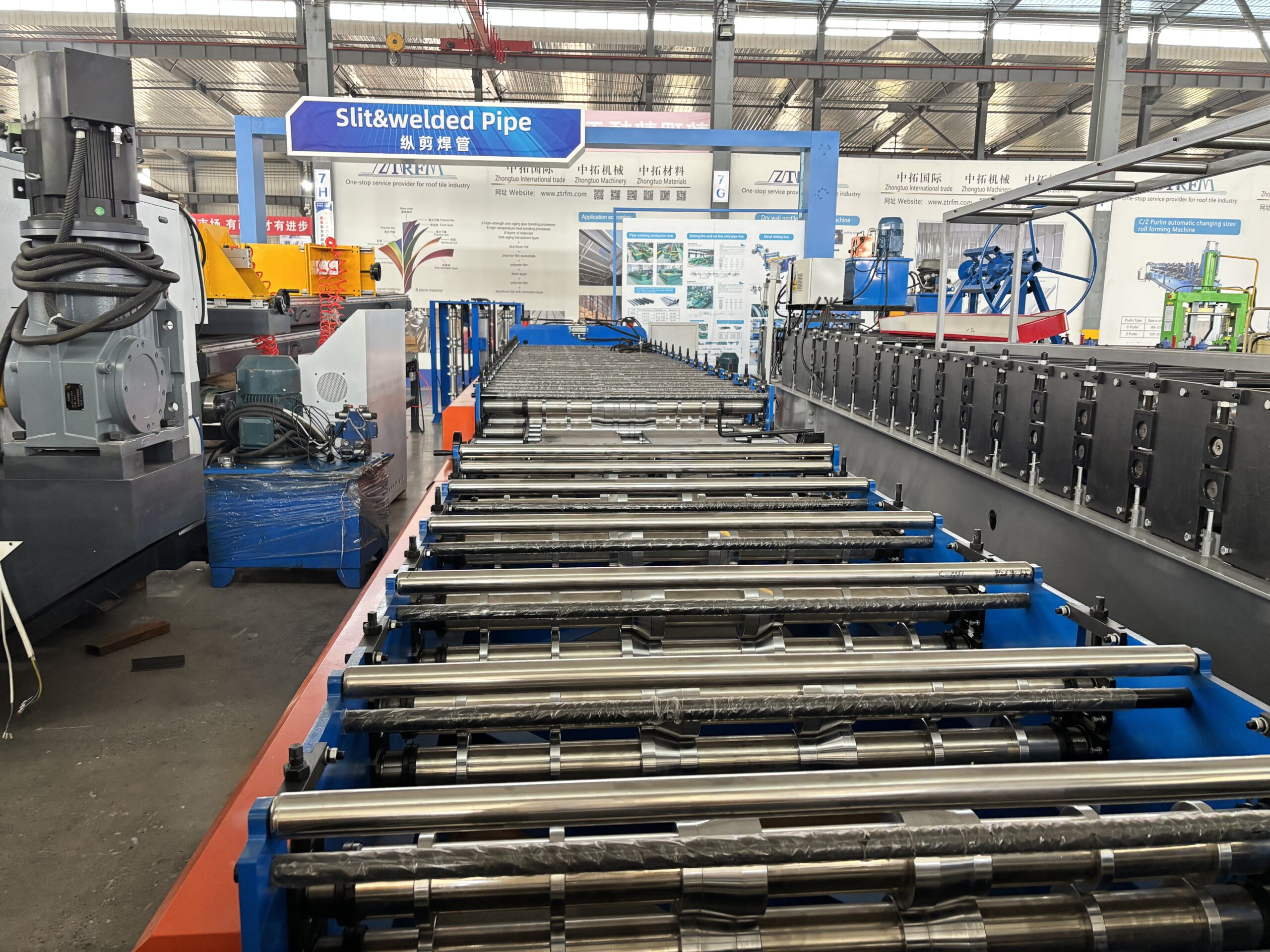

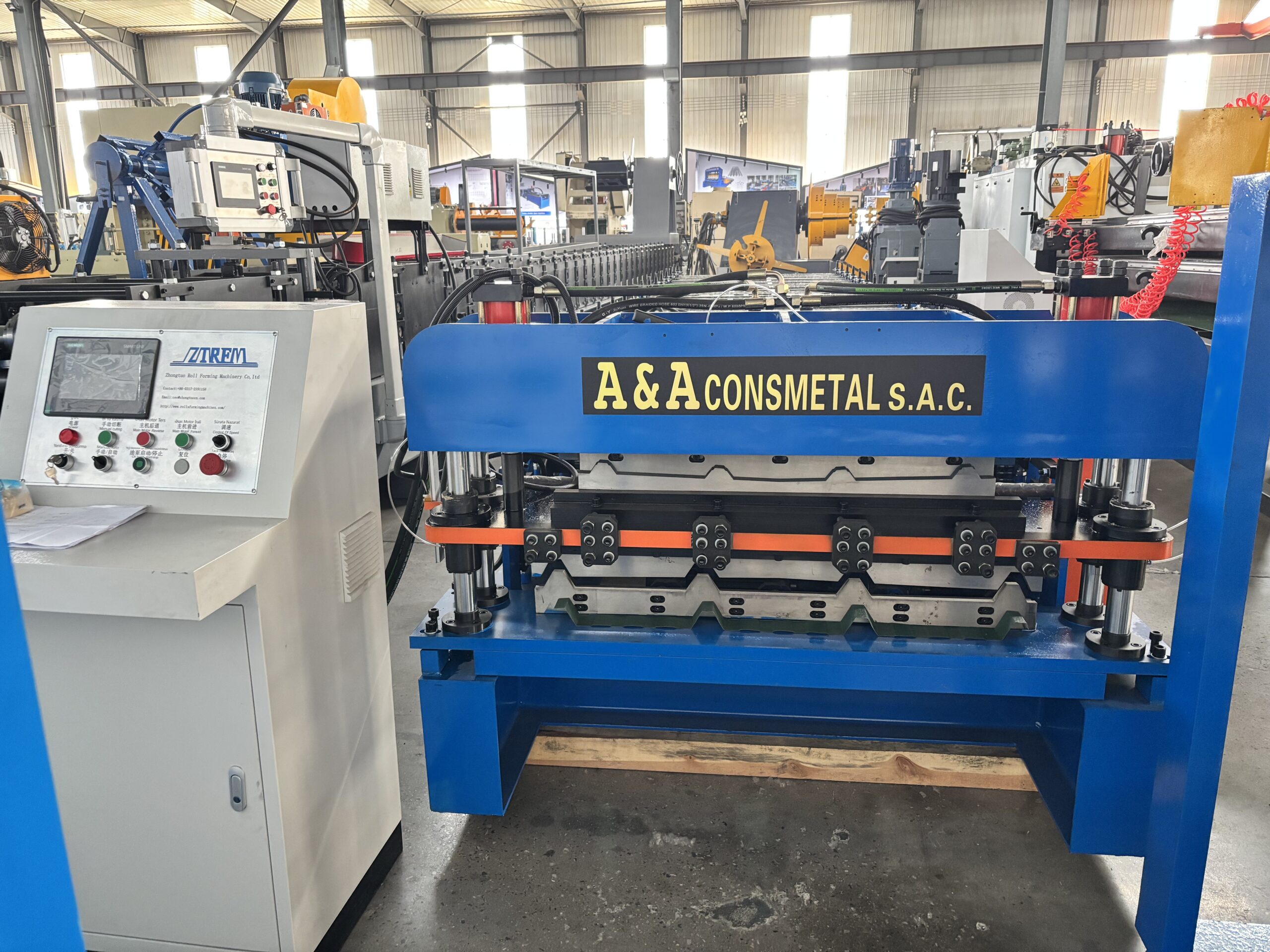

Machine photo:
