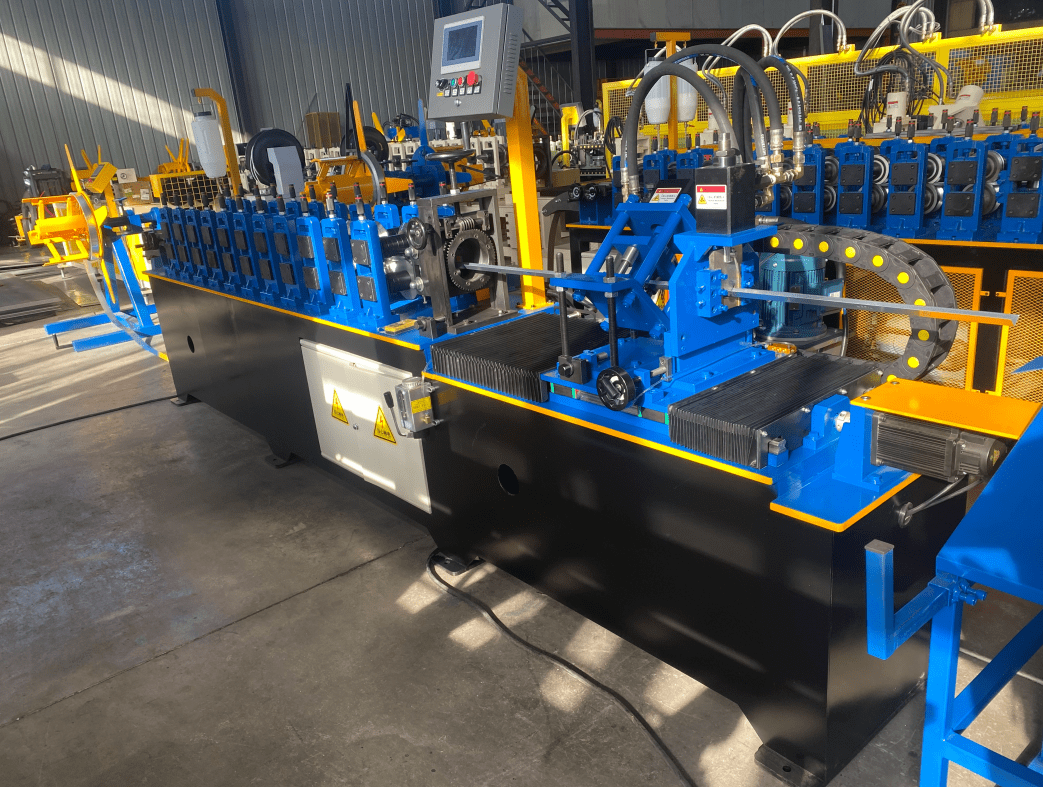

The High Speed Metal Steel Iron Angle Plaster Drywall Corner Bead Machine is an automated device that continuously rolls metal strips into standard angle steel through cold bending processes, widely used in construction, power, transportation, and other fields. Such equipment typically integrates uncoiling, rolling, and fixed-length cutting into one system, achieving fully automated production from raw materials to finished products.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.2-0.4mm (customized)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
70m/min(customized)
|
Speed is adjustable according to customer’s request
|
||

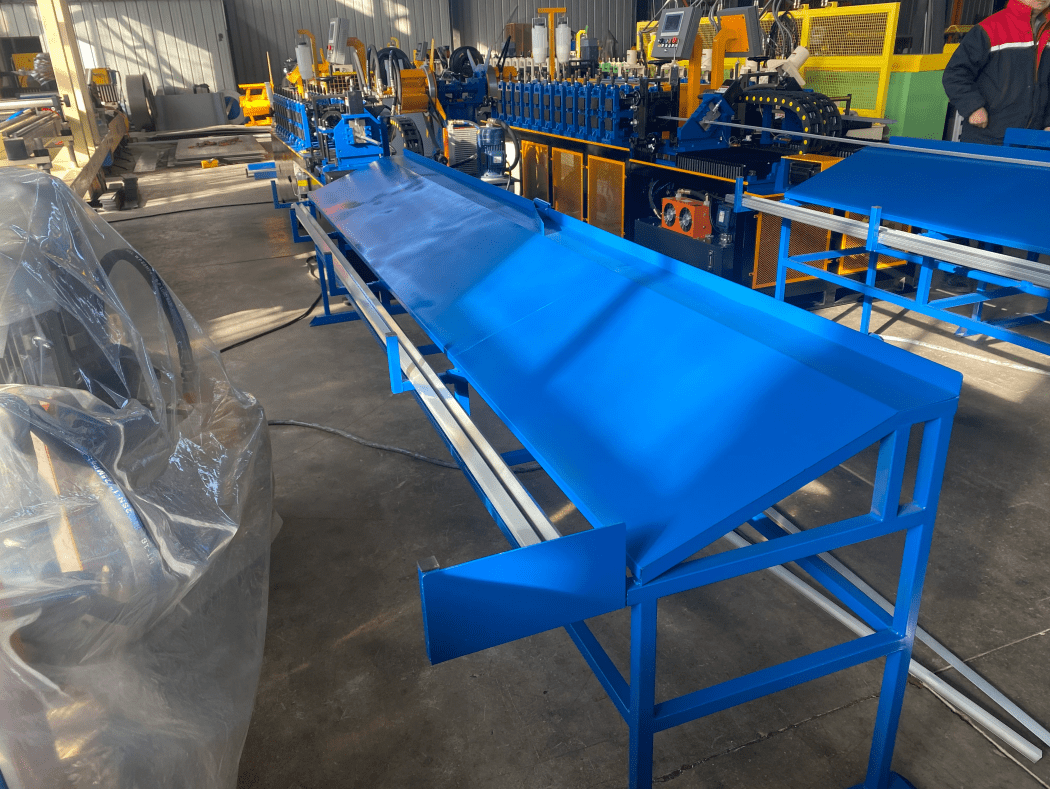

Finished product image:
Key Features：
1.High automation level:
Equipped with PLC control and frequency conversion technology, it supports parameter presetting, automatic feeding, and fixed-length cutting, featuring simple operation with precision reaching ±1mm.
2.Structurally sturdy and durable:
The machine body is primarily constructed with welded H-shaped steel, while shaft components utilize 45# solid steel treated with quenching. The surface of the pressure roller is coated with hard chrome plating to enhance wear resistance and longevity.
3.High efficiency and energy saving:
Compared to traditional cutting and welding processes, cold bending forms without material waste, consumes low energy, and achieves a production speed of 8 to 12 meters per minute.
4.High Flexibility:
Different specifications of angle steel can be produced by replacing molds or adjusting roller sets, with some equipment supporting custom production of unequal-sided angle steel.
Typical Application Scenarios：
• Construction Industry: Used for producing structural components such as light steel keels, supports, and unequal angle steel for tower cranes.
• Power and Communication: Standard angle steel components required for manufacturing transmission towers and signal tower frames.
• Mechanical Manufacturing: Provides high-strength support materials for equipment frames and brackets.
• Ventilation Engineering: Providing angle steel flanges required for the production of metal air ducts.
