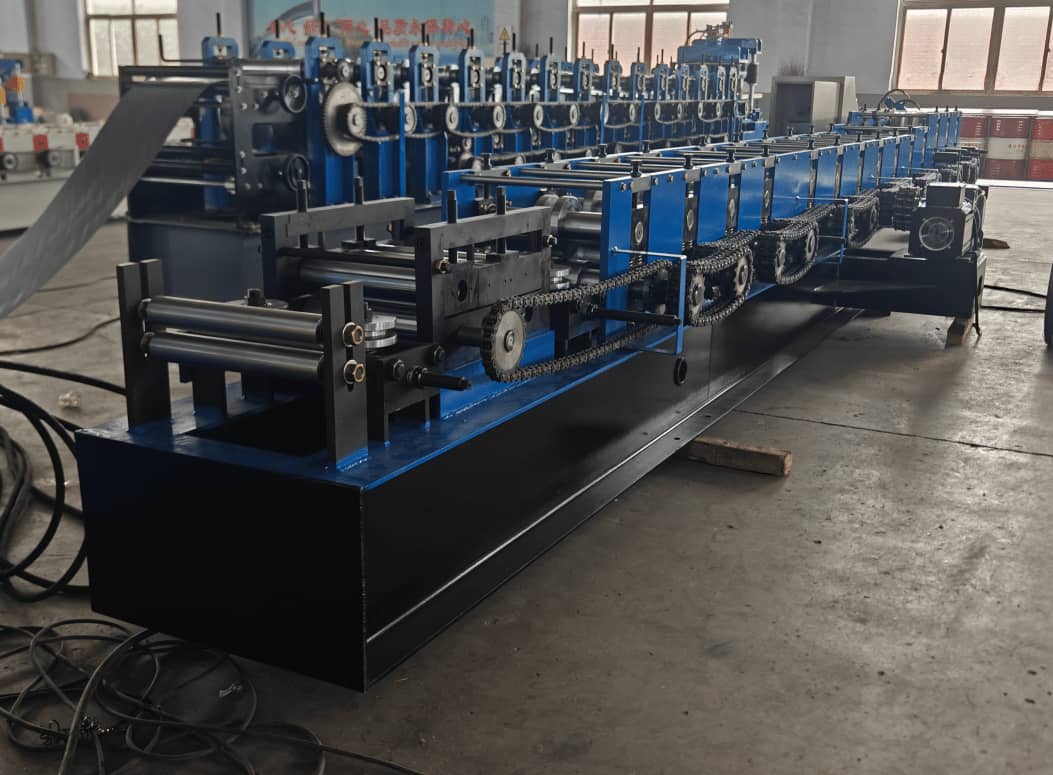

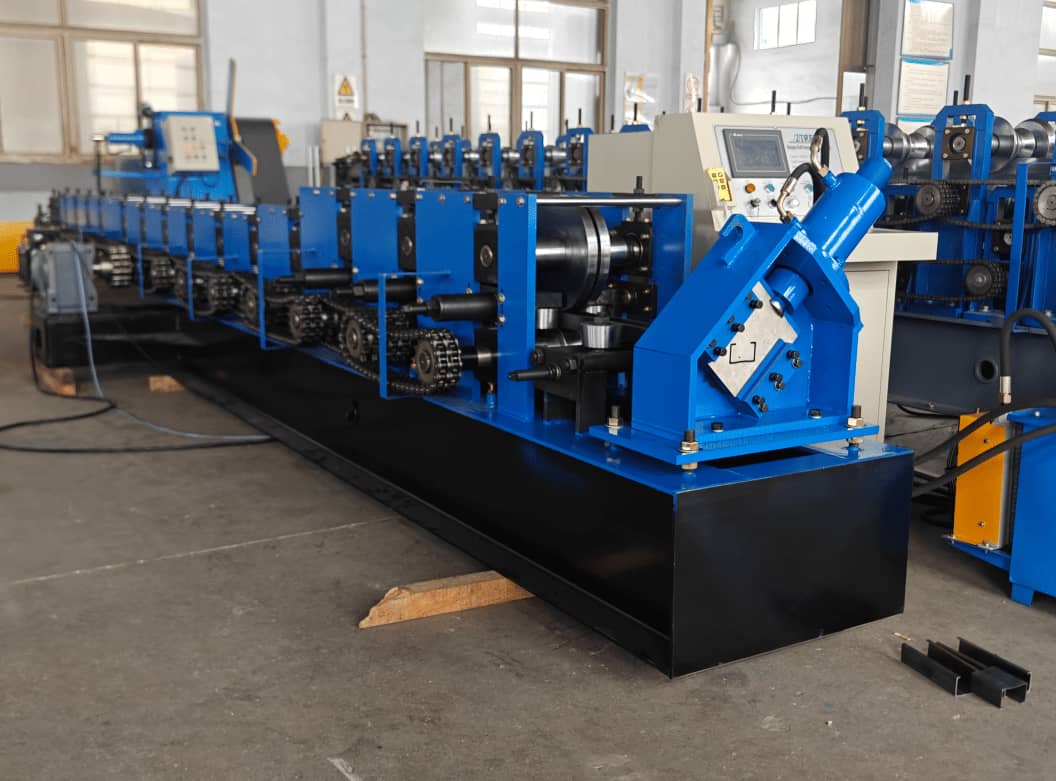

0.7-2MM C Purlin Roll Forming Production Line Steel Purlin Making Machine is an automated equipment that uses cold bending technology to continuously roll steel strips into C-shaped section steel. It is widely used in fields such as construction, photovoltaics, and warehousing, and has the characteristics of high efficiency, precision, and high degree of automation.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.7-2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
14 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Pattern diagram:
Core Features：
1.High automation production:
integrating automatic feeding, leveling, forming, punching, fixed length cutting and palletizing functions, using PLC control system to achieve one click operation, greatly reducing manual intervention.
2.Multi specification quick changeover:
flexible adjustment, some models can complete changeover within three minutes, meeting the production needs of small batches and multiple varieties.
3.High precision forming capability:
The rolling mill is made of high hardness materials such as GCr15 or GCr12Mov, combined with a precision transmission structure, and the dimensional error can be controlled within ± 0.5mm to ensure assembly accuracy.
4.Efficient and energy-saving design:
The main engine power is usually between 15-22kW, and the discharge speed can reach 8-30m/min. Some high-end models can produce over 2000 units per day, with a scrap rate of less than 0.3%.
Application scenarios：
• Steel structure buildings:
used as roof purlins, wall beams, and can also be combined into lightweight roof trusses, brackets, and other components, suitable for large-span buildings such as factories, warehouses, and exhibition halls.
• In the field of new energy：
it is used to produce solar photovoltaic brackets and wind power tower components, meeting the requirements of high-strength and corrosion-resistant outdoor installation.
• Mechanical manufacturing:
applied to the mass production of structural components such as automotive beams, cable trays, and highway guardrail panels.
• Storage and logistics:
Manufacturing load-bearing components such as shelf columns and beams, supporting customized edge rolling and punching designs to improve safety and assembly efficiency.
