In today's rapidly developing metal roofing system, ridge tiles serve as the first line of defense for roof waterproofing, and their quality directly affects the overall sealing and durability of the building. The Ridge Cap Roll Forming Machine, as the core equipment for producing metal roof tiles, is helping global roofing material manufacturers achieve dual improvement in production capacity and quality with its high-precision molding, fully automated production, and excellent stability.

What is Ridge Cap Roll Forming Machine?

The Ridge Cap Roll Forming Machine is a high-precision cold bending equipment designed to gradually roll metal coils through multiple precision arranged rollers to form the ridge tile components required for roof ridges. The equipment continuously cold bends metal coils at room temperature without the need for high temperature heating, effectively avoiding the impact of thermal deformation on material coatings and structural strength.

The standard production process is: uncoiling → feeding → roll forming → hydraulic punching → cutting to length → finished product output. The entire production line is coordinated by a PLC control system, and operators can set parameters such as board length and production quantity through a touch screen, achieving intelligent production management.

Application Areas：

The ridge tile components produced by the ridge tile forming machine are widely used in various building scenarios:

• Industrial buildings:
Roof ridge tile systems for steel structure factories, logistics warehouses, and manufacturing workshops

• Commercial buildings:
Roof waterproof decorative components for supermarkets, shopping malls, and public facilities

• Civil buildings:

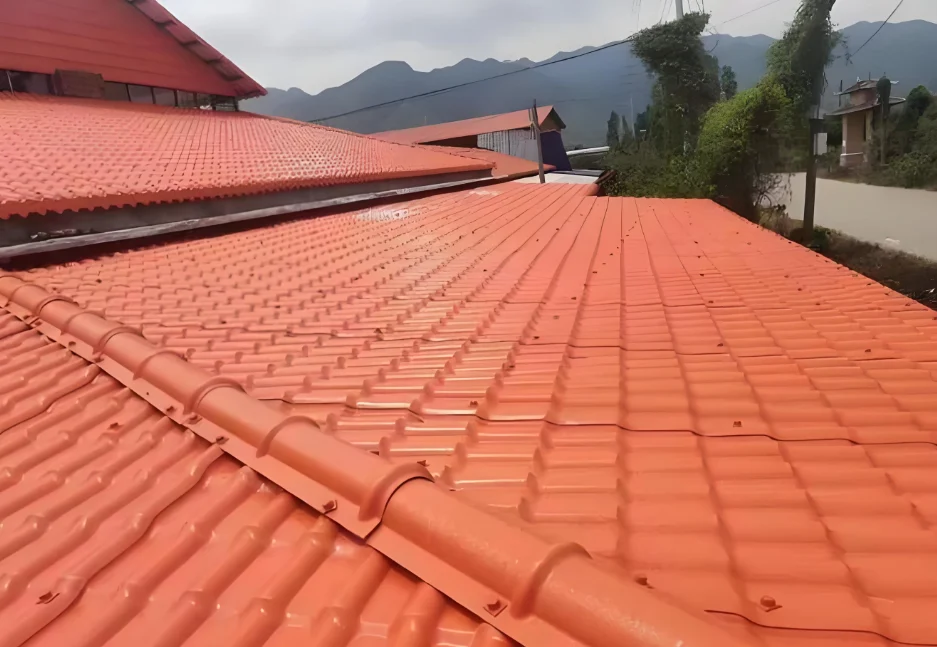

installation of roof tiles for residential roofs, villas, garages, and canopies

• Light steel buildings:
spine tile production for light steel villas and simple steel shed roofs, beautiful and elegant

Roof tiles also have significant advantages in on-site installation. The spine tiles produced by automated molding machines have good dimensional consistency and can be quickly assembled, greatly reducing on-site cutting and adjustment operations. Its precise cross-sectional angle can perfectly fit the roof slope, ensuring a sealing effect.

Product Attributes :

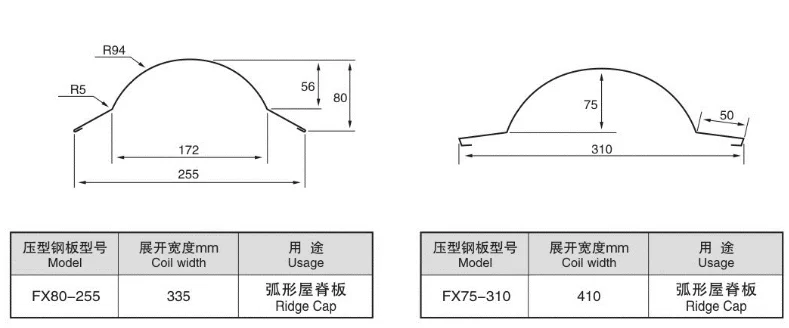

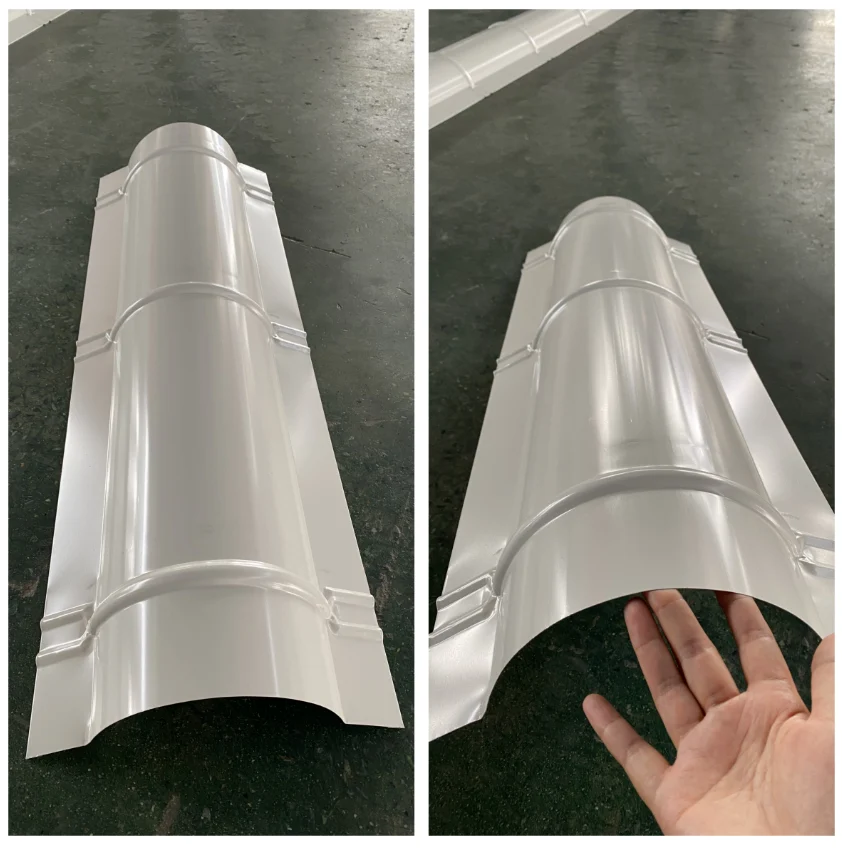

Pattern diagram:

Core Advantages：

1、 High precision molding, stable quality
The equipment adopts precision machining rollers, and the roller surface is quenched and plated with hard chromium, combined with multiple progressive cold bending processes to ensure the accuracy of the cross-sectional dimensions and surface quality of the finished ridge tiles. The equipment can control the cutting tolerance within ± 1mm, effectively ensuring the perfect assembly of the ridge tiles on the construction site. The finished ridge tiles have smooth edges and precise angles, which can effectively reduce the workload of sealing treatment and improve the overall waterproof performance of the roof.

2、 Fully automated production, efficiency improvement
Compared to traditional manual bending methods, automated ridge tile forming machines can achieve fully automatic continuous production from coil feeding to finished product output. Traditional bending machines require manual cutting of the coil material and then bending it one by one, which is not only time-consuming and labor-intensive, but also prone to injury to workers, and the aesthetic and strength of the finished product are difficult to guarantee. The automated ridge tile forming machine can solve all the above problems, with a production efficiency of 10-20 meters per minute. In fully automatic operation mode, only one operator is needed to manage the entire production line.

3、 Online punching and intelligent sizing
The equipment supports online hydraulic punching, which can synchronously complete the hole processing on the ridge tile during the forming process, reducing secondary processing steps and improving overall production efficiency. The fixed length cutting adopts a hydraulic shearing system, and the cutting tool is made of Cr12MoV material. After quenching treatment, the incision is smooth and free of burrs, without damaging the cross-sectional shape of the ridge tile.

4、 Flexible customization, widely adaptable
The equipment supports processing various metal coils with a thickness of 0.3-0.8mm, including galvanized sheet (GI), pre coated color coated sheet (PPGI), aluminum zinc sheet (GL), etc. We can customize roll molds and forming passes according to customer needs, and produce various cross-sectional specifications such as V-shaped ridge tiles, trapezoidal ridge tiles, and curved ridge tiles. The rolling mill mold is made of 45 # high-quality steel, combined with precision machining and assembly technology, and can adapt to different roof slopes and building styles.

5、 Durable and sturdy structure
The formed main frame adopts a welded structure of 300-450H steel, which undergoes stress relief treatment and precision machining to effectively prevent deformation of the body during long-term use. The roller shaft is made of 45 # high-quality steel, and the transmission system adopts chain wheel transmission to ensure stable output under high-intensity continuous operation.

Frequently Asked Questions (FAQ)：

Q1: What types of ridge tiles can be produced by the ridge tile forming machine?

The equipment can produce various cross-sectional specifications such as V-shaped spine tiles, trapezoidal spine tiles, semi-circular (curved) spine tiles, etc. We can also customize and produce special accessories such as ventilation spine tiles, end caps, corner tiles, etc. according to customer needs. We can design customized rolling mill molds for customers by providing plate drawings or samples.

Q2: Can this device produce ridge tiles with different roof slopes?

Okay. By replacing or adjusting the rolling mill molds, the equipment can produce ridge tiles that are compatible with different roof slopes. Typical equipment can cover a slope range of 1:12 to 4:12, and can also customize molding solutions with larger angle ranges according to customer needs.

Q3: How to ensure the forming accuracy of the equipment?

Precision assurance comes from three levels: precision machining and quenching treatment of the rolling mill to ensure accurate forming contours; Real time monitoring and adjustment of production parameters by PLC closed-loop control system; The hydraulic shearing system, in conjunction with the sizing device, achieves a cutting tolerance of ± 1mm. The finished ridge tiles have good consistency in size and can be quickly assembled.

Q4: Does the device support online punching?

Support. The equipment can be equipped with an online hydraulic punching system, which synchronously completes the hole processing on the ridge tile during the forming process. The punching control accuracy is high, reducing secondary processing steps and improving overall production efficiency.

Q5: What voltage and power standards does the device support?

The equipment can be customized with voltage configuration according to the power grid standards of the customer's country, supporting different voltages such as 220V, 380V, 415V, 440V, etc. The frequency can be selected as 50Hz or 60Hz, and it is a three-phase power supply.

Contact Us：

From roof waterproofing in industrial plants to ridge tile decoration in residential buildings, from sealing components in logistics warehouses to supporting installation in light steel villas, ridge tiles are serving an increasing number of construction projects worldwide with their excellent waterproof performance and beautiful decorative effects. A roof tile cold bending machine with reliable performance and stable accuracy is the core equipment for roof material manufacturers to seize market opportunities and enhance competitiveness. If you need equipment solutions and quotations tailored to your specific needs, please feel free to contact us at any time.
