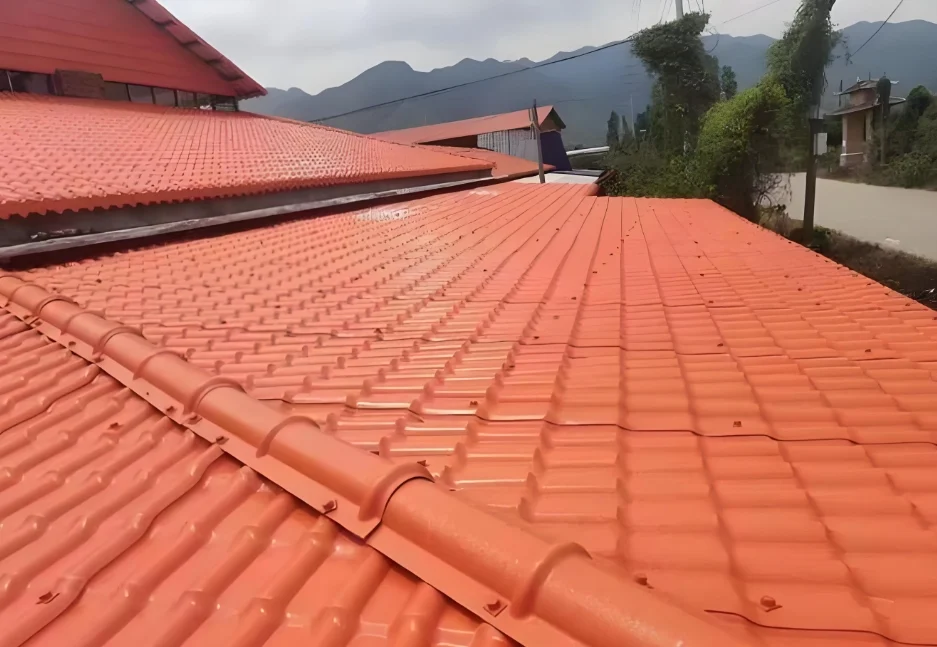

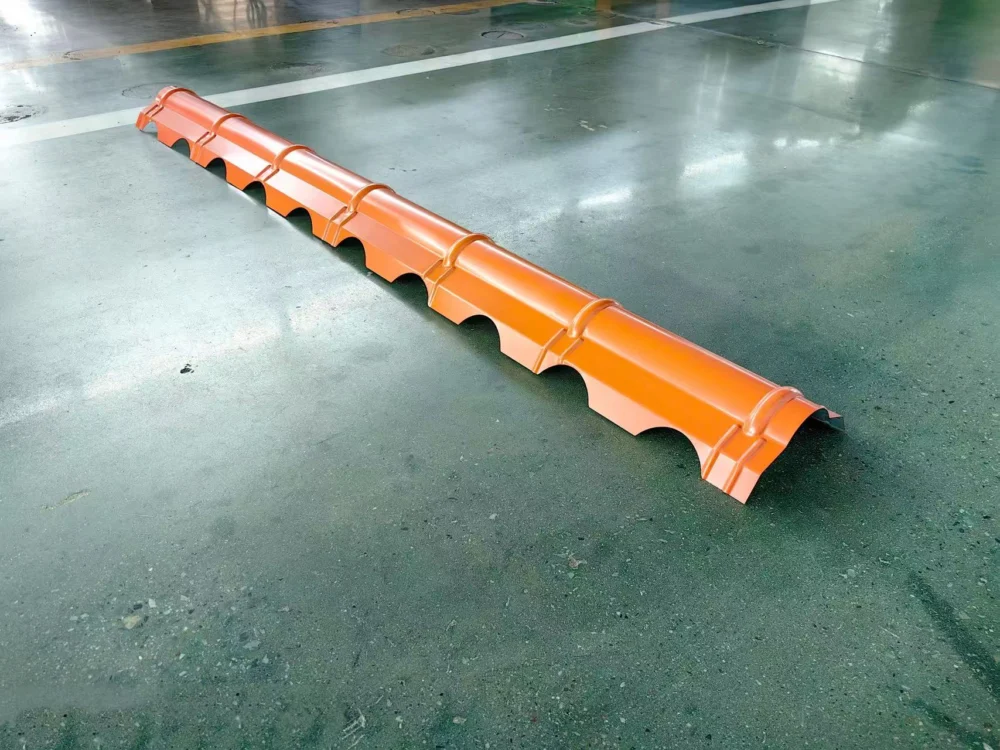

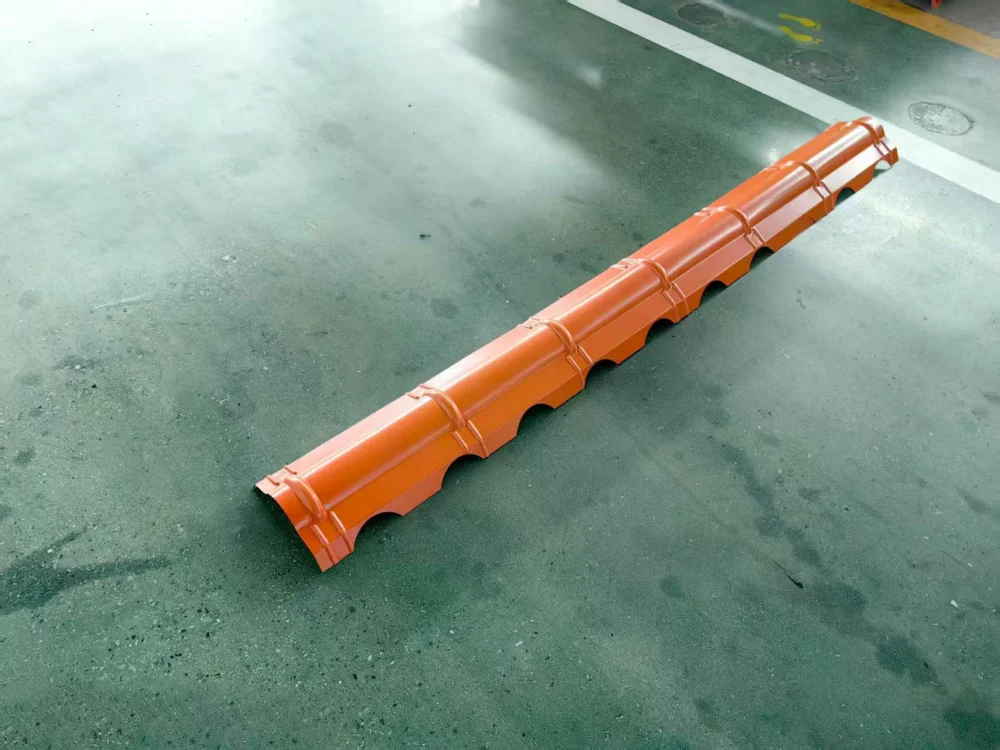

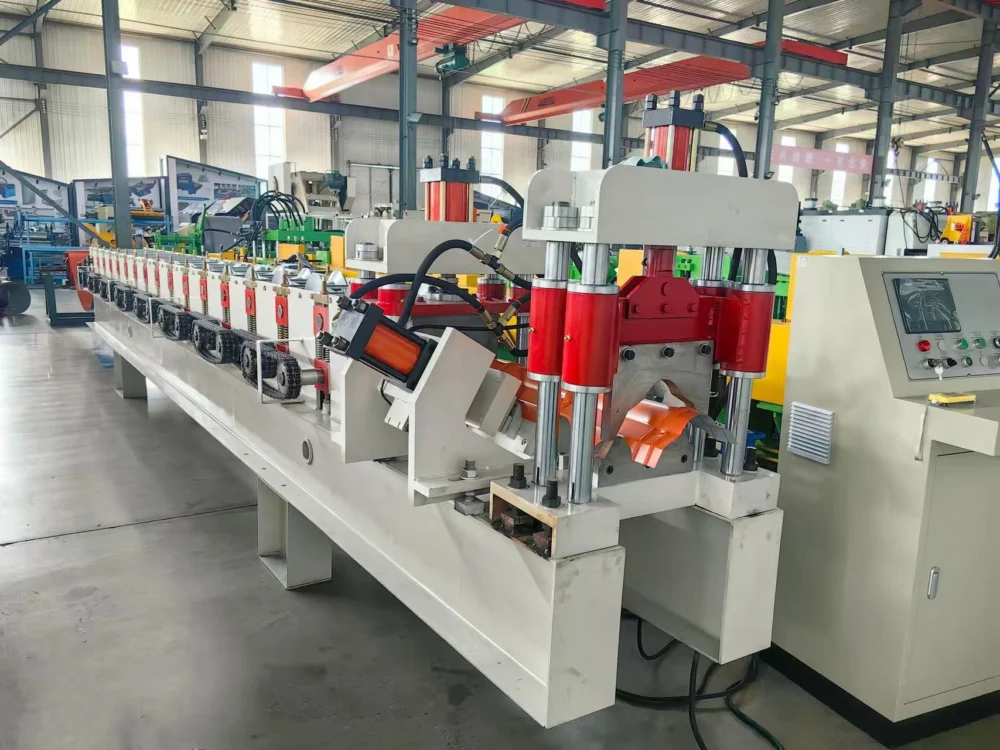

In metal roofing systems, ridge tiles are key components for ridge finishing, waterproofing, and aesthetic decoration. The waveform matching, forming accuracy, cut quality, and surface condition of the ridge tiles directly affect the waterproofing effect, construction efficiency, and overall aesthetics of the roofing system. Traditional ridge tile processing equipment often faces problems such as unstable forming, numerous cutting burrs, hydraulic system pressure fluctuations, slow changeover, and easy scratching of the color-coated steel sheet surface. Our Hydraulic Ridge Cap Roll Forming Machine for Metal Roofing is specifically designed for the efficient and precise production of ridge tiles for metal roofing, including color-coated steel sheets, galvanized steel sheets, and aluminum sheets. It integrates uncoiling, feeding, forming, hydraulic cutting, and material collection, helping customers achieve high-speed, continuous, precise dimensional, and surface-damaged ridge tile production.

Product Attributes :

Applicable Materials and Typical Specifications

Suitable for metal roofing materials such as color-coated steel sheets, galvanized steel sheets, and aluminum sheets.

Typical thickness range: 0.3–0.8 mm; Typical width range: 300–1000 mm; Ridge tile length can be customized to order.

Wave shape, width, height, forming speed, and hydraulic cutting configuration can be customized according to customer tile type and production capacity requirements.

Application Industries

Industrial plants, warehousing and logistics, commercial buildings, residential and villa buildings, agricultural facilities, metal roofing systems, roof edging and waterproofing projects, modular buildings, etc.

Why Choose Our Hydraulic Ridge Tile Cold Bending Forming Machine?

We not only provide equipment, but also a complete metal roofing ridge tile production solution. From waveform analysis, roll die development, sample production, to installation and commissioning, operation training, and after-sales support, we provide full support. Every piece of equipment undergoes rigorous testing before leaving the factory to ensure rapid production and stable operation upon arrival at the customer's site.

Core Advantages: Stable Hydraulic System, Precise Forming, and Smooth Cut

1.High-Precision Ridge Tile Forming with Excellent Waveform Matching
Multiple precision rollers and a rigid frame ensure stable ridge tile waveform, angle, width, and height dimensions, resulting in high compatibility with metal roofing tiles, tight overlap, and better waterproofing.

2.Surface Protection Design Reduces Scratches and Indentations
Optimized roller surface material and surface treatment for easily damaged materials such as color-coated steel sheets, galvanized steel sheets, and aluminum sheets, along with protective material guides and anti-scratch devices, reduce surface scratches, indentations, and coating damage, maintaining the overall aesthetic appeal of the roof.

3.High-speed continuous production significantly improves efficiency.

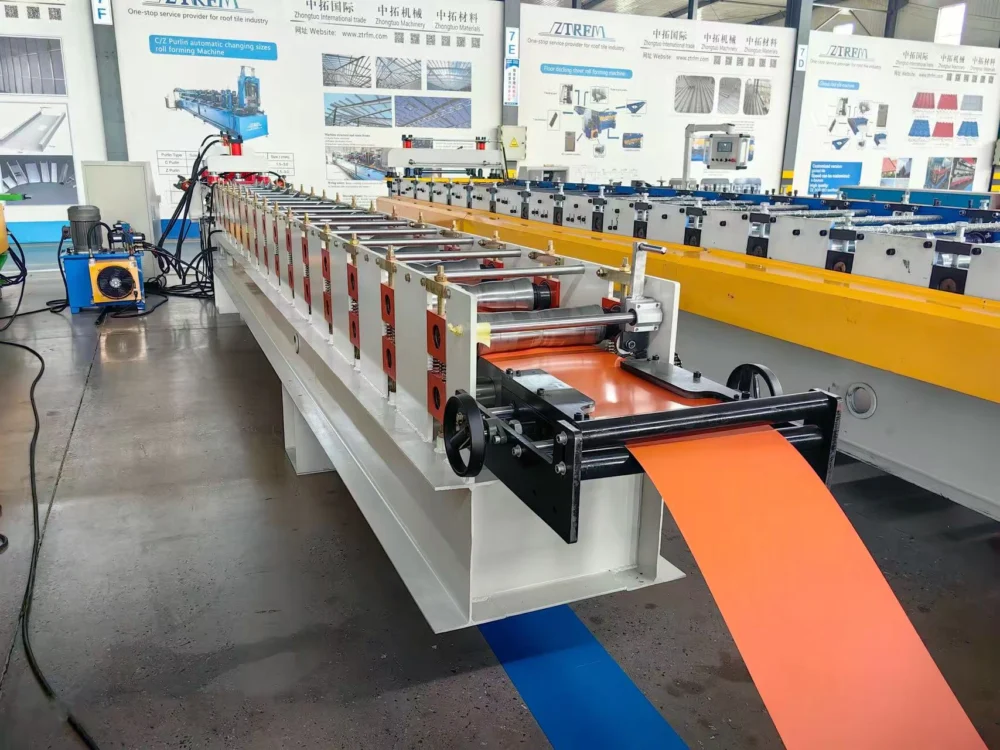

The entire line operates continuously, with a typical forming speed of 0–20 m/min, depending on the thickness, waveform, length, and configuration of the board. It is suitable for batch orders and production of roofing systems.

4.Multiple Waveforms in One Machine, Convenient Changeover
Through quick-change rollers, molds, and recipe storage, ridge tiles of different waveforms, widths, and heights can be produced, adapting to various metal roofing tile types. Orders can be switched simply by accessing parameters via the touchscreen, suitable for multi-variety, flexible production.

Frequently Asked Questions (FAQs):

Q1: What waveforms can this hydraulic ridge tile machine produce?

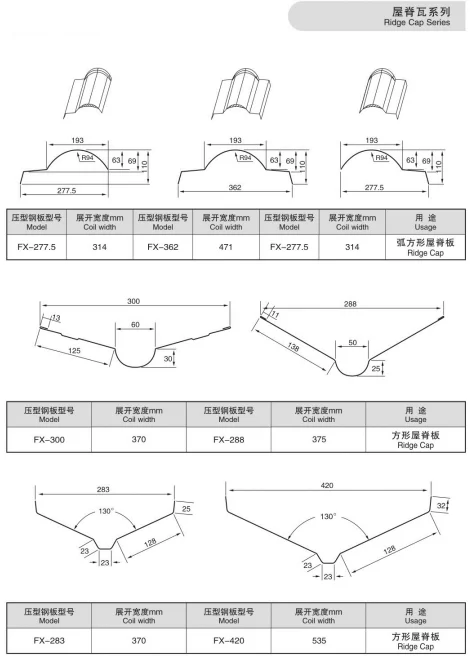

A: It can produce various metal roof ridge tile waveforms. Specific waveforms, widths, and heights can be customized using roll dies based on customer tile drawings or samples.

Q2: What thickness of sheet metal is it suitable for?

A: Typical thickness range is 0.3–0.8 mm. The specific thickness needs to be determined based on material strength, waveform, and production capacity requirements. Customization is available upon request.

Q3: What is the cut quality of the hydraulic cut?

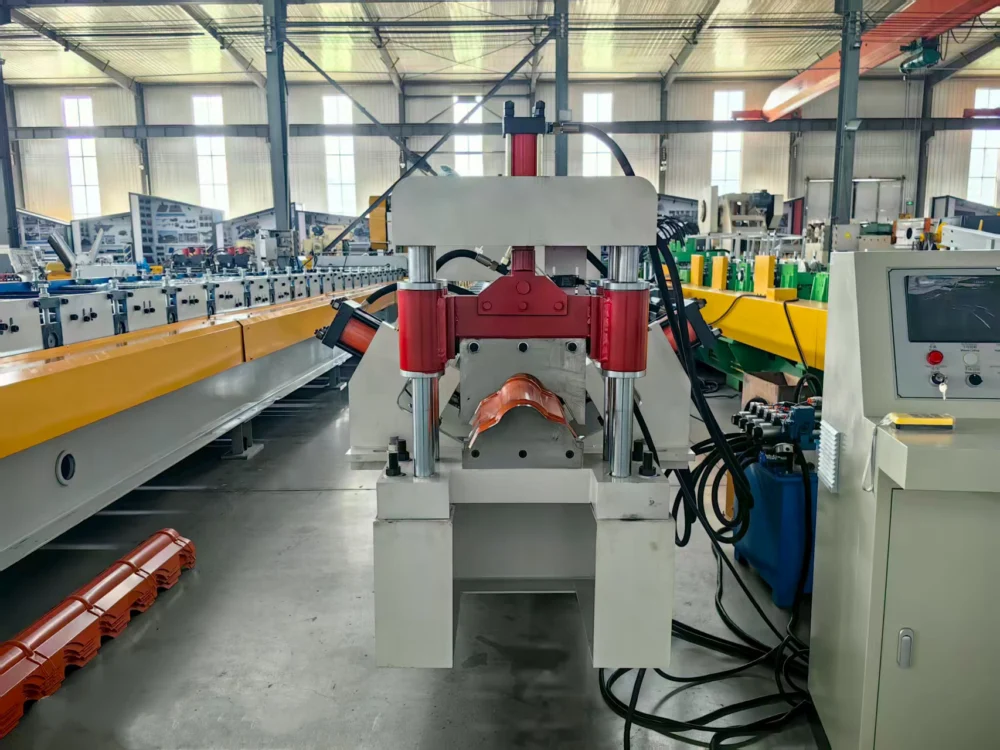

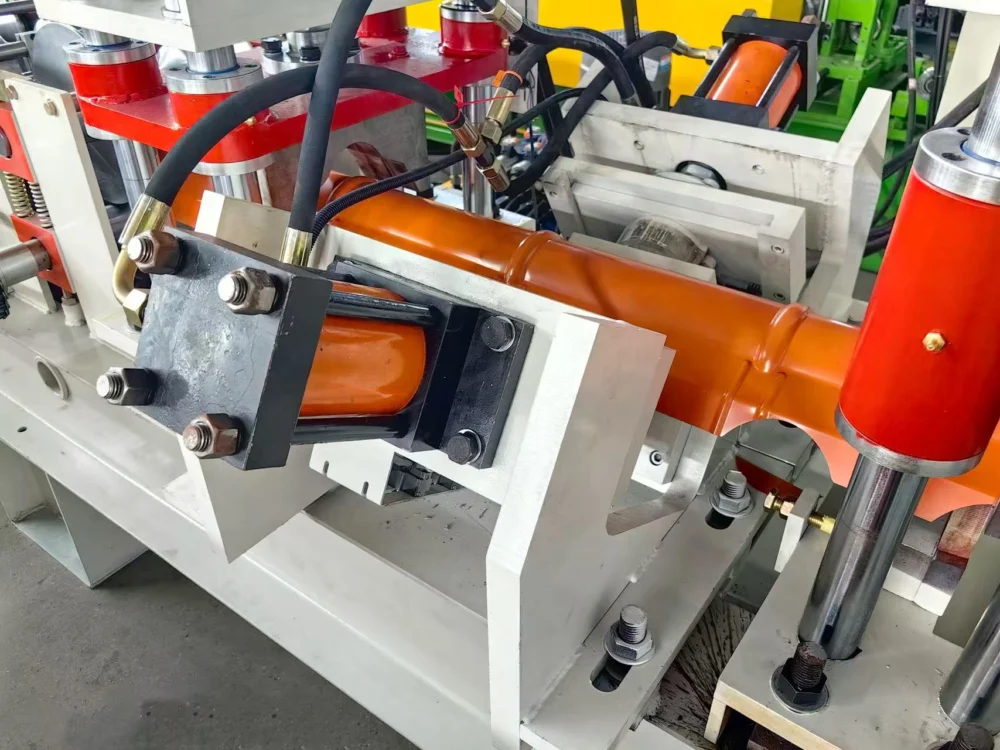

A: The hydraulic cutting system provides stable pressure, sufficient cutting force, smooth and burr-free cuts, and accurate length determination.

Q4: How is the surface of the color-coated sheet protected?

A: Optimized roller surface material and surface treatment, equipped with protective material guides and anti-scratch devices, reduce scratches, indentations, and coating damage.

Q5: What is the production speed?

A: Typical forming speed is 8–20 m/min, depending on sheet thickness, waveform, length determination, and configuration. Higher speed solutions can be customized upon request.

Q6: How to submit an AFQ (Automatic Feedback Request)?
A: Please contact us by phone, email, or the form on our website, indicating "AFQ Inquiry," and attach the material, ridge tile waveform diagram, thickness, and production capacity target. We will provide you with a customized solution and quotation as soon as possible.

Submit an AFQ now to get a hydraulic ridge tile production solution.

If you are looking for a truly efficient, precise, and stable Hydraulic Ridge Cap Roll Forming Machine for Metal Roofing, please contact us.

Submit an AFQ (Ask For Quote) and let our engineers recommend the right machine model, roll die, and hydraulic cutting configuration to help you produce metal roof ridge tiles faster, more accurately, and more easily.
