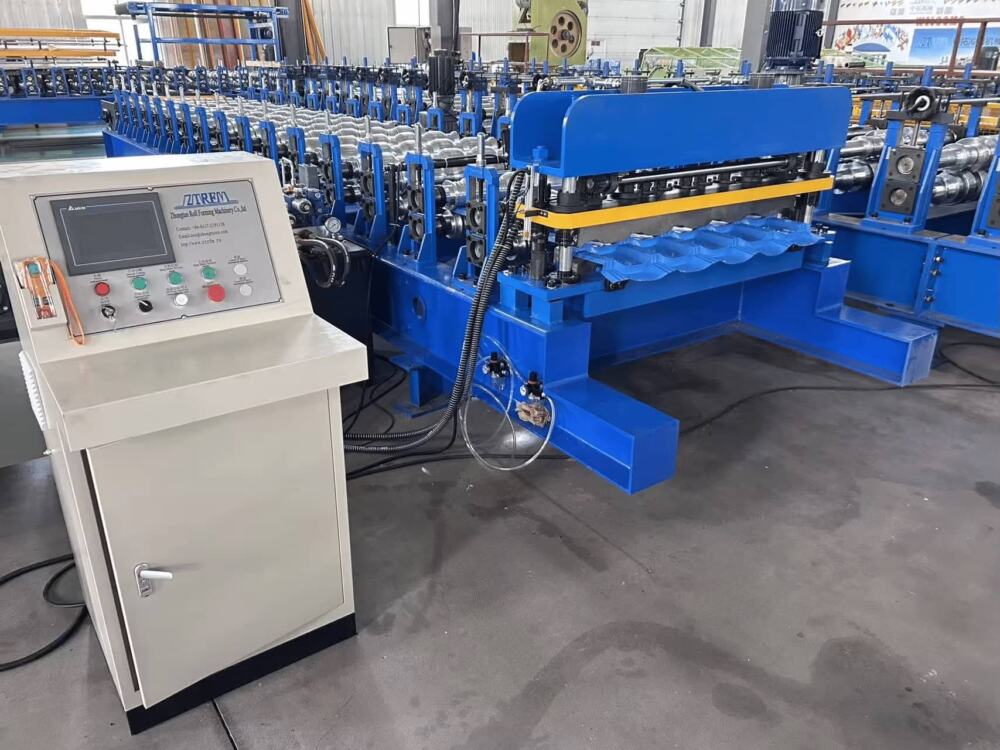

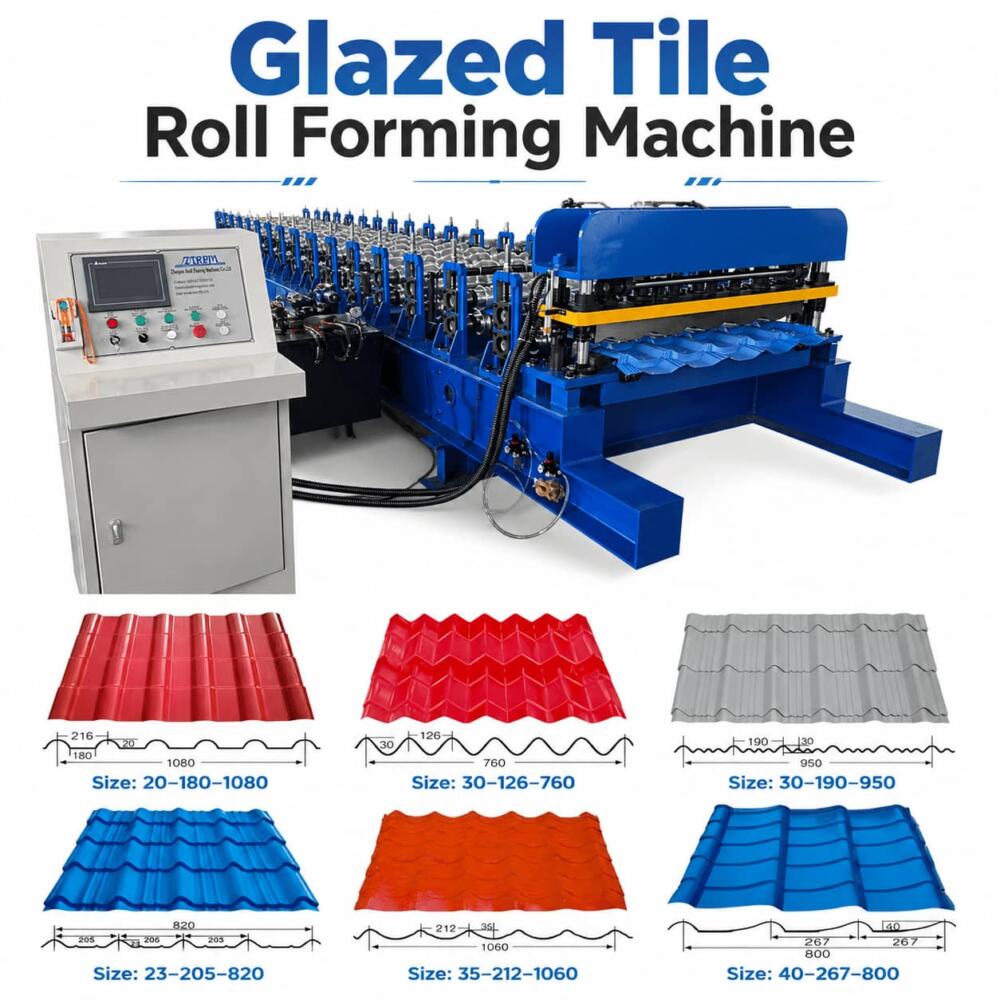

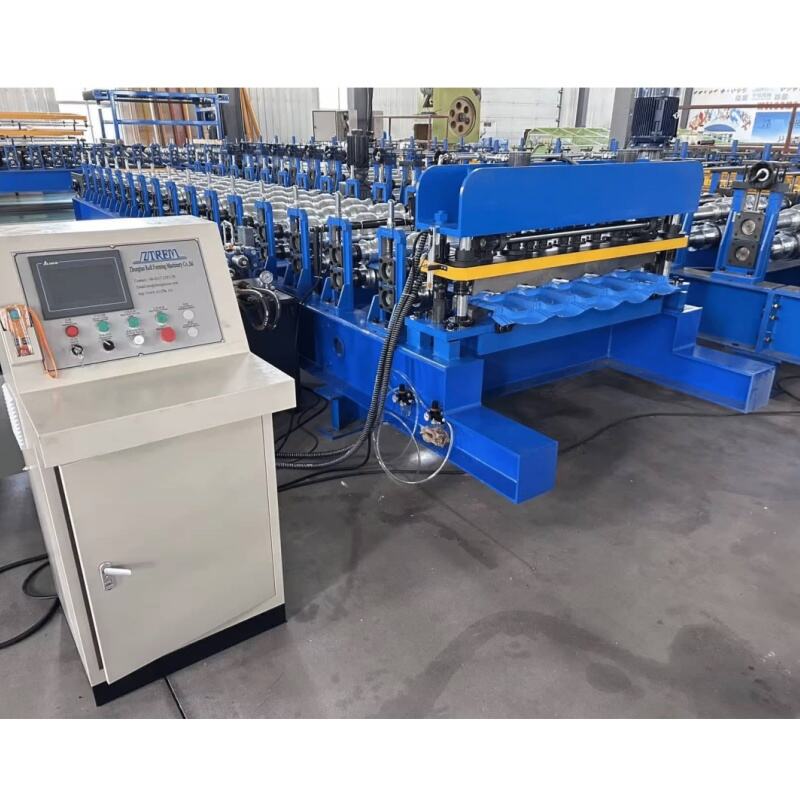

The Color Steel Roofing Sheet Glazed Tile Roll Forming Machine is a modern equipment specially designed for one-time pressing and forming of wet raw materials. It can produce various types of glass tube tiles, plate tiles, drip tiles, hook heads, as well as European style S tiles, Spanish tiles, etc. The equipment consists of an integral cast body, servo hydraulic system, alloy mold, PLC intelligent control system, and automatic feeding and discharging device. Through high-pressure molding, it endows the tile blank with high density and precise curvature, fundamentally improving the yield rate and reducing the risk of drying and firing cracking.

Compared to traditional manual and semi-automatic equipment, this model achieves a fully automatic cycle from feeding, pressing to discharging, with a daily output of tens of thousands of tiles per machine, greatly reducing the dependence on manual labor. It is the core hub for tile factories to achieve standardized and large-scale production.

Application scenarios：

• Antique architecture and temple restoration
The requirements for tile curvature, color and texture are extremely high, and most of them are small batch, multi specification orders. The machine has the ability to quickly change molds and accurately form, and can replicate classical tiles with high fidelity, providing perfect services for cultural preservation projects and Chinese style courtyard projects.

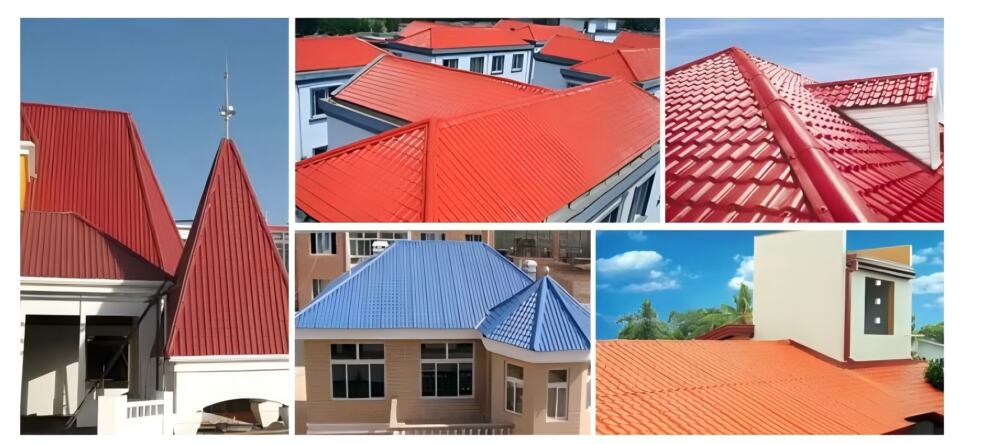

• Modern Chinese style villas and real estate projects
Large area roofs require a large number of tiles and have a tight schedule. The high efficiency and consistency of equipment can ensure timely supply of tiles, uniform paving effects, and enhance the quality of the building.

Product Attributes :

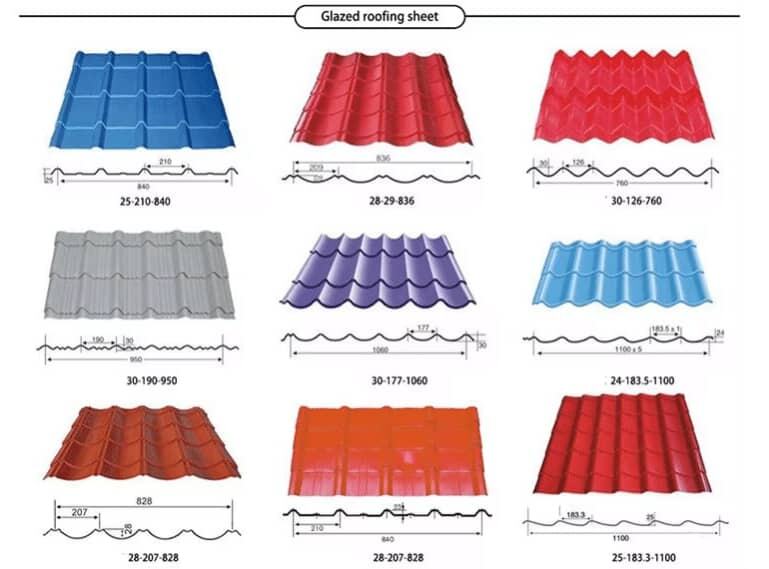

Pattern diagram：

 Core Features：

1. Precision molding, with an arc like shape
Adopting servo hydraulic control and high-precision alloy molds, the stroke control accuracy reaches micrometer level, ensuring that the curvature, thickness, and compactness of each tile are highly uniform. After paving, the roof lines are smooth, completely bidding farewell to the unevenness and wave deformation of the manual era.

2. Intelligent control, one click changeover

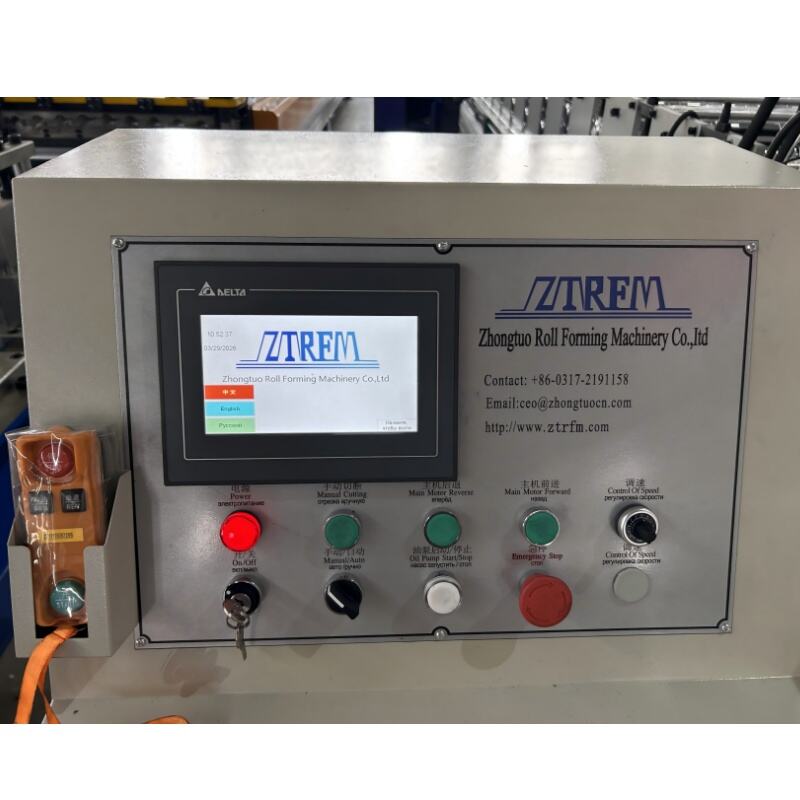

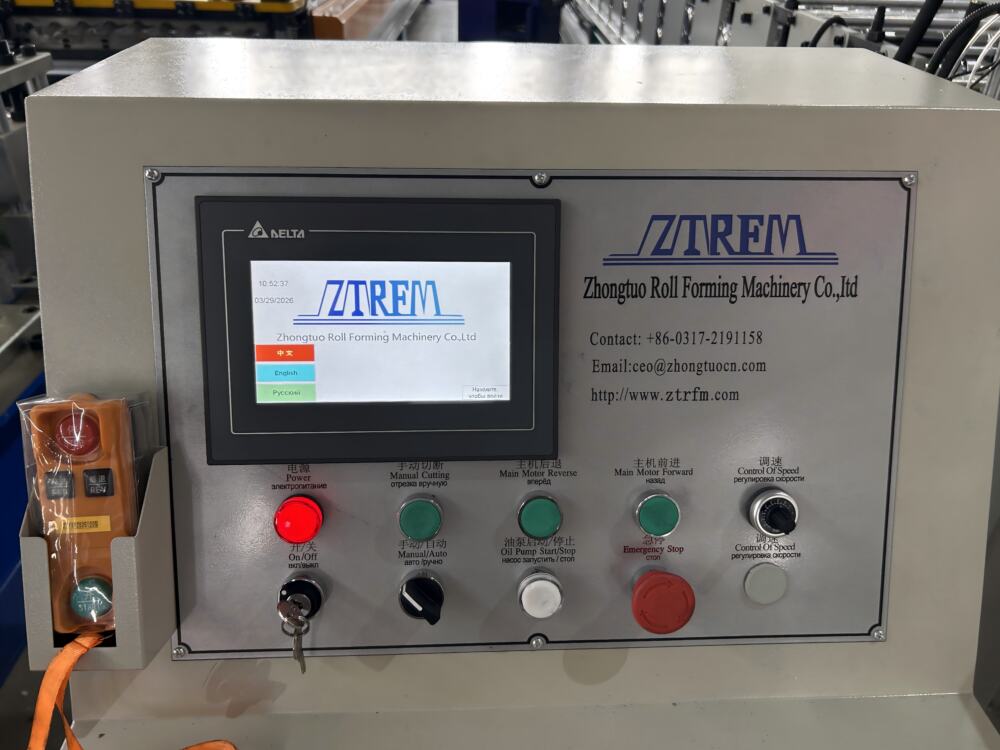

Equipped with industrial grade PLC touch screen, production parameters can be pre stored by tile type and called with one click. The system monitors oil temperature, pressure, production and other data in real time, with fault self diagnosis and alarm function. Operators only need simple training to get on duty, greatly eliminating the dependence on “experienced hands”.

3. Sturdy body, stable and durable

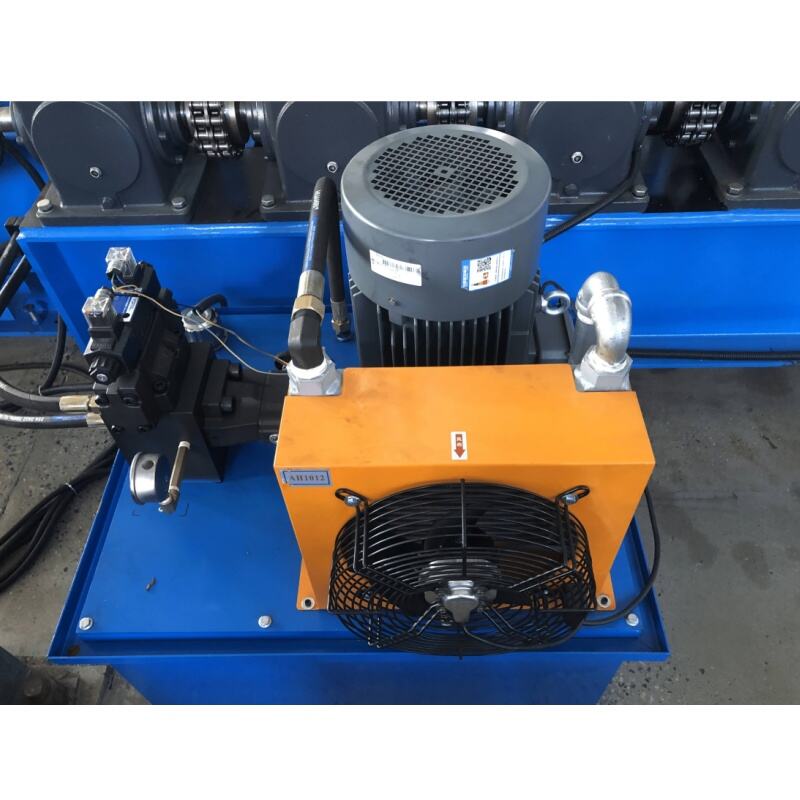

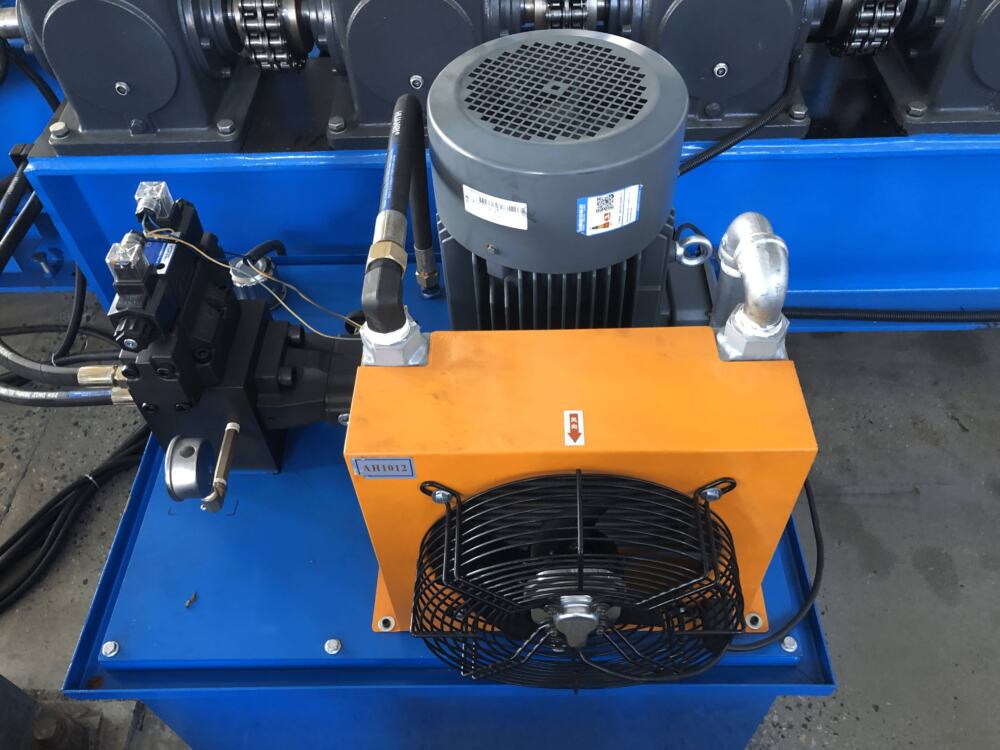

The integral casting frame undergoes annealing and aging treatment to eliminate internal stress, and can withstand high-frequency heavy load impacts without deformation. The optimized hydraulic circuit design not only provides hundreds of tons of compression force, but also achieves energy saving and noise reduction, reducing energy consumption by about 20% compared to old models, making long-term operation more economical.

4. One machine with multiple functions, flexible order taking
Quick mold change design, one set of equipment can switch and produce multiple tile types, whether it is antique glazed tiles, modern European tiles, or irregular accessory tiles, it can be competent, helping tile factories flexibly respond to diversified architectural style needs and broaden the boundaries of order acceptance.

5. Efficient rhythm, doubling production capacity
The automatic circulation speed is industry-leading, coupled with an automatic feeding and discharging system, the single shift production capacity easily exceeds that of conventional semi-automatic equipment by more than 1.3 times, and the delivery peak season can also be handled calmly.

Frequently Asked Questions (FAQ)：

Q: What specific tile types can the equipment produce?
A: The standard mold can produce mainstream glass tube tiles, plate tiles, drip tiles, hook heads, etc. By changing the mold, dozens of tile types such as European S tiles, Roman tiles, Spanish tiles, etc. can also be produced. Special tile types can provide customized mold services, covering more than 90% of roof tile varieties on the market.

Q: Are there high technical requirements for operators?
A: Extremely low. The whole machine adopts PLC touch screen control, and after the parameters are pre-set, daily production only requires one click start and monitoring. We will also provide on-site installation, debugging, and operation training, which usually takes 1-2 days to get started independently.

Q: What is the approximate daily production capacity? Is maintenance convenient?
A: Depending on the tile type and size, the daily standard tiles can reach 8000-12000 pieces. The equipment adopts a centralized lubrication system and modular hydraulic valve group. Daily maintenance mainly includes regular checks of oil level, cleaning of molds, and tightening of bolts, making maintenance very simple.

Q: How much land does the equipment occupy? How to ensure after-sales service?
A: The host covers an area of approximately 10-15 square meters (including feeding and discharging devices), and we will provide a free planning solution based on your factory layout. After sales service commitment: complete machine warranty, on-site installation, debugging and maintenance services can be provided nationwide.

Contact Us：

Make every tile precise and consistent, and make every pressing process efficient and energy-saving.
Fully automatic glass tile forming machine, using intelligent manufacturing to continue the millennium light of Oriental roofs. If you want to obtain detailed solutions and investment return analysis, please feel free to contact us at any time to embark on your journey of quality and efficiency improvement.
