ZTPFM Automatic Glazed Tile Forming Machine is an automated production line integrating functions such as feeding, forming, and cutting. Depending on the type of raw material processed, it is primarily divided into two major categories:
• Metal Sheet Forming Machine:
Using materials such as color steel plates and galvanized sheets as raw materials, it forms products through a combination of rolling and molding. Mainstream models on the market include the fully automatic 828 and 820 types.
• Resin tile production line:
Using plastic materials such as PVC synthetic resin as raw materials, it produces synthetic resin tiles through processes like extrusion and film lamination.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.4-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
16 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*1600*1600mm
|
|||
|
Weight
|
7.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed is adjustable
|
||
Main Features：
Modern glazed tile equipment widely adopts a PLC (Programmable Logic Controller) computer control system, featuring the following notable characteristics:
1.High automation:
The equipment can automatically complete the entire process from feeding, forming to fixed-length cutting, with simple operation and high production efficiency.
2.High Precision and Quality:
The shearing accuracy can typically be controlled within ±0.1mm, ensuring the finished tile surface is smooth and flat, with precise dimensions and an aesthetically pleasing shape.
3.Multi-purpose machine:
By replacing different molds, the same equipment can produce roof tiles of various specifications and styles, flexibly adapting to market demands.
4.Energy-saving and environmentally friendly:
The compact design of the equipment results in lower power consumption, which helps reduce production costs. Additionally, some resin tile products are inherently eco-friendly and recyclable.
Application Scenarios：
The tiles produced by the glazed ceramic equipment are widely used for roofing and outdoor decoration in various types of buildings due to their antique elegance, aesthetic appeal, and refined design
• Culture, Tourism, and Ancient Architecture:
The restoration and reconstruction of scenic tourist areas, pavilions, towers, and ancient buildings.
• High-end residential and commercial properties:
hotels, villas, resorts, garden-style factories, and exhibition halls.
• Urban renewal:
The “flat-to-sloped” roof conversion project (transforming flat-roofed buildings into pitched roofs) aims to enhance aesthetics and improve thermal insulation performance.

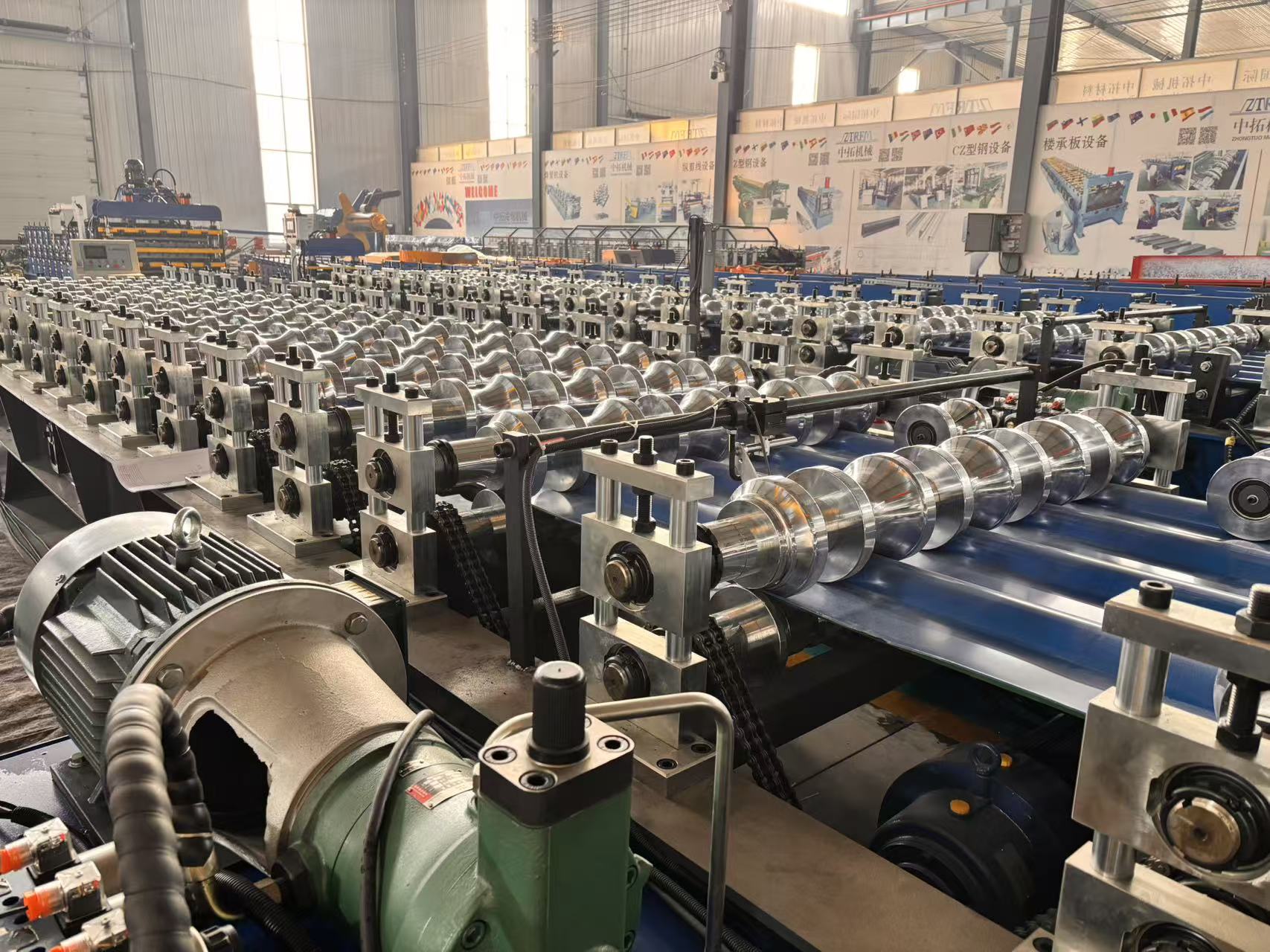

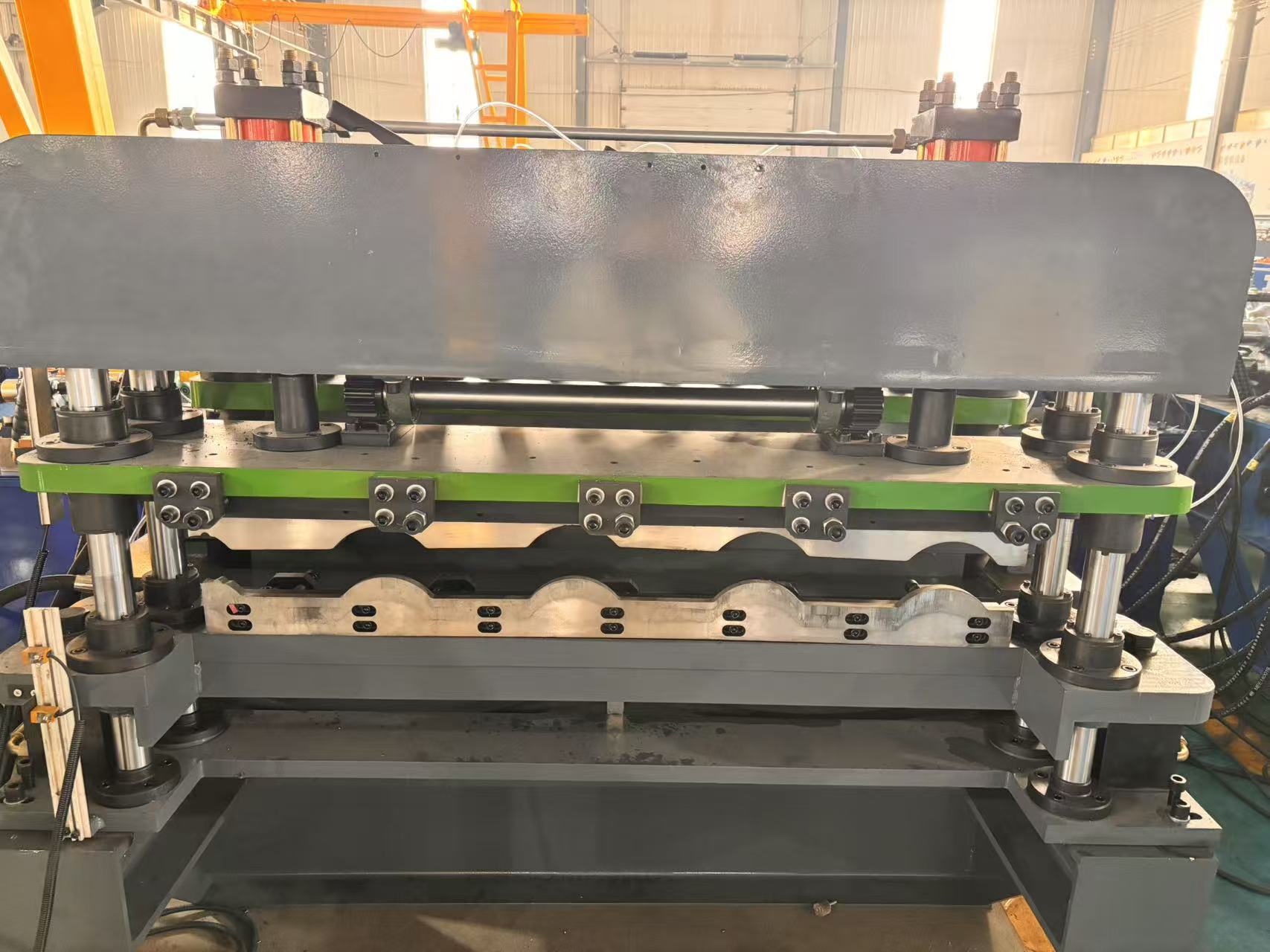

Machine photo:
