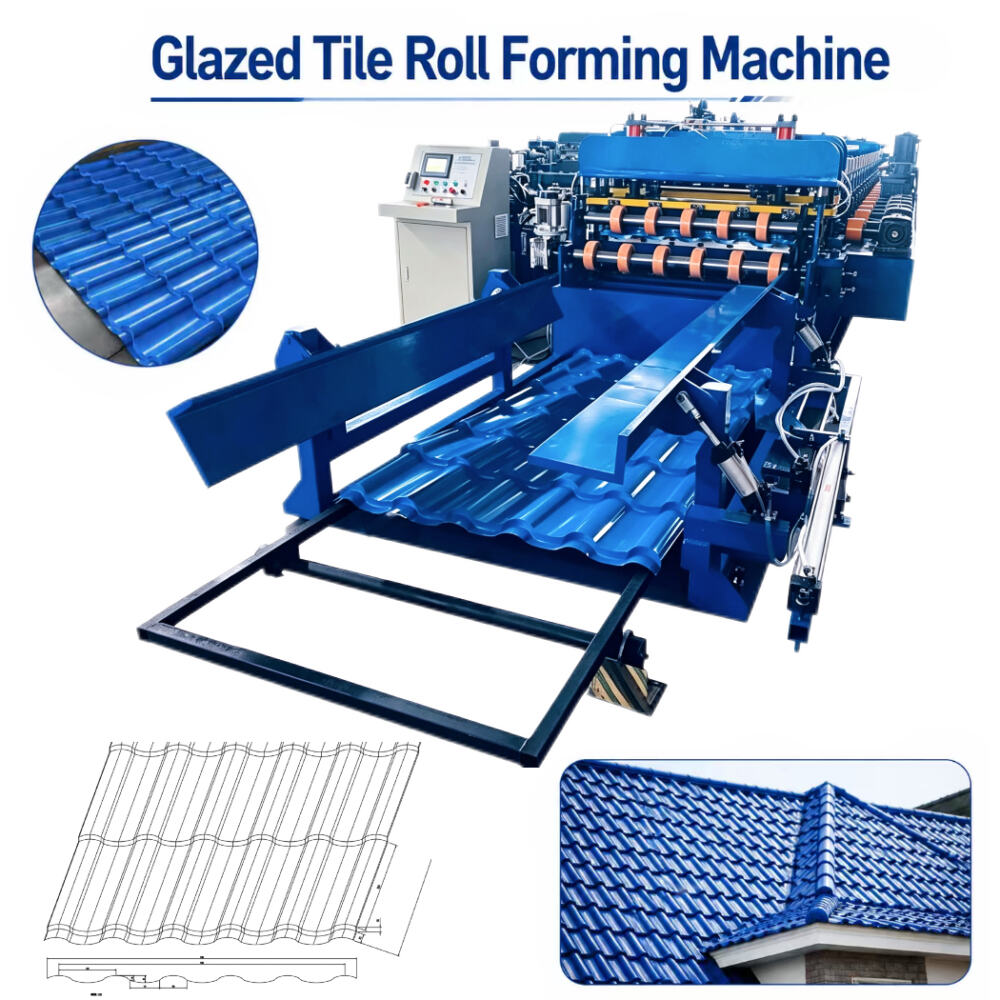

The High Speed Fully Automatic Glazed Tile Roll Forming Machine is a specialized automation equipment used for continuous rolling production of metal antique glazed tile boards. It can gradually cold bend metal coils such as color coated steel plates, aluminum zinc coated steel plates, and aluminum magnesium manganese alloy plates through multiple sets of high-precision rollers, forming decorative roof panels with three-dimensional corrugations, distinct concave and convex shapes, and resembling traditional tube tiles or flat tiles in one go.

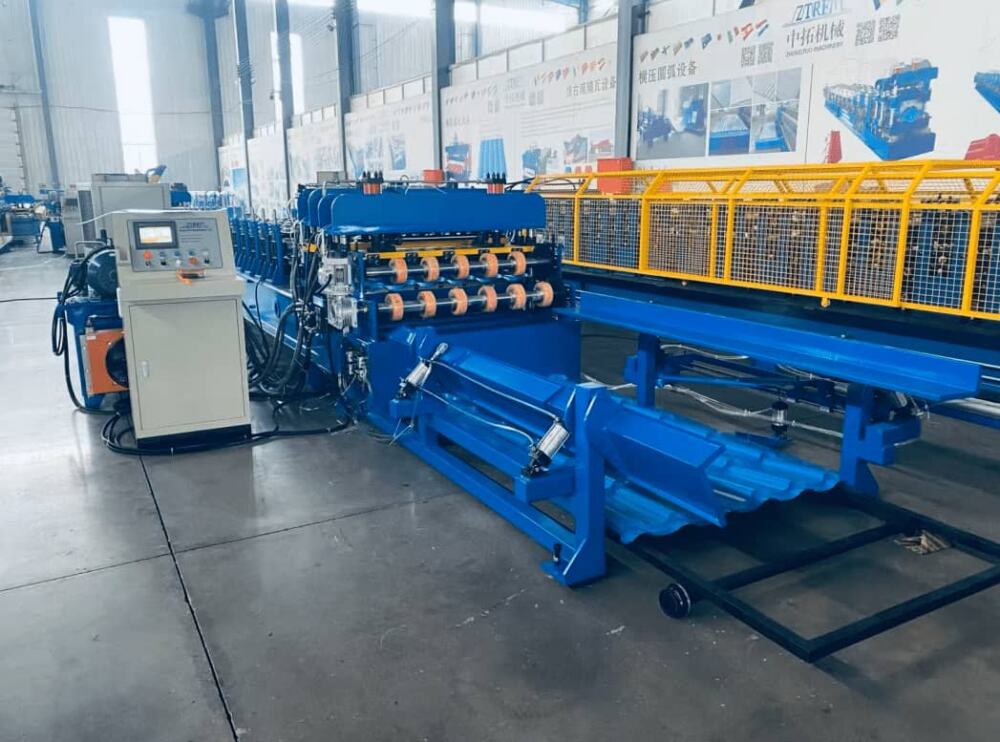

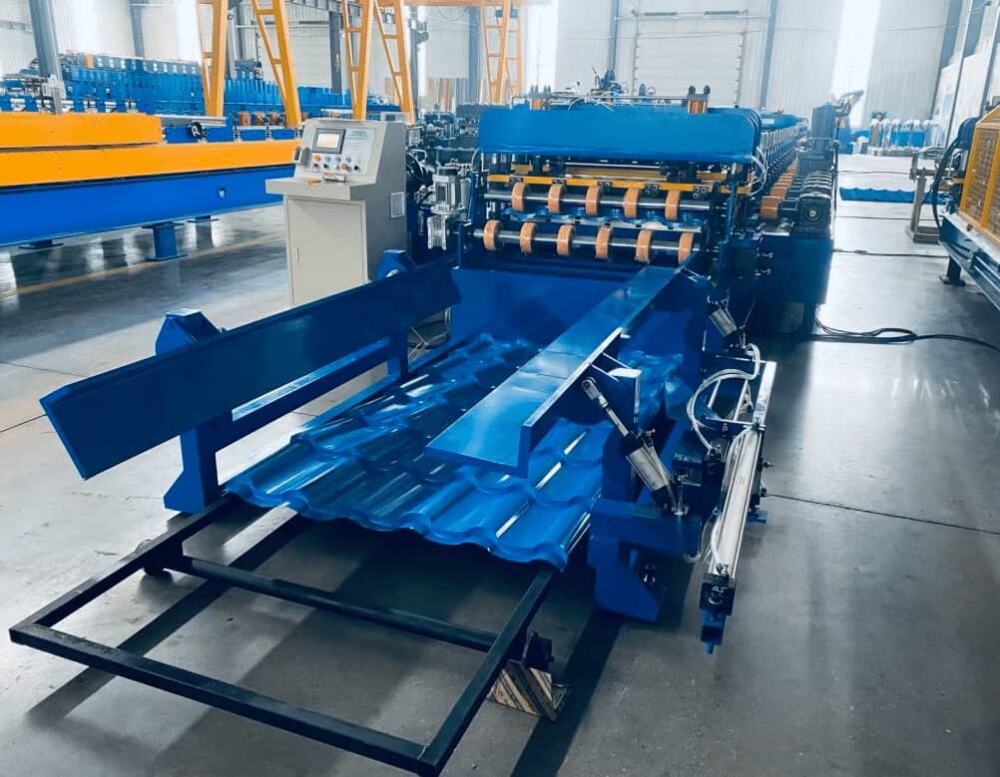

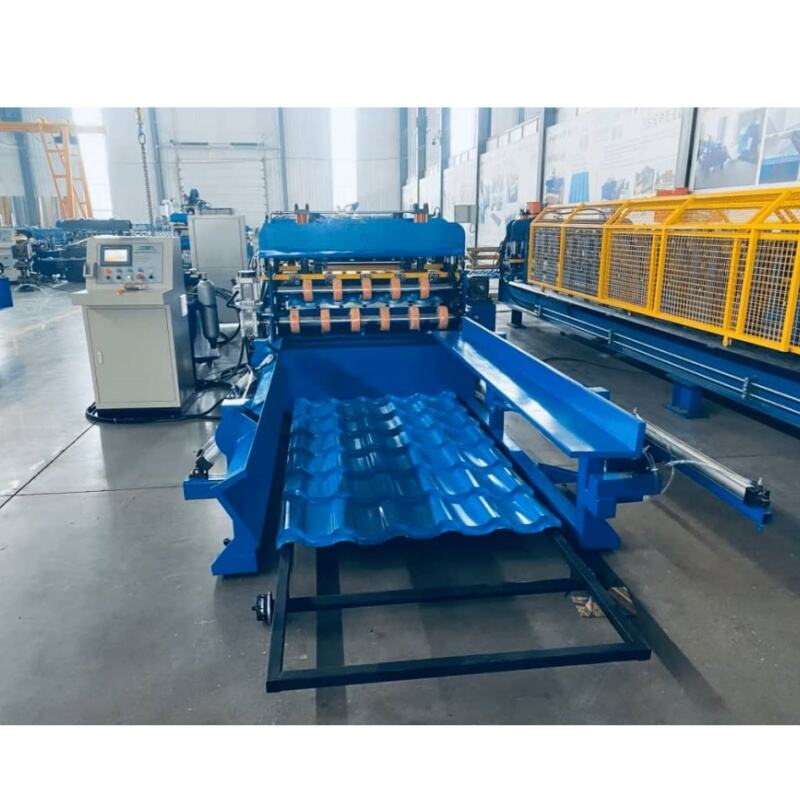

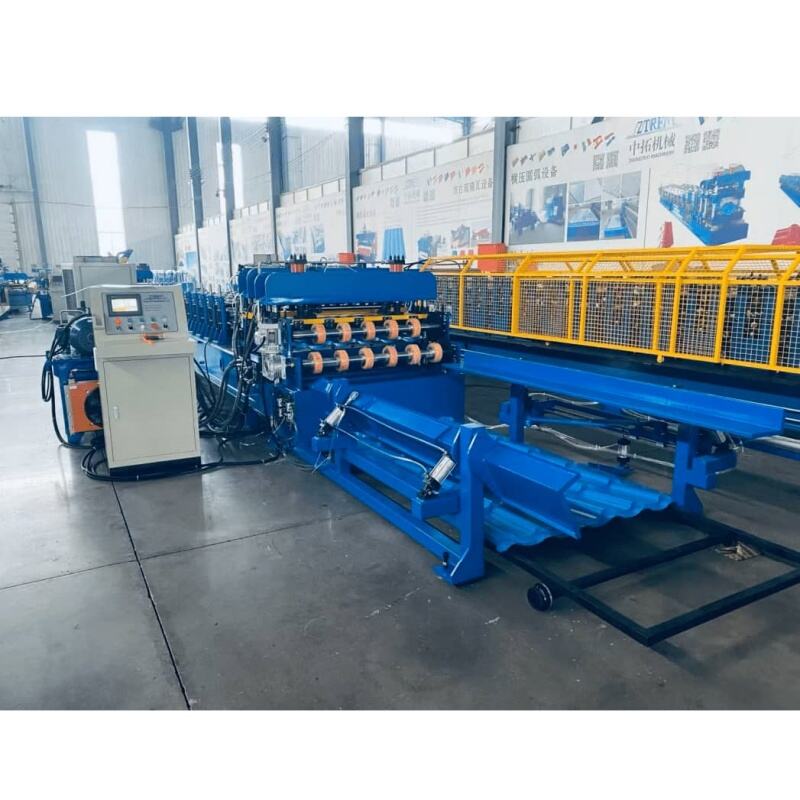

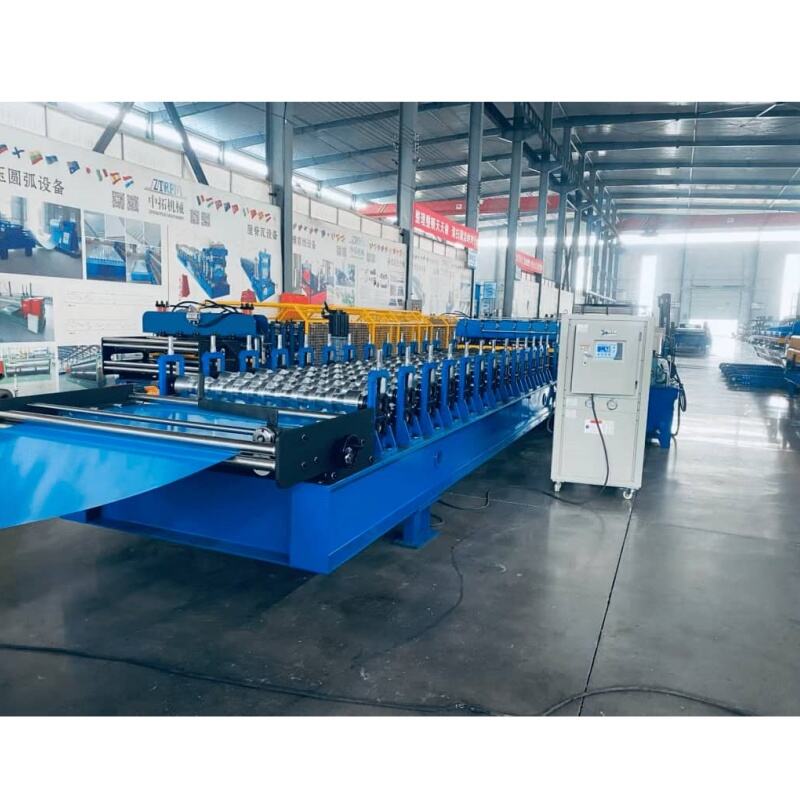

The entire production line usually consists of a hydraulic unwinding machine, a servo feeding leveling device, a cold bending forming host, a hydraulic/servo flying shear system, a computer control cabinet, and a finished product pallet. The glazed tile boards it produces not only perfectly replicate the stacking effect of classical tiles, but also overcome the shortcomings of traditional tiles such as brittleness, self weight, and slow construction. They are the new favorite of modern antique architecture, Chinese villas, and urban flat to slope projects.

Production Process: The Journey of Transformation from Steel to Artistic Tiles

1.Automatic feeding:
The metal coil is smoothly unfolded by a hydraulic unwinding machine and enters the leveling system through a clamping device to eliminate curling stress and ensure smooth feeding of the sheet.

2.Guided pre pressing:
The board is precisely positioned by the side guide and indentation device to pre press the crease line for subsequent corrugated forming, ensuring that the waveform of each tile is consistent.

3.Progressive roll forming:
Under the relay shaping of more than 14 shaping rolls, the flat metal plate is gradually rolled into deep and steep corrugations, and the ridges and grooves of the antique tiles are clearly formed, with the coating intact.

4.Tracking fixed length cutting:
The PLC system, according to the preset tile number or length instructions, is instantly cut by the tracking flying shear during the movement of the board, producing glass tiles of uniform specifications.

5.Automatic palletizing output:

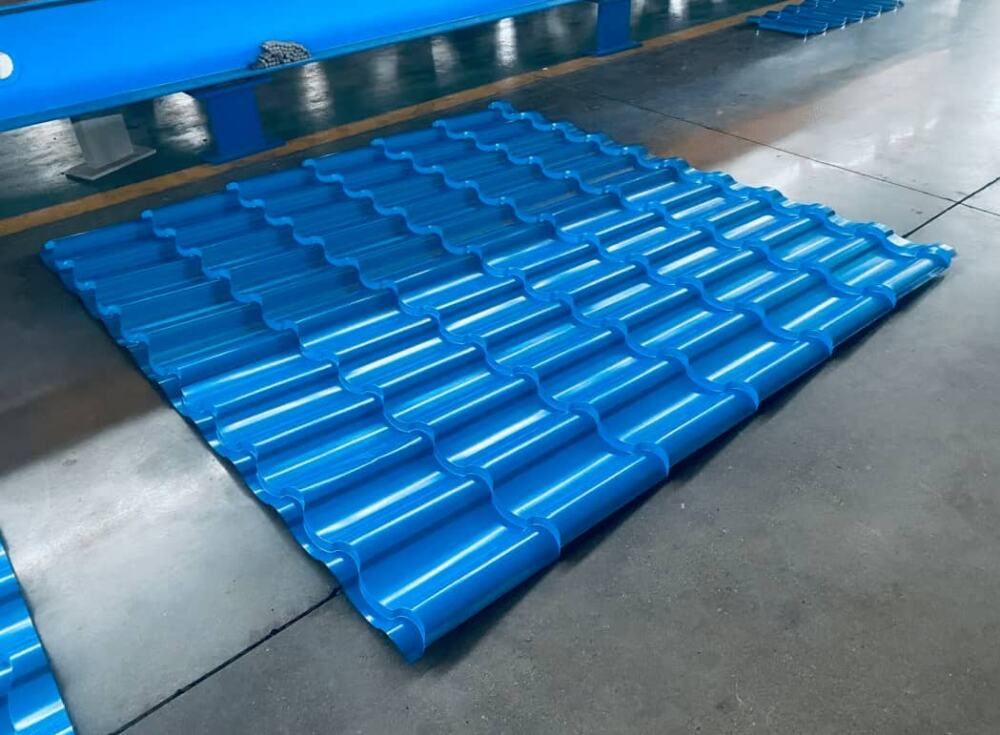

The cut finished tile boards are smoothly output to the pallet, and are neatly stacked by manual or automatic palletizing devices for packaging and storage.

Product Attributes :

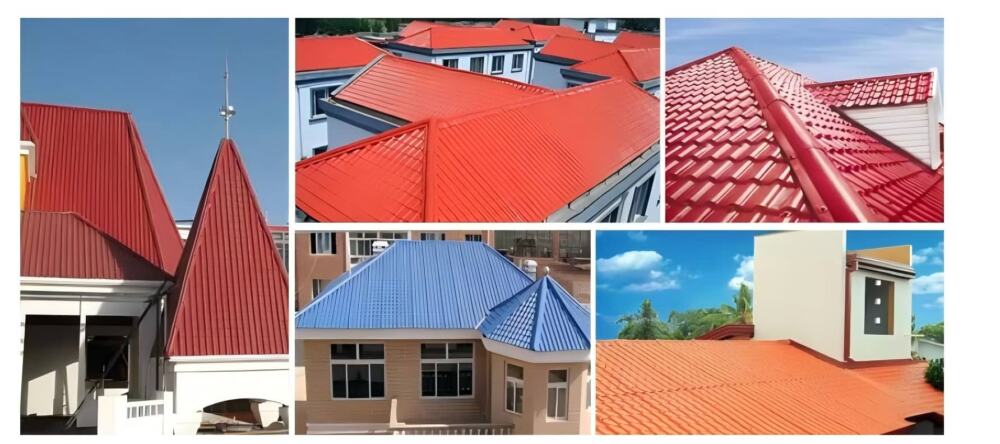

 Application scenario: Let ancient and modern buildings shine harmoniously

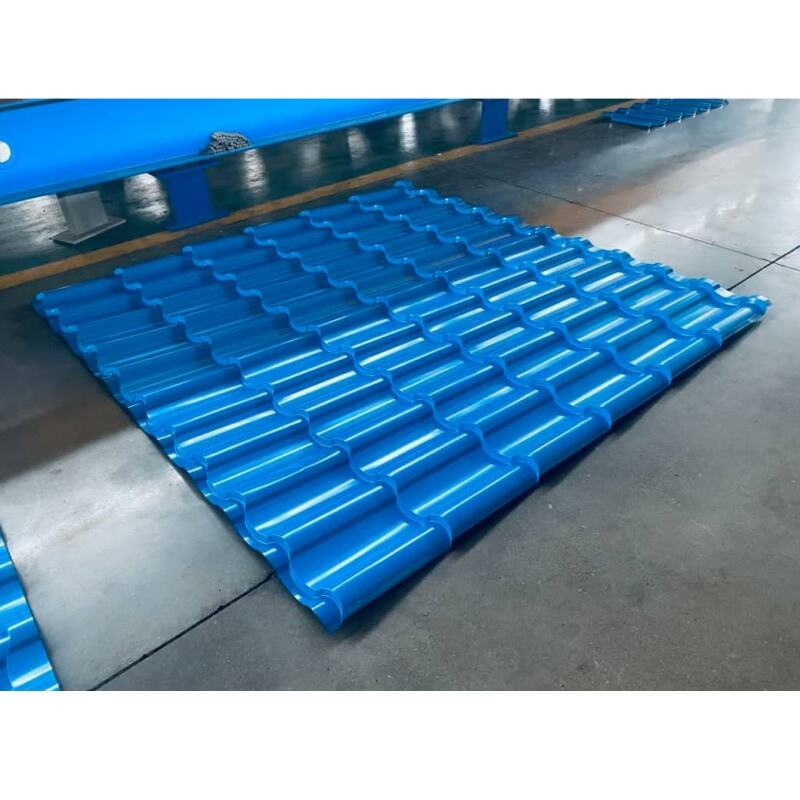

The antique metal tiles output by the glass tile forming machine perfectly balance traditional architectural decoration and modern architectural functions, and are widely used in:

• Historical and cultural projects:
renovation of ancient cities, restoration of historical districts, reconstruction of temples/Taoist temples, restoring ancient style and charm while meeting fire prevention requirements;

• Chinese high-end residences:
courtyard villas, new Chinese style villas, and sloping roofs of resort hotels, showcasing nobility and elegance;

• Public landscape architecture:
roofs and eaves of parks, pavilions, cultural towns, and folk museums;

• Flat to Slope and New Rural Construction:
Upgrading old residential areas from flat roofs to sloping roofs and renovating beautiful rural residential roofs, integrating waterproofing, insulation, and aesthetics.

Core features: Efficient restoration, exquisite craftsmanship

1. Precision rolling mill, perfectly replicating the charm of ancient tiles
The rolling mill is made of high-quality forged steel, processed by CNC machining and surface hard chrome treatment, with smooth corrugated section curves and extremely high forming accuracy. The tiles produced are tightly connected and have clear and coherent textures after laying, which can realistically reproduce various antique effects such as fish scale tiles, tube tiles, and step tiles, giving the metal roof a vivid sense of three dimensionality and heaviness.

2. Intelligent control, efficient and stable output
Integrated PLC electronic control system and color touch screen, supporting fully automatic fixed length production, speed adjustment, batch counting, and fault alarm. By using servo flying shears or hydraulic tracking cutting, synchronous high-speed cutting can be achieved without stopping the machine. The length of the finished board is consistent, the cutting edge is smooth, and the production speed can reach 15-25 meters per minute, with a daily output of 10000 meters without pressure.

3. One machine for multiple uses, flexible and adaptable to multi watt types
By quickly replacing the rolling mill set or adjusting the cushion blocks, the same host can produce various antique tile types (such as Chinese 828 type, 900 type, European glazed tiles, Roman tiles, etc.). At the same time, it can be equipped with punching devices to create ventilation holes or connection holes, meeting different drainage, ventilation, and decoration needs, effectively reducing users’ overall equipment investment.

4. Sturdy structure, worry free long-term heavy load operation

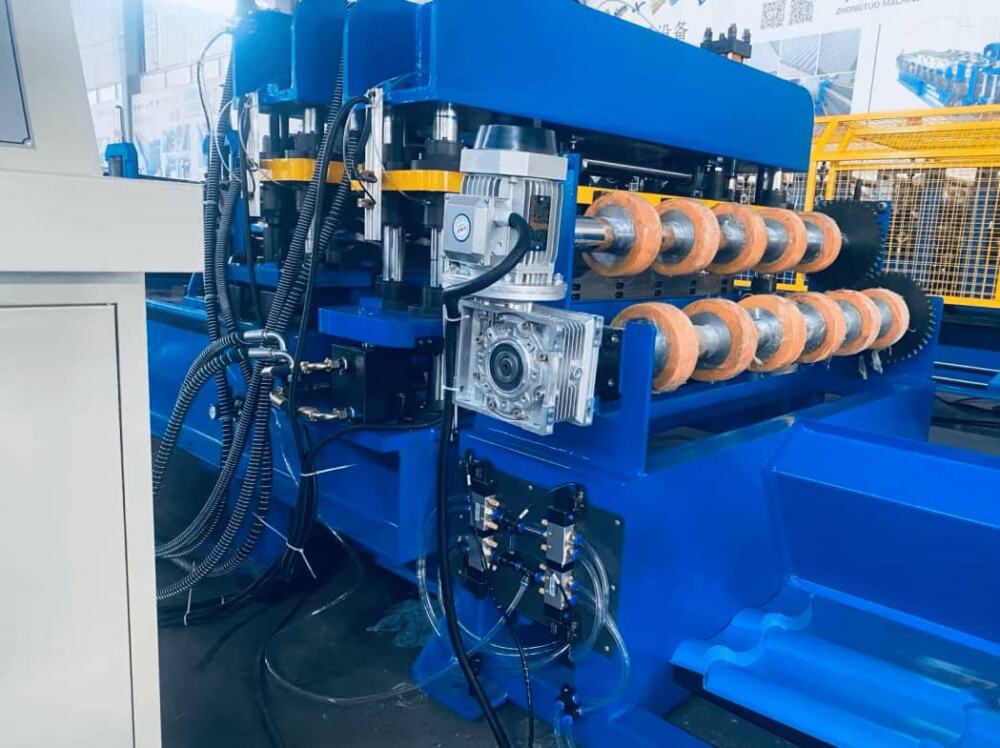

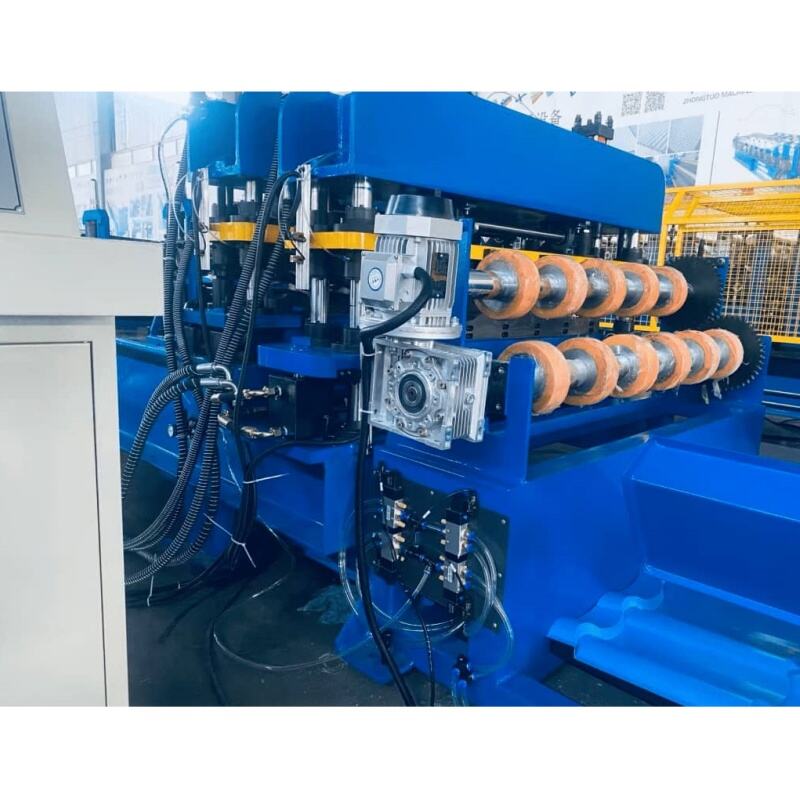

The host body is welded with thick walled steel structure and undergoes tempering to relieve stress, ensuring a stable foundation. The transmission system uses high-quality chains/gearboxes matched with reduction motors, ensuring smooth operation and abundant torque. Both hydraulic and electrical components are made of well-known domestic and foreign brands, ensuring that the equipment is durable, easy to maintain, and not afraid of continuous production intensity.

Contact Us：

An excellent glass tile forming machine is a powerful tool for metal building materials enterprises to seize the blue ocean of antique architecture and enhance product added value. It uses efficient and precise automated production to transform cold metal coils into architectural art symbols that carry millennium culture. We are willing to assist you in producing top-notch roof tiles that can withstand wind and rain carving and retain the charm of the East with excellent equipment and excellent service.

——Forge modern muscles and bones, and lay Eastern glass.
