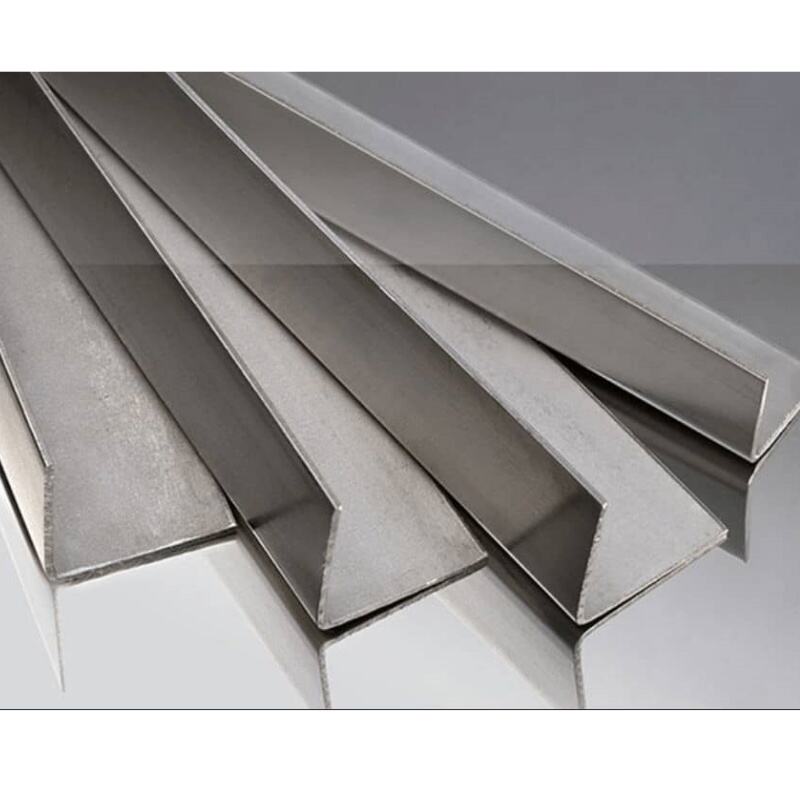

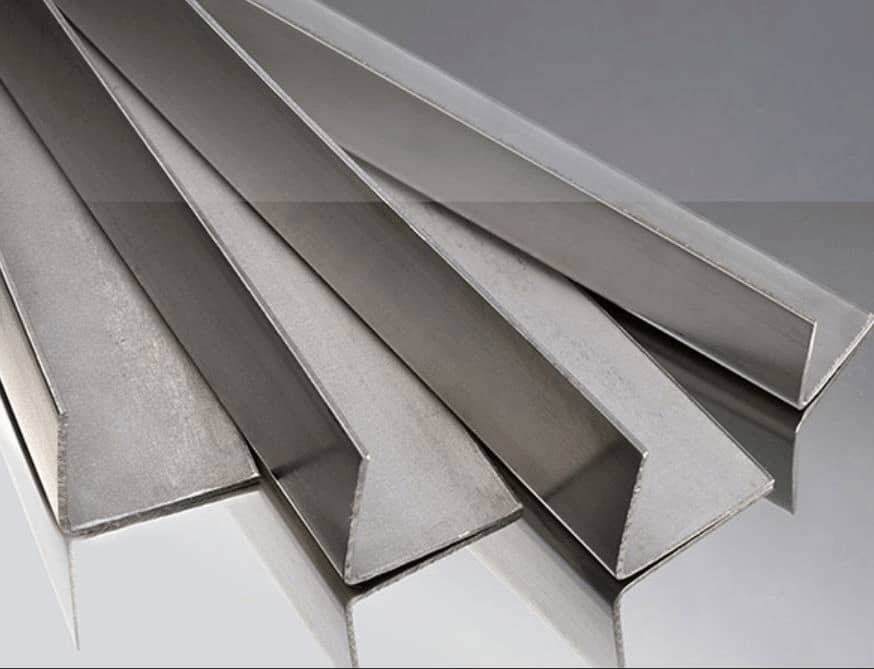

Under the wave of “new infrastructure” and “new energy”, the demand for angle steel is showing a trend of diversified specifications and short delivery, from ultra-high voltage towers to photovoltaic brackets, from large steel structures to venue domes. Traditional hot-rolled angle steel has limited specifications and high secondary processing costs, while the use of shearing and bending processes has low efficiency and poor consistency.

How to break the deadlock? The Heavy Duty Fully Automatic PLC Controlled Steel Angle Roll Forming Machine is born to meet your needs, providing you with a “one-stop” efficient solution from coil to finished angle steel.

Equipment Introduction：

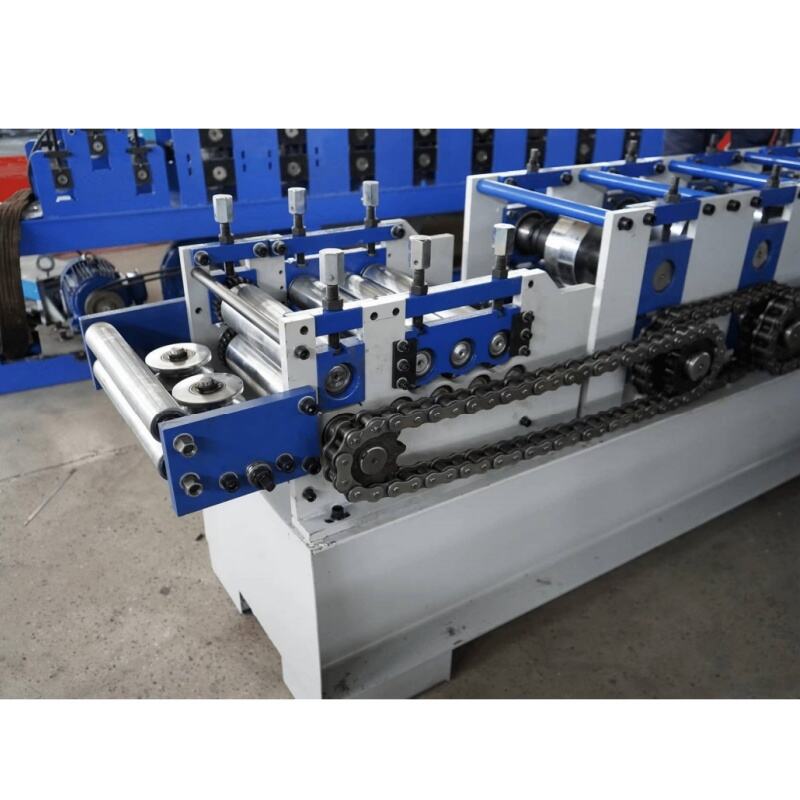

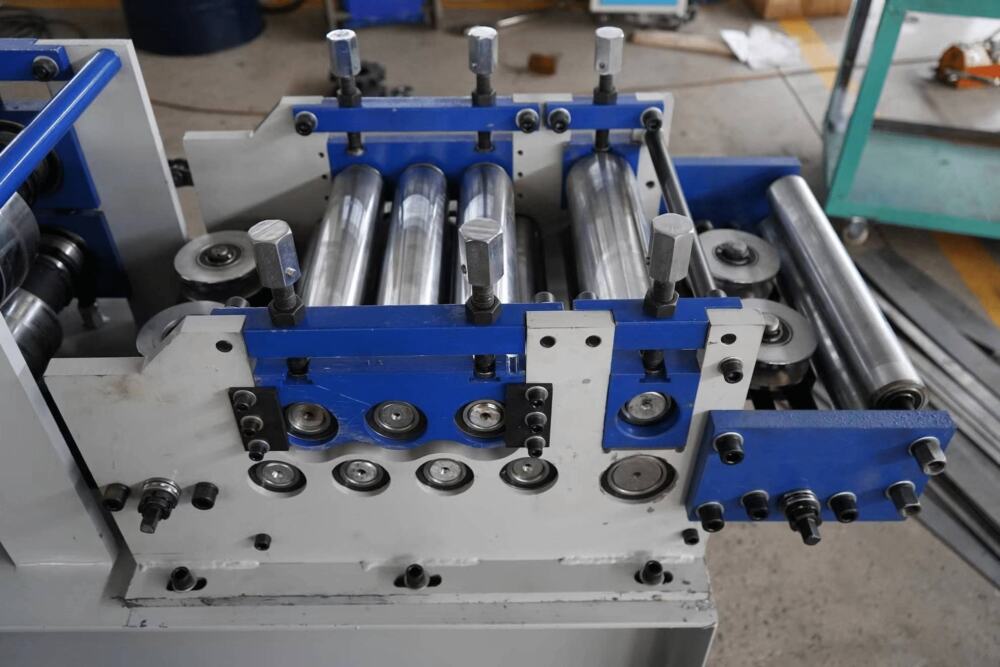

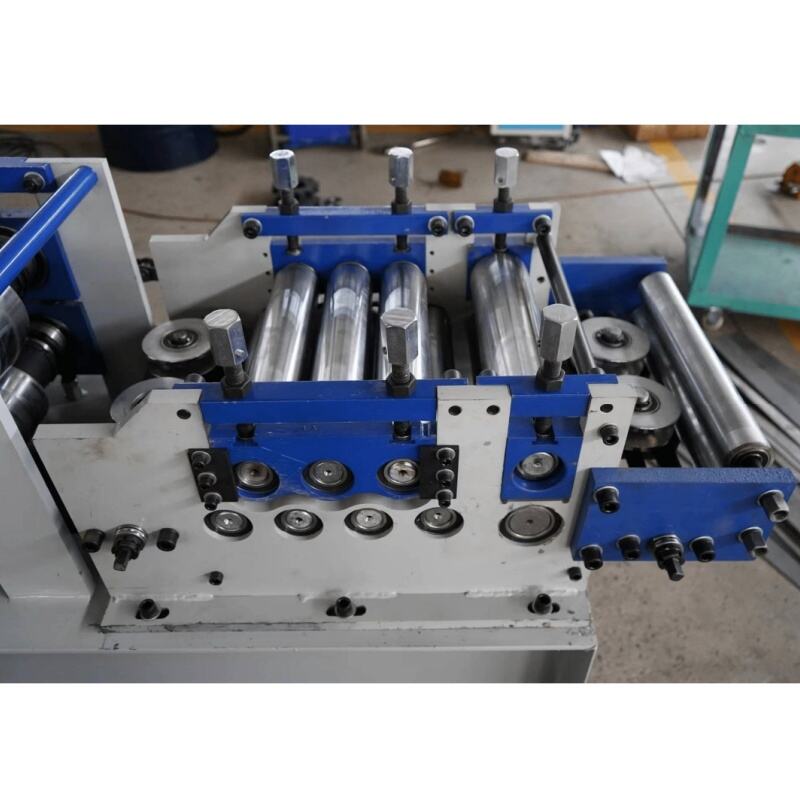

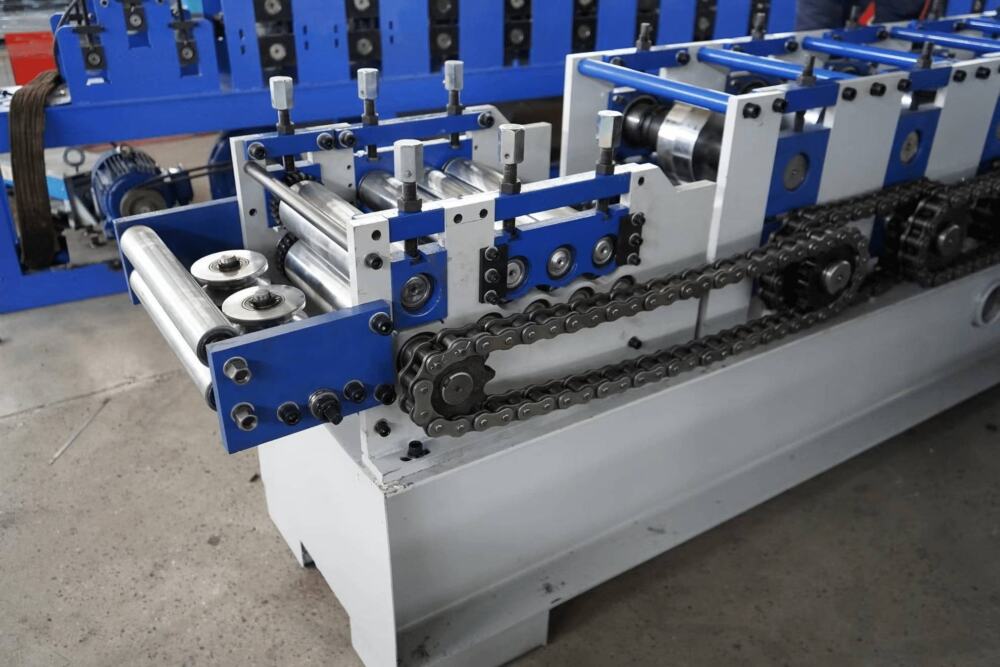

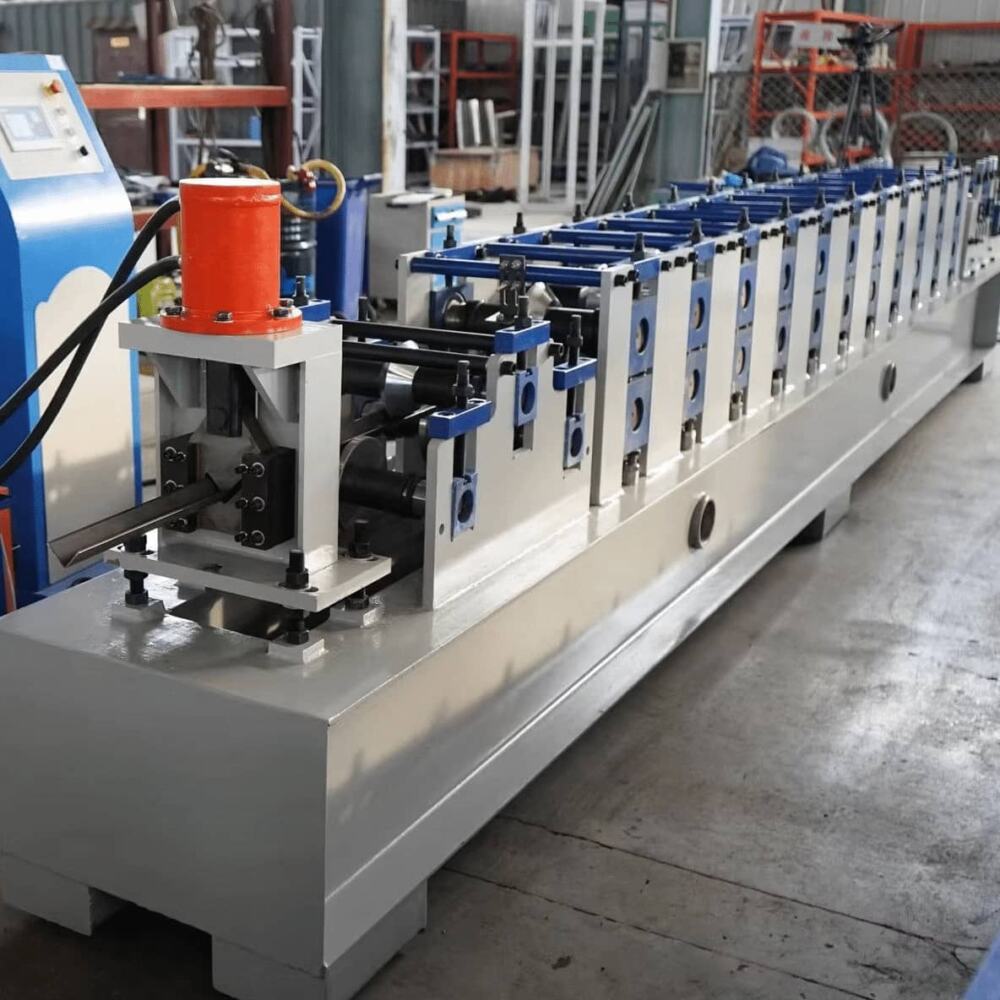

Angle steel forming machine is an efficient automation equipment based on cold bending forming process. It is no longer a simple “bending”, but a fully continuous process of unwinding, servo feeding, hydraulic punching, multi pass flexible roll cold bending, and hydraulic cutting to length, which processes cold-rolled, hot-dip galvanized, or high-strength steel coils into equal or unequal angle steel that meets national standards in one go.

The equipment is equipped with a PLC intelligent control system, integrated with touch screen operation, like a tireless “steel tailor”, accurately cutting and shaping tons of steel coils, continuously producing high-precision finished products.

Application scenario: Empowering thousands of industries and businesses

• Power communication towers:
Ultra high voltage towers and 5G communication towers require a large amount of high-strength equilateral angle steel of various specifications, with perforated finished products directly assembled into the tower, bidding farewell to lengthy outsourcing.

• Photovoltaic and photothermal support:
the “main battlefield” of hot-dip galvanized unequal angle steel, the equipment will not damage the coating, and the main beam and slant support of high-strength support will be directly formed by cold bending.

• Prefabricated steel structure building:
floor slab support, purlin, truss tie rod, with complex specifications, flexible supply of cold bending forming, helping to improve assembly rate.

• Storage and logistics shelves:
shelf columns, crossbeams, shuttle car guide rails, meet the high-precision requirements of unequal cross-section, have a smooth surface, and are convenient for subsequent electrostatic spraying.

• Bridge and tunnel support:
angle steel is urgently needed for the framework of the inverted arch wharf, water ditch cable trough, and customized molding of high toughness weather resistant steel is urgently needed.

• Carriage and agricultural machinery:
Lightweight carriage side beams, reinforced ribs for agricultural machinery chassis, customizable with various non-standard sections, perfect replacement for bulky hot-rolled steel.

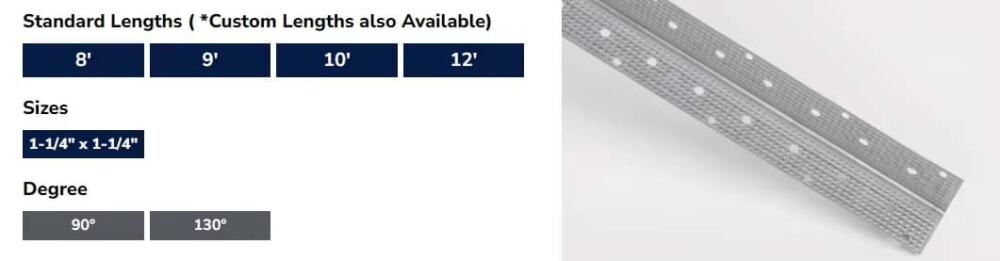

Product Attributes :

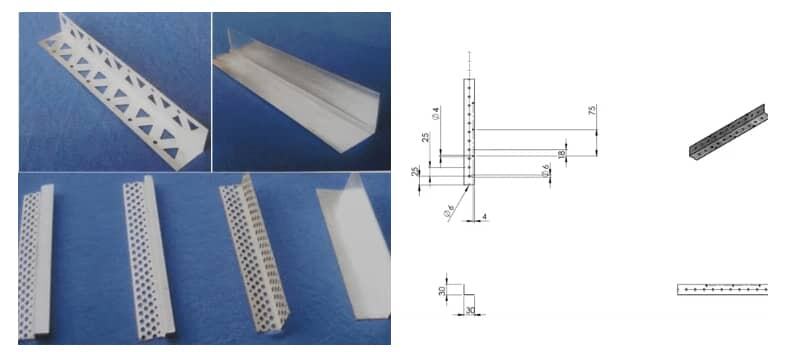

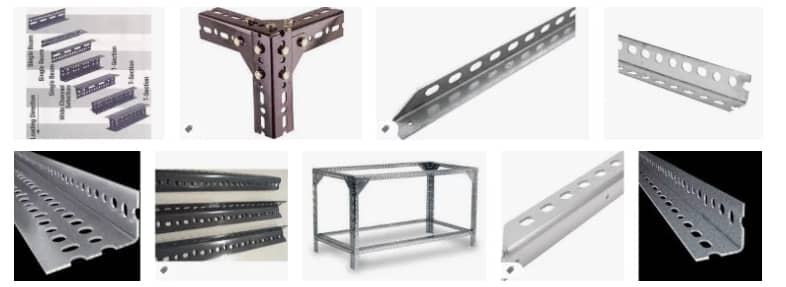

Pattern diagram：

Core feature: Redefine angle steel production

1. Super flexible, farewell to “one specification and one mold”

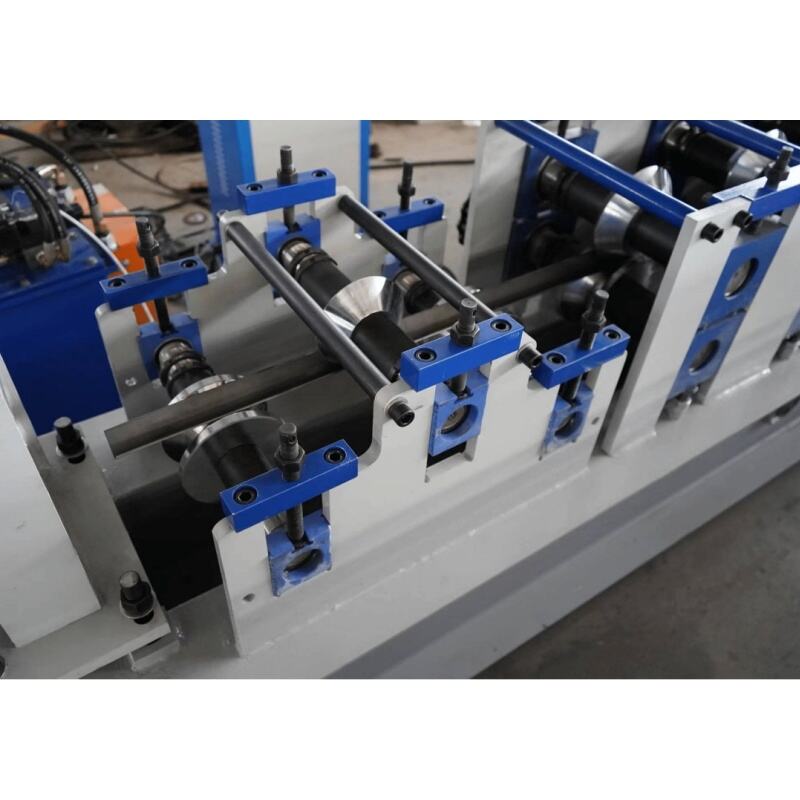

The cost of changing specifications in traditional hot rolling is high, while we use combination roller quick change technology or shared roller adjustment design, which only takes 20-40 minutes to change specifications. Some models even do not require roller replacement, and can achieve the production of angle steel with different edge widths under the same thickness with just one click adjustment. Multiple varieties and small batch orders can be easily handled.

2. Composite processing, forming finished products in one go

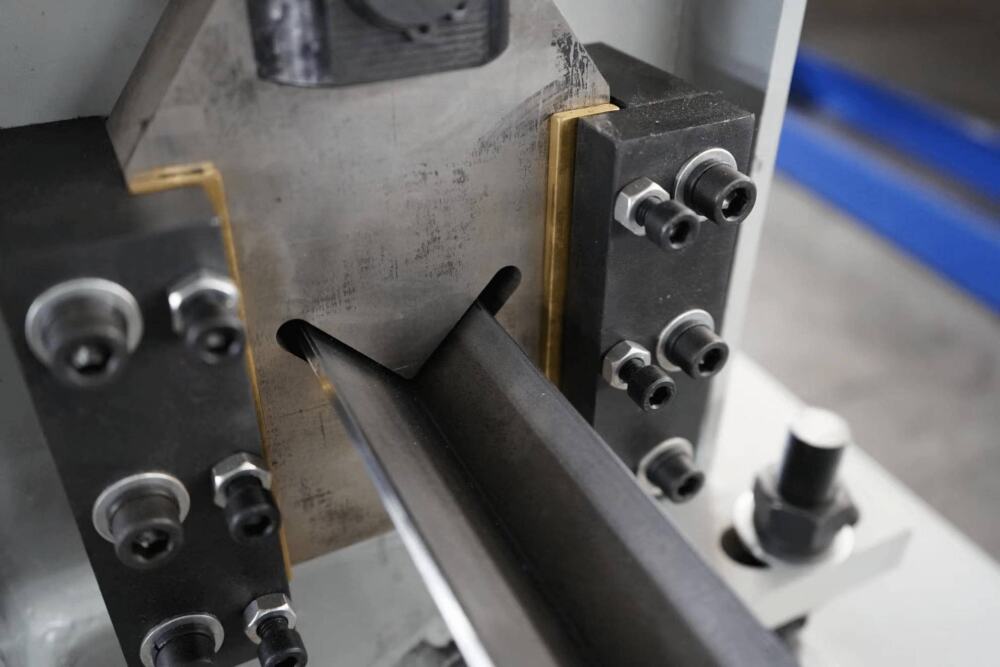

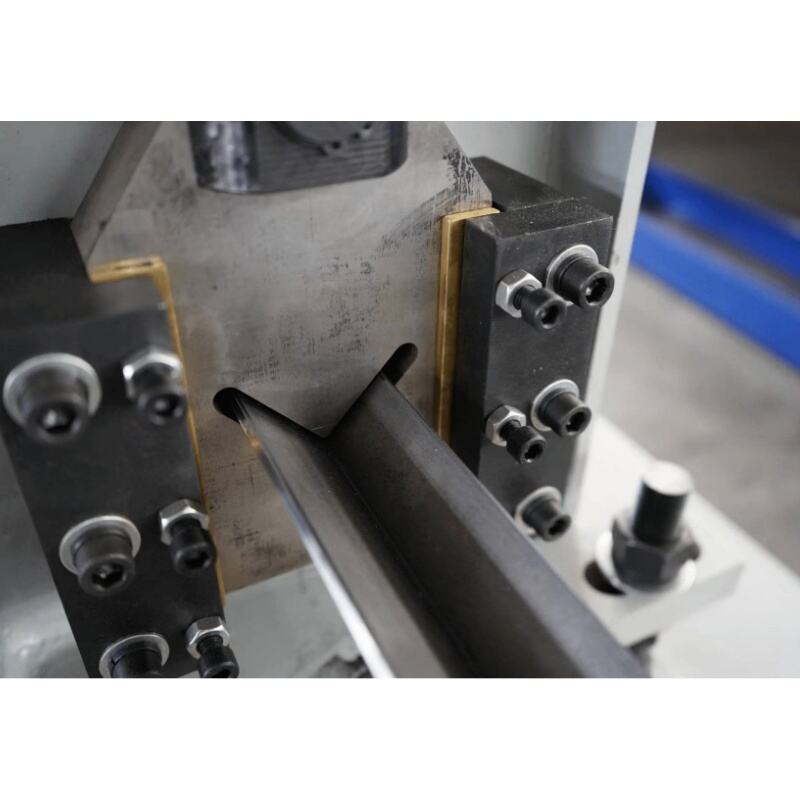

The equipment comes standard with an online hydraulic punching and cutting system. Before cold bending, the punching of positioning holes can be completed according to the drawing requirements. Whether it is the bolt holes for auto parts or the connecting long holes for power towers, there is no need for offline secondary drilling, and the finished product is cut with an accuracy of up to ± 0.5mm, completely eliminating secondary transportation and labor costs.

3. Cost reduction and efficiency improvement, with almost zero material loss
Using continuous production of coil materials, the material utilization rate can reach over 99%, far exceeding the segmented cutting mode of shearing and bending. The production speed can reach 15-30m/min, and the single shift output easily exceeds 10000 meters. Fully automated only requires one person to be on duty, significantly reducing reliance on manual labor.

4. Cold bending strengthening, “thinning without reducing strength”
The cold work hardening effect of cold bending processing increases the yield strength of materials, and under the same mechanical requirements, thinner plates can be used compared to hot-rolled angle steel. This means significant structural weight reduction and material cost savings for photovoltaic brackets and automotive beams that pursue lightweight design.

Contact Us：

Intelligent manufacturing leads to extraordinary achievements.
Faced with the ever-changing market, an angle steel forming machine that combines flexibility, precision, and efficiency is the core tool for you to undertake differentiated orders and reduce overall costs.

Contact us immediately for exclusive molding solution analysis and investment return calculation, making every meter of angle steel competitive!
