In today’s rapidly changing global logistics and construction industry, Container House Steel Frame Roll Forming Machine have become the core equipment in the field of light steel structure manufacturing. It uses high-precision and high-efficiency cold bending technology to process traditional steel strips into container beams and angle steels with strong bearing capacity and light weight, providing key support for container houses, storage facilities, and transportation equipment. This device is not only a typical representative of Industry 4.0, but also an important engine for promoting green manufacturing and modular construction.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
18 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Pattern diagram:
Technological breakthrough: a dual leap in precision and efficiency
1.The core advantage of the container beam forming machine lies in its precise rolling process and intelligent control system. The equipment adopts a modular design, which significantly reduces the overall weight compared to traditional models, but increases the rigidity to ensure stable operation during continuous production. Through the PLC control system and hydraulic cutting device, the size error of the profile is controlled within a very small range, and the surface flatness reaches the industry-leading level.
2.In terms of efficiency, the molding machine integrates multiple processes such as unwinding, leveling, punching, forming, and fixed length cutting, achieving fully automated assembly line operations from raw materials to finished products. The intelligent tension control system can automatically compensate for fluctuations in sheet thickness, stabilizing production speed at tens of meters per minute, significantly improving efficiency compared to manual operation. This “one click parameter setting” operation mode not only reduces labor costs, but also enables the equipment to adapt to the needs of multi variety and small batch production, making it an ideal choice for flexible manufacturing.
Application scenario: Comprehensive coverage from architecture to transportation
The application of container beam forming machines has broken through traditional boundaries and penetrated into multiple fields such as construction, logistics, and new energy.
• In the field of construction
the corrugated plates and angle steels produced by it are widely used in container houses, prefabricated buildings, and storage facilities. By optimizing the cross-sectional design, the structural strength is improved while reducing self weight, significantly reducing transportation energy consumption.
• In the field of transportation
container beam forming machines provide high-precision machining solutions for components such as car cabin panels and semi-trailer chassis. Through multiple rolling processes, the equipment can control the thickness of the board between 0.8-3mm, ensuring a balance between impact resistance and lightweight of the carriage board.
Innovation Advantage: Green Manufacturing and Sustainable Development
The promotion of container beam forming machines is in line with the global trend of green manufacturing. The cold bending process used does not require high temperature heating, significantly reducing energy consumption compared to traditional hot rolling processes, while also reducing steel oxidation losses. The equipment supports the processing of 1.2-6mm thick plates and is compatible with ordinary carbon steel and galvanized steel strips such as Q235 and Q345, with a material utilization rate of over 95%. In addition, some models are equipped with dust removal devices and intelligent maintenance systems to further reduce dust emissions and energy consumption during the production process, helping enterprises achieve carbon neutrality goals.

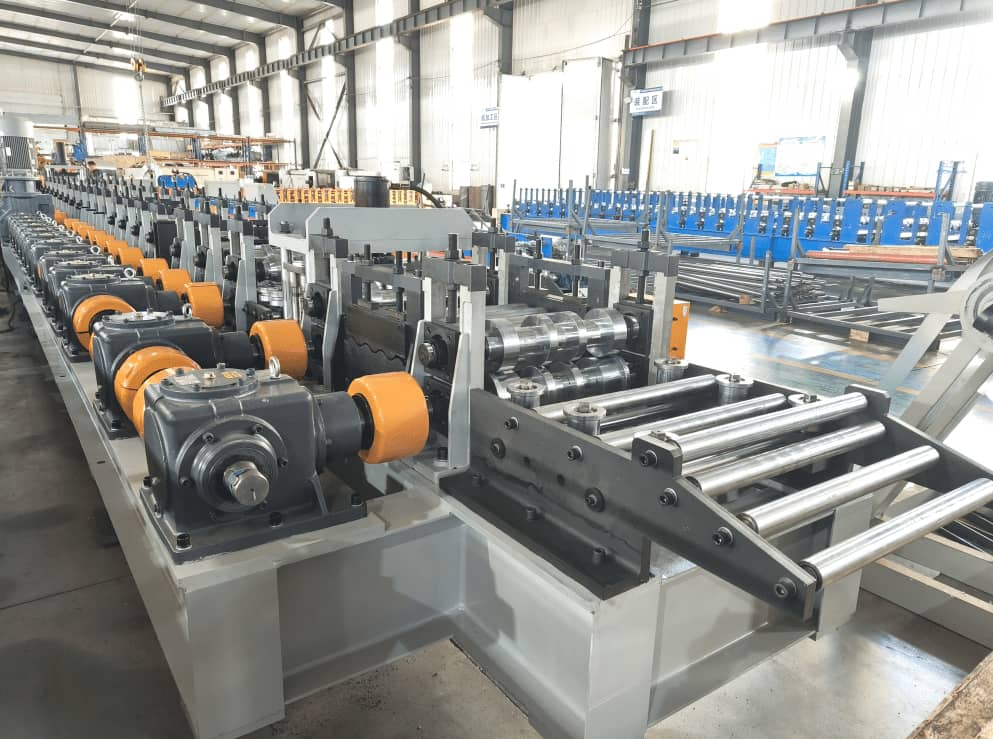

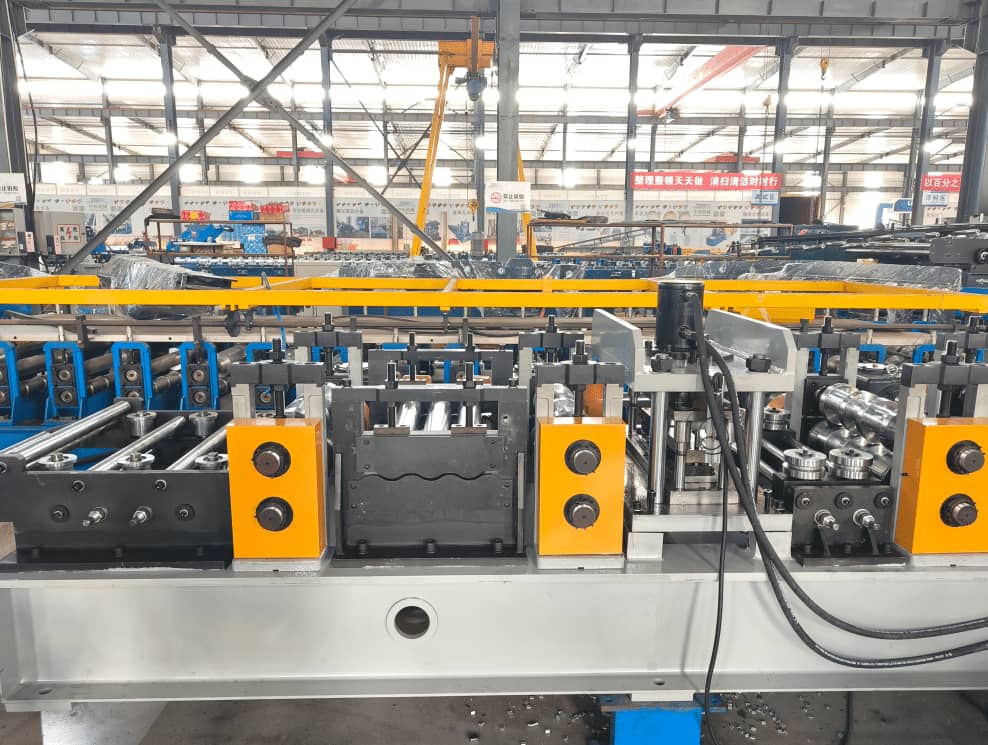

Machine image:
