With the increasing demand for environmental friendliness, durability, and cost-effectiveness in the construction industry, trapezoidal roof tiles have gradually become the mainstream choice for industrial plants, warehouses, and municipal projects. Particularly in corrosive environments such as coastal areas and chemical workshops, the fireproof and UV-resistant performance of trapezoidal tiles significantly surpasses that of traditional materials.
Product Attributes :
|
1.Formed Material
|
GI,Steel
|
Thickness:0.3-1.0mm Width:1250mm (as request)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|

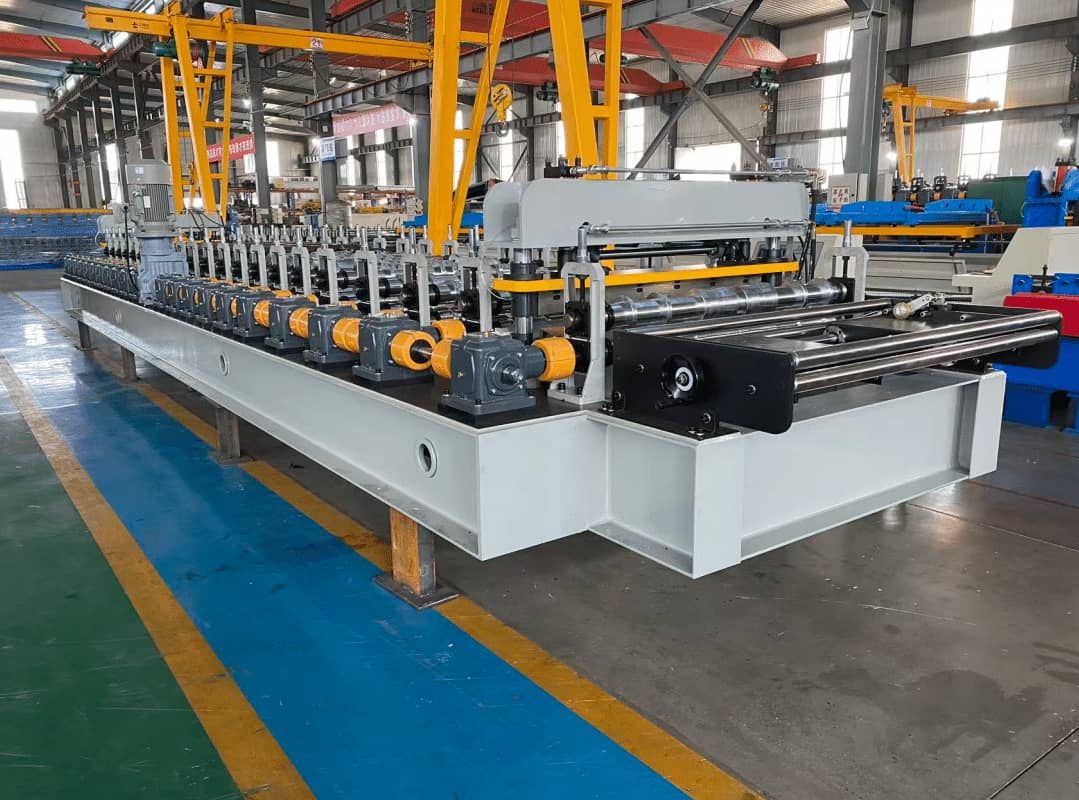

3.Main body
|
Roller station
|
22 rows(As your requirement)
|
||
|
Diameter of shaft
|
85mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
400 H steel
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
15000*1800*1600(customize)
|
|||
|
Weight
|
15T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Products and Technical Advantages
1.Material Innovation:
Utilizing an imported high-weather-resistant ASA resin combined with a PVC composite structure, featuring a surface weather-resistant layer thickness of ≥0.2mm, ensuring color retention for over 15 years and outstanding resistance to acid and alkali corrosion.
2.Exceptional performance:
（1）Fire resistance: The oxygen index is ≥32, meeting the Class B fire protection requirements of GB8624-2006 standard.
（2）Thermal insulation: Thermal conductivity of 0.325 W/m·K, more than 60% lower than traditional materials.
（3）Waterproofing: Large single-piece area with minimal seams effectively prevents micro-pore water leakage.
3.Easy installation:
lightweight (40% lighter than color steel plates), secured with roof hooks or self-tapping screws, purlin spacing of 80cm-1m, with 1.5-2 waveforms locked horizontally, and construction efficiency improved by 50%.
Application scenario：
1、 Industrial construction field
• Factory and warehouse roofs:
The three-dimensional contour design of trapezoidal tiles significantly enhances the drainage capacity of the roof, making it suitable for industrial factories and storage facilities with large spans, effectively addressing rainwater accumulation issues, while providing lightweight solutions to reduce structural loads.
• Steel structure workshop coverage:
In the non purlin roof system, trapezoidal tiles can be directly matched with steel structure roof trusses, simplifying the installation process and shortening the construction period, suitable for scenarios such as automobile manufacturing and mechanical processing.
2、 Civil construction field
• Residential roof decoration:
Trapezoidal tiles combine aesthetics and functionality, suitable for villas and ordinary residences. Their wavy design enhances the three-dimensional sense of the roof, while also possessing self waterproofing properties to reduce leakage risks.
• Commercial buildings and public facilities:
In scenarios such as office buildings and shopping malls, the modular design of trapezoidal tiles supports rapid customization, meets diverse architectural style requirements, and reduces labor costs with ease of installation.
