ZTRFM Full Automatic Steel Angle Roll Forming Machine is a continuous cold-bending roll forming equipment specifically designed for producing equal-sided or unequal-sided angle steel. It can continuously bend coils of galvanized strip steel, cold-rolled strip steel, etc., into standard-compliant angle steel products online through multiple precision rolls, simultaneously completing processes such as length cutting, punching, and marking.

This is a condensed “mini steel mill,” transforming angle steel manufacturing from a capital-intensive, energy-intensive hot rolling workshop into a lightweight, flexible processing site, achieving a new model of “just-in-time production, zero inventory waiting.”

Application Scenarios: Wherever there’s a framework, there it is.

Scenario 1: The “Skeletal System” of Vertical Planting Racks and Plant Factories

This is where the angle steel forming machine shines. A-frame, tiered, rotating… all kinds of vertical planting racks require an astonishing amount of frame material. The equipment can produce on-site, directly outputting angle steel of the corresponding length according to different layer height requirements, complete with precise connection holes. Project sites no longer need cutting machines, bench drills, and piles of shavings; frame assembly efficiency can be increased by more than 2 times.

Scenario 2: The “Foundation and Beams” of Photovoltaic Supports
Agricultural-solar and fishery-solar complementary projects have extremely high requirements for the corrosion resistance and precision of the supports. The angle steel forming machine can process high-zinc galvanized steel strips with zero coating damage during the forming process, producing support angle steel with superior corrosion resistance compared to hot-rolled galvanized parts. Combined with online punching, it ensures that the connection bolt holes for components such as columns, braces, and purlins are in place in one go.

Scenario 3: The “Universal Building Block” of Shelving and Warehousing Logistics
Light-duty shelving, flow racks, and trolleys—these warehousing equipment are assembled from countless angle steel pieces. Angle steel forming machines can quickly switch between different specifications, providing shelving manufacturers with the agile delivery capability of “same-day order, same-day production, same-day delivery,” allowing your goods to be loaded onto trucks while your competitors are still cutting materials one by one.

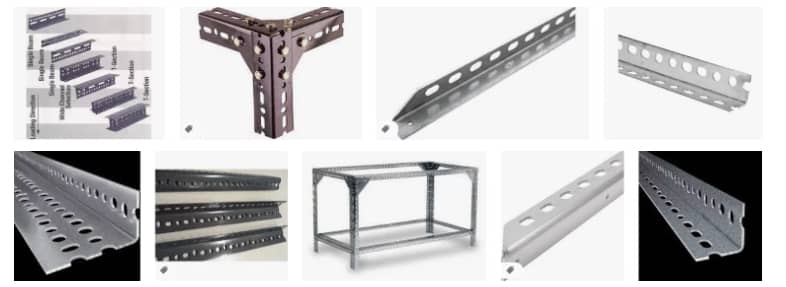

Pattern Diagram:

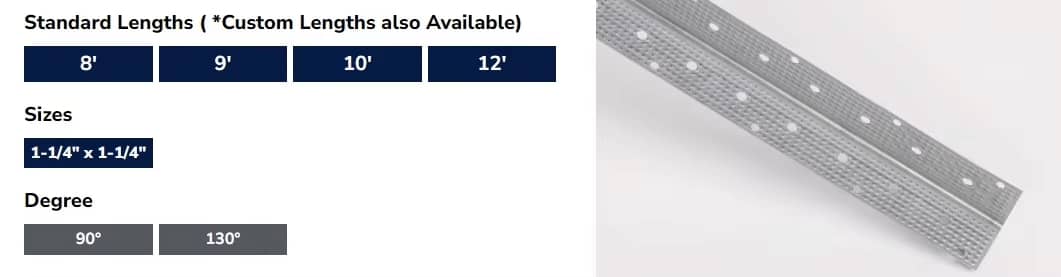

Product Attributes :

Key Features: Transforming Heavy Industry into Refined Work

1. Flexible Length, Say Goodbye to “Sawing Machine + Scrap”

Traditionally, 6-meter fixed-length angle steel is purchased and cut, resulting in leftover material due to varying lengths. The angle steel forming machine uses a servo flying saw or hydraulic tracking cutter, allowing for arbitrary length settings with an accuracy of ±1mm. It produces only what is needed, achieving near 100% raw material utilization and eliminating leftover material at the source.

2. One-Step Forming, Continuous Punching and Marking

Planting racks require numerous connecting holes. Traditionally, this involves cutting first and then punching, which is time-consuming, labor-intensive, and prone to accumulating errors. This equipment integrates a hydraulic punching station and a marking device, simultaneously completing punching and marking during the continuous forming of the angle steel. The hole positions are precise and consistent, with a repeatability accuracy of ±0.5mm, enabling “blind assembly” and significantly increasing efficiency.

3. The “Cold Bending Strengthening” Effect:
Due to process limitations, hot-rolled angle steel is prone to micro-cracks at the edges. Cold bending involves progressively bending the steel strip at room temperature. The work hardening effect increases the strength of the angle steel’s edges, while maintaining the integrity of the surface coating. The finished angle steel exhibits excellent straightness and low internal stress, eliminating the camber problem commonly found in hot-rolled angle steel.

4. One machine, multiple shapes, faster changeovers:
Equal-sided angle steel, unequal-sided angle steel, irregularly shaped angle steel with lips… your planting racks may require various cross-sections. The angle steel forming machine uses a quick-change roller group or combined roller design, reducing changeover time to less than 30 minutes. One machine is a flexible production line, easily handling the needs of multi-variety, small-batch customized frames.

5. Economical footprint, power supply within a single workshop:
Compared to the massive size of hot-rolled angle steel production lines, which are often hundreds of meters long and require dedicated industrial power lines, the angle steel forming machine is typically only 20-30 meters long and can operate using conventional industrial power. It can be installed in standard factory buildings, logistics warehouses, or even agricultural parks, bringing the “origin” of angle steel directly to the site of use.

contact us：

Conclusion: Angle steel forming machines transform frame manufacturing from a project bottleneck into a springboard for rapid advancement.

A single steel strip unlocks limitless possibilities; a single set of equipment quickly builds the future. Mastering frame production capabilities means mastering the initiative in equipment delivery.

Inquire now for your customized angle steel forming solution.
