With the acceleration of urbanization and the advancement of Industry 4.0, traditional door protection systems can no longer meet the demands of modern architecture for safety, efficiency, and intelligence. As a critical protective system in both industrial and civil construction, High Speed Shutter Slats Making Machine Roll up Door Profile stands out for its high-impact resistance, rapid opening and closing response, and intelligent integration capabilities, making it the preferred solution for commercial venues, industrial plants, fire exits, and other scenarios.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.6-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

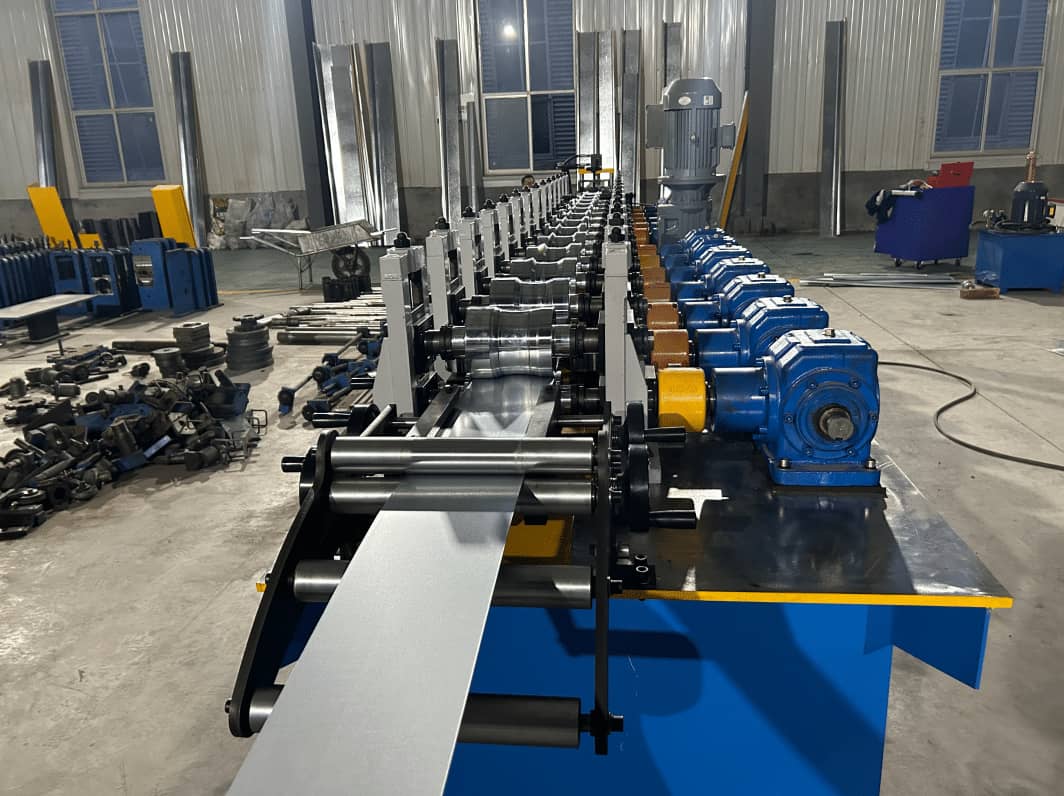

3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
gear and Chain transmission or gearbox
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|

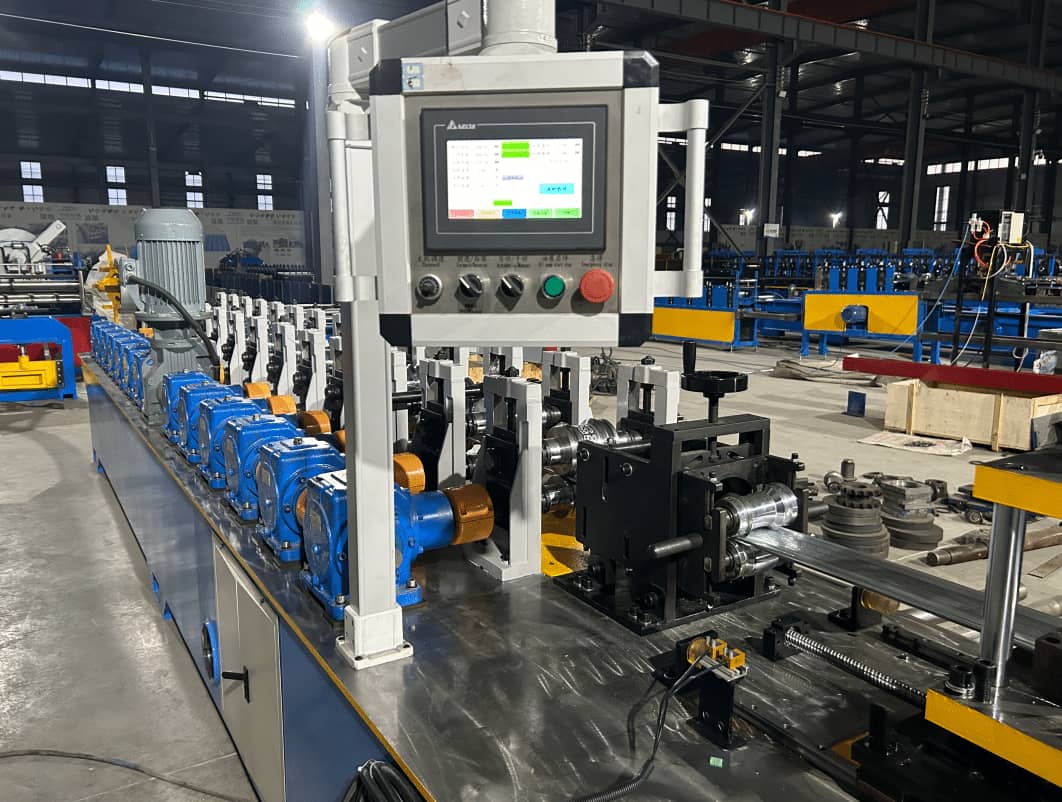

7.Control system
|
Electric Box
|
Siemens(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-45m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Breakthrough in Core Technologies: A Comprehensive Upgrade from Functionality to Experience
1. Material Innovation: Dual Assurance of Safety and Durability
• Fireproof rolling shutter door:
Constructed with an inorganic fabric base and steel cable reinforcement, it achieves a fire resistance rating of 3 hours and complies with the national fire safety standard (GB/T 14102-2017). It maintains structural integrity under high temperatures, providing critical time for personnel evacuation.
• Wind-resistant roller shutter doors:
Designed for coastal and high-wind-pressure areas, these doors feature a 12-grade wind resistance rating and pass the 1.2kPa wind pressure test, ensuring stable operation during extreme weather conditions such as typhoons and sandstorms.
• Quick Roll-up Door:
A composite process of PVC soft film and high-density base fabric enables full-width opening within 0.6 seconds, suitable for high-time-critical scenarios such as food processing and clean electronic workshops.
2. Intelligent Control: The Leap from Manual to Full-Scene Automation
• Multi-mode sensing system:
Integrates infrared, radar, and facial recognition technologies to support seamless access with “door opens when someone approaches and closes when they leave,” reducing energy consumption by 30%.
• Remote Management Platform:
Achieve remote control via mobile app, real-time status monitoring, and fault alerts through 4G/5G IoT modules, improving management efficiency by 50%.
• Emergency Response Mechanism:
In the event of a fire, the fireproof rolling shutter can automatically link with smoke detectors, descending to a safe position within 30 seconds while simultaneously triggering audible and visual alarms, establishing a dual safety protection system.
Pattern diagram:
Application scenario expansion: from single protection to system solutions
1. Business field: Improve operational efficiency and user experience
• Shop roller shutter door:
made of aluminum alloy material and equipped with an intelligent lock control system, it combines anti-theft and convenience. It opens and closes more than 200 times a day, with a failure rate of less than 0.5%.
• Fire doors in the atrium of shopping malls:
adopting a dual track double curtain structure, controlled by zones, to avoid panic caused by large-scale power outages. After its application in a large shopping mall in 2023, the emergency response time for fires has been shortened to 15 seconds.
2. Industrial sector: Strengthen production safety and process optimization
• Factory anti wind door:
After a certain automobile manufacturing enterprise adopted anti wind rolling shutter doors, the equipment damage rate in the workshop decreased by 80%, and the annual maintenance cost was saved by more than 500000 yuan.
• Logistics channel fast door:
After the application of PVC fast rolling shutter doors in a certain e-commerce warehouse center, the efficiency of cargo loading and unloading increased by 40%, and the daily throughput increased by 1200 pieces.
3. Fire protection field: building a life safety defense line
• Fire escape fire doors:
After installing intelligent fire-resistant rolling shutter doors in a high-rise residential community, three initial fires were successfully intercepted in 2023 and awarded the title of “Safety Demonstration Project” by the fire department.
• Hospital operating room dedicated door:
With airtight design and antibacterial coating, it can quickly close in 0.01 seconds, effectively blocking the spread of bacteria. After application in a tertiary hospital, the infection rate in the operating room has decreased to 0.02%.
