The High Speed Rolling Shutters Making Machine is a specialized automation equipment that uses cold bending and rolling technology to continuously process metal coils (such as galvanized sheet, color steel sheet, aluminum sheet, etc.) into rolling shutter door curtains. It is widely used in the fields of modern construction and industrial door manufacturing.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.6-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

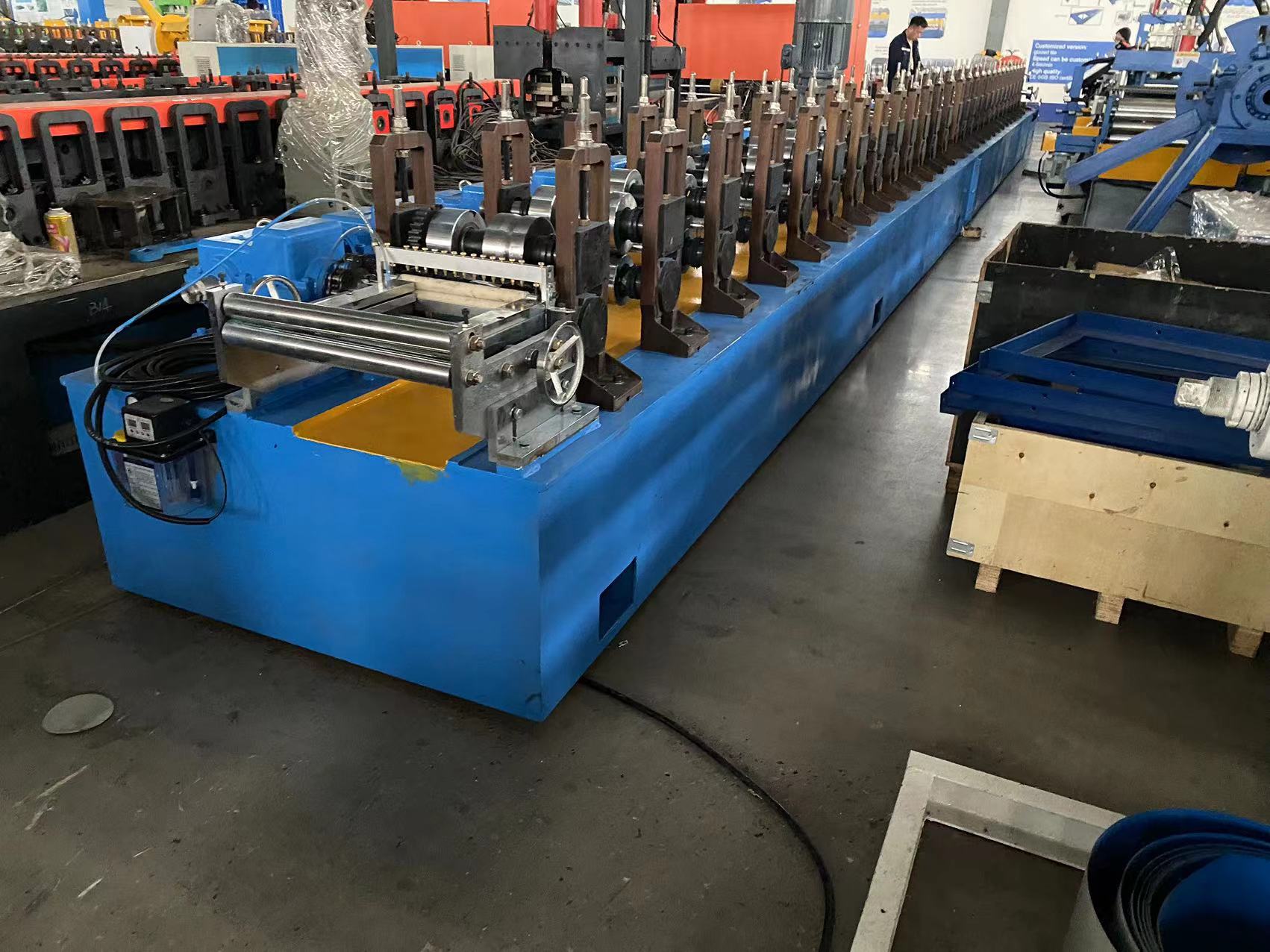

3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|

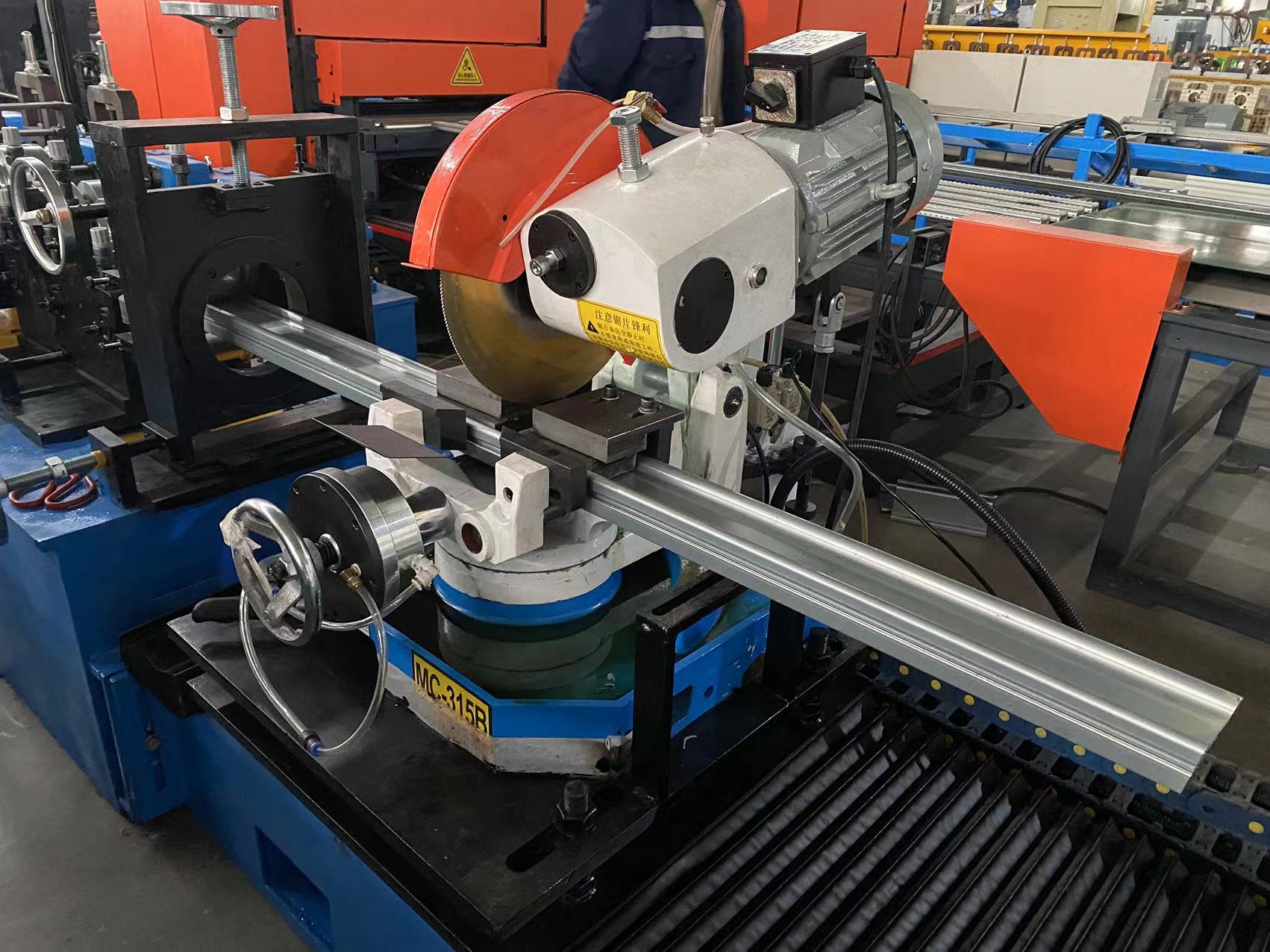

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
20-25m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Core Features：
1.High precision forming:
using 45 # steel rollers and PLC industrial computer control system to ensure precise size and smooth surface of the door panel, avoiding common problems such as distortion and paint scratching in traditional processing.
2.Efficient automation:
integrates processes such as feeding, forming, cutting, and edge locking, supports remote control and intelligent fault alarm, and some equipment can identify and assist in troubleshooting within 10 seconds.
3.Stable and durable:
The overall structure of the machine is sturdy, and key components such as the spindle and frame are made of high-quality steel, suitable for long-term continuous operation and reducing downtime maintenance costs.
4. Flexible customization:
Supports multiple sheet thicknesses (usually 0.4-0.6mm), widths (up to 1000mm), and forming passes (22-24 passes) to meet the needs of different customers for curtain curvature and strength.
Main application scenarios：
• Industrial buildings:
widely used for the production of safety protection doors in factories, warehouses, workshops, and other places, improving space utilization and anti-theft performance.
• Commercial space:
suitable for entrances and exits of shopping malls, supermarkets, storefronts, etc., balancing aesthetics and practicality. Some equipment can produce silent Australian style rolling shutter doors.
• Public facilities:
Hospitals, schools, garages, and other places often use fire-resistant, windproof, and heat-insulating rolling shutter doors produced by this equipment to enhance safety protection capabilities.
• Special purpose:
Some specialized models can also be used to produce high safety or functional products such as windproof and dust suppression nets for coal mines, double-layer guide groove structure doors, etc.
