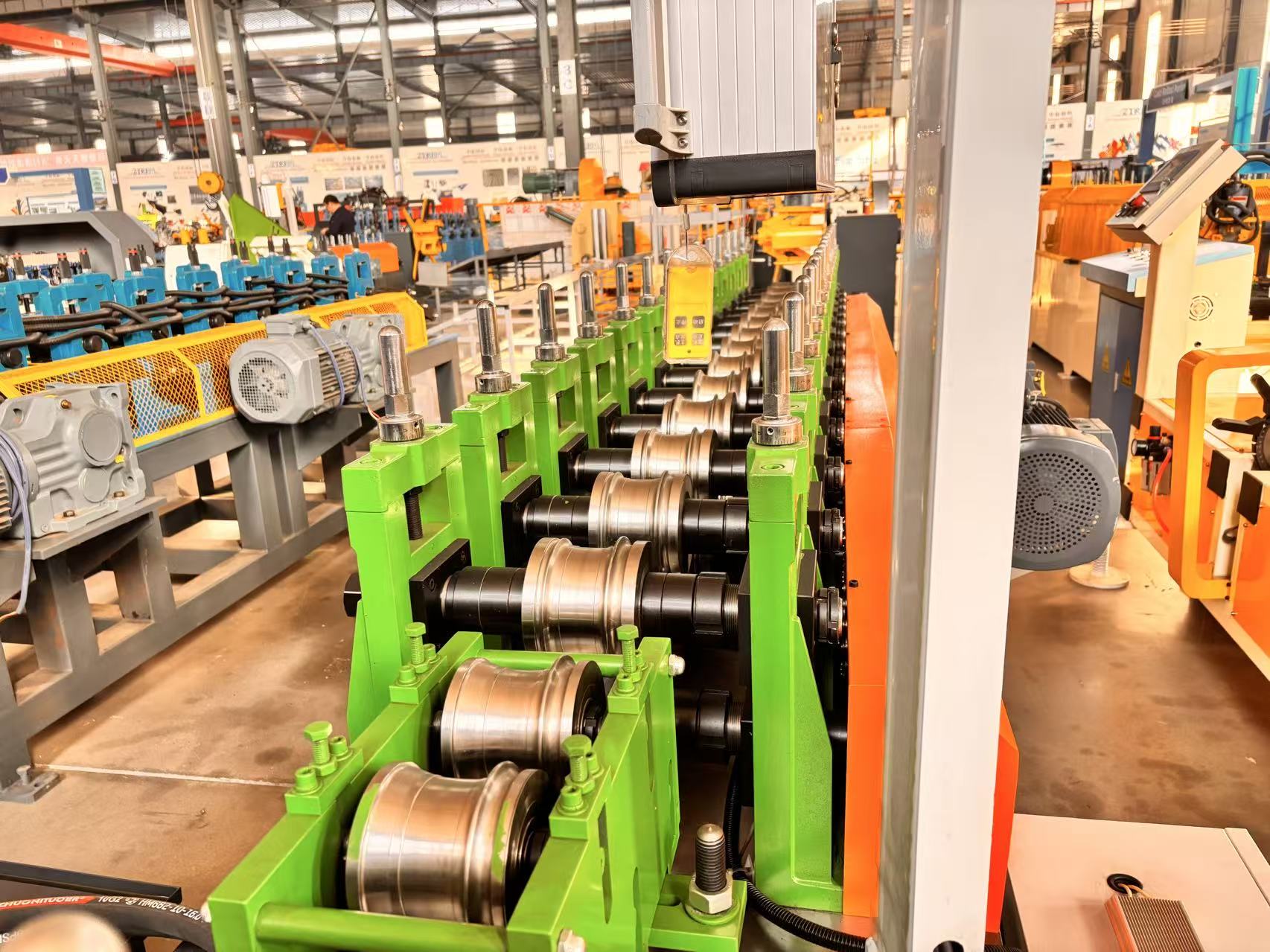

The High Speed Popular Sell Rolling Shutter Door Making Machine is an automated cold bending equipment that continuously bends metal sheets (such as galvanized sheets, color steel sheets, stainless steel sheets, etc.) into components like shutter blades, guide rails, and pressure strips through a multi-pass roller system. The device primarily consists of a material feeding machine, an intake platform, a forming main unit, a forming shearing device, a hydraulic station, and a computer control system, and can be used in conjunction with a edge sealing machine.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.8-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|

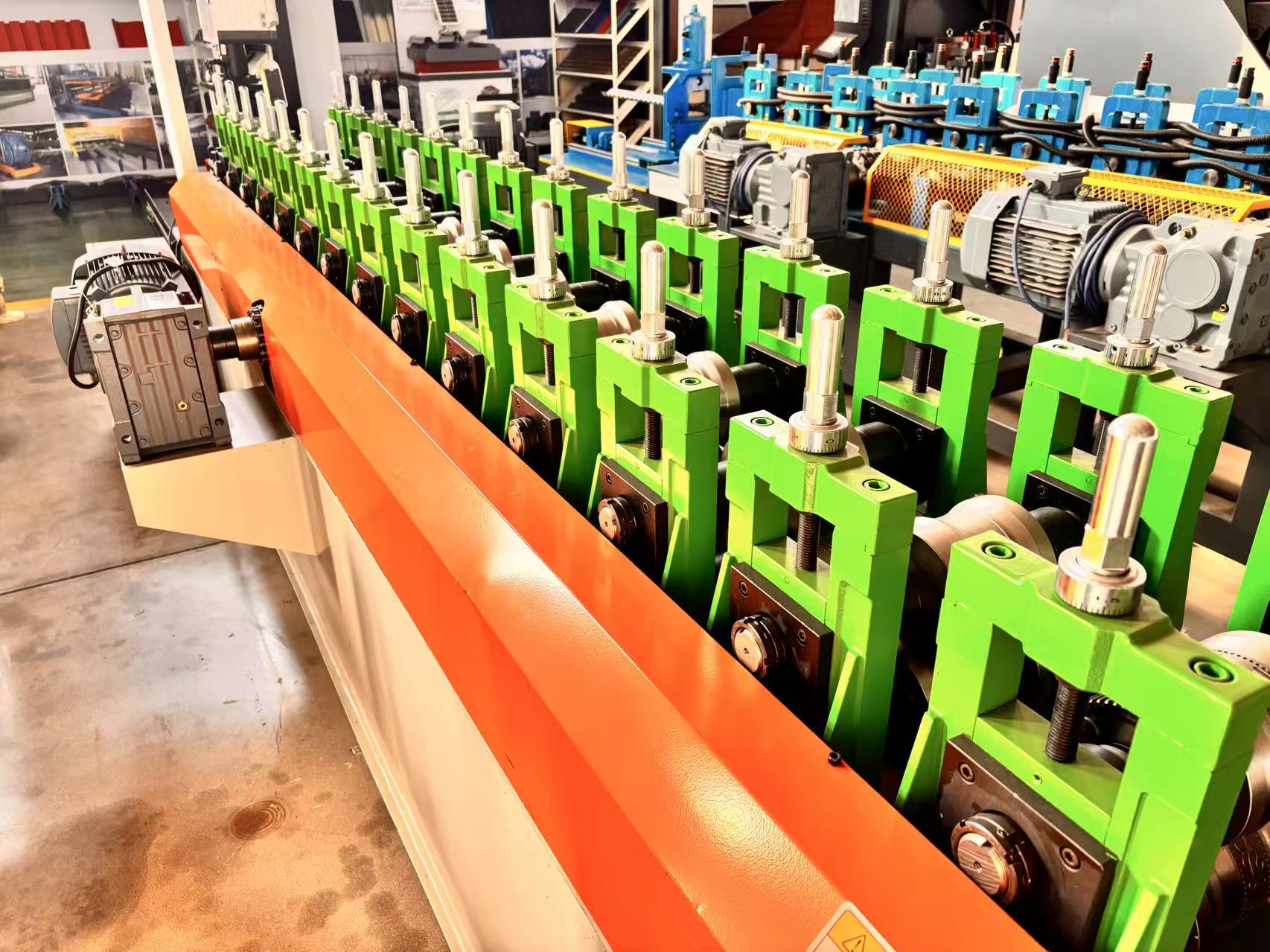

Roller station
|
14rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
20-25m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Pattern diagram:
Core features:
1. High automation and intelligence
• Using PLC and servo program control system to achieve production information management.
• Support touch screen human-computer interaction, can preset multiple production programs, and switch production modes with one click.
2. High precision and high stability
• Ensure the dimensional and shape accuracy of the rolling shutter door through precise molds and control systems.
• The roller material is usually made of 45 # steel, with a plating thickness of 0.05mm, and the cutting blade material is Cr12.
3. Multi functionality and customization capabilities
• Personalized customization: We can produce rolling shutter doors of different sizes, materials, and shapes according to specific customer needs.
• Multi material adaptability: capable of stable processing of galvanized, color coated, and stainless steel plates, supporting continuous cold bending forming of 0.8-1.2mm plates.
Main application scenarios：
1. Commercial premises
• Supermarkets and shopping malls: used for making fireproof rolling shutter doors to meet fire safety requirements.
• Commercial storefront: The rolling shutter doors produced by Australian style rolling door machines emphasize aesthetics and durability.
• Convenience stores and specialty stores: providing safety protection and aesthetic decoration.
2. Industrial and warehousing facilities
• Industrial plants and warehouses: widely used as entrances and exits for various industrial plants and warehouses.
• Large logistics center: heavy-duty wind resistant rolling shutter doors are suitable for the production of ultra-high wind resistant door bodies in ports, industrial parks, • large warehouses, and other areas.
3. Public buildings and special places
• Hospitals, schools, and office buildings: used for passages or entrances to meet fire safety requirements.
• Garage and basement: suitable for residential areas’ garages and basements.
• Aircraft hangars, special facilities: such as those used for special places such as aircraft hangar doors.
