The Australia type roller shutter garage doors rolling forming machine, also commonly known as the Australian style rolling shutter or silent door equipment, has the core function of achieving automated and continuous production of door panels. The entire production line usually consists of several parts, including a feeding rack, a feeding platform, a main machine forming part, a hydraulic shearing device, and a fully automatic computer control system.
This device adopts an advanced PLC (Programmable Logic Controller) system, and operators can easily set production parameters such as length and quantity through a touch screen interface, achieving “one click” production from raw materials to finished door panels. Its production process is highly integrated, covering functions such as automatic feeding, precision rolling forming, fixed length cutting, and automatic counting, greatly improving production efficiency and product consistency.
Application Scenario:
The door body produced by the Australian style rolling shutter door molding machine is widely used in various places with requirements for security, space, and aesthetics due to its advantages of sturdiness, beauty, quietness, and good sealing.
• Commercial premises:
Ideal for shops, shopping malls, supermarkets, chain stores, and other storefronts, providing reliable safety protection and enhancing the store’s image with its beautiful appearance.
• Industry and Logistics:
Widely used in industrial plants, warehouses, logistics centers, and aircraft hangars, its fast opening and closing and sturdy and durable characteristics are very suitable for large-sized doorways, which can effectively improve logistics efficiency and ensure property safety.
• Residential and public facilities:
commonly used for garage doors, entrances and exits of residential areas, schools, hospitals, etc. Its silent design avoids disturbing residents or patients when opening or closing doors, while good sealing can effectively prevent wind, dust, and rain.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.8mm Width:1220mm/1450mm(customized as drawing)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

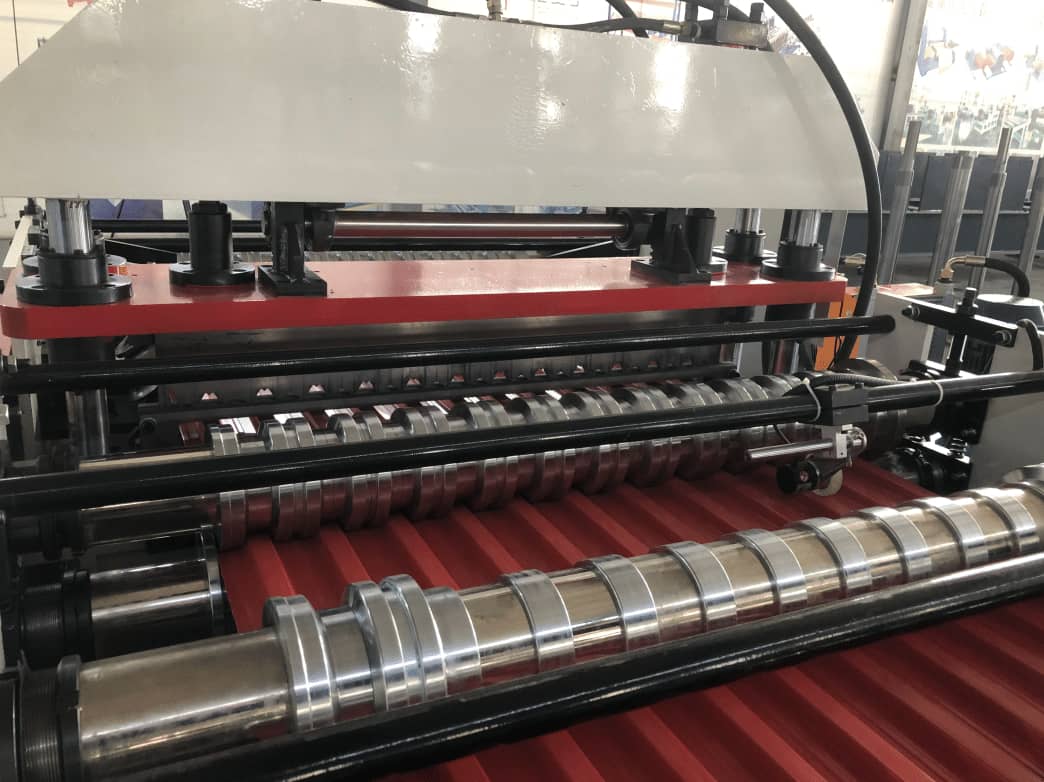

3.Main body
|
Roller station
|
26 rows(As your requirement)
|
||
|
Diameter of shaft
|
90mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
400 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
12500*1800*1600(customize)
|
|||
|
Weight
|
10.5T
|
|||
|

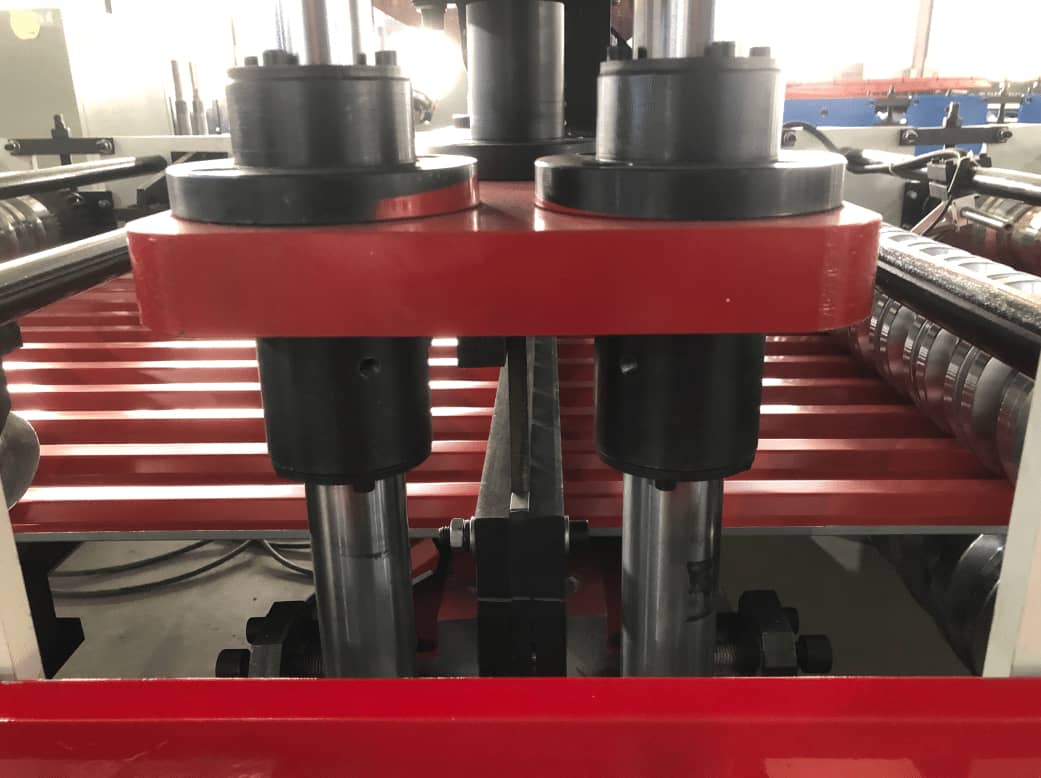

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed is adjustable
|
||
Pattern diagram:
Core advantage:
The Australian style rolling shutter door forming machine and its produced door panels have a series of significant characteristics, making them popular in the market.
1. Efficient and automated production
• Continuous forming: The equipment adopts multiple rows (such as 12 to 24 rows) of precision rolling rolls, which are synchronously rolled and formed through chain wheel transmission. The production speed can reach 8-10 meters/minute, achieving fast and stable continuous operation.
• Intelligent control: The fully automatic computerized fixed length cutting system ensures precise and error free length of each door panel, uniform hydraulic cutting force, smooth and burr free cutting, greatly reducing manual intervention and material waste.
2. Excellent finished product quality
• Sturdy structure: The produced door panels are made of seamless steel and formed in one go, forming a strong and non deformable structure. Compared with traditional buckle ring connection methods, they have stronger anti-theft performance and wind pressure resistance.
• Exquisite appearance: The formed door panel has a smooth surface, uniform ripples, and a novel and beautiful appearance. The equipment is compatible with various coated metal sheets, with a variety of finished colors to meet the aesthetic needs of different buildings.
• Silent operation: The door panels produced by the equipment, combined with specially designed sound-absorbing strips and grooves, form the “silent system” of the Australian style rolling shutter door. The door panels are connected by precise mortise and tenon or interlocking structures, fundamentally eliminating the friction noise of traditional rolling shutter doors during opening and closing, and running quietly and smoothly.
3. Convenient operation and high reliability
• Easy to maintain: The equipment structure design is reasonable, and mechanical debugging, mold replacement, and daily maintenance are relatively simple.
• Stable performance: The entire machine adopts a highly integrated automation control system and high-strength materials (such as 45 # forged steel forming wheels), ensuring the long-term stability and durability of the equipment.
