Typical application scenarios：
1. High end civil buildings
• High end residences, villas, and homestays:
Aluminum magnesium manganese/titanium zinc vertical seam panels paired with curved and sloping roof shapes, combining aesthetics and durability, suitable for light luxury and modern architectural styles.
• Commercial complexes and exhibition centers:
The large-span roof adopts a vertical seam locking system, which is wind and earthquake resistant, easy to maintain, and meets the roof requirements of large venues.
2. Industry and Infrastructure
• Steel structure factory buildings and logistics warehouses:
The vertical seam roof tiles are rapidly formed, easy to install, suitable for large-scale roof construction, and balance insulation and waterproofing.
• Airports, high-speed railway stations, and highway toll stations:
large-span, high-strength vertical seam panels with strong wind resistance and weather resistance, ensuring long-term stability of outdoor roofs.
• New energy projects (photovoltaic/wind power):
Combined with photovoltaic brackets, achieve the integration of “photovoltaic+building” on the roof, and reduce the cost of roof renovation.
3. Special environmental buildings
• Coastal/salt spray areas:
Made of aluminum magnesium manganese and stainless steel vertical seam plates, corrosion-resistant and salt spray resistant, suitable for seaside hotels and port facilities.
• Low temperature/high-altitude regions:
Titanium zinc vertical joint board has a low coefficient of thermal expansion and is resistant to freezing and cracking, making it suitable for roofs of high-altitude buildings in northern China.
Equipment Introduction：

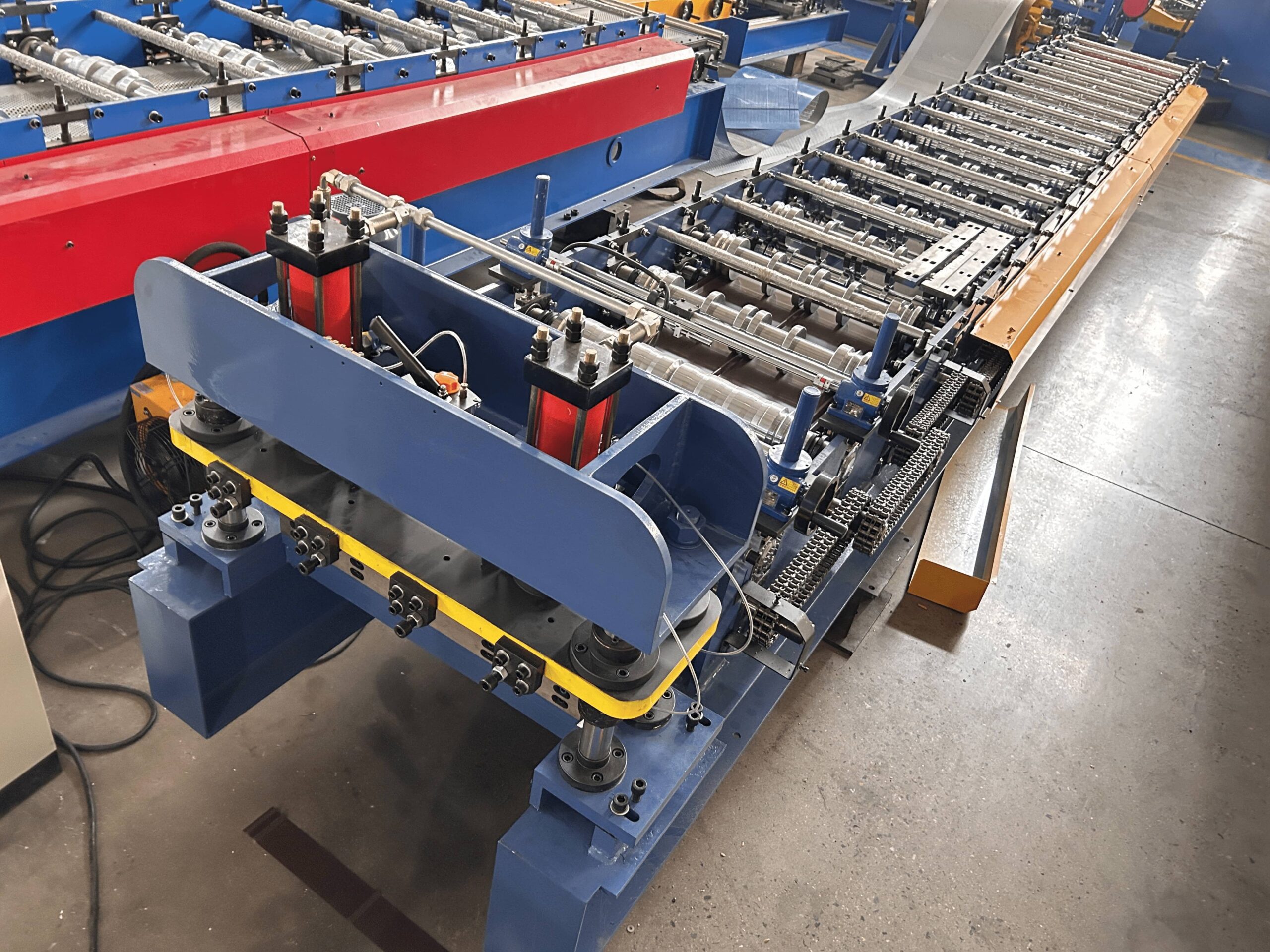

The Hot Sale Standing Seam Panel Roofing Sheet Machine is a specialized cold bending equipment for producing “vertical seam lock edge” roof panels by gradually cold bending galvanized steel, aluminum magnesium manganese, titanium zinc and other metal coils through multiple passes. Its core is to accurately roll the “male rib/female rib” section on both sides of the sheet metal for on-site 360 ° vertical mechanical locking, forming a continuous roof without screw penetration. It is the core production equipment of modern metal roof systems.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.3-1.0mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
Due to your requirement profile
|
||
|
Diameter of shaft
|
Due to your requirement profile
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
gear and Double Chain transmission/gearbox transmission optional
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-15m/min
|
Provide customized
|
||

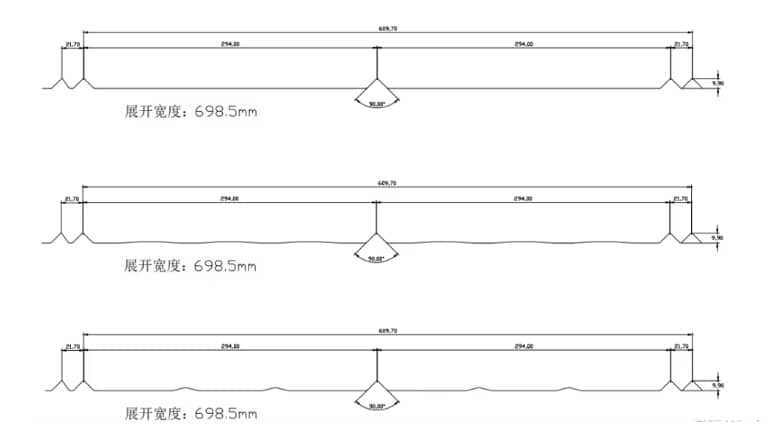

Pattern diagram:
Core Features：
1. High locking accuracy, waterproof and no hidden dangers
Adopting multi pass precision pre forming, the rolling mill undergoes CNC machining and hard chrome plating treatment, with a forming accuracy of ± 0.3mm for male/female ribs, ensuring a tight and seamless locking edge on site, completely avoiding water leakage and seepage problems caused by screw perforation.
2. Full process automation, efficient and labor-saving
Integrate the entire process of uncoiling, leveling, forming, cutting, and palletizing, with one click PLC start and no need for multiple equipment connections. Servo closed-loop control for fixed length cutting, fast cutting speed and small error; Supporting the storage of dozens of board type formulas, the changeover time is shortened to 10-30 minutes, the single shift production capacity can reach several kilometers, and the efficiency is 3-5 times higher than traditional processes.
3. Adapt to multiple materials and scenarios, with flexible applications
Can process various metal coils such as galvanized steel, aluminum magnesium manganese, titanium zinc, stainless steel, etc., taking into account anti-corrosion, load-bearing, and appearance requirements; Support the production of trough, ladder, and large-span vertical joint panels, which can integrate processes such as reinforcement and flanging to meet different roof shapes and load requirements.
4. Stable and durable structure, stable operation
The host rack is made of thick steel plate welded and annealed, with strong rigidity and long-term operation without deformation; The rolling mill adopts Cr12MoV/45 # steel quenching treatment, with a wear resistance life of 8-10 million meters; The core transmission adopts a combination of gearbox and chain, which is impact resistant, low-noise, low failure rate, and suitable for continuous production.
