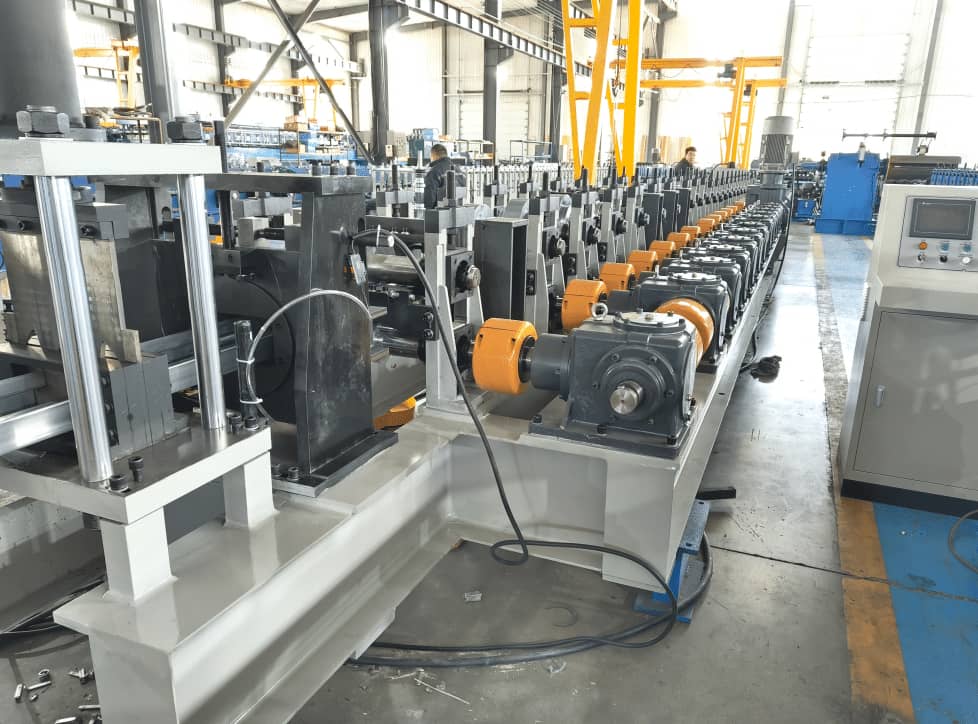

The Shipping Container Beam Roll Forming Machine is a specialized automated equipment used for producing key load-bearing structural components of containers, such as bottom beams, side beams, end beams, and corner columns. It is widely applied in container manufacturing, steel structure processing, and modular construction. This equipment employs cold bending technology to continuously process metal coil plates into profiled sections with specific cross-sectional shapes, offering high precision, efficiency, and large-scale production capabilities.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
18 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Features
1.high automation level
The equipment integrates a PLC control system with a touch screen interface, supporting parameter presetting, fixed-length cutting, and self-diagnosis of faults. It achieves fully automated operation from material feeding, leveling, forming to cutting, minimizing manual intervention.
2.Precision forming capability

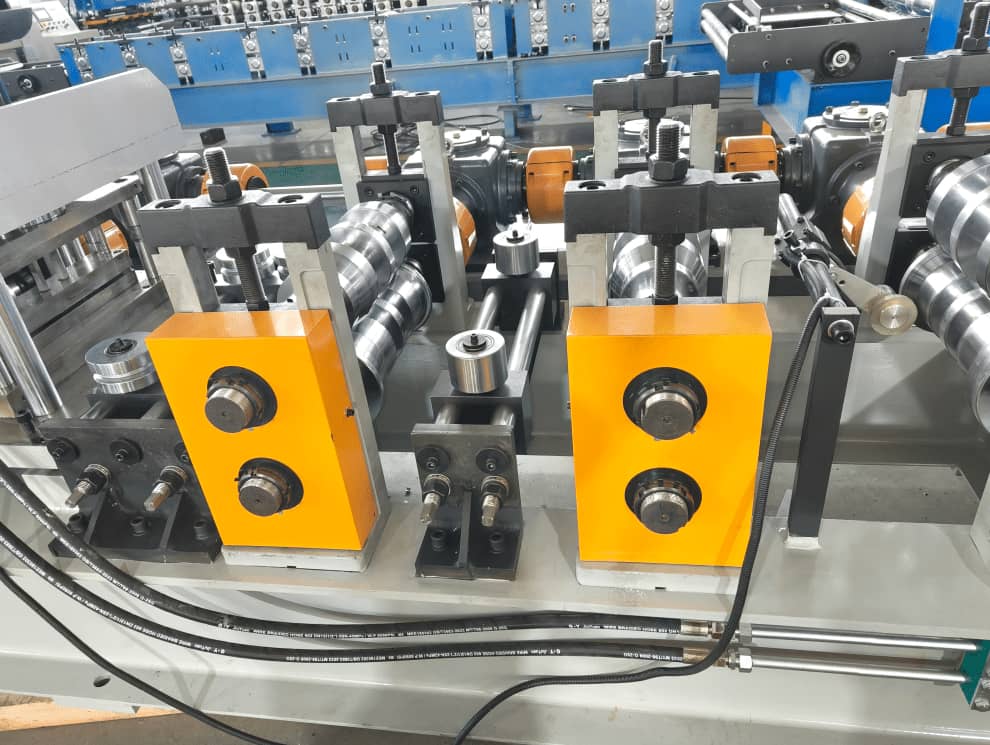

The multi-pass rolling system (typically 18 passes or more) employs rollers precision-turned from heat-treated bearing steel (hardness HRC 58°-60°), ensuring stable profile dimensions, smooth cross-sections free of stress concentrations, and length precision within ±2mm.
3.The material has strong adaptability
It can process galvanized steel coils or pre-painted coils with a thickness of 1.5-3mm and a width of up to 1500mm, suitable for commonly used container plates such as SPA-H and SM490A, meeting various strength and weather resistance requirements.
4.Modular and Customized Design
Depending on the customer’s requirements for beam types (such as C-shaped, U-shaped, or I-beam) and their intended uses, the roller assembly configuration can be flexibly adjusted. This supports rapid mold changeover for non-standard parts, enabling adaptation to scenarios involving multiple small-batch varieties or large-scale production of single products.
Pattern diagram:
Typical Applications
• Standard Container Manufacturing
Produce core load-bearing components such as the bottom transverse beam and lower side beam to ensure the structural safety of containers during stacking, lifting, and long-distance transportation.
• Specialized Box Bodies and Frame Box Production
Used for manufacturing irregular-shaped components such as goose neck beams and reinforced end beams, meeting the special load-bearing requirements for transporting overweight and extra-long cargo.
• Modular Architecture and Prefabricated Container Houses
The processing and packaging of frame profiles such as columns, roof beams, and side beams for box-type houses support the assembly of prefabricated buildings like temporary shelters and on-site dormitories that can be quickly assembled.
• Port Machinery and Large Steel Structures
Working in tandem with the intelligent factory production line, it provides prefabricated profiles for box-type main beams of equipment such as quay cranes and gantry cranes, enhancing the standardization level of large steel component manufacturing.
