Product Overview

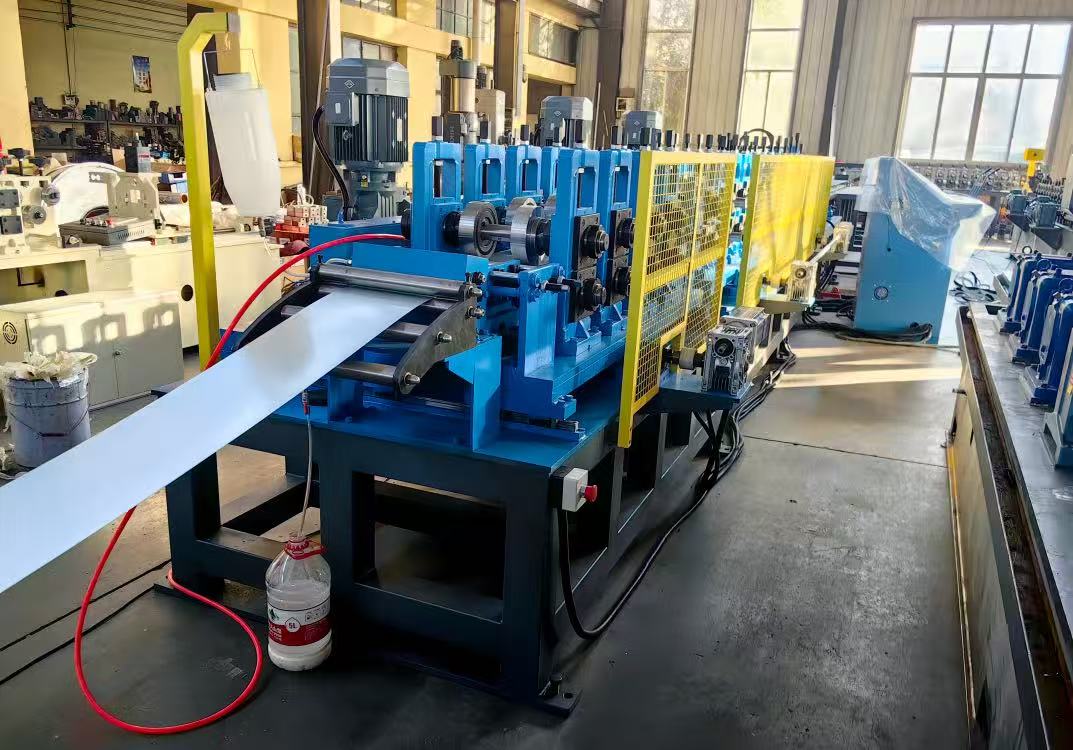

1.Core Function: The Automatic Light Steel Keel Stud and Track Drywall C U Channel Making Machine is a cold-bending forming equipment specifically designed for building partition wall systems and ceiling frames, capable of efficiently producing C-shaped and U-shaped light steel keels.
2.Application Areas: Widely used in light steel villas, high-rise building partition walls, and prefabricated decoration scenarios, supporting the processing of raw materials such as galvanized steel strips or aluminized zinc sheets.
3.Technical Advantages: Possesses core advantages such as high automation, outstanding production efficiency, and labor cost savings, making it a key piece of equipment in modern industrialized construction.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.31-0.9mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
14 rows(As your requirement)
|
||
|
Diameter of shaft
|
60mm solid shaft
|
|||
|
Material of rollers
|
Gcr 12 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
3KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Advantages
1.Dual-Type Integration, Flexible and Efficient
• Utilizing advanced digital display changeover technology, machines can quickly switch between C-type and U-type keels without changing molds. Some models support simultaneous production, significantly improving production line flexibility.
• For example, the integrated design allows for model conversion by adjusting the feeding position, eliminating the cumbersome steps of replacing parts in traditional equipment, making it suitable for diverse engineering needs.
2.Fully Automated Production, Cost Reduction and Efficiency Improvement
• Integrating a PLC control system and variable frequency speed control technology, the entire process from punching and shearing to palletizing is automated.
• High-end models are equipped with automatic punching and shearing functions, combined with a hydraulic power system, ensuring precise and efficient operation, significantly reducing labor input and production cycle time.
3.High Precision and Durability
• High forming accuracy, with errors controlled within a very small range, ensures the stability of the keel structure.
• Key components such as rollers and blades are made of high-quality alloy materials and undergo special heat treatment to enhance wear resistance and extend the service life of the equipment.
Pattern diagram:
Application Scenarios
• Prefabricated Buildings:
In light steel villa and high-rise partition wall projects, the CU keel machine, with its rapid changeover function, flexibly meets the production needs of C-shaped vertical keels and U-shaped peripheral keels.
• Commercial Spaces:
Suitable for partition systems in office buildings and shopping malls, it efficiently produces standardized profiles, shortening construction time.
• Industrial Manufacturing:
Provides keel manufacturers with high-precision, low-waste production solutions, contributing to industrial upgrading.
