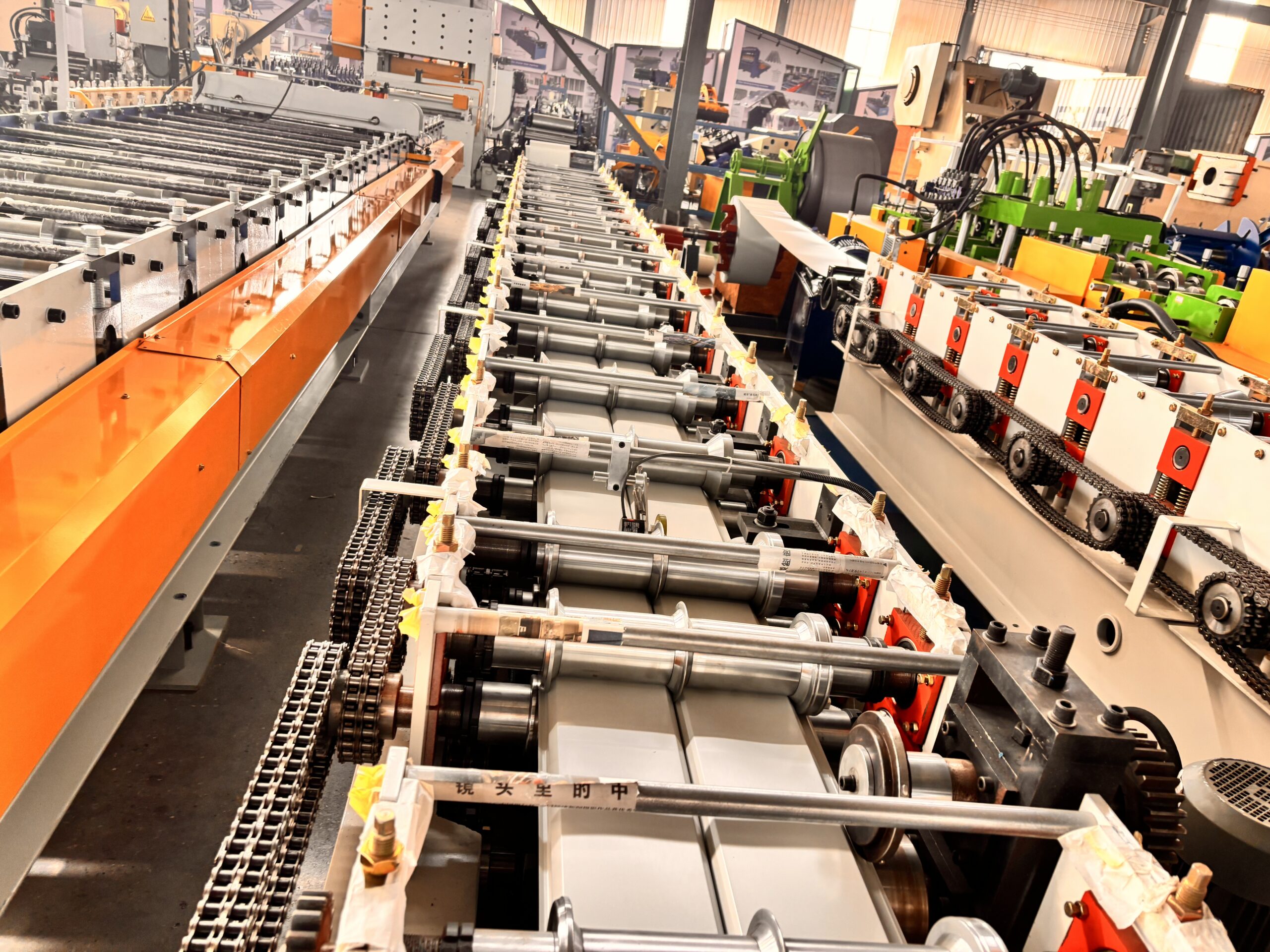

In the grand narrative of modern architectural industrialization, the exterior wall is not only the “coat” of the building, but also the unity of structural safety and aesthetic expression. The trapezoidal exterior wall cladding roll forming machine, as the culmination of cold bending technology, is becoming a key link between steel raw materials and modern building facades with its unique geometric shaping ability and efficient production performance. It abandons the softness of traditional circular arc tiles and instead pursues a more rigid and sharp industrial aesthetics, transforming flat color steel plates into three-dimensional components with extremely high structural strength, endowing large factories, logistics warehouses, and modern public buildings with indestructible visual tension.

Application Scenario:

• Large scale industrial and logistics facilities
Utilizing the extremely high structural strength and wind resistance of trapezoidal plates to meet the stress requirements of large-span steel structure walls; Its durability and low maintenance cost are in line with the economic considerations of the entire lifecycle of industrial buildings.
• Modern Business and Public Buildings
The rugged texture of the lines endows the building with a strong modern industrial aesthetic style; Rich color choices and flexible layout methods can work together with designers to create visually impactful exterior effects.
• High end residential and cultural tourism projects
Trapezoidal hanging boards can be used as part of exterior wall decoration systems, mixed with wood and stone to create exquisite and durable building skins; Its excellent waterproof performance effectively protects the main structure and extends the service life of the building.

Product Attributes :

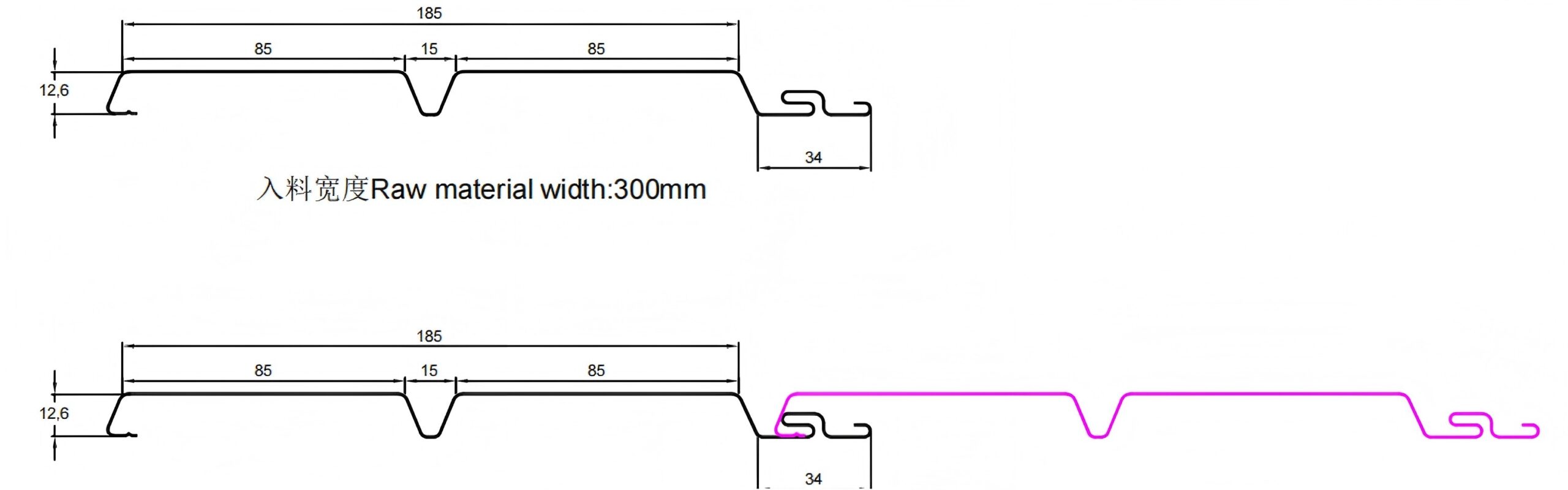

Pattern diagram:

Core advantage: Dual breakthrough in structural strength and production efficiency

The reason why trapezoidal exterior wall cladding equipment can occupy a place in fierce market competition is due to its dual advantages in structural performance and manufacturing efficiency, perfectly interpreting the design philosophy of “form follows function”.
1.Excellent mechanical performance and structural strength
The geometric design of trapezoidal cross-sections is a paradigm of mechanical optimization. Compared to circular corrugated walls, trapezoidal structures form a truss like support effect through their sharp peaks and valleys, greatly enhancing the bending stiffness and load-bearing capacity of the board. This structure enables the board to more effectively disperse stress and prevent deformation when subjected to wind pressure, snow load, or external impact. At the same time, the trapezoidal drainage channel is designed to be wide and deep, ensuring that rainwater is quickly discharged under the action of gravity, avoiding the risk of water accumulation and leakage, and providing a reliable waterproof barrier for the exterior walls of the building.


2.Ultimate production efficiency and flexible manufacturing
The equipment adopts advanced servo dynamic cutting technology, achieving a continuous production mode like a “flying saw”. When the cutting mechanism performs the cutting action, the main forming machine does not need to slow down or stop, and the cutting action is completely synchronized with the sheet conveying speed. This not only eliminates the mechanical impact caused by start stop, but also controls the flatness of the cut at the micrometer level. In addition, the split molding process endows the equipment with strong flexibility. By adjusting the roll parameters or replacing modules, the same equipment can flexibly adapt to the specifications of different wave heights and distances, meeting the market’s rapid response capability for customized orders of multiple varieties and small batches.


3.Perfect surface protection and decorative effect
For color coated boards with high decorative requirements, the equipment integrates a precise tension control system at the feeding end, which smoothly adheres PE protective film or composite film to the surface of the board without bubbles. This detailed design ensures that the finished hanging board is protected from friction and stains during transportation, lifting, and storage, ensuring the pure color and perfect texture of the completed building facade. The straight line design of trapezoidal tiles also gives the building a strong sense of modernity and order, which can be perfectly integrated with various materials such as glass curtain walls and concrete, enhancing the overall visual grade of the building.
