The Trapezoidal Sheet Panel Roofing Panel Roofing Roll Forming Machine is a highly automated production line. The basic workflow is as follows: the unwinding machine unfolds the metal coil, and the sheet enters the forming host through the feeding platform. The multi component rollers inside the host gradually press the sheet into the desired trapezoidal profile, and finally the cutting device accurately cuts it according to the preset length. The entire process is centrally controlled by a PLC (Programmable Logic Controller) system, achieving seamless transition from raw materials to finished products.

Main Features：

1.High precision and high stability
The equipment adopts a solid memorial archway type or H steel frame to ensure the stability of the body and effectively suppress vibration during high-speed operation. The forming roller is usually forged from 45 # steel and treated with a hard chrome coating, ensuring uniform ripples, precise dimensions, and smooth surface of the formed sheet metal.
2.Efficient automated production
Equipped with industrial computers and PLC control systems, operators only need to set the required length and quantity on the touch screen, and the equipment can automatically complete production, greatly reducing labor costs. Some advanced models are also equipped with a feeding port laminating device, which applies a protective film to the board before molding, effectively preventing surface coating scratches during subsequent processing and transportation.
3.Continuous operation, outstanding production capacity
By using servo tracking cutting technology, the cutting device moves synchronously with the sheet when cutting, and the host does not need to stop, achieving continuous production. This not only improves production efficiency (with speeds up to 8-20 meters per minute, high-end models can reach 25-40 meters per minute), but also ensures smooth and even cutting.

Application scenarios：

Trapezoidal roof tiles are widely used in roof and wall systems of various buildings due to their excellent structural strength and drainage performance
• Industrial and Storage Buildings
This is the main application area of trapezoidal tiles. Large industrial plants, logistics transfer stations, warehouses and other buildings commonly use trapezoidal color steel tiles as enclosure structures, which can effectively enhance the load-bearing capacity of the panels and adapt to large-span roofs.
• Commercial and Public Buildings
In sports venues, theaters, large shopping malls, agricultural markets and other buildings, trapezoidal tiles not only provide reliable protection, but their regular lines also have good decorative effects.
• Special environmental buildings
Trapezoidal tiles treated with special coatings have excellent anti-corrosion and anti rust properties, making them very suitable for use in high humidity or highly corrosive environments such as chemical plants, smelters, and coastal areas.

Product Attributes :

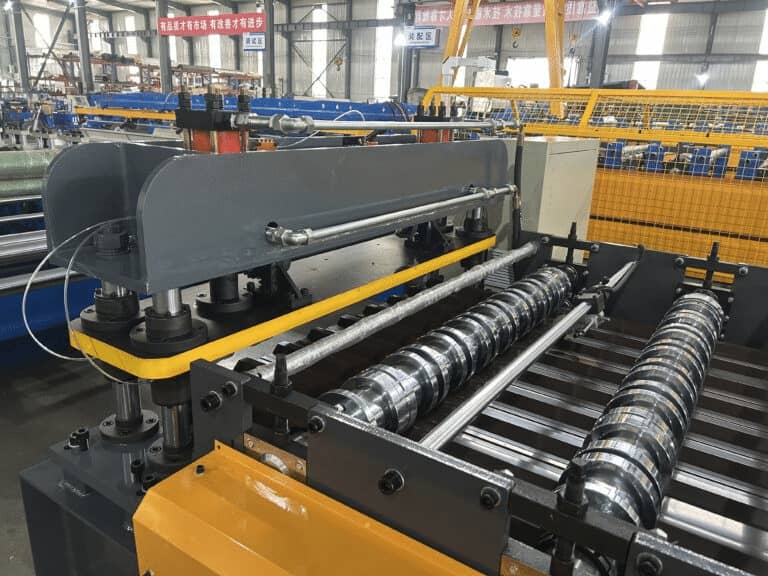

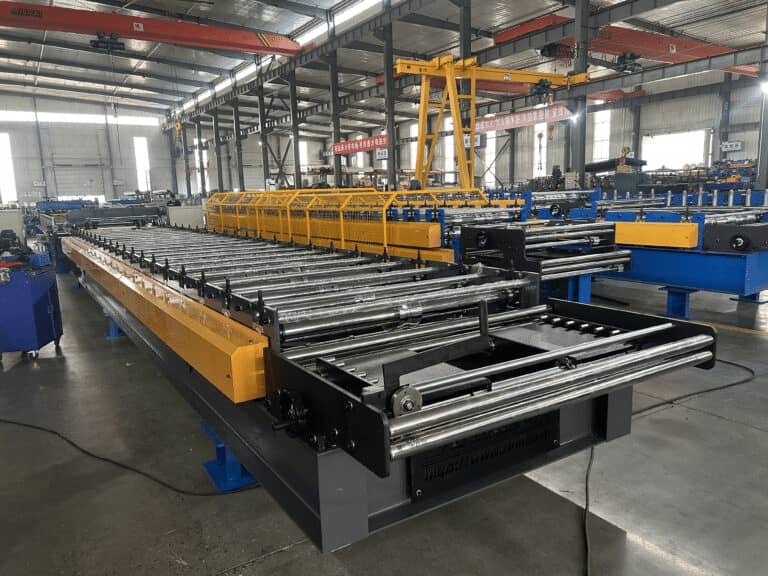

Machine photo:
