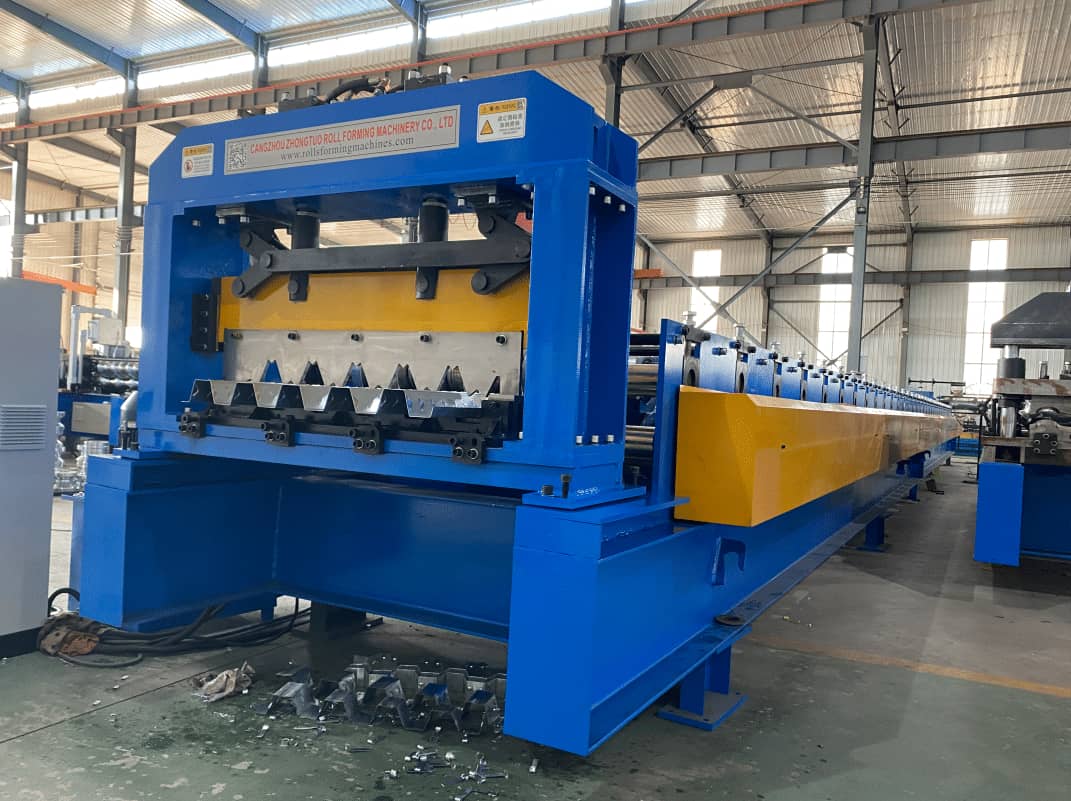

Zhongtuo Machines Floor Deck Roll Forming Machine, also known as the floor support plate tile press machine, is an automated cold bending forming equipment specifically used for producing building floor support plates (also known as steel support plates, building profiled steel plates). It efficiently and accurately processes steel coils into corrugated steel plates with specific cross-sectional shapes through continuous rolling processes.
Main Features：
The floor slab forming machine, with its advanced design and manufacturing process, has the following significant characteristics:
1.Efficient automation production:
The equipment adopts PLC intelligent control system, which can achieve continuous automation production. The production speed is usually 10-15 meters/minute, and some high-end equipment can reach 30-45 meters/minute, greatly improving production efficiency and reducing labor costs.
2.High precision and high stability:
The equipment rack is made of high-strength steel welded and processed as a whole, with a stable structure that ensures no deformation during high-speed operation and high pressure, ensuring the straightness and flatness of the product.
The forming roller is made of high-quality materials such as GCr15, quenched and precision ground, with high hardness and strong wear resistance, ensuring the accuracy of the plate shape and surface damage free.
Using encoders or servo systems for fixed length control, the cutting accuracy is high, and the dimensional tolerance can be controlled within ± 0.5mm.
Application scenarios：
The floor slab produced by the floor slab forming machine is a key material for modern steel structure buildings and prefabricated buildings, widely used in:
• Industrial buildings: various industrial plants, power plants, automobile exhibition halls, steel structure warehouses, etc.
• Commercial and public buildings: high-rise office buildings, large shopping malls, hotels, sports venues, music halls, theaters, airport terminals, train stations, etc.
• Other fields: cement warehouse, steel structure office, etc.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.7-1.2mm Width:1220mm (as request)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|

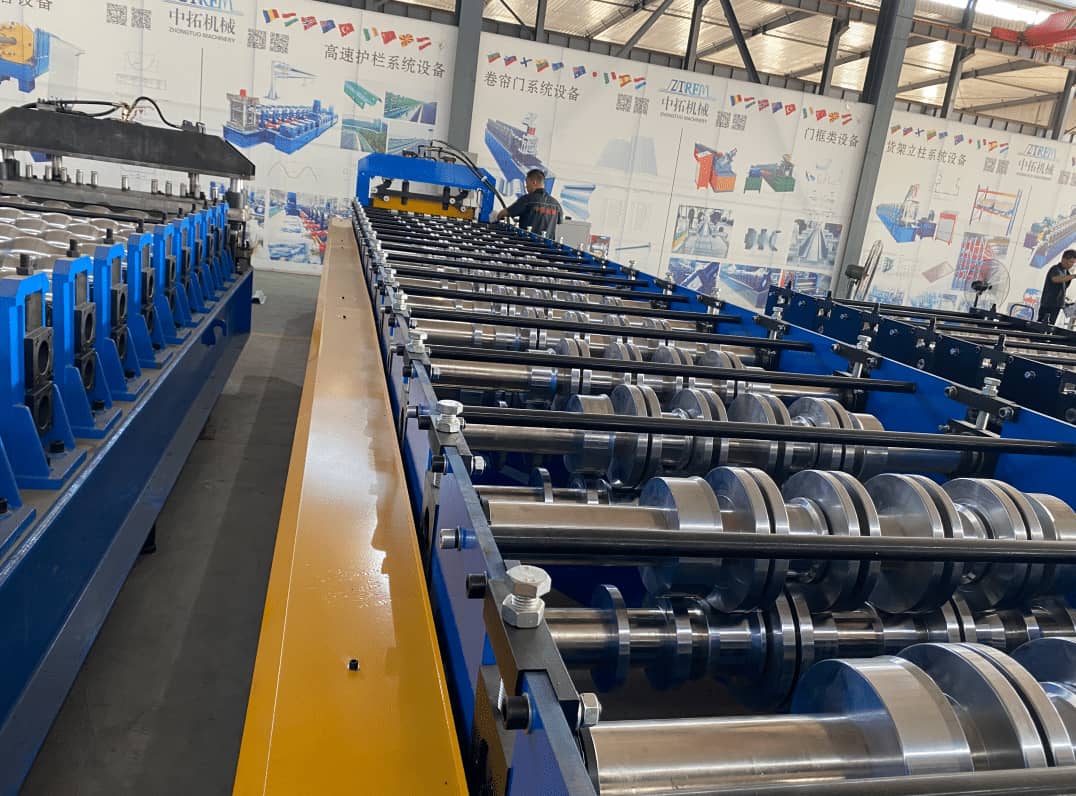

Roller station
|
33 rows(As your requirement)
|
||
|
Diameter of shaft
|
90mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
400 H steel
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
15000*1800*1600(customize)
|
|||
|
Weight
|
15T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
18.5 KW*2 sets,Siemens brand
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
