Automatic Floor Deck Roll Forming Machine for Steel Decking
Produce open, dovetail and closed steel floor deck profiles from 0.4–1.2 mm galvanized steel, with PLC-controlled length, quantity and cutting.
| Formed material | Galvanized steel (GI), 0.4–1.2 mm |
| Coil width | 1000 mm (as requested) |
| Forming speed | 0–20 m/min, adjustable |
| Control system | PLC + HMI touchscreen with batch, length and quantity presets |
| Cutting | Hydraulic automatic cut-to-length |
| Voltage | 380 V / 50 Hz / 3-phase (customizable) |
| Profile families | Open, dovetail (narrow-rib) and closed floor deck |
Request a Custom Machine Quote | Send Your Deck Profile Drawing
Share the profile drawing, coil material, thickness, effective width, required speed and local voltage. Our engineering team will prepare a matched configuration.
Machine Overview

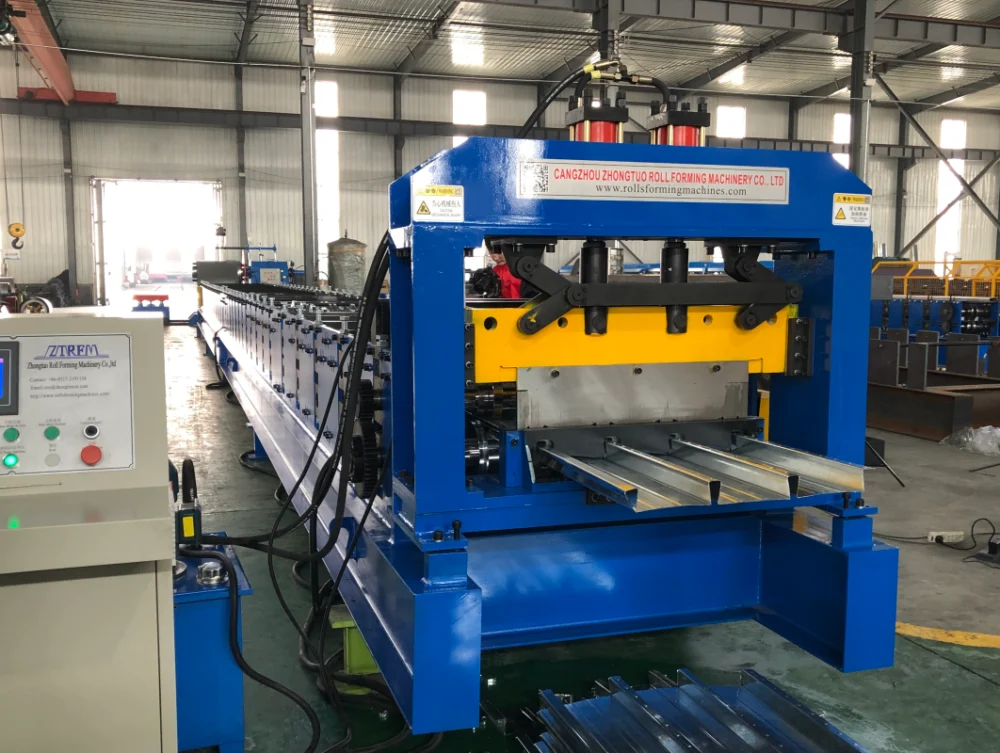

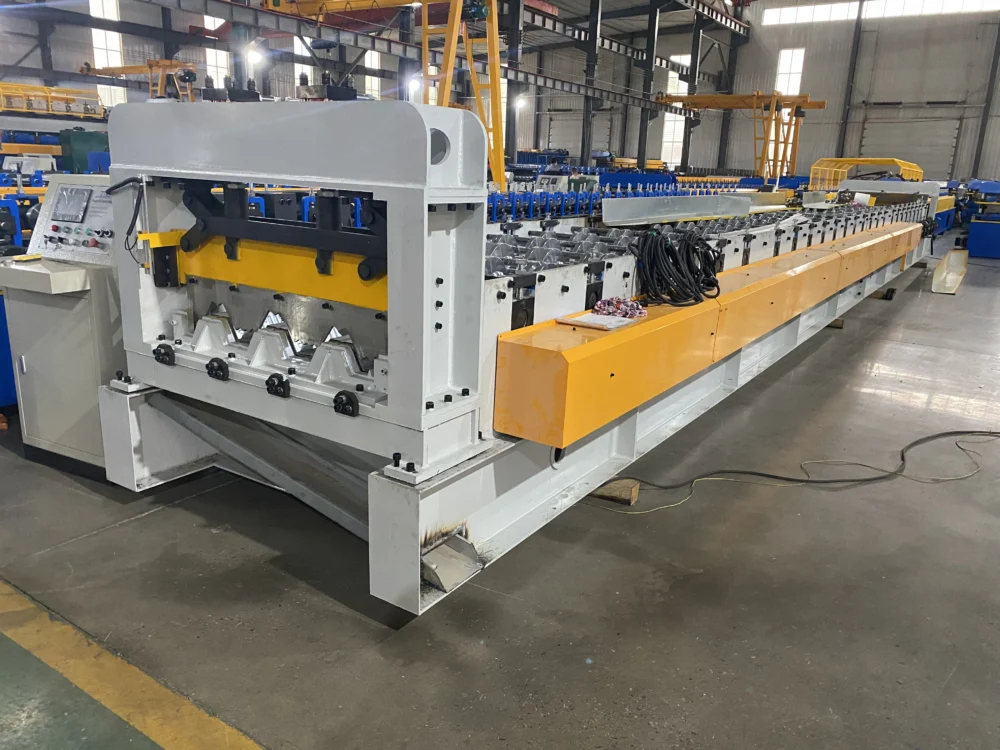

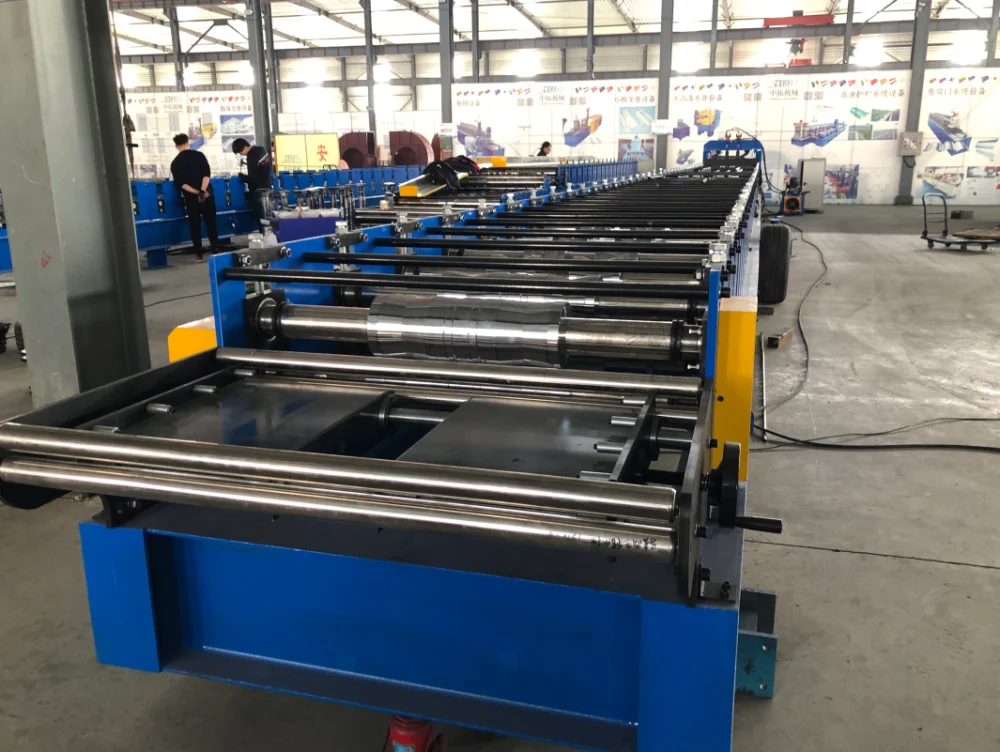

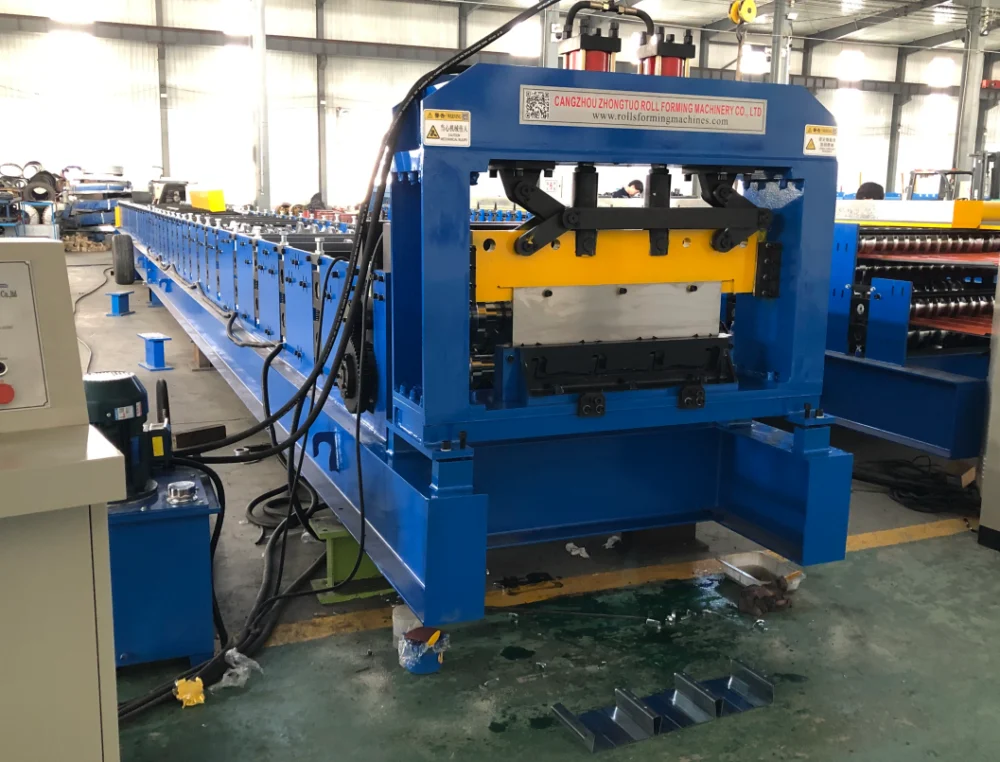

ZTRFM automatic floor deck roll forming machines convert galvanized steel coils into open, dovetail or closed floor decking profiles through continuous cold roll forming. A typical line combines decoiling, guiding, multi-stage forming, PLC-controlled length measurement, hydraulic cutting and material receiving.
The machine is configured around the buyer’s deck profile drawing, coil material, thickness, effective width, production speed and electrical standard. For the configuration shown on this page, the stated processing range is 0.4–1.2 mm galvanized steel, with forming speeds up to 20 m/min. Final parameters should be confirmed against the approved profile drawing before production.
If you need a different profile family or output level, compare this model with our other floor deck roll forming machines.
Floor Deck Profiles We Can Produce

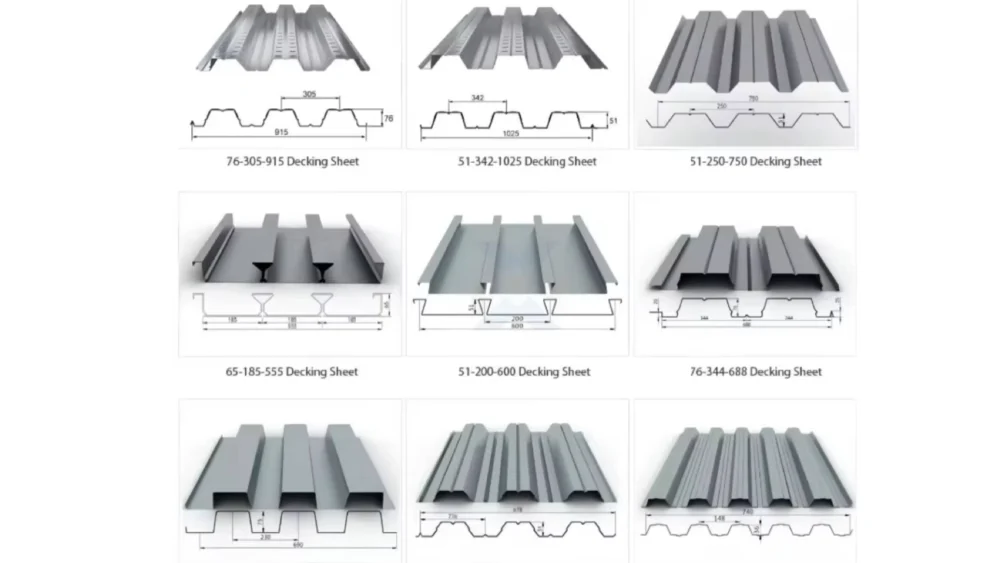

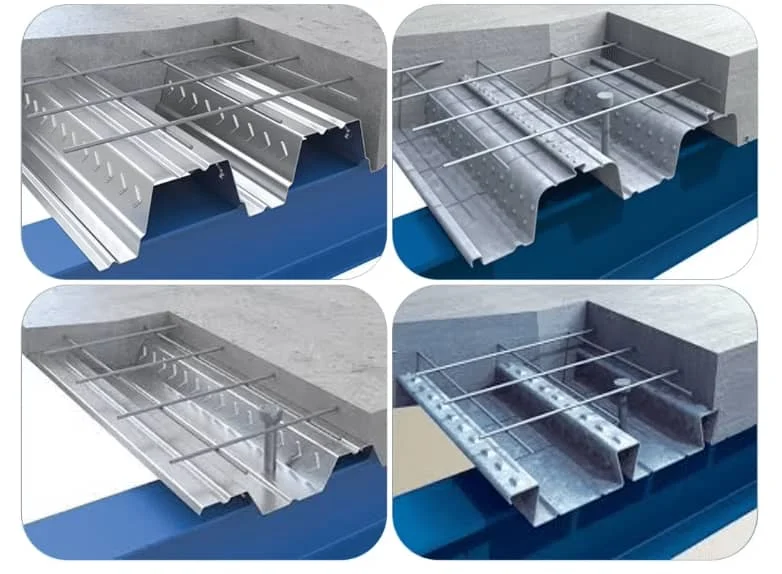

Floor decking falls into three structural families — open, dovetail (narrow-rib) and closed. The right family depends on the span, the required concrete saving and the local deck standard. For a side-by-side comparison of profile geometry, see the floor deck profile types and configuration guide.

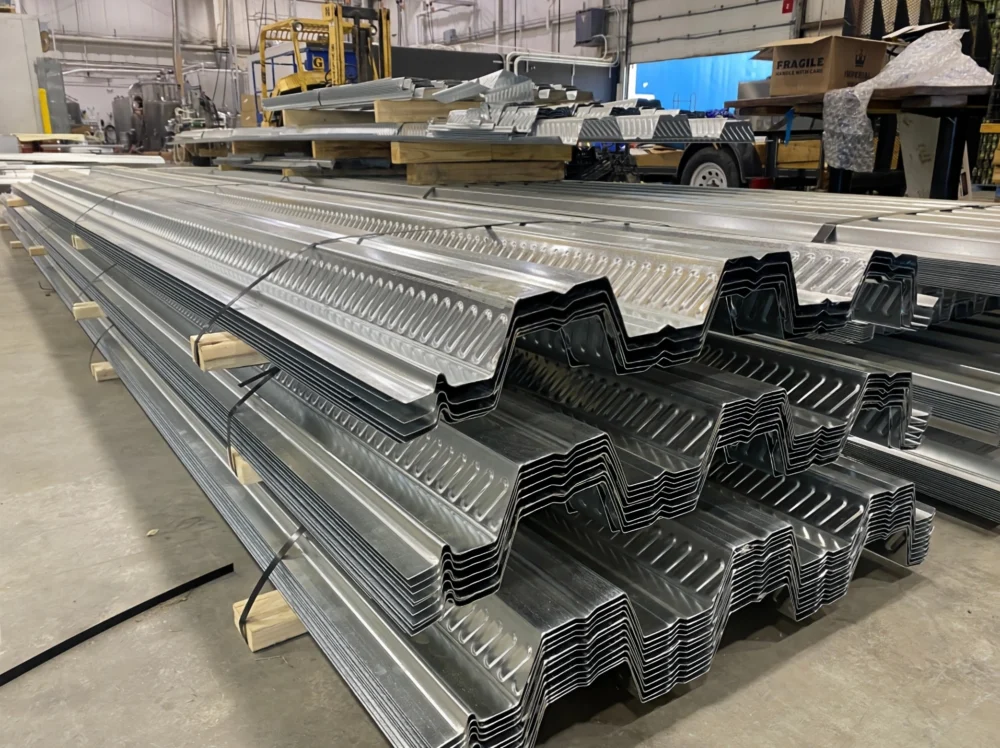

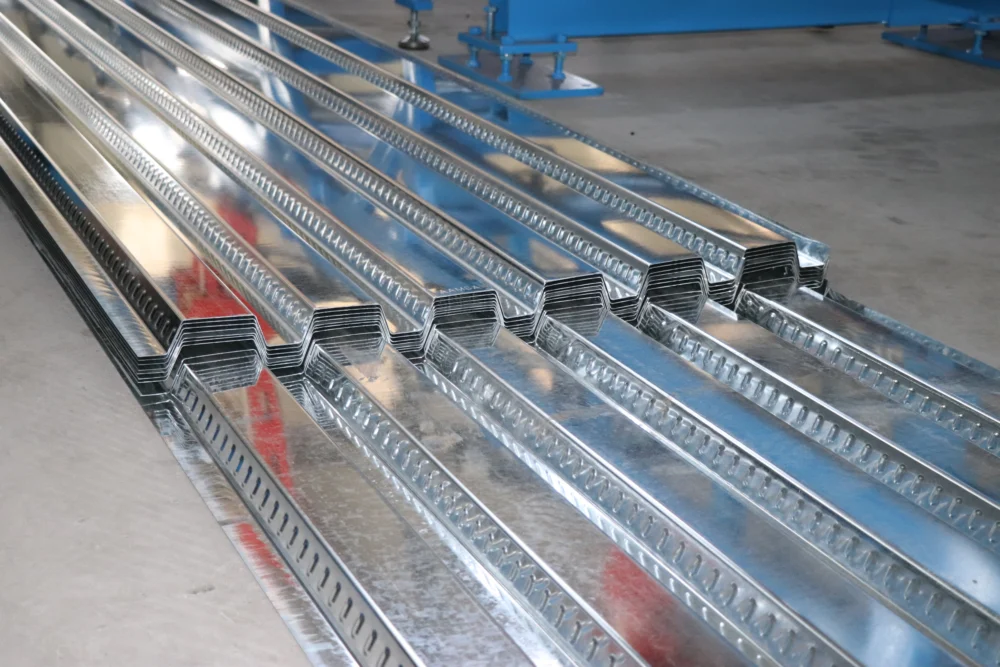

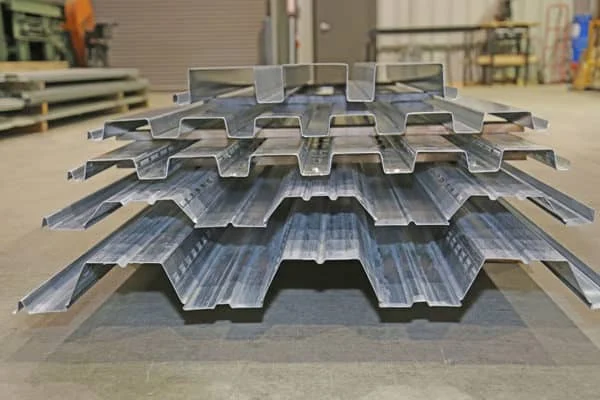

Open Floor Deck
Open floor deck profiles are widely used as permanent formwork in industrial buildings, warehouses and multi-story steel structures. Available profiles can include YXB76-305-915, YXB51-305-915, YXB75-200-600, YXB50-250-750 and YXB35-125-750, subject to drawing confirmation.
- YXB76-305-915 — rib height 76 mm, pitch 305 mm, effective width 915 mm
- YXB51-305-915 — rib height 51 mm, pitch 305 mm, effective width 915 mm
- YXB75-200-600 — rib height 75 mm, pitch 200 mm, effective width 600 mm
- YXB50-250-750 — rib height 50 mm, pitch 250 mm, effective width 750 mm
- YXB35-125-750 — rib height 35 mm, pitch 125 mm, effective width 750 mm
For projects that follow US deck standards, see our dedicated floor deck machine for US deck profiles.
Dovetail Floor Deck
Dovetail or narrow-rib floor decking uses a narrowed opening to improve the mechanical bond with concrete. Typical profiles include YXB51-200-600. The roll design and forming stations are engineered according to the required cross-section and material behaviour.

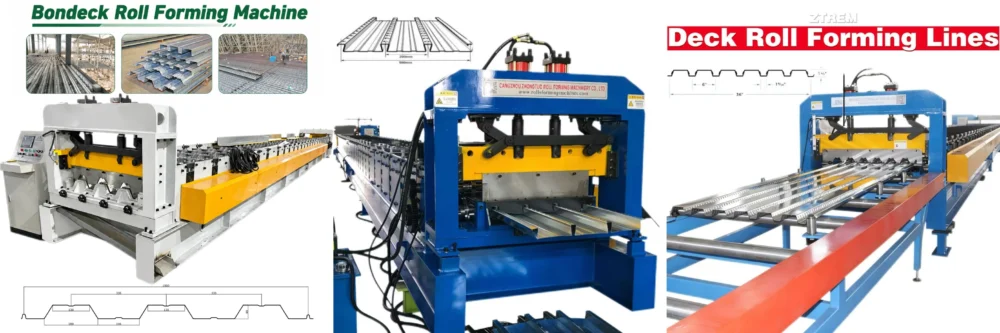

For the Australian Bondek profile family, see the Bondeck roll forming machine.

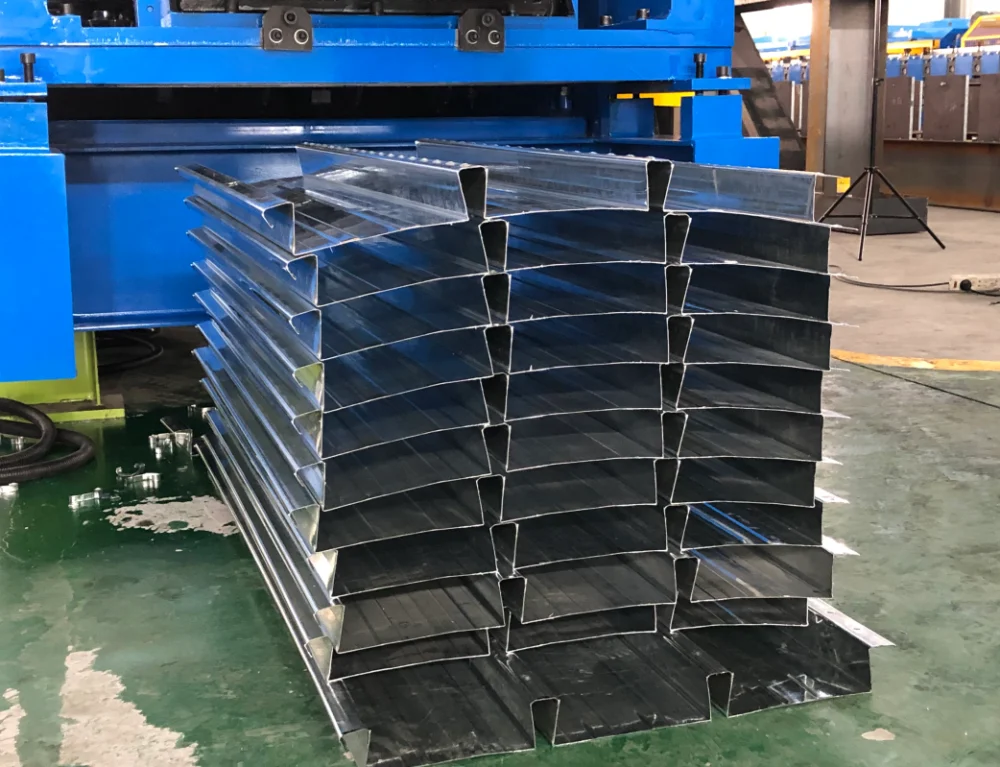

Closed Floor Deck
Closed floor deck profiles provide a flatter underside and can reduce concrete consumption depending on the structural design. Typical profiles include YXB65-185-555, YXB66-240-720, YXB65-170-510, YXB46-200-600 and YXB40-185-740.
- YXB65-185-555
- YXB66-240-720
- YXB65-170-510
- YXB46-200-600
- YXB40-185-740
Technical Specifications
| Formed material | GI (galvanized steel) | Thickness 0.4–1.2 mm, width 1000 mm (as requested) |
| Decoiler | Hydraulic automatic decoiler | Supplied with the line |
| Roller stations | Configured to the approved deck profile | |
| Shaft diameter | 80 mm solid shaft | |

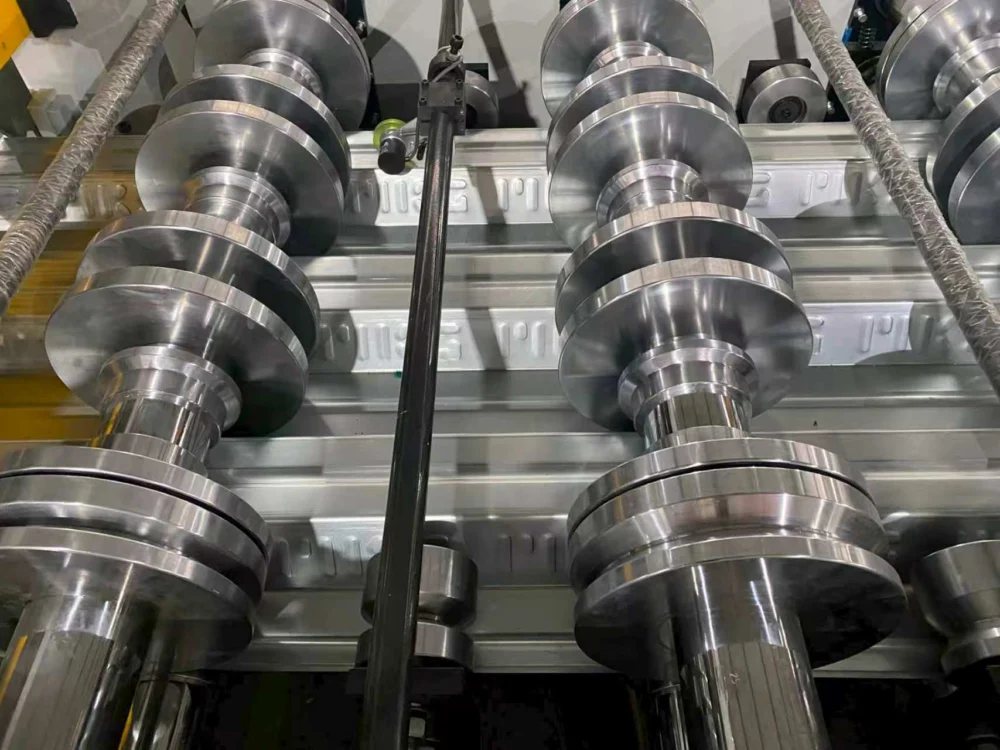

| Roller material | GCr15 bearing steel + 45# steel, quenched, surface hard chrome plated | |
| Machine body frame | 350 H steel with welded wall plates | |
| Drive | Chain transmission | |
| Dimensions (L×W×H) | 15,000 × 1,800 × 1,600 mm (customizable) | |
| Weight | Approx. 6 t | |

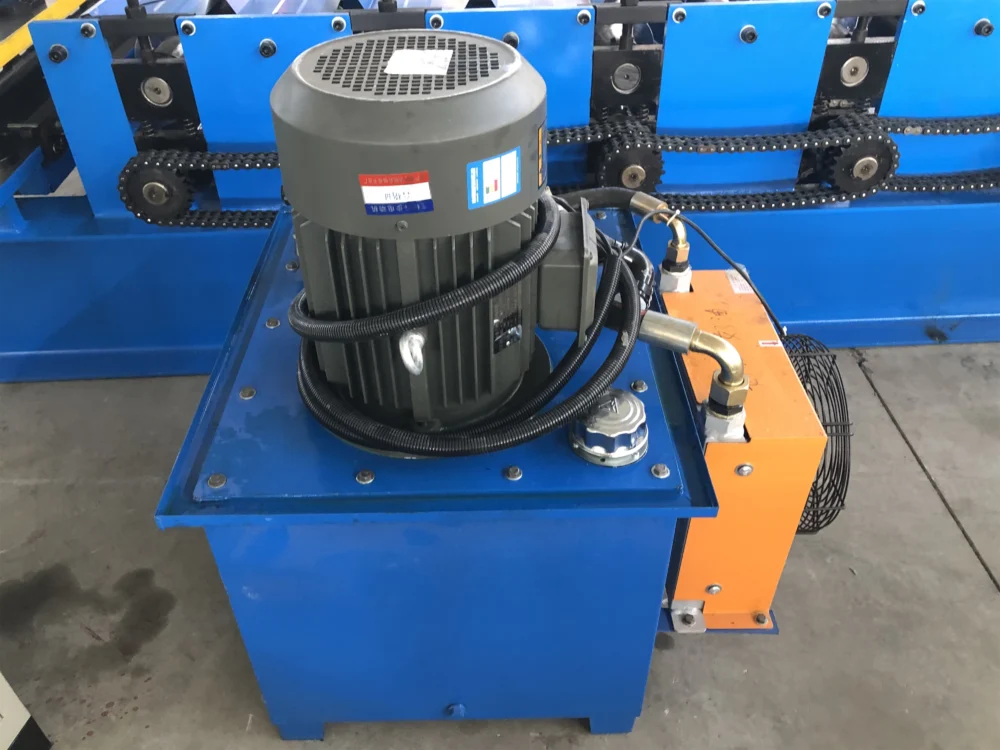

| Cutter | Automatic hydraulic cutting, CR12MoV blade, no scratching or deformation | |
| Voltage | 380 V / 50 Hz / 3-phase | Customizable to the destination standard |

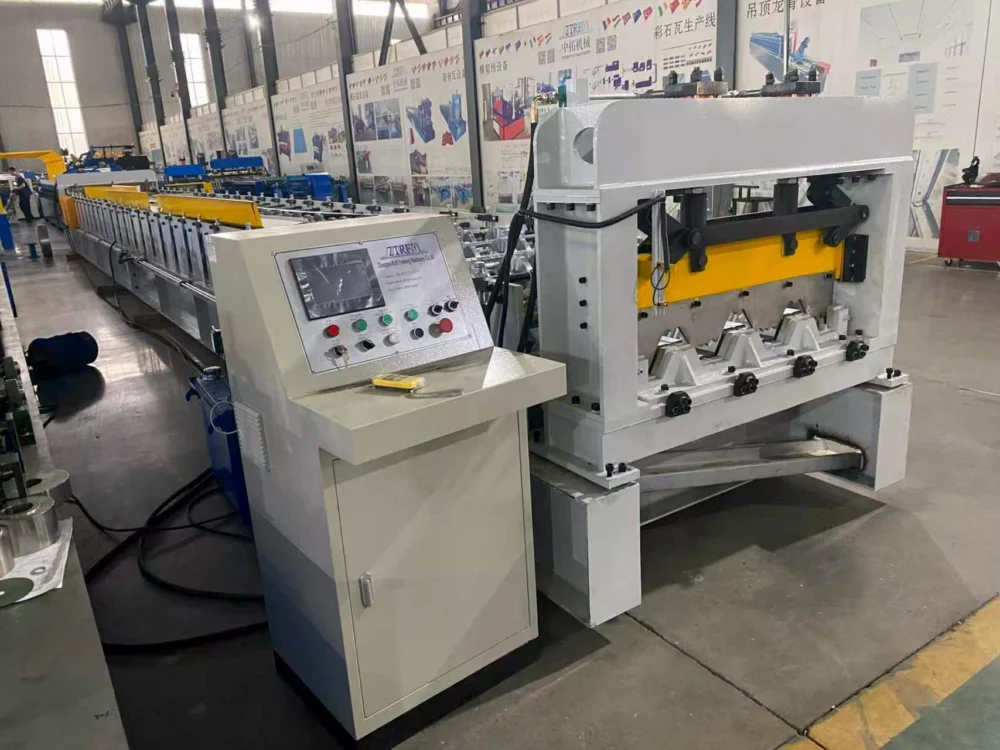

| Control system | Electric control cabinet, PLC | Whole-line automatic production; batch, length and quantity presets |
| Control language | English | Additional languages supported |
| Forming speed | 0–20 m/min | Adjustable to the customer’s requirement |

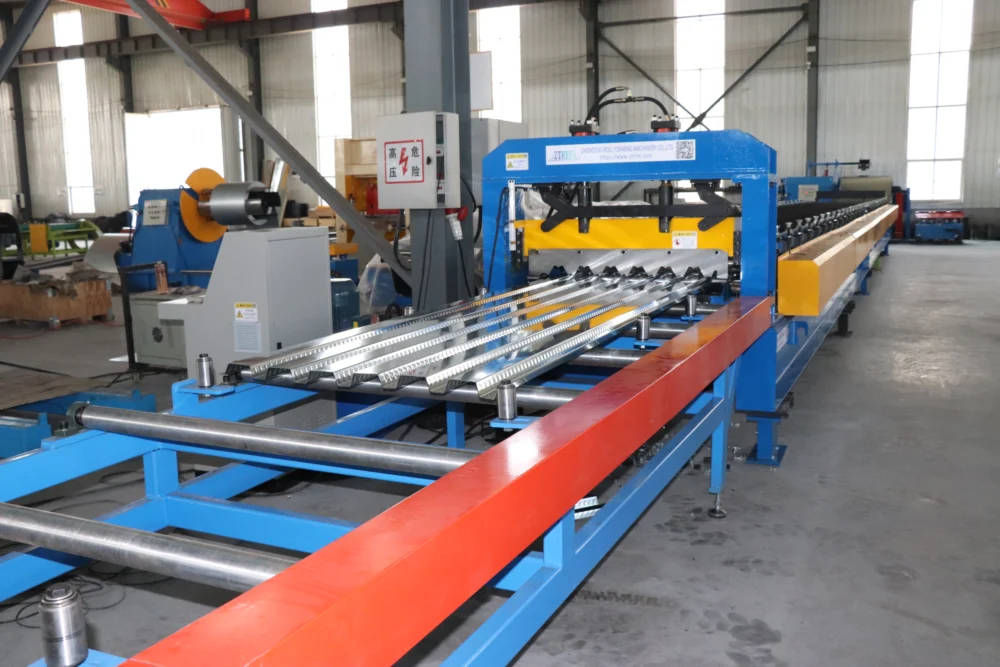

Production Line Components and Workflow

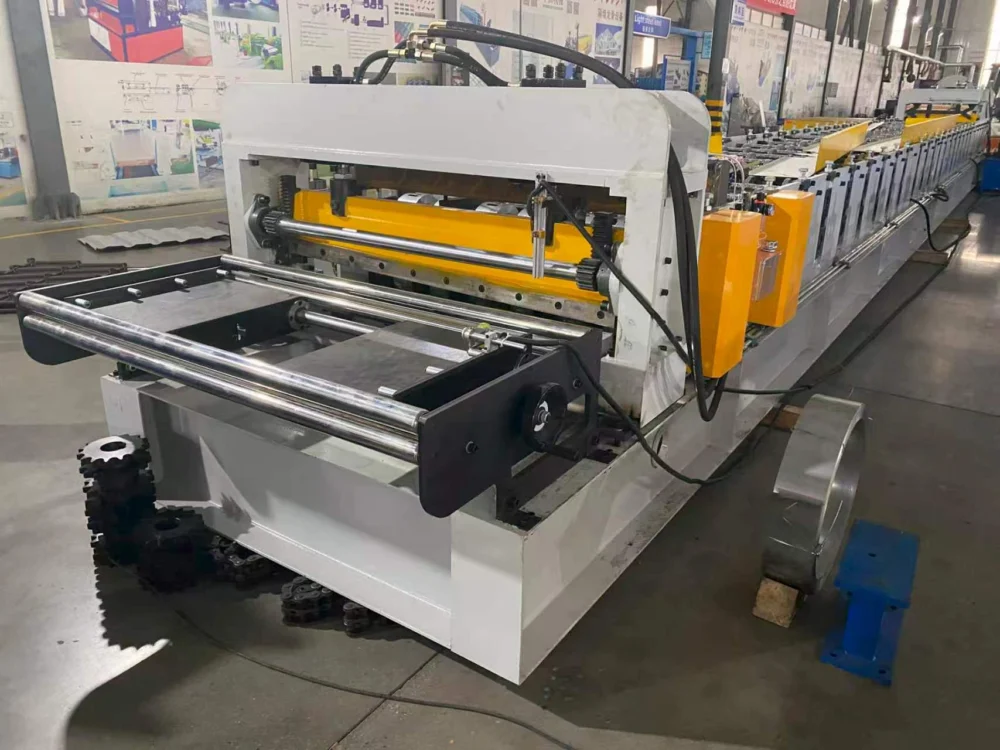

The production process follows six main steps: coil loading, decoiling, guiding and levelling, progressive roll forming, PLC length measurement, and automatic cutting. Optional equipment can include a hydraulic decoiler, servo feeding, embossing, flying cutting and automatic stacking. Each option should be selected according to profile complexity, target output and labour requirements.

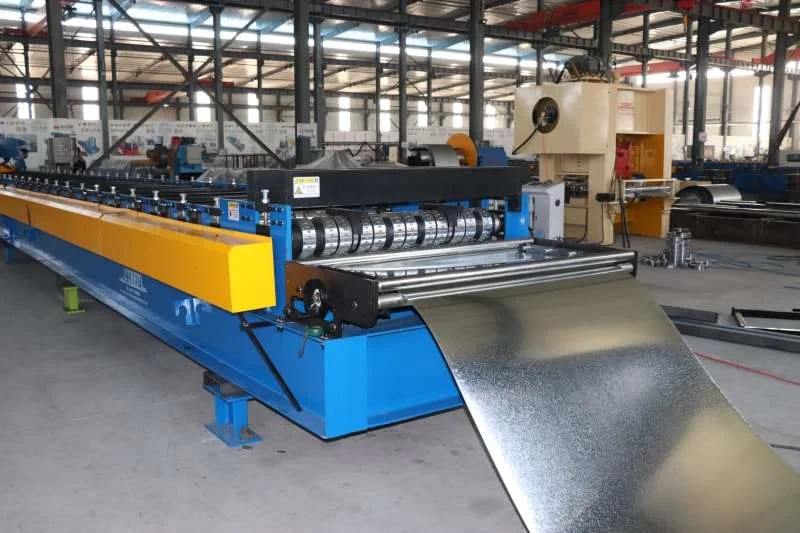

- Coil loading and hydraulic decoiling
- Guiding and levelling

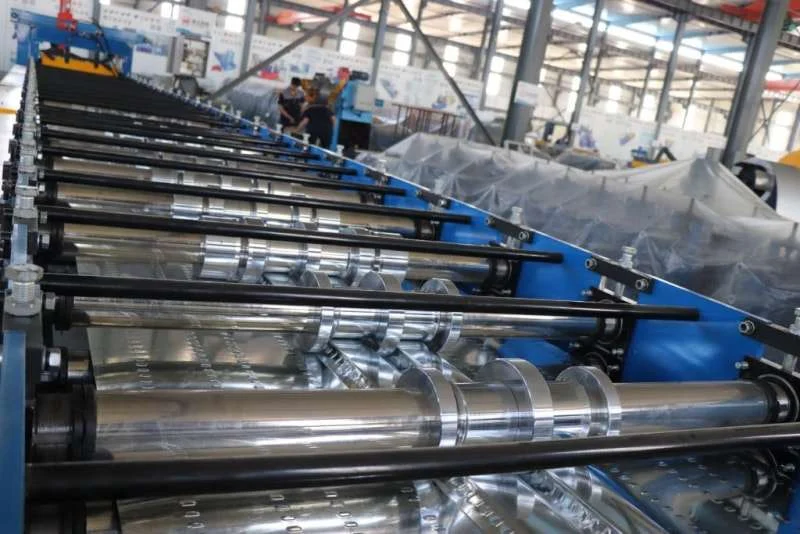

- Progressive cold roll forming through the configured roller stations
- PLC length measurement
- Hydraulic cut-to-length without deformation

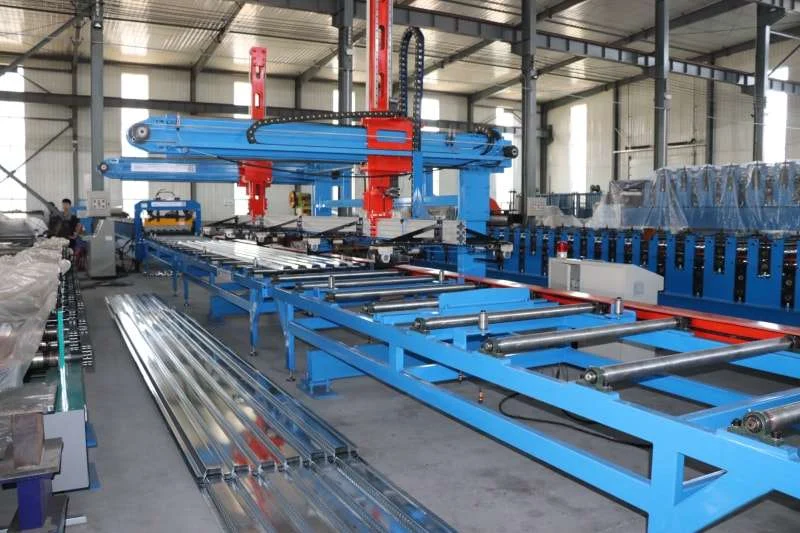

- Material receiving, with optional automatic stacking
The line is remotely controllable, and different deck profiles can be switched through quick-change roller units where the profile geometry allows.
How to Choose the Right Configuration
To prepare an accurate machine proposal, provide:
- Floor deck profile drawing with dimensions
- Coil material and yield strength
- Material thickness range
- Input and effective widths
- Required production speed
- Cutting and punching requirements
- Local voltage and frequency
- Preferred level of automation
ZTRFM will review the forming feasibility and recommend the roller stations, shaft diameter, drive system, cutting method and control configuration. The available machine range covers the 688, 750, 820, 915, 945, 1010 and 1025 model families, and the deck shape and configuration can be customized to the drawing.
Finished Deck Applications

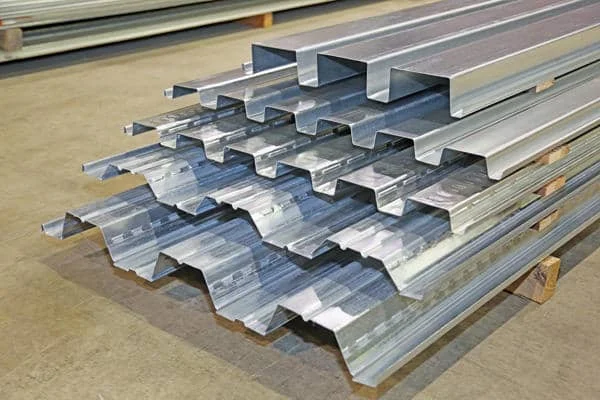

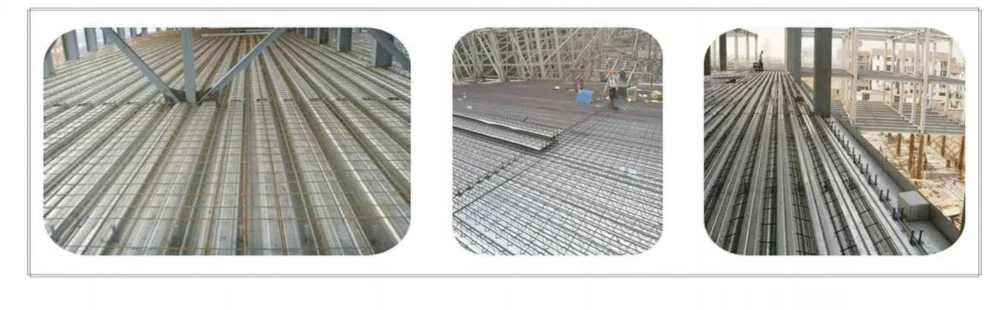

Floor decking produced on these lines is used as permanent formwork in composite floor construction across:
- High-rise buildings — composite floor slabs for offices, hotels and apartments
- Industrial plants — multi-level work platforms and mezzanine floors
- Commercial complexes — large-span floors for shopping malls, convention centres and stadiums
- Public facilities — airport terminals, railway stations, theatres, supermarkets and logistics centres
- Power facilities — power plants and heavy equipment structures
- Bridge engineering — permanent formwork for bridges
Quality Control and Factory Testing
The line is assembled, run and inspected in the factory before shipment. Typical acceptance checks for this configuration include:
- Profile dimension check against the approved deck drawing
- Cutting-length verification against the PLC set point
- Trial production using the buyer’s coil material specification
- Electrical safety and control-function checks
- Factory acceptance video and retained finished-profile samples
The applicable tolerances, test conditions and signed inspection records are confirmed by the ZTRFM engineering team for each order and issued with the machine documentation. Read more about ZTRFM manufacturing and quality control.
Delivery, Installation and After-Sales Support
Commercial terms for this machine — manufacturing lead time, packing and shipping method, installation and commissioning scope, operator training, warranty coverage, spare-parts list and remote support channel — are confirmed in the quotation so that they can be verified before the order is placed. ZTRFM provides pre-sales technical consultation, configuration engineering during the order, and one-to-one after-sales technical guidance through video call and documented commissioning procedures.
To start a configuration review, request a custom floor deck machine proposal.
Floor Deck Roll Forming Machine FAQs
What material can the floor deck roll forming machine process?
The configuration shown on this page is designed for galvanized steel with a stated thickness range of 0.4–1.2 mm. Other materials or thicknesses should be confirmed using the buyer’s coil specification and profile drawing.
What floor deck profiles can one machine produce?
The machine can be engineered for open, dovetail or closed floor deck profiles. Whether one line can produce multiple profiles depends on the profile geometry and the selected quick-change or interchangeable roller configuration.
What is the forming speed?
The stated forming speed is adjustable up to 20 m/min. Actual output depends on material thickness, profile complexity, cutting method and any punching or stacking requirements.
What information is required for a quotation?
Please provide the profile drawing, coil material, thickness range, input width, effective width, required speed, local voltage and preferred automation options.
Can the voltage and PLC language be customized?
Yes. The voltage and the control interface language can be customized. Confirm the destination-country electrical standard and the required language before production.
How is the machine tested before shipment?
The factory acceptance procedure is confirmed for the ordered configuration. Records include a test-run video, a finished-profile dimension report, a cutting-length check and an electrical inspection report.
Request a Custom Proposal
Send the deck profile drawing, coil material and thickness range, effective width, required speed, cutting or punching requirements and local voltage. ZTRFM will return a matched machine configuration and quotation.
