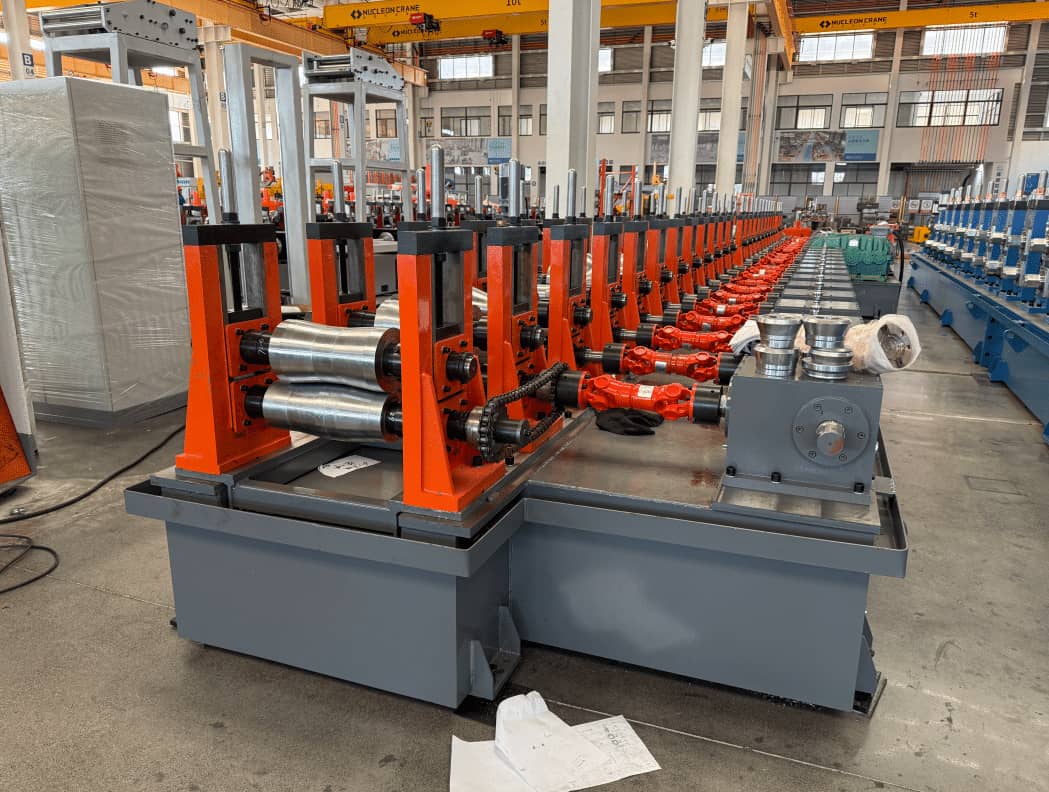

The Automatic Heavy Duty C Purlin Roll Forming Machine is a cold bending equipment specifically designed for processing thick-grade plates (typically 1.5mm-3.0mm or even thicker). Compared to standard models, it features comprehensive upgrades in frame strength, power system, and transmission stability, ensuring production precision under continuous high-load conditions.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Pattern diagram:
Core Features and Technical Advantages：
The primary distinction between heavy-duty models and standard C-type steel machines lies in “stability” and “thickness.” To counteract the immense counteracting forces generated by thick plate processing, such equipment typically employs the following reinforcement designs:
1.Superior Frame Structure:
Standard models may use ordinary steel plates for welding, whereas heavy-duty machines often employ thick-walled square tubes or large H-beams (such as 350mm or even 450mm and above) that undergo full annealing treatment as main vertical columns. The side plate thickness can reach 25mm-30mm, effectively preventing body deformation.
2.High-Power Drive System:
To address the challenge of significant resistance in thick plate forming, the main motor power typically exceeds 18.5kW to 22kW. Some ultra-heavy-duty equipment is even equipped with dual-motor drives, paired with heavy-duty gear reducers, ensuring low-speed high-torque output to prevent machine jamming.
3.High-Precision Rollers and Transmission:
The core rollers are forged from GCr15 bearing steel, undergo quenching and tempering, and are chrome-plated for high hardness and wear resistance. The transmission system primarily employs large-pitch chains or high-precision gearboxes, with main shaft diameters typically exceeding φ75mm-φ80mm to ensure coaxiality during long-term operation.
4.Hydraulic Servo Cutting:
Heavy-duty sheet metal cutting requires greater shearing force, thus equipped with an independent high-power hydraulic station (sometimes up to 11kW-15kW), utilizing hydraulic tracking shearing or flying saw cutting for smooth, burr-free cuts.
Typical application scenarios：
• Large industrial plants and warehouses:
used for producing roof and wall purlins for large-span steel structure buildings, with strong ability to withstand wind and snow loads.
• Photovoltaic bracket system:
Especially for large fixed brackets or tracking brackets of ground power stations, C-shaped steel is required to have extremely high bending resistance.
• High rise steel structure buildings:
As secondary structural load-bearing components, they replace some hot-rolled steel to reduce the overall weight of the building.
• Heavy duty shelving and logistics equipment:
Manufacturing storage shelving columns and beams with large load-bearing capacity.
