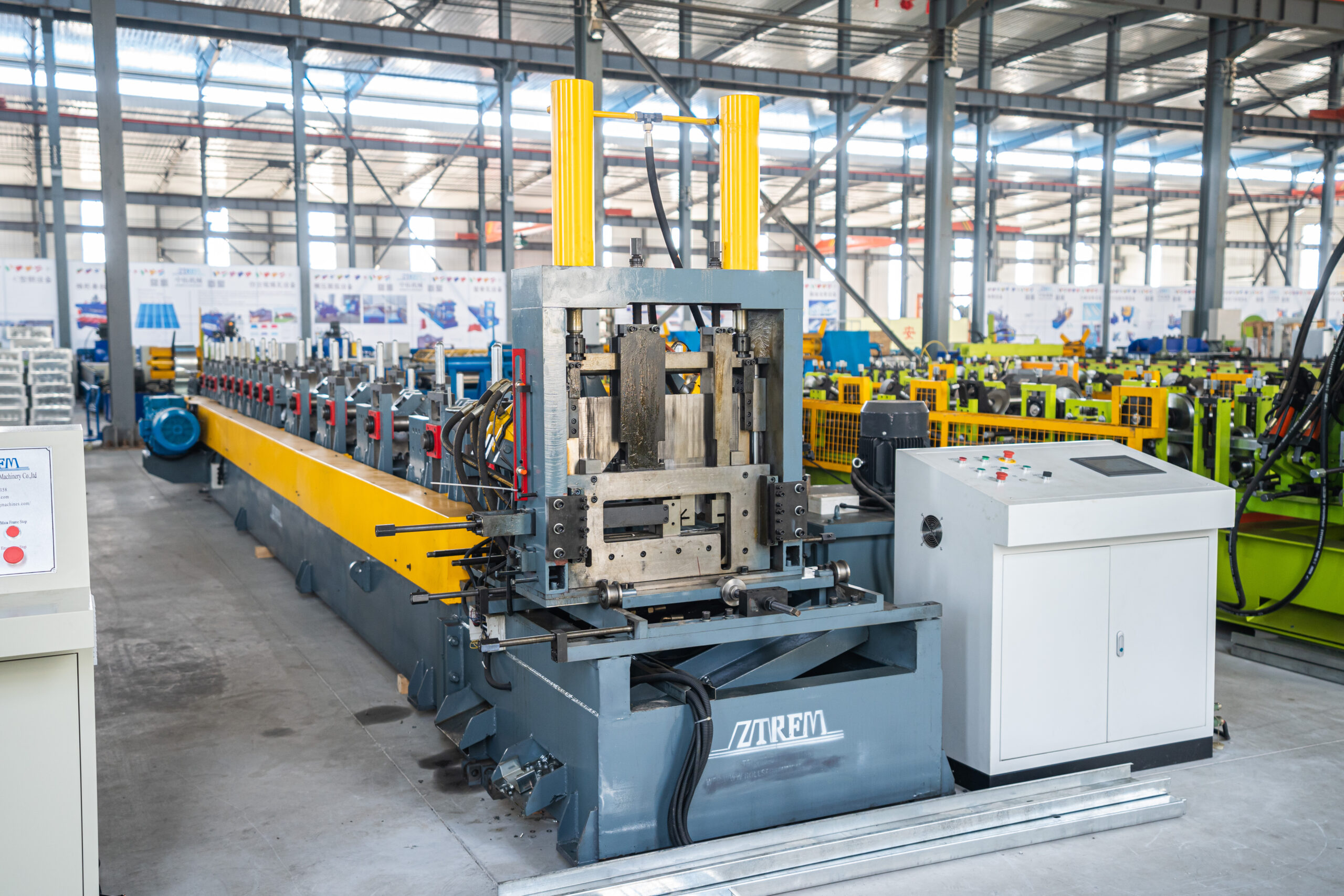

CZ integrated steel machine, also known as cz purlin steel channel roll forming machine , is a mechanical equipment used for producing C-shaped steel and Z-shaped steel. It mainly consists of a passive loading rack, a leveling device, a punching device, a cutting device after forming, a hydraulic station, and a computer control system. The cz purlin steel channel roll forming machine adopts automatic flying saw punching technology, which is easy to operate and suitable for the main load-bearing structure of large and medium-sized industrial and civil buildings.
Technical characteristics and application scenarios :
1.Infinite transformation:
It can achieve infinite transformation and infinite cutting, and can be adjusted freely within the specification range without changing cutting tools or molds, greatly improving production efficiency and flexibility.
2.Efficient production:
the feed inlet is automatically aligned and sheared to a fixed length, and 8-15m long plates can be produced per minute, which is suitable for large-scale production.
3.Multifunctionality:
One set of rolling mills can produce various specifications of C-shaped steel and Z-shaped steel, suitable for various construction and industrial applications.

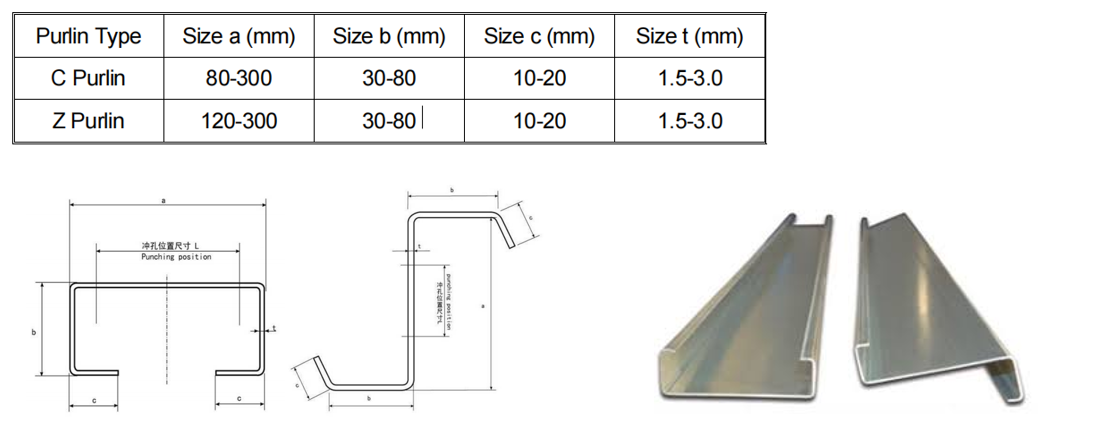

Pattern image：
Advantages of Machines：
- Efficient changeover and adjustment:
The cz purlin steel channel roll forming machine has the function of rapid changeover and adjustment. Users can complete the changeover operation within three minutes and adjust it in millimeters to meet different production needs. - High precision and stability:
The cz purlin steel channel roll forming machine adopts servo main drive and coaxial design, reducing the problem of uneven height on both sides caused by shaft breakage, and improving the stability and accuracy of the equipment. The device operation is very convenient, and users can directly set the width and height on the program, greatly simplifying the operation process. - Multifunctionality:
The cz purlin steel channel roll forming machine can not only produce CZ steel, but also quickly switch to produce C-shaped steel with a conversion time of 10 minutes. The feeding rack can also be changed simultaneously to meet various production needs. - Good after-sales service:
Zhongtuo provides comprehensive services from design to after-sales, ensuring that users can solve problems encountered during equipment use in a timely manner and obtain satisfactory equipment and service experience.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
