Roof sheets are the “coat” of a building, not only carrying practical functions such as waterproofing, insulation, and wind resistance, but also determining the overall appearance and style of the building. Whether you are planning industrial plants, warehousing and logistics centers, villas, residences, or cultural tourism projects, choosing a suitable roof sheet forming machine is a key step in ensuring project quality and efficiency.

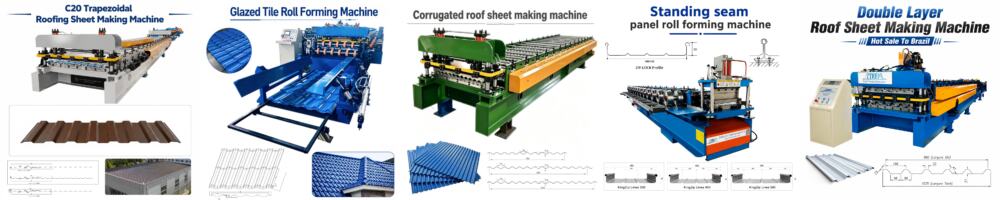

We provide you with five series of equipment: trapezoidal roof sheet machine, glazed sheet machine, curved roof sheet machine, vertical seam roof sheet machine, and double-layer roof sheet machine. The models are complete and freely selectable, and can be customized according to your needs.

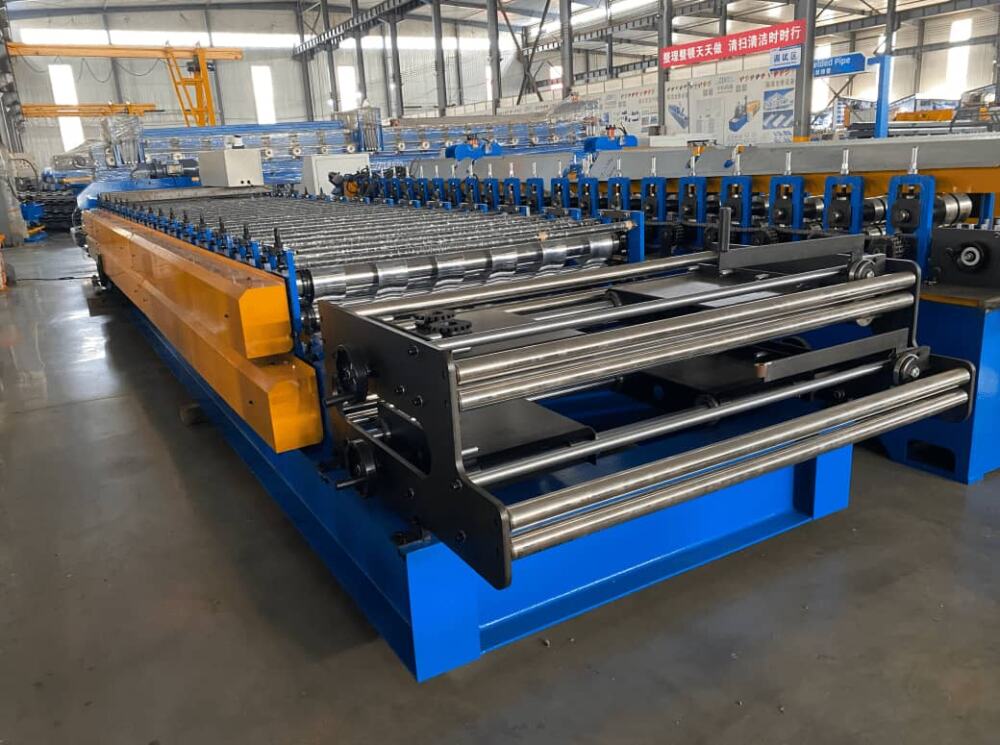

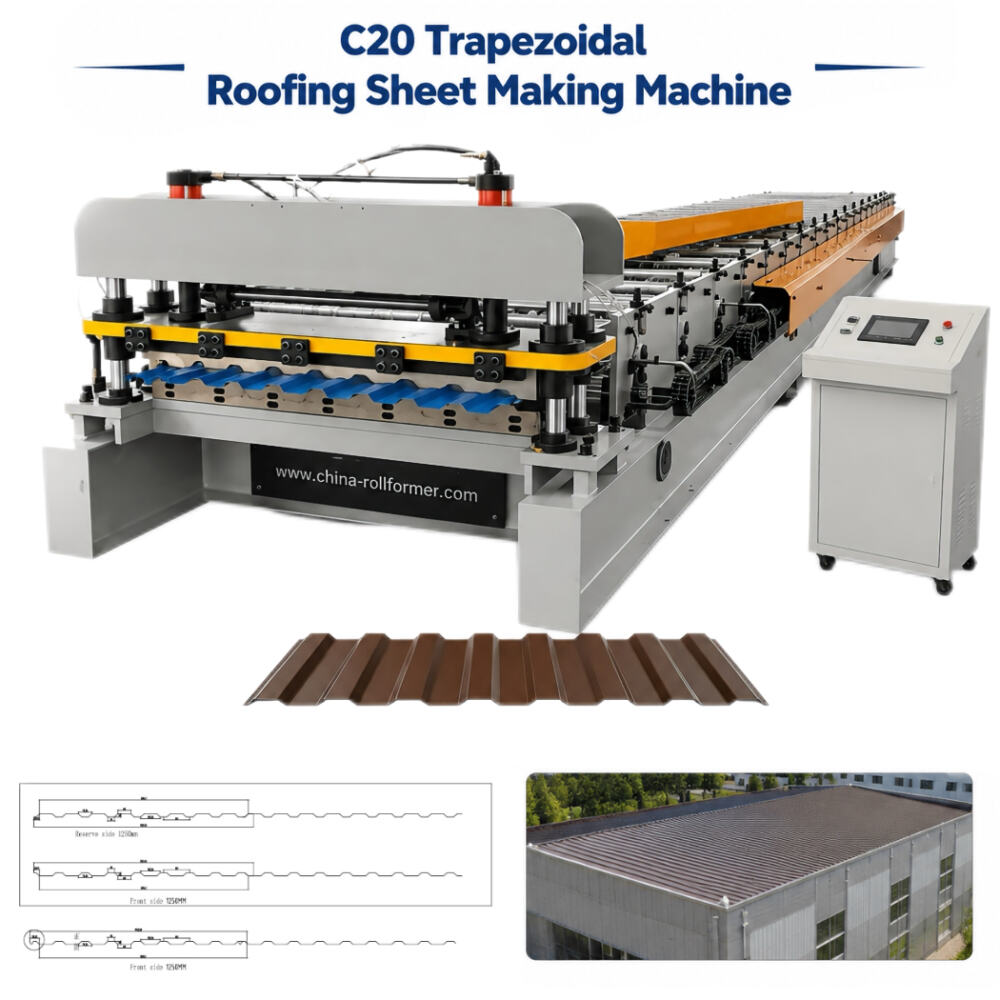

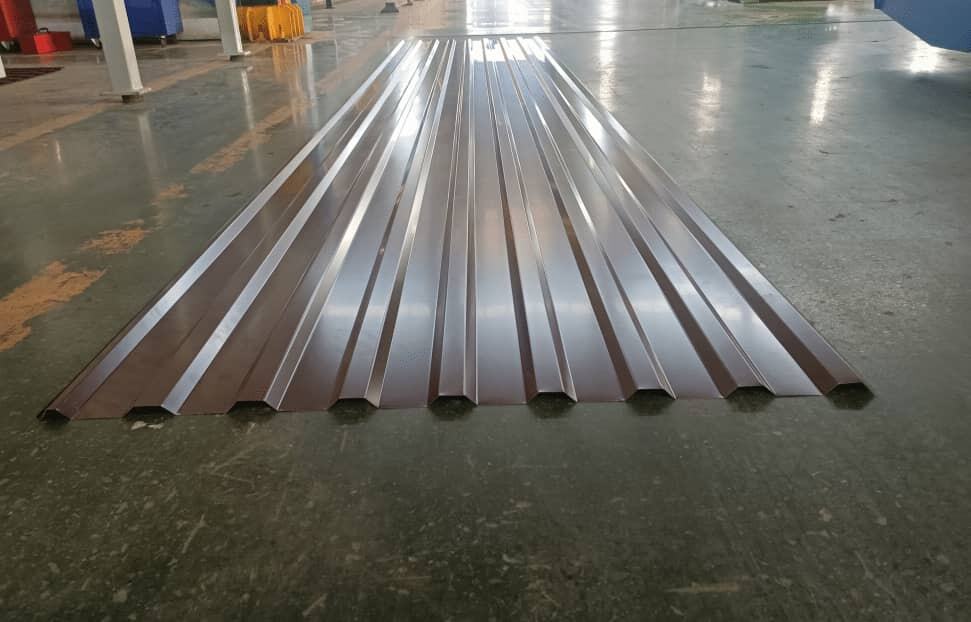

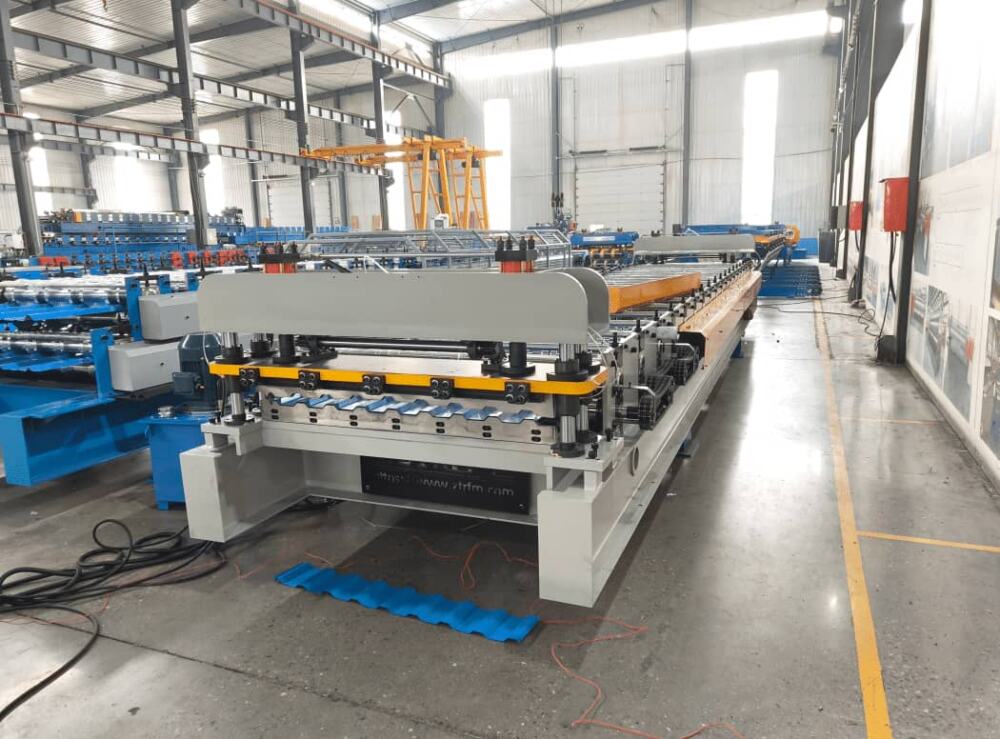

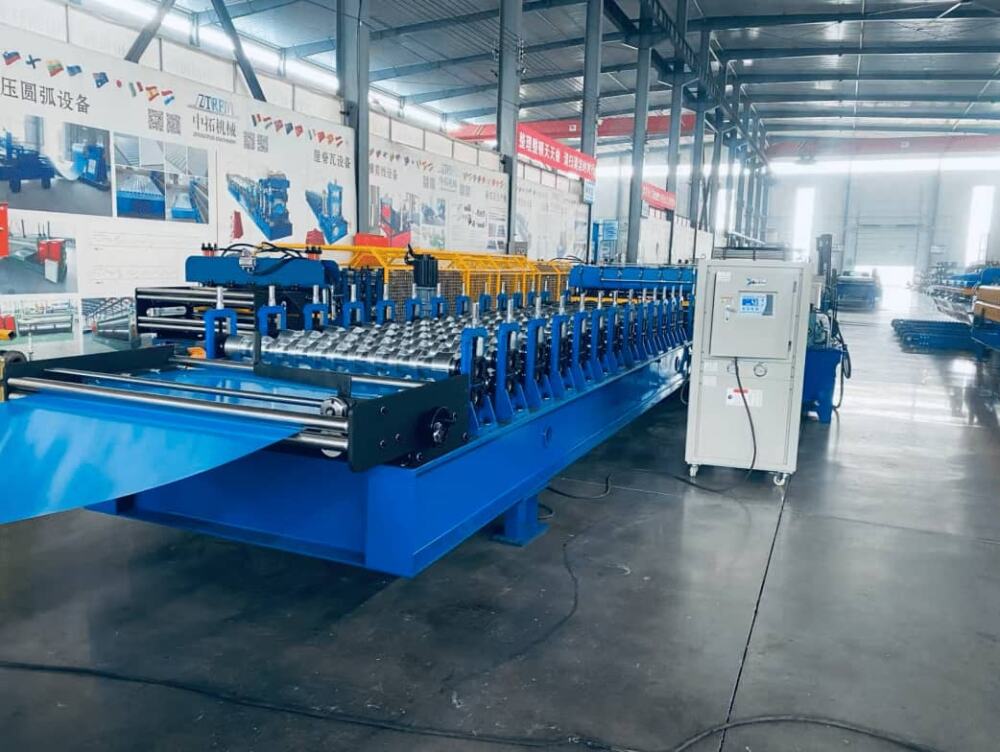

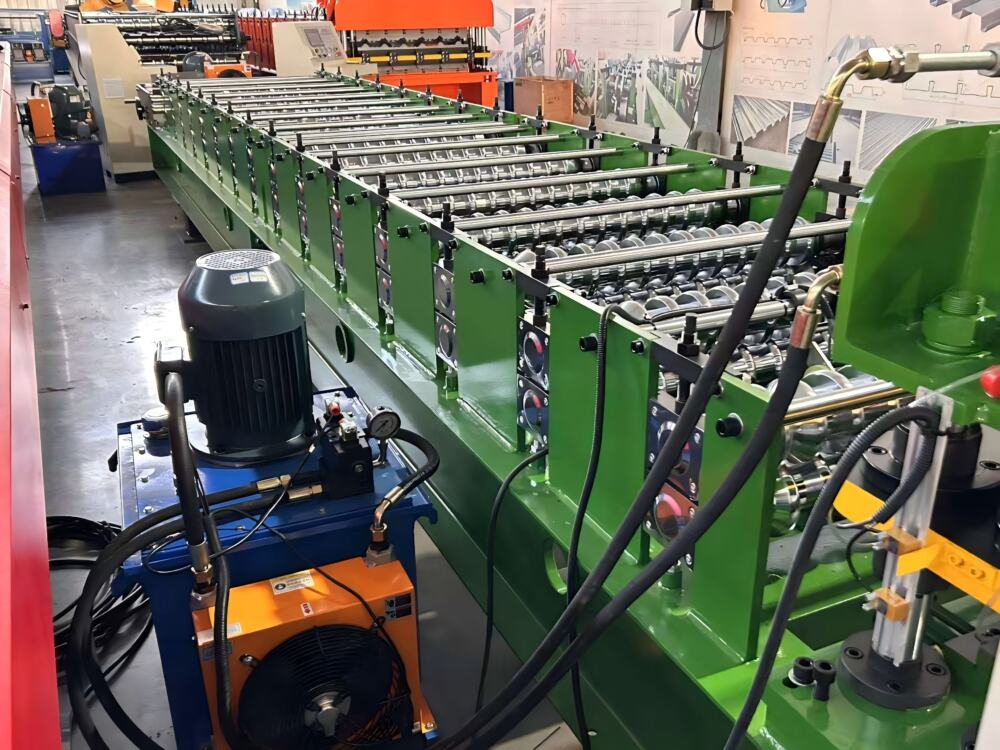

Trapezoidal roof sheet machine – structurally stable, strong bearing capacity

The trapezoidal roof sheet is characterized by a trapezoidal flat top section with a wave crest, which is more upright and has a stronger bearing capacity than a circular arc wave crest. This model is widely used in industrial plants, steel structure buildings, warehouses and other scenarios that require high strength of roof structures. The equipment adopts roll cold bending forming technology, resulting in a flat surface, uniform ripples, and high strength of the finished product.

• Applicable scenarios:
roofs and enclosure structures of industrial plants, steel structure warehouses, logistics centers, agricultural markets, carports, etc.

• Machine features:

1.The rack adopts a high-strength H-beam welded structure, which is sturdy and durable

2.The forming spindle is made of high-quality alloy steel, which has undergone precision machining and external grinding treatment to ensure smooth operation

3.The key mold wheel undergoes seven processes of rough turning, quenching, precision turning, key insertion, polishing, and electroplating, with high hardness, wear resistance, and durability

4.Applicable material thickness 0.3-0.8mm, material width 914-1250mm adjustable

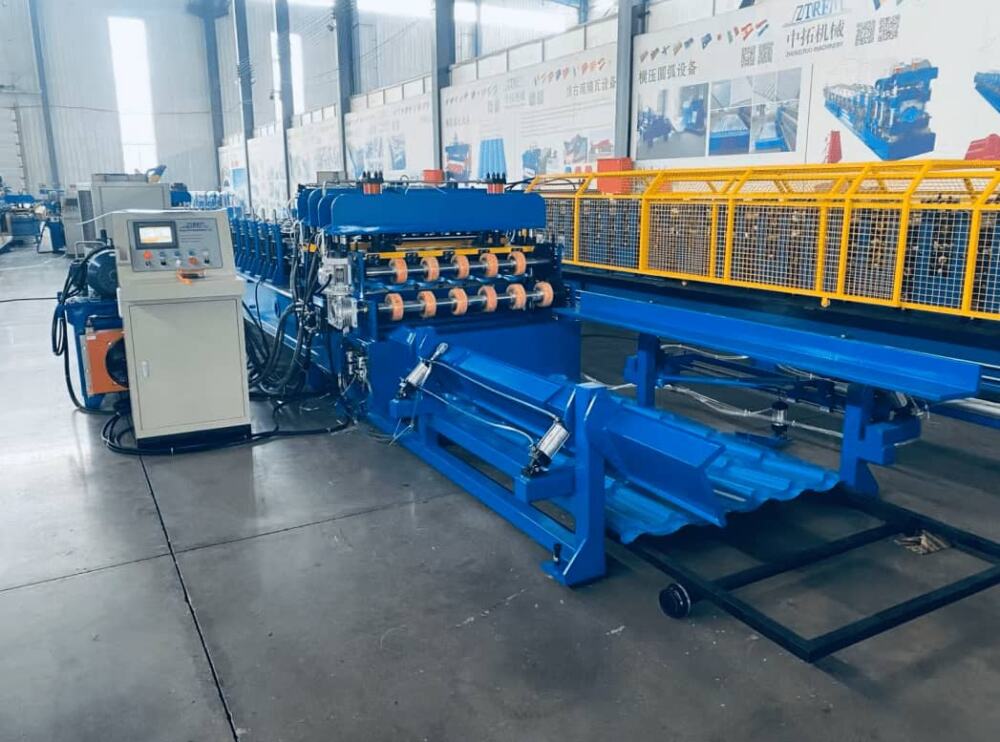

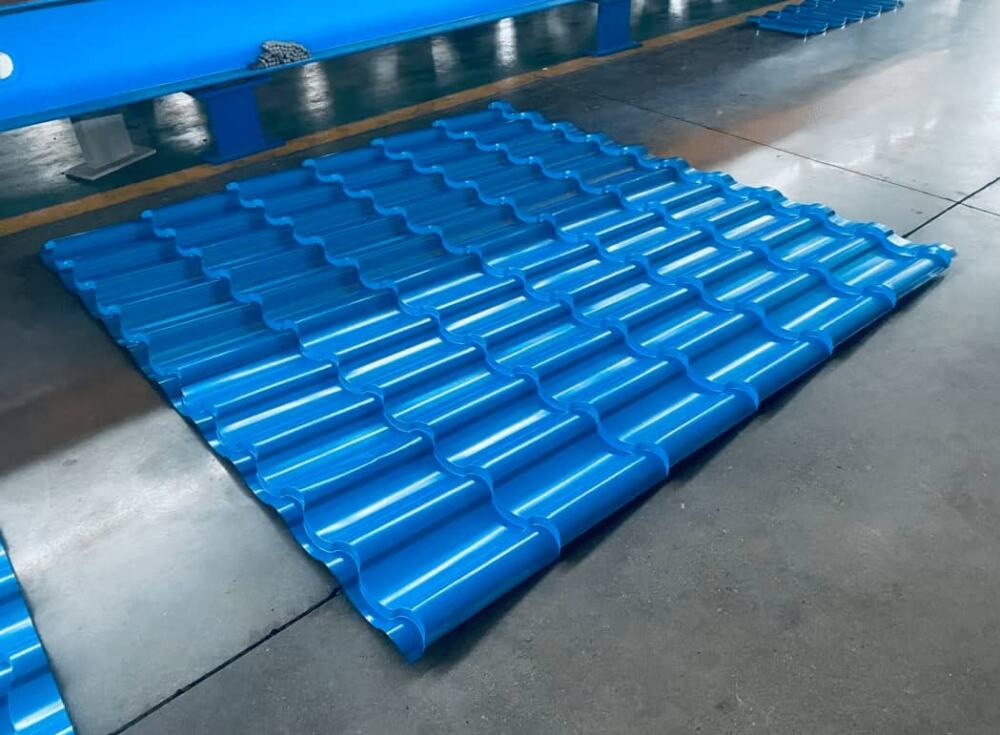

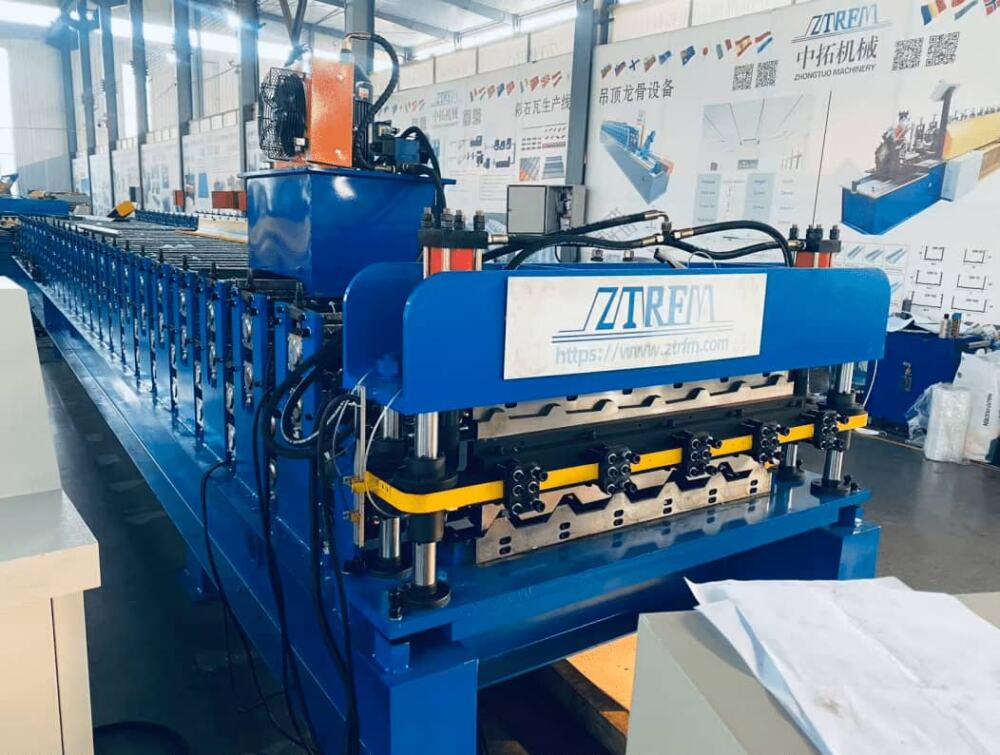

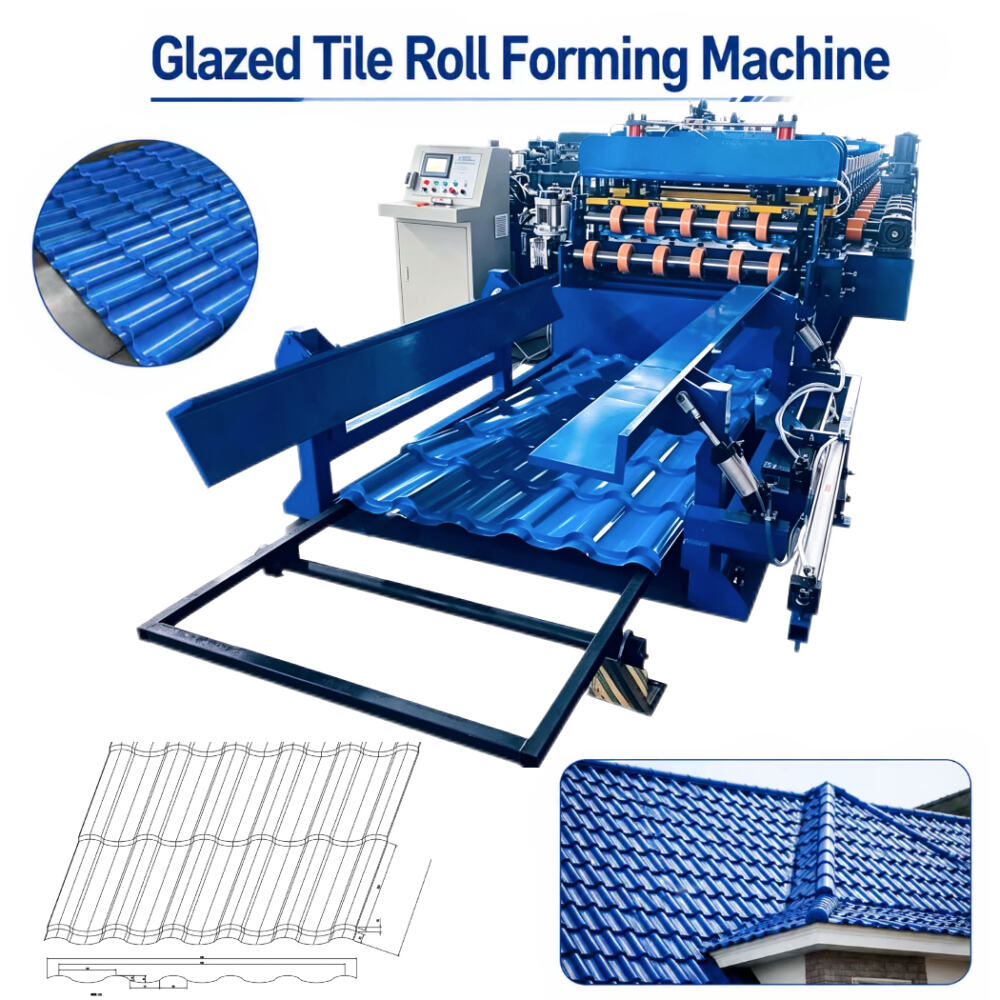

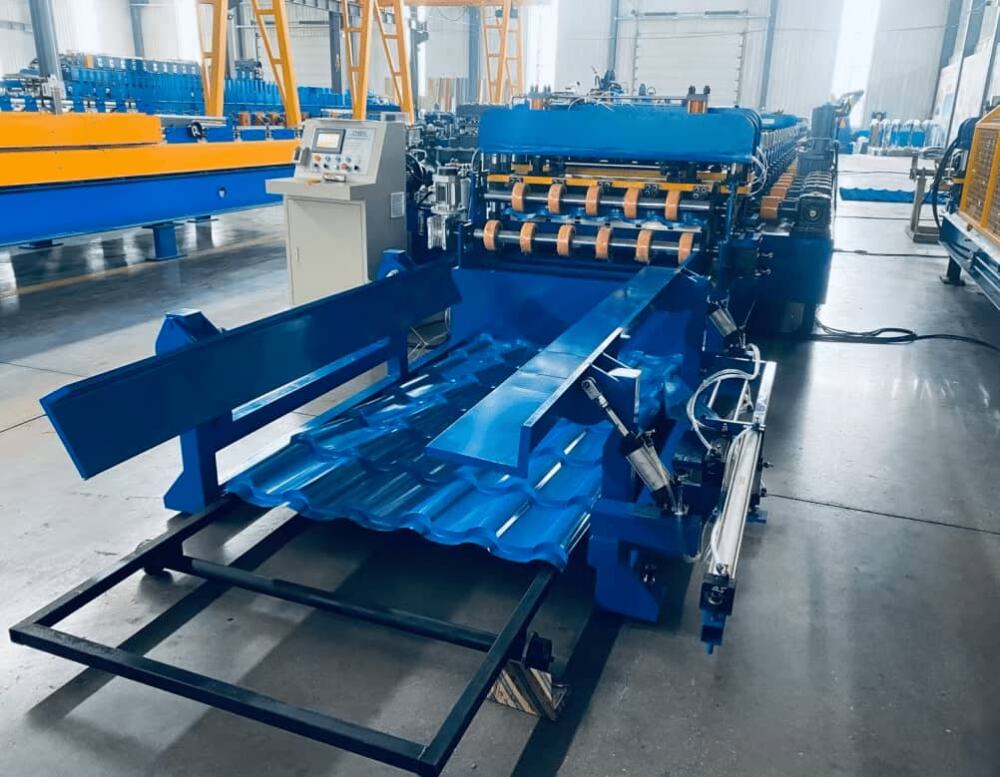

Glazed sheet machine – antique charm, elegant and solemn

Glazed sheets are iconic elements of traditional Chinese architecture, with exquisite shapes and bright colors. Our Glazed sheet forming machine adopts the rolling die forming process, and the finished product has a beautiful and elegant appearance, with both waterproof and decorative functions.

• Applicable scenarios:
Garden style factories, tourist scenic areas, pavilions, hotels, villas, exhibition halls, resorts and other buildings and outdoor decorations.

• Machine features:

1.Forming shaft diameter 70mm, quenched and tempered 45 # steel, surface plated with hard chromium, hardness HR55 ° -57 °

2.The body is welded with H-steel, and the middle plate is welded with thick steel plate, ensuring a stable structure

3.Equipped with imported PLC computer control system, easy to operate and precise sizing

4.The working speed can reach 0-20m/min, with high production efficiency

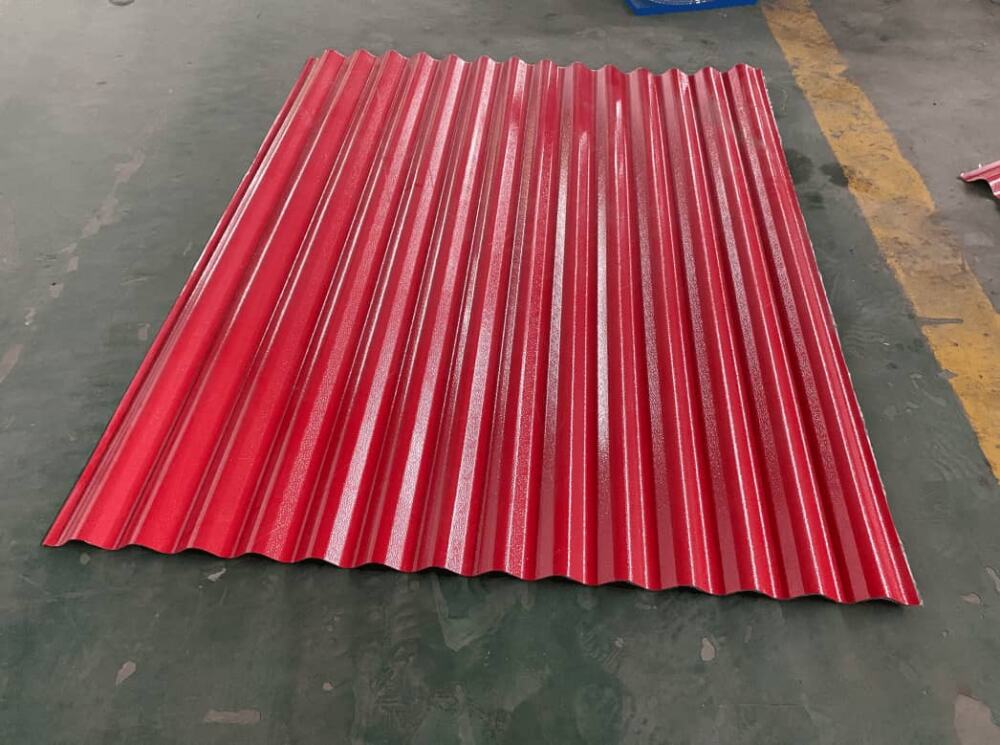

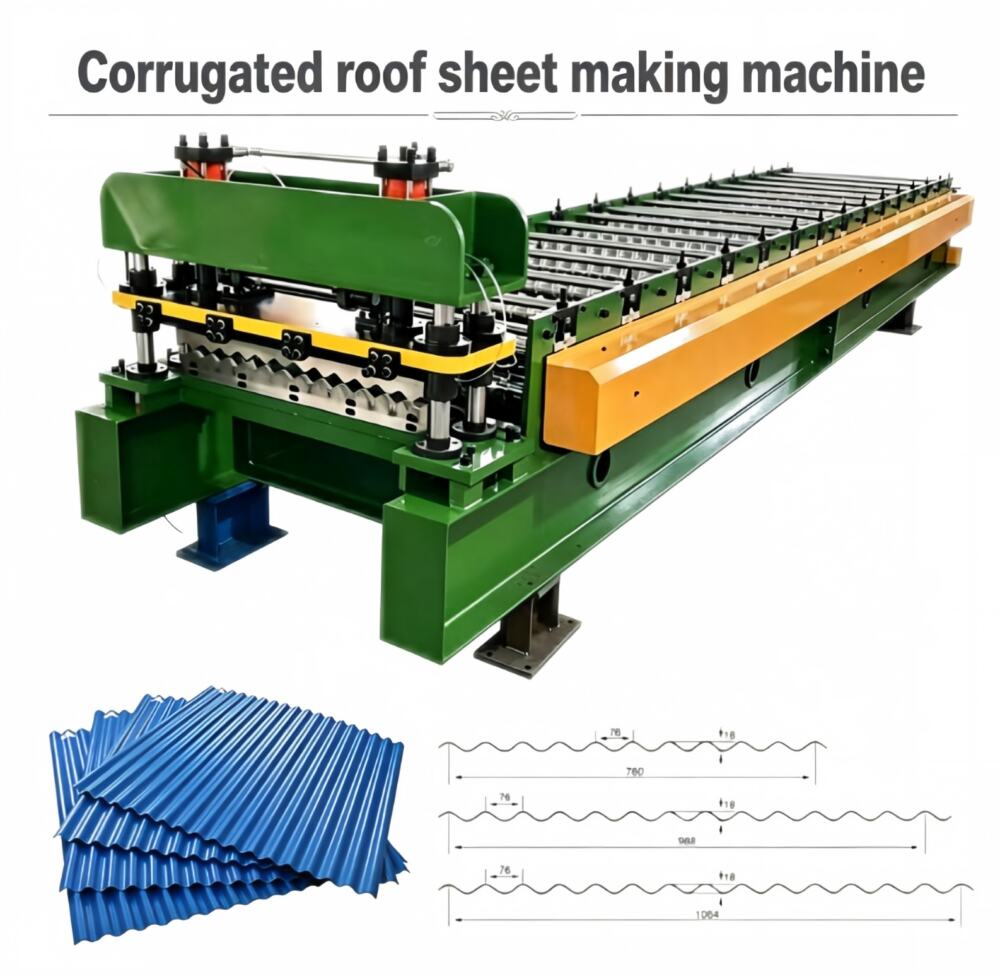

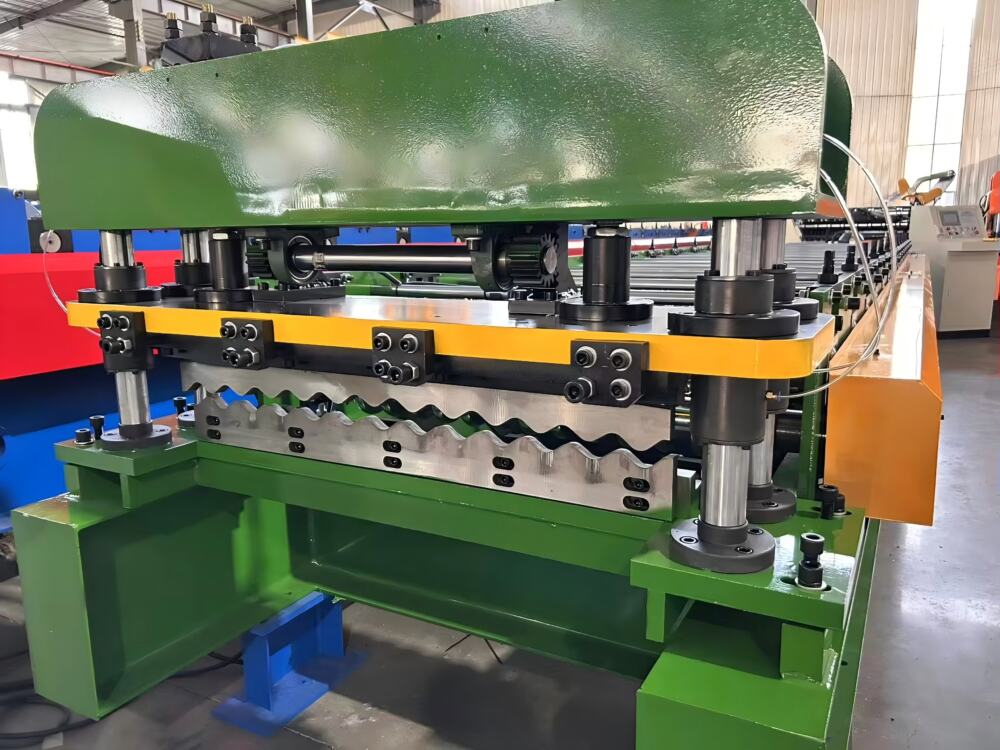

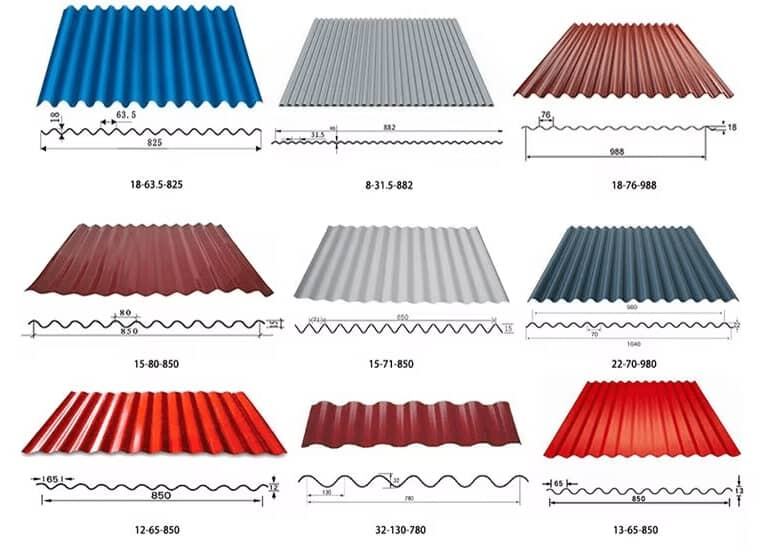

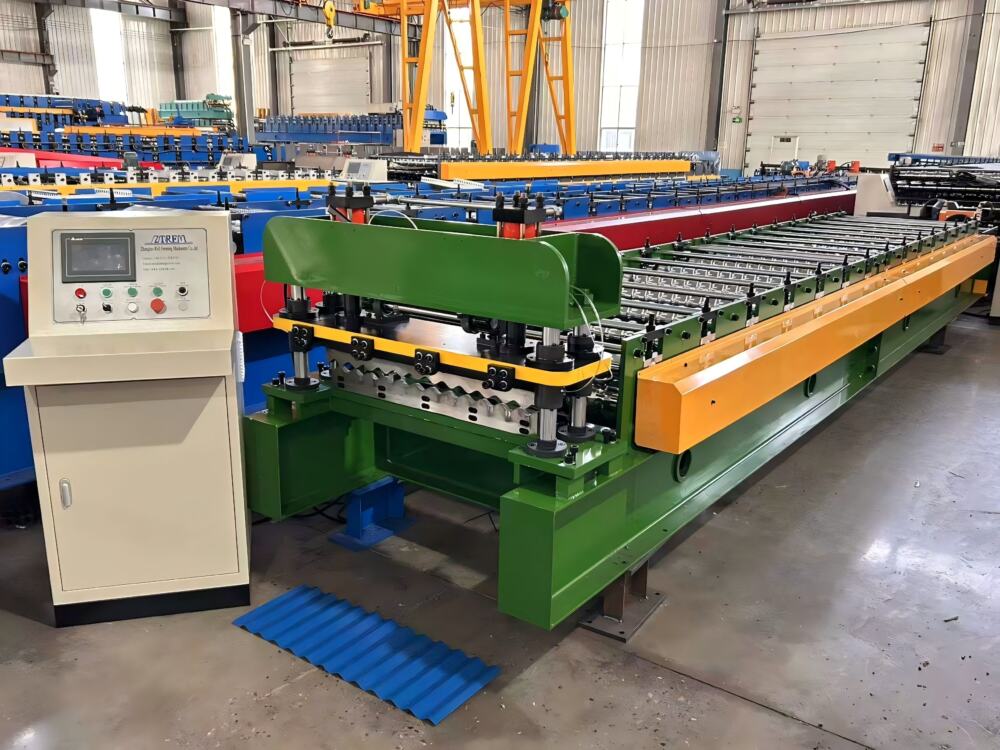

Corrrugated roof sheet machine – smooth lines, modern and beautiful

The Corrrugated roof sheets are characterized by smooth curved wave peaks, beautiful lines, and strong modernity. The equipment is controlled by industrial computer PLC, with electric operation, automatic material cutting, and automatic counting, making it easy to operate. The appearance of the formed board is flat, dignified and elegant, with even ripples and high utilization rate.

• Applicable scenarios:
Light steel structure factories, multi story steel structure buildings, exhibition halls, cinemas, sports venues, etc

• Machine features:

1.The entire machine is controlled by industrial computer PLC and can be mass-produced without human operation

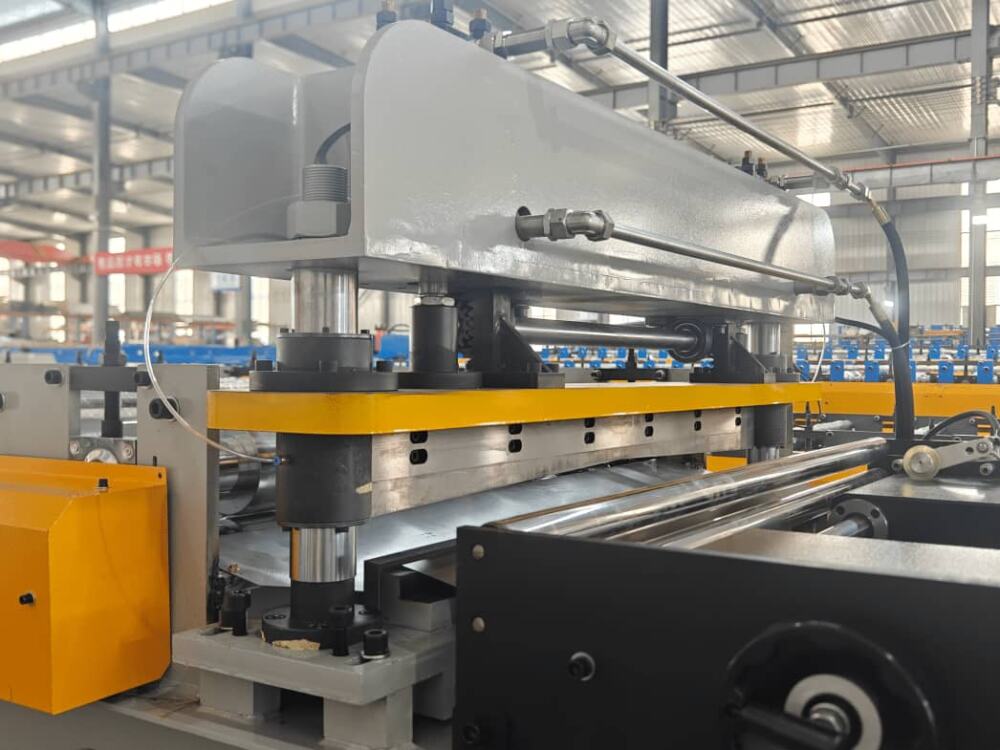

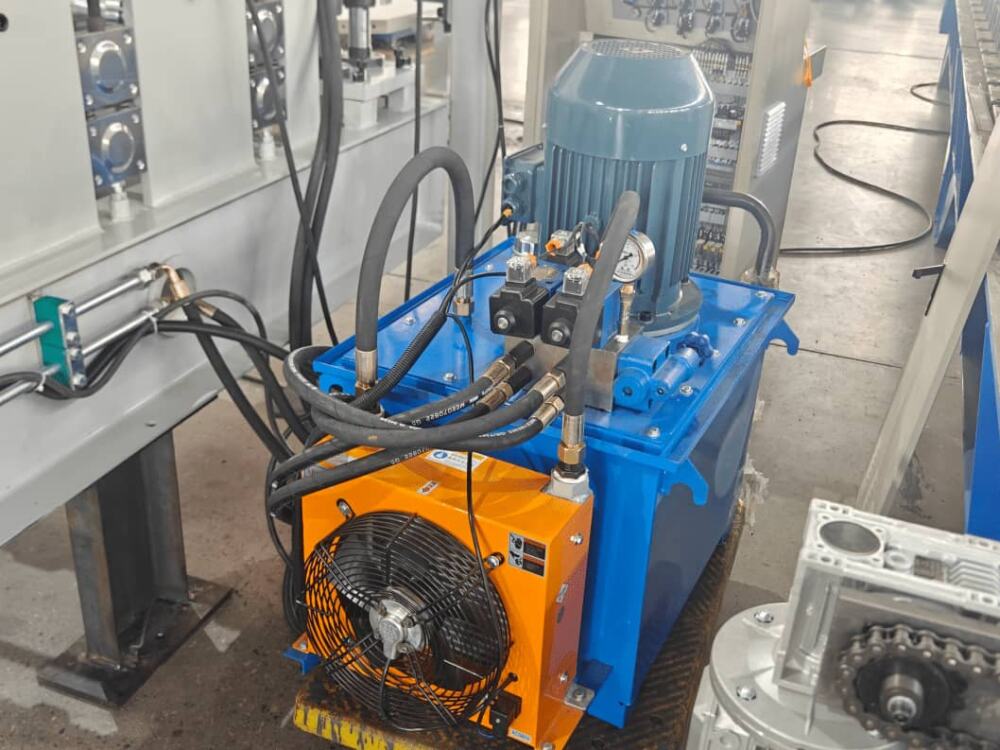

2.Adopting advanced hydraulic drive, it automatically cuts to length after forming, without deformation or waste

3.The frame is welded with I-beams, and the thickness of the middle plate is over 12mm

4.Roll material 45 # steel surface plated with hard chrome, good durability

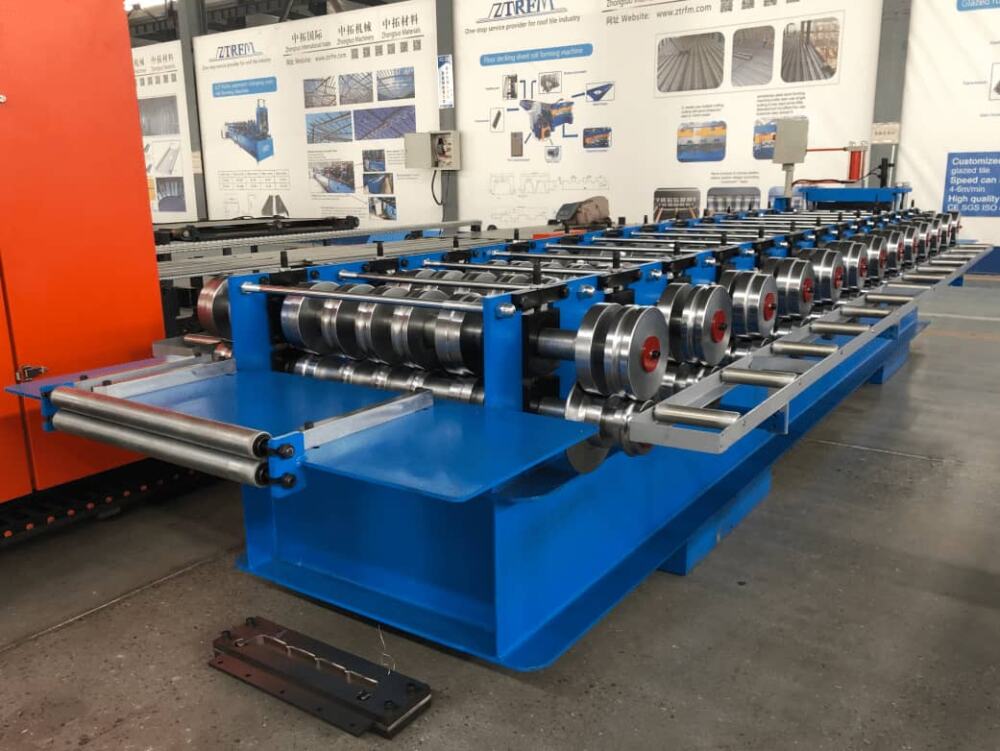

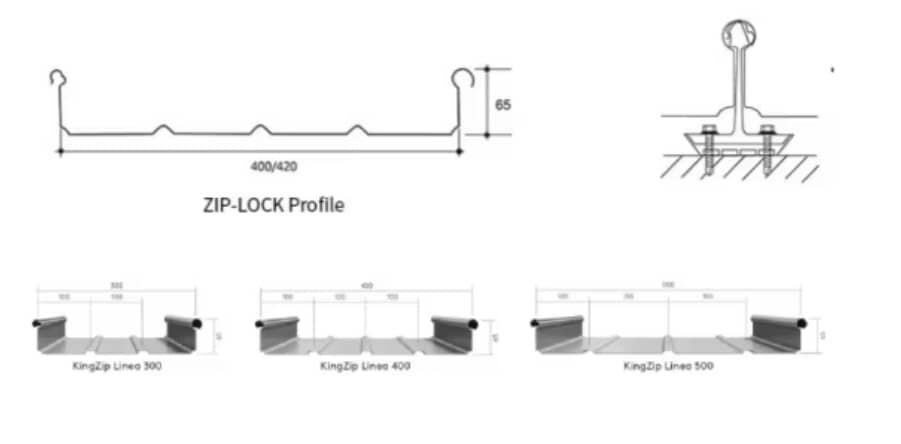

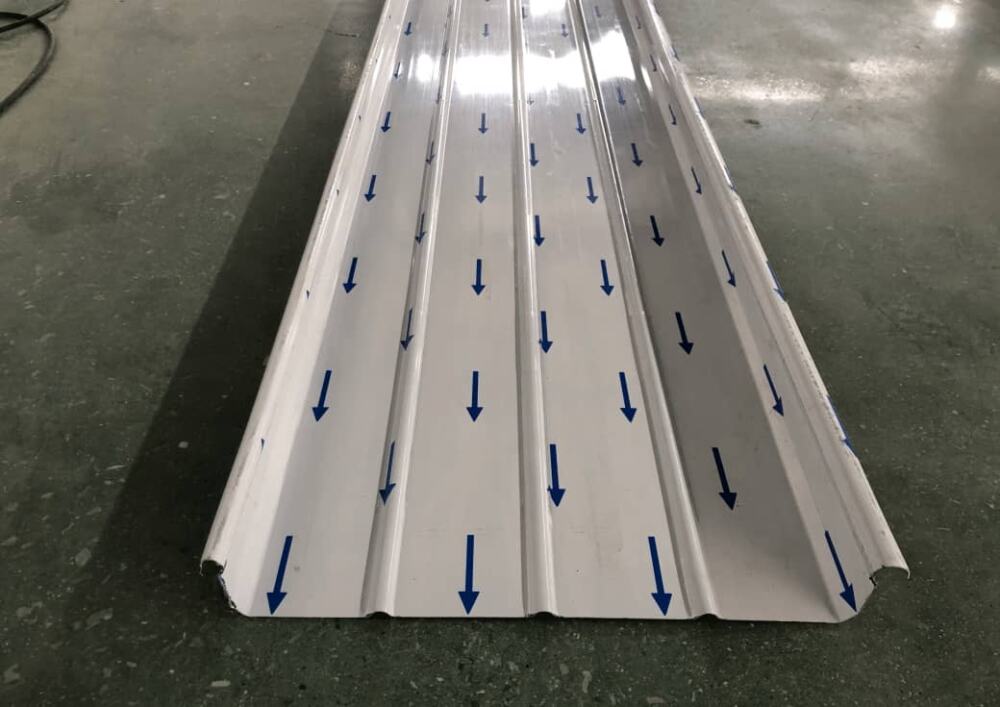

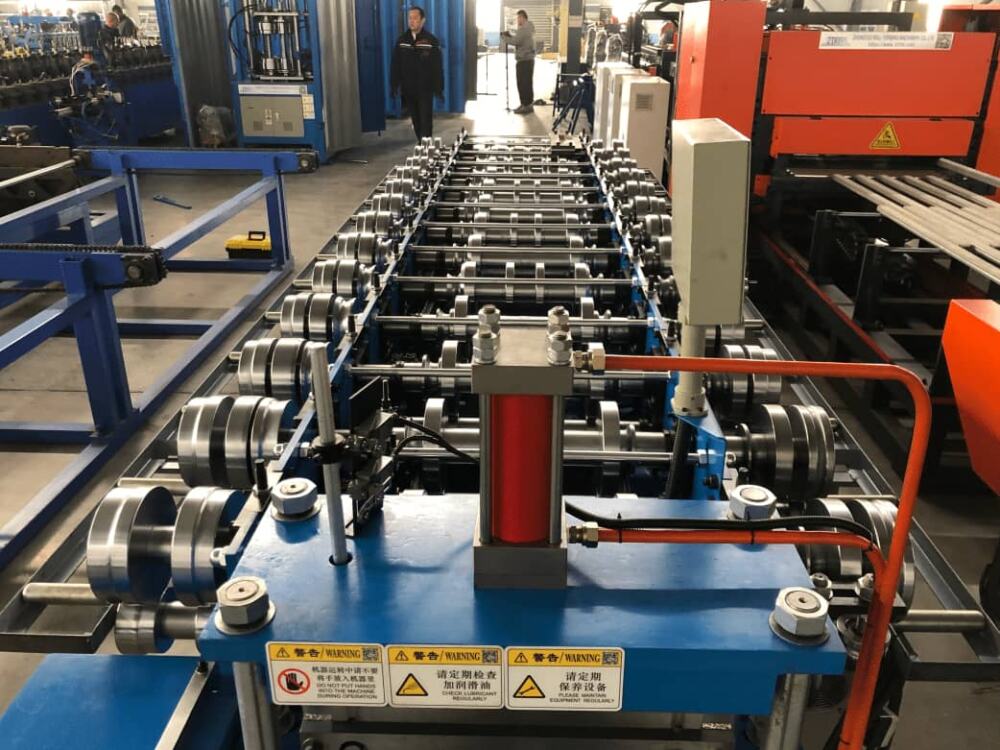

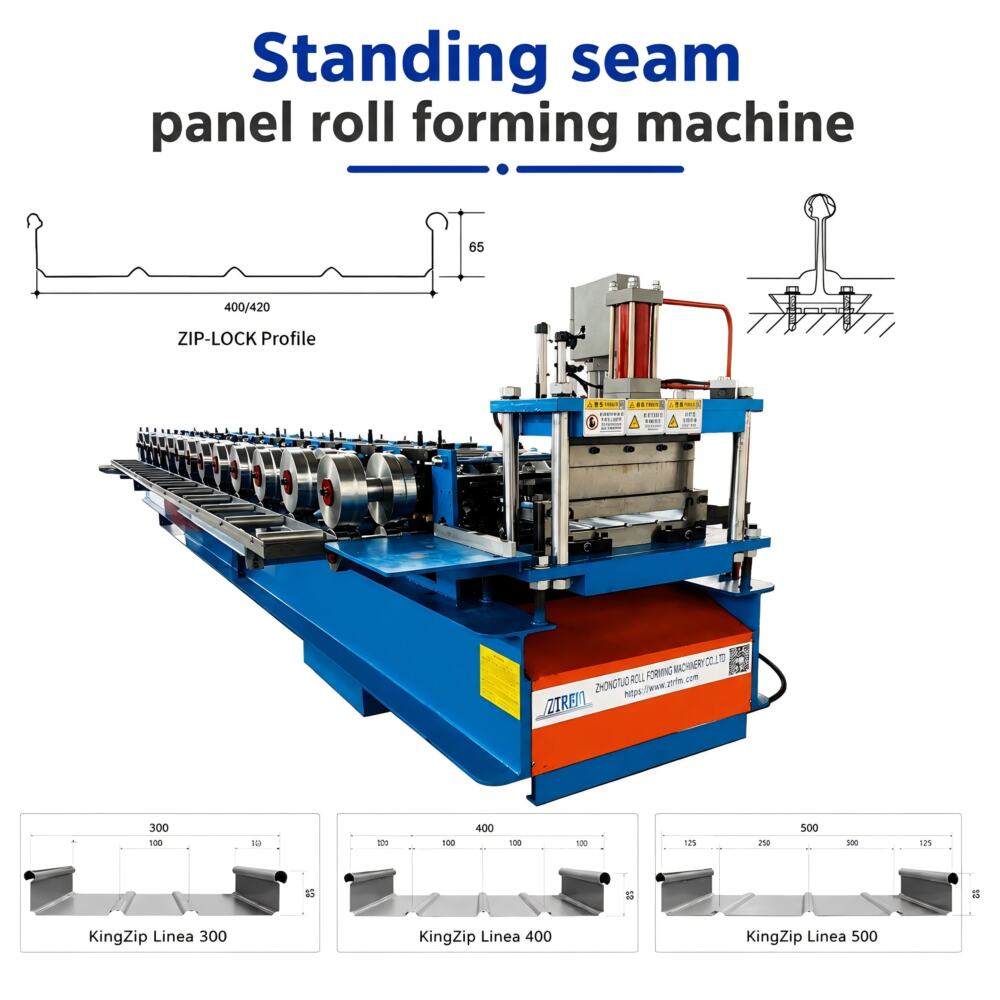

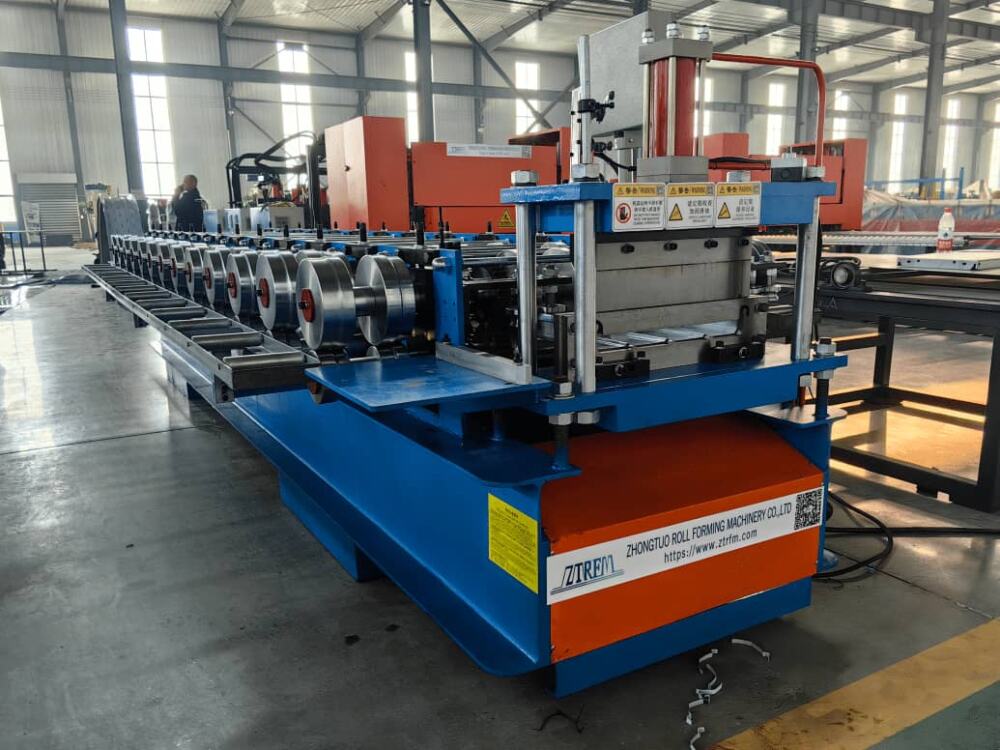

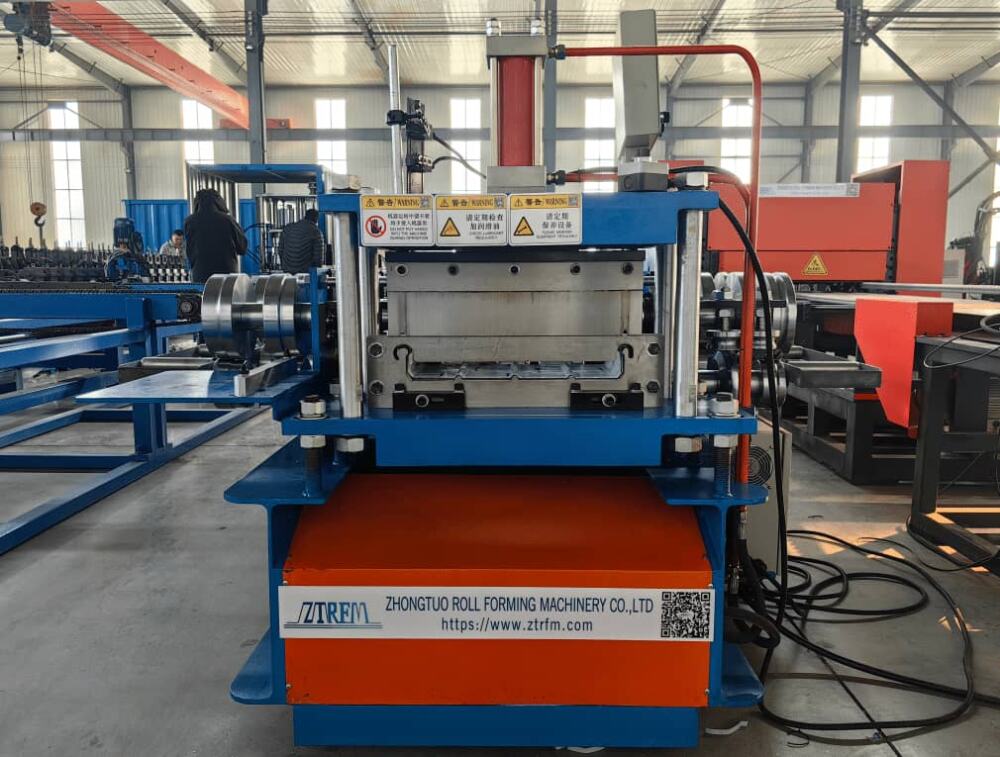

Standing seam roof sheet machine – excellent waterproofing, high-end choice

Standing seam roof sheet adopt a unique splicing method, and the joints are connected by mechanical lock edges, which can effectively improve the waterproof performance of the roof and prevent rainwater leakage. This model is particularly suitable for building projects with high requirements for roof waterproofing and structural stability.

• Applicable scenarios:
shopping centers, industrial facilities, residential projects, buildings in rainy or snowy areas. Vertical seam design can effectively divert rainwater away from buildings, ensuring long-term protection and low maintenance costs.

• Machine features:

1.Concealed fixed design, seams locked by electric edge banding machine, excellent waterproof effect

2.Mobile design, suitable for workshop and on-site operations

3.By replacing the roller pad, the width of the roof slab can be changed, flexibly adapting to different needs

4.Forming speed 0-20m/min, high efficiency

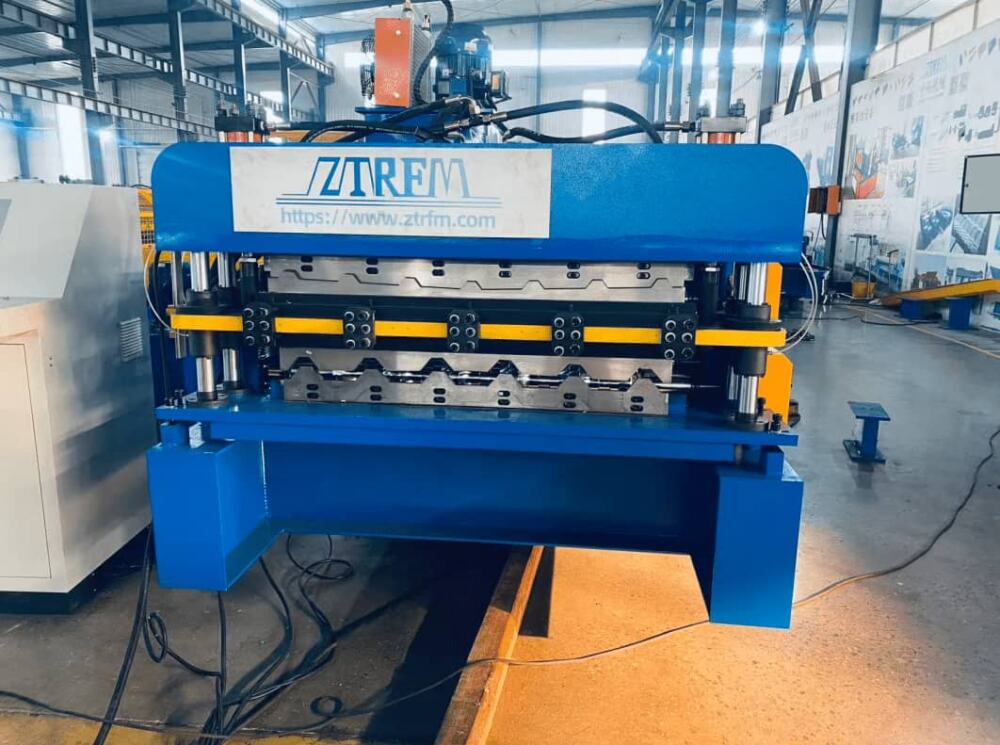

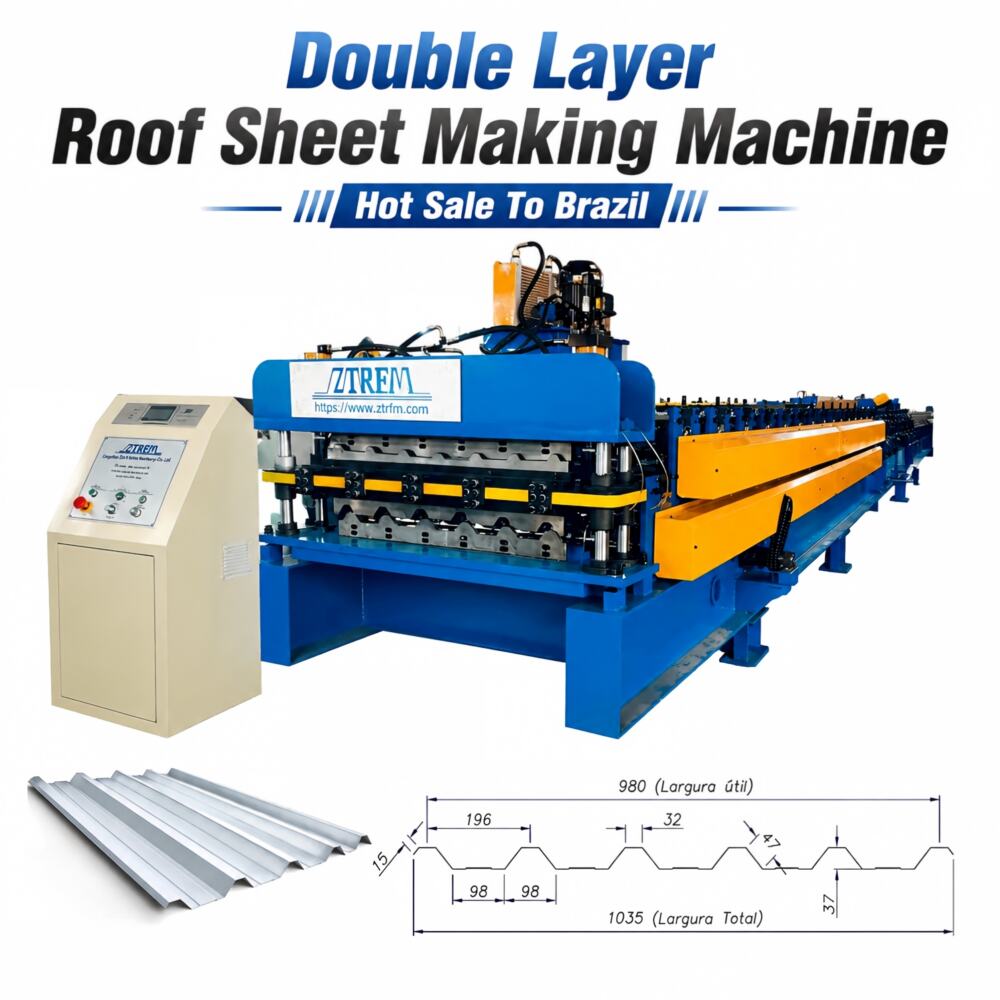

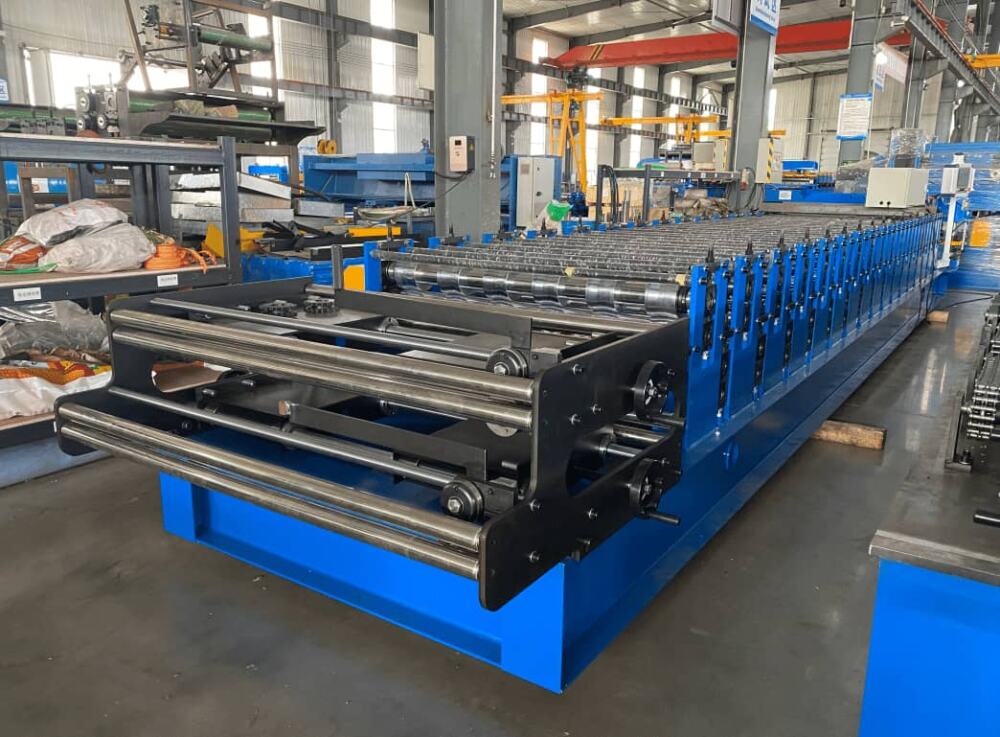

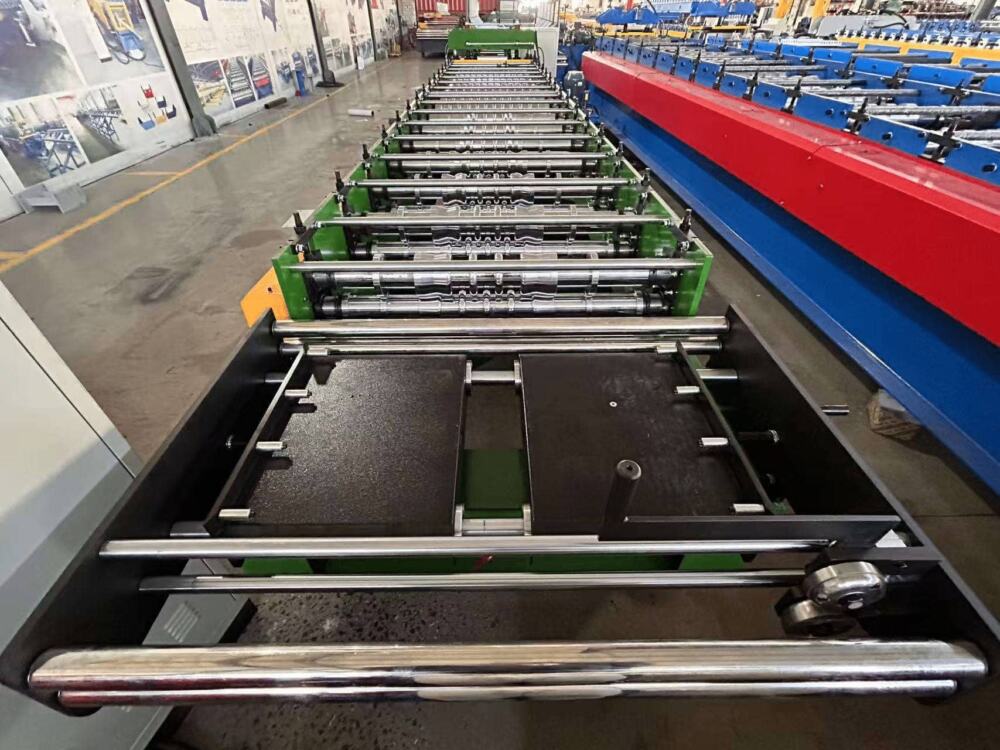

Double layer roof sheet machine – one machine for multiple uses, saving space

The double-layer roof sheet machine adopts a double-layer design, combining two types of equipment into one, with one machine for dual use, small footprint, and convenient transportation. The cost of double-layer machines is much lower than that of two single-layer machines, making it an ideal choice for users and manufacturers with limited space.

• Applicable scenarios:
Industrial and civil buildings, such as factory buildings, warehouses, locomotive depots, aircraft hangars, sports halls, exhibition halls, cinemas, and other buildings and walls. Especially suitable for customers with small sites and on-site construction.

• Machine features:

1.Double layered design, one machine can be used for two or more purposes, greatly saving space

2.The upper and lower models can be customized according to customer requirements

3.Shorter time to replace two types of boards, improving output rate

4.Forming shaft diameter 70mm, quenched and tempered 45 # steel, surface plated with hard chromium

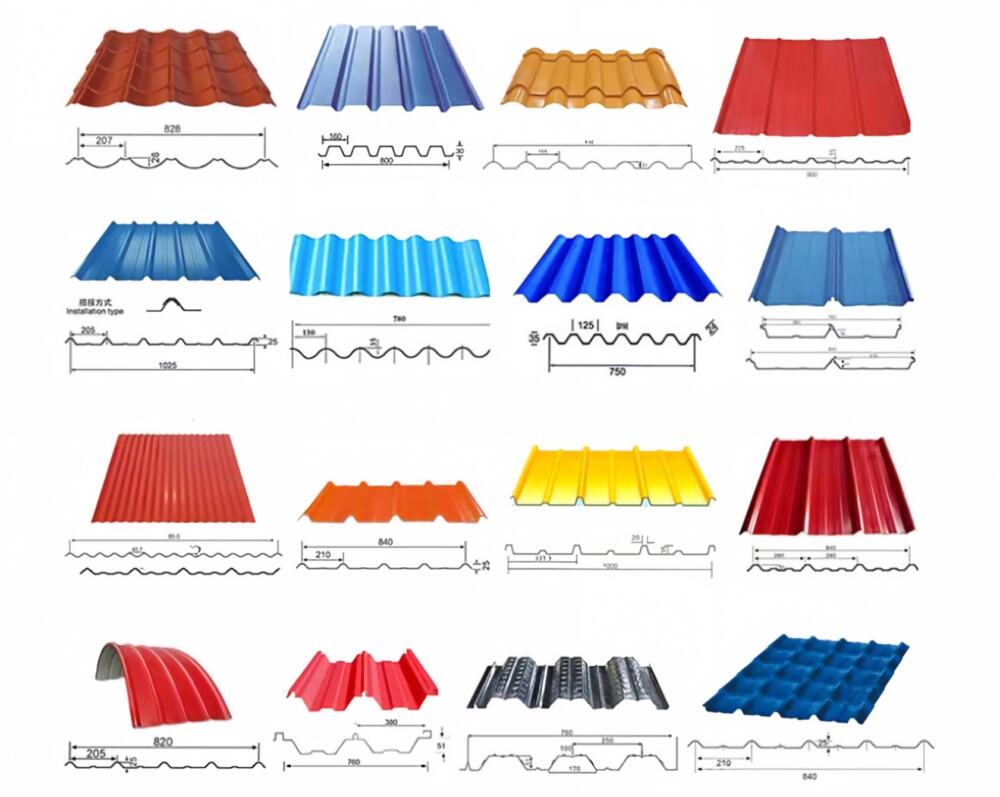

How to choose the appropriate model and version?

Faced with numerous models and versions, the following points are provided for your reference:

1. Look at the architectural style and functional requirements

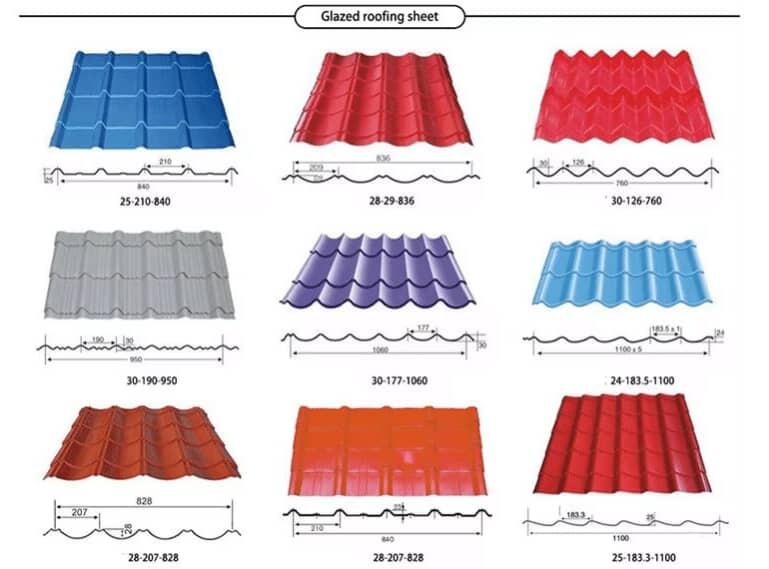

Antique/Chinese style architecture → Glazed sheet machine (828 type, 840 type)

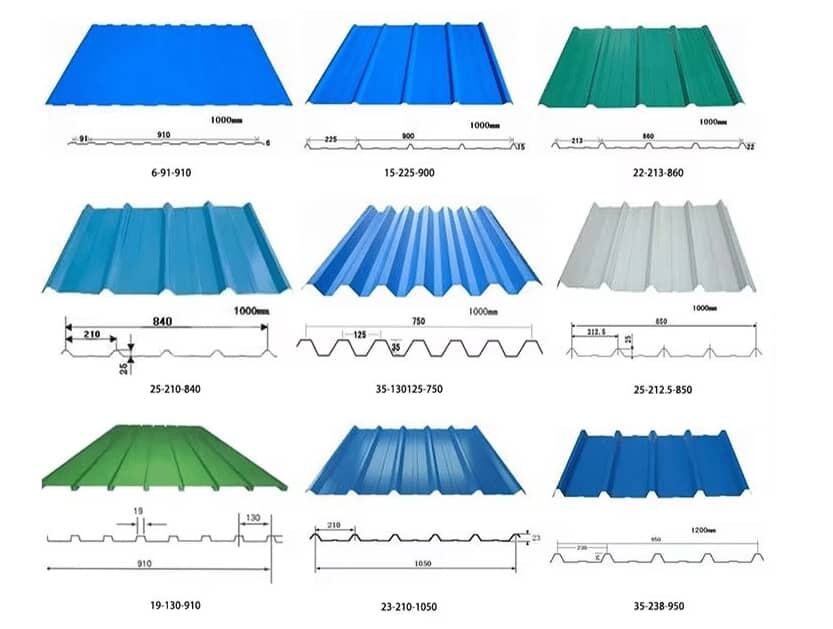

Modern industrial plant → Trapezoidal roof sheet machine (750, 820, 1050)

Modern style villa/public building → Circular roof sheet machine (780 type, 828 type)

High end waterproof requirements → Standing seam roof sheet machine (BEMO board, KR-18 type)

Limited space, multi variety production → Double layer roof sheet machine (840/900 type combination, etc.)

2. Check the production scale

Single category mass production → Select single-layer specialized equipment corresponding to the model

Multi category flexible production → Choose double-layer equipment, one machine can produce multiple types, saving space and cost

3. Support customization

If you have special design requirements, we support customization according to the diagram – you can provide a design diagram or describe the requirements, and we will tailor a dedicated device for you.

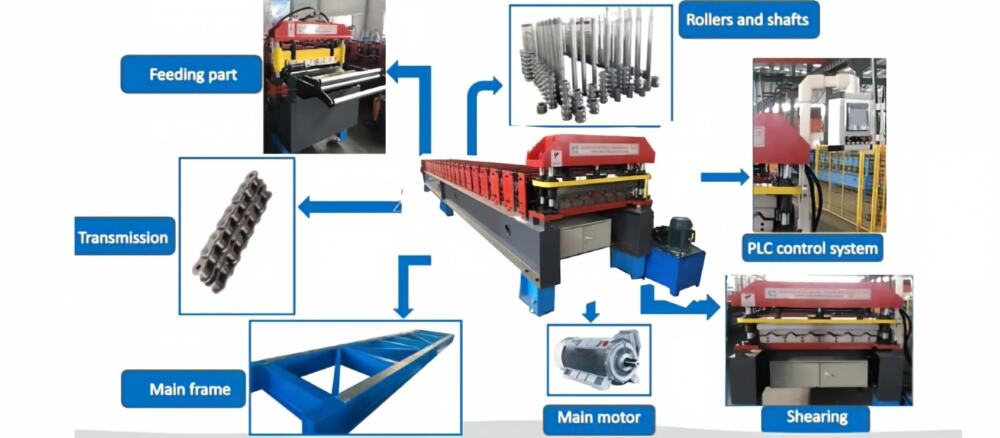

General technical advantages of equipment

Our roof sheet forming machines all adopt the following high standard configurations:

1.Control System: Imported PLC intelligent control, easy to operate, high precision in sizing

2.Body structure: Made of high-strength H-beam welded structure, sturdy and durable

3.Forming shaft: diameter 70mm, quenched and tempered 45 # steel, surface plated with hard chromium, hardness HR55 ° -57 °

4.Transmission system: Chain wheel chain transmission, smooth and reliable operation

5.Applicable materials: various metal coils such as color steel plate, galvanized plate, aluminum zinc plate, aluminum magnesium manganese plate, etc

6.Material thickness: 0.3-0.8mm (customizable according to requirements)



Overview of Application Scenarios

Our roof sheet forming equipment has been widely used in:

• Industrial buildings: factory buildings, warehouses, logistics centers, locomotive depots

• Public buildings: stations, exhibition halls, sports venues, cinemas

• Civil buildings: villas, residential communities, resorts

• Cultural and tourism landscapes: antique neighborhoods, tourist attractions, pavilions, towers, and pavilions

• Engineering renovation: flat to sloping construction, renovation of old roofs



 Service Commitment

Complete range of models: trapezoidal roof sheet machine, glazed sheet machine,corrugated roof sheet machine, standing seam roof sheet machine, double-layer roof sheet machine, with dozens of standard versions to choose from

• Support customization:
Special design and manufacturing can be carried out according to the actual needs of users

• One stop service:
From requirement communication, scheme design, production and manufacturing to installation, debugging, and after-sales maintenance, worry free throughout the entire process

• After sales guarantee:
1-year warranty for the entire machine, lifetime technical support

Make every tile just right – choose the model and pattern that suits you, starting with a professional roof sheet forming machine.

Welcome to contact us, we will recommend the most suitable model and version solution for you based on your project requirements!
