Wall panel roll forming machine can produce kind of wall panel , the size of wall panel also can be adjustable , we can design manual types and full automatic types.

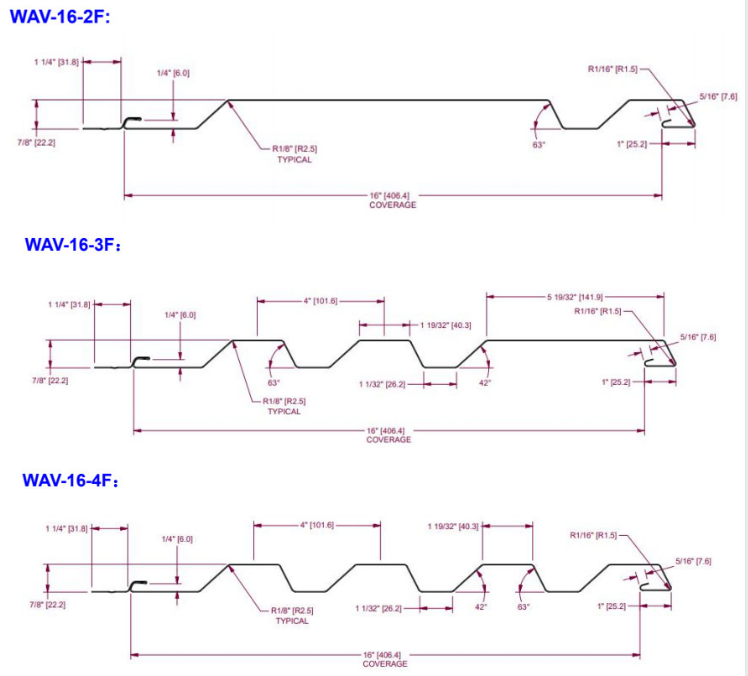

These are some profile drawings for your reference:

Receiving table:

Receiving table can receiving the finished products, only one person do this work is ok. if you want to save the labor cost , we can also provide the automatic stacker for you.

Construction working scence

Metal wall panels are one of the most economical options to clad the walls (both exterior and interior) of a building.

But while cost is important, it isn’t everything. They are also highly durable, rarely require additional framing and are easy to replace or configure when building repairs or modifications are needed. Because of these factors,  metal panels win on functionality too.

So they deliver on value and performance, but what about aesthetics?   Never fear. With options like flush or ribbed panels and vertical or horizontal installs, they also perform a key role in the aesthetics of your new building.

Main parameters:

Rolling shaftRoller  Shaft material:45# STEEL Shaft diameter: 75 mm Tempering treatment to prevent deformed and improve hardness Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life Rolling station :18 rolling stations Work speed: 20-25m/min Machine structure :Steel plate welded structure Machine basic frame :350# H steel welded Work power: 5.5 kw Rolling spacer :Anti rusty treatment Pull rod : Anti rusty treatment Transmission: By Chains with cover Noted: please fill the lube in case the chains getting dry

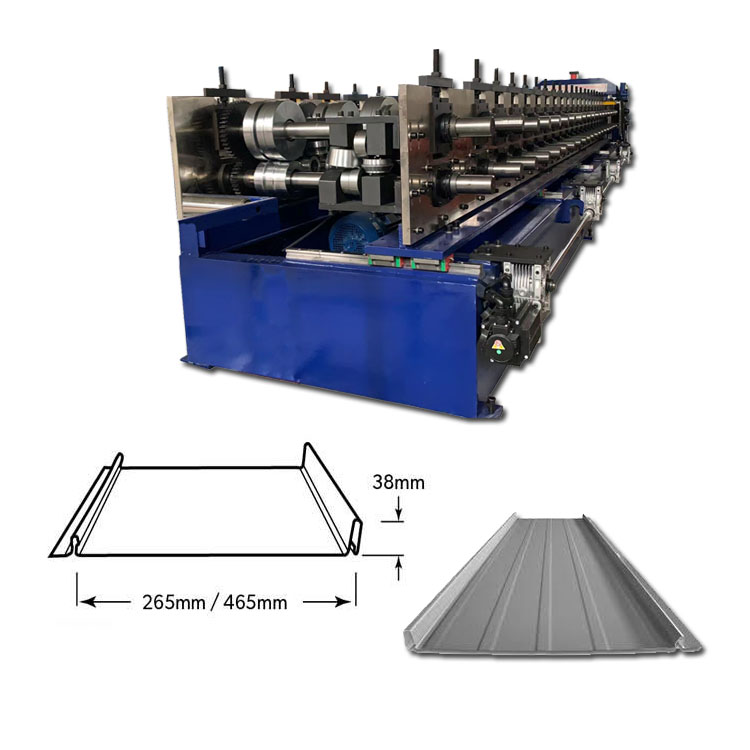

There are other self lock panel for your reference:
