The High Accuracy Metal Steel Floor Deck Roll Forming Machine, also known as profiled steel sheet equipment or steel deck equipment, is a specialized machine used for producing architectural profiled steel sheets. These sheets serve as permanent formwork for concrete slabs during the construction phase and work together with the concrete in the service stage to bear loads, fulfilling the dual functions of formwork and tensile reinforcement. The High Accuracy Metal Steel Floor Deck Roll Forming Machine processes materials such as galvanized steel sheets through cold bending to form specific wave patterns, replacing traditional wooden formwork or cast-in-place concrete construction, significantly improving efficiency and shortening project timelines.
Product Attributes :
|
1.Formed Material
|
GI,Steel
|
Thickness:0.3-0.8mm Width:1220mm (as request)
|
||
|
2.Decoiler
|

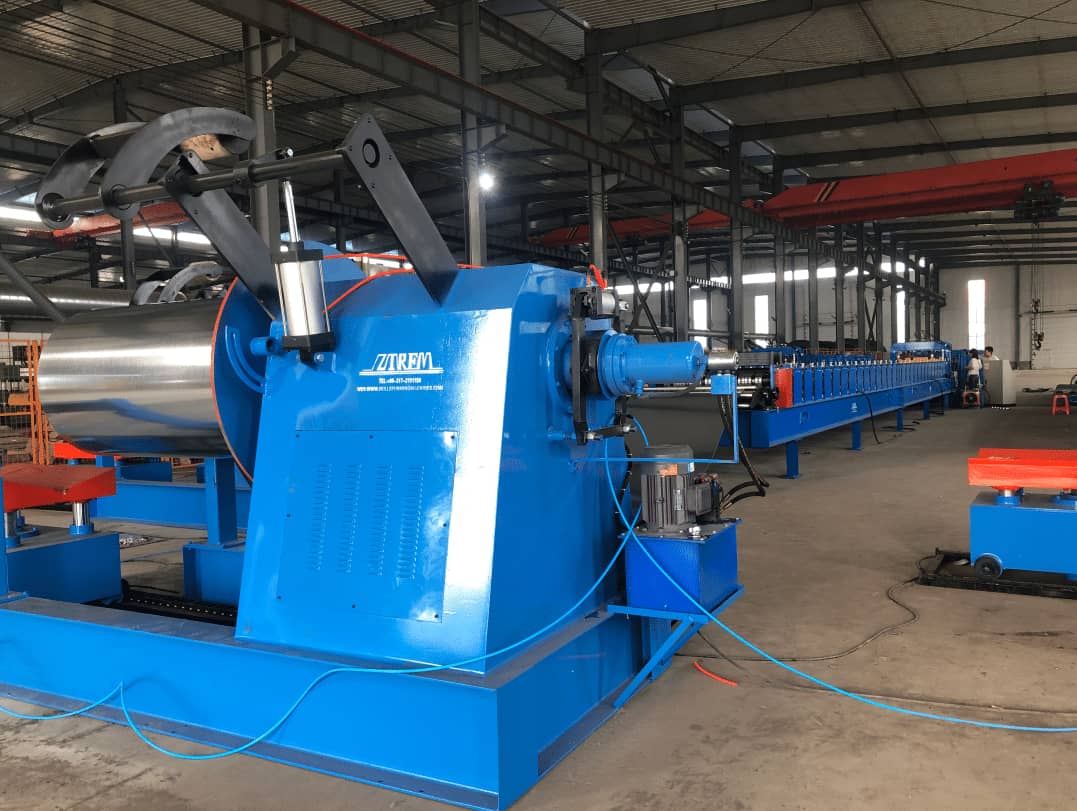

Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
33 rows(As your requirement)
|
||
|
Diameter of shaft
|
90mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
400 H steel
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
15000*1800*1600(customize)
|
|||
|
Weight
|
13T
|
|||
|

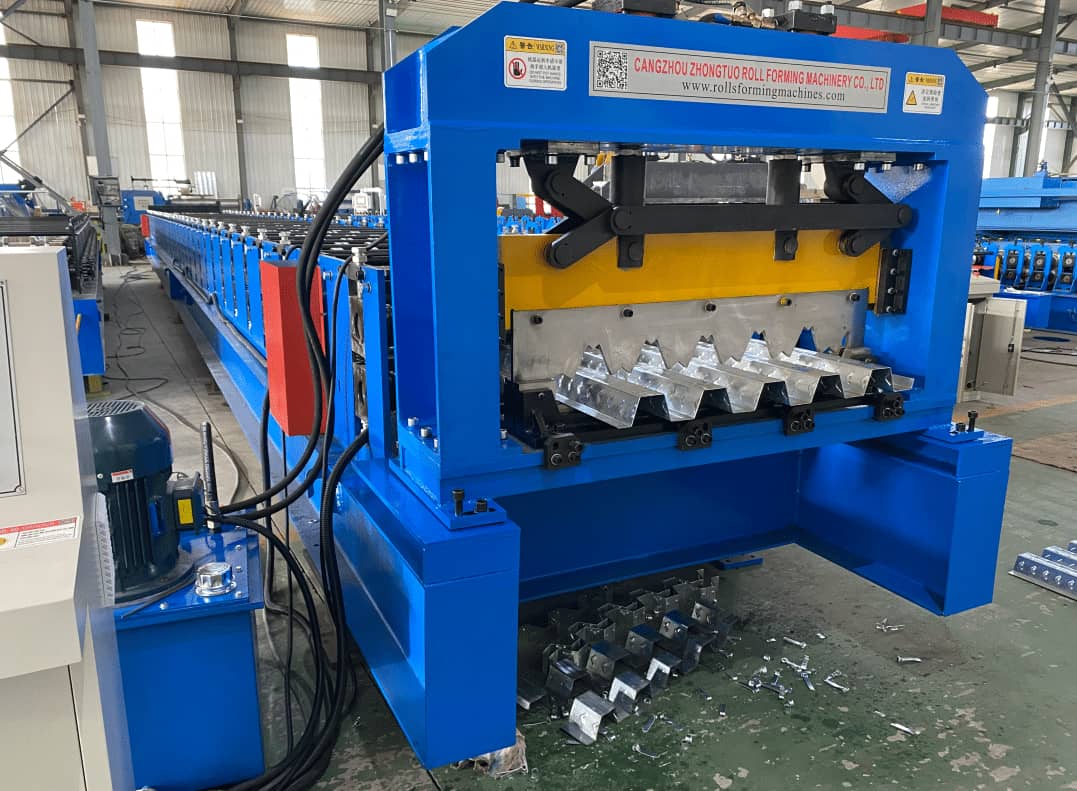

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW*2 sets,Siemens brand
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Main Categories and Characteristics
According to the type and specifications of the products produced, High Accuracy Metal Steel Floor Deck Roll Forming Machine is primarily divided into the following categories:
1.Open-web floor deck equipment:
Produces open-web floor decks suitable for industrial plants, supermarkets, logistics centers, and other buildings. Common wave heights include 75mm (e.g., Type 750) and 102mm (e.g., Type 1025), providing excellent load-bearing capacity.
2.Closed/Reduced-Opening Floor Deck Equipment:
Produces closed or reduced-opening (tailored) floor decks by optimizing the plate shape, improving fire and corrosion resistance while ensuring tighter bonding with concrete to enhance floor stiffness. Common specifications include types 688, 720, 915, etc.
Application scenario：
• Large public buildings:
including airport terminals, train stations, sports venues, music halls, large supermarkets, and exhibition centers. These buildings usually have the characteristics of large spans and large spaces, with extremely high requirements for the bearing capacity, construction speed, and overall integrity of the floor slabs. Advanced products such as steel truss floor slabs can perfectly meet the needs.
• High rise and super high-rise steel structure buildings:
In high-rise buildings such as office buildings, hotels, and research and development centers, the production of floor slab equipment can significantly accelerate the construction progress, reduce temporary support, and ensure the flatness of the slab bottom, providing convenience for subsequent mechanical and electrical installation and fine decoration.
• Industrial plants and logistics facilities:
Industrial buildings such as power plants, automobile exhibition halls, steel structure plants, cement warehouses, logistics centers, etc. need to withstand heavy equipment or cargo loads. High strength and high stiffness plates produced by floor slab equipment are ideal structural choices.
• Commercial and residential buildings:
In modern commercial complexes and multi story and high-rise residential projects, the panels produced by floor slab equipment are widely used due to their advantages of fast construction, environmental protection, economy, and low comprehensive cost.
Pattern diagram:
