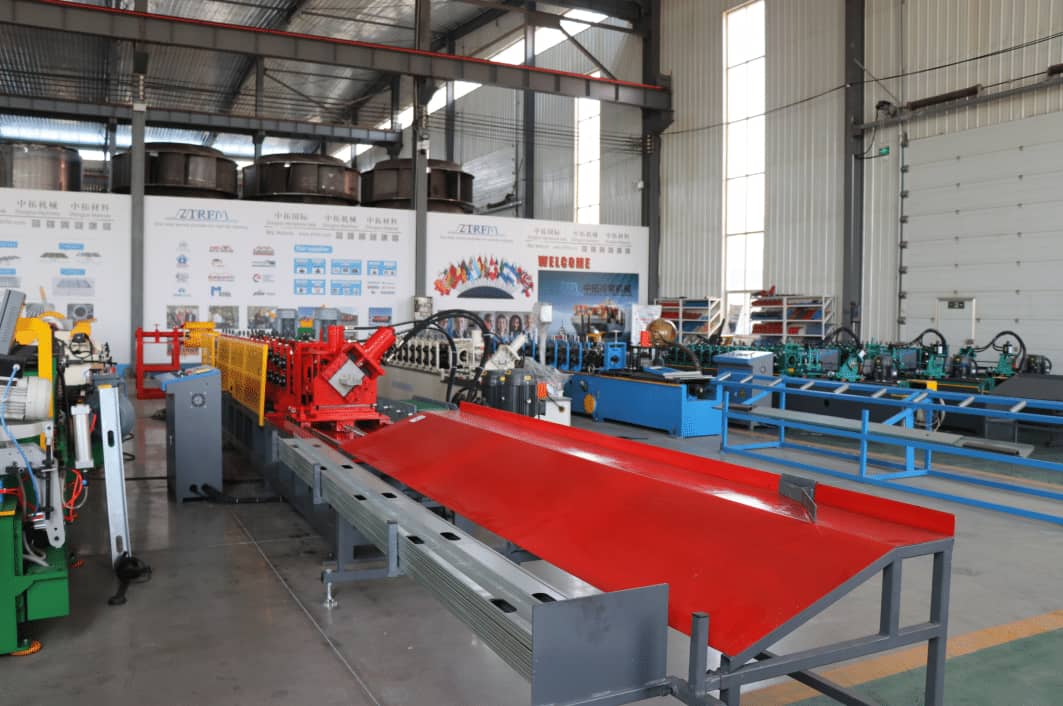

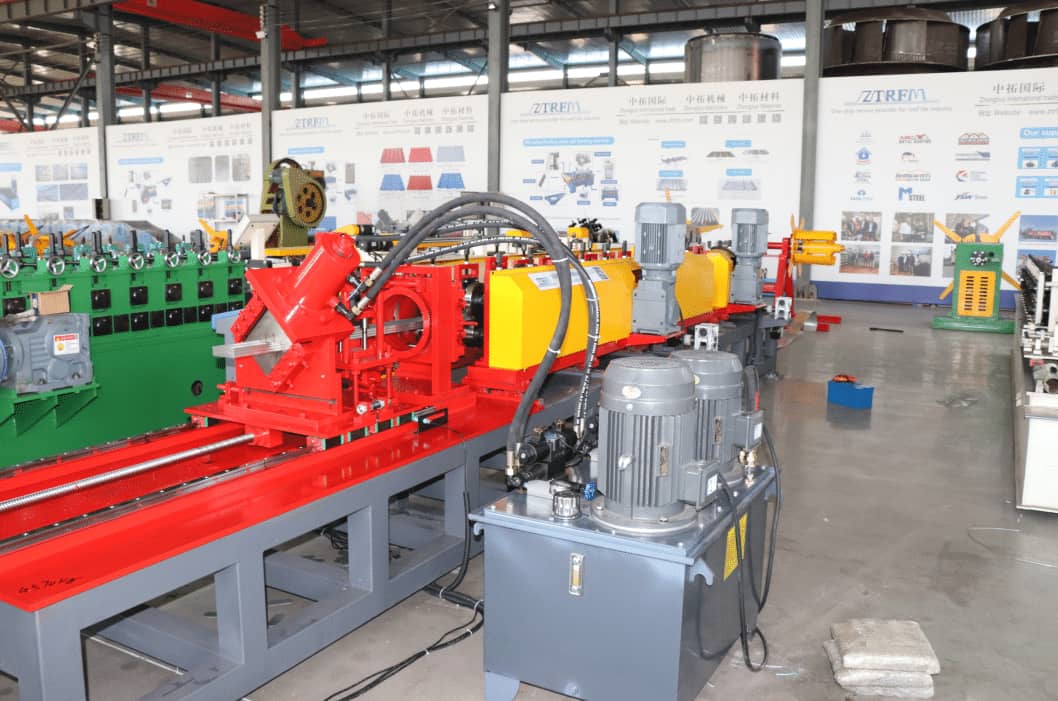

Automatic C Channel Steel Stud and Track Roll Forming Machine is a professional cold bending forming equipment with the core function of processing raw materials such as galvanized steel strips and cold-rolled steel strips into C-shaped light steel channels through a series of automated processes including material feeding, leveling, continuous rolling, servo precision punching, and fixed-length cutting. This equipment serves as a core supporting device in the production of ceiling and partition skeletons for construction decoration and steel structure construction. With its high automation level and fast processing efficiency, it has widely replaced traditional manual processing methods, significantly improving the standardization and scale of channel production.
Application scenarios：
1. Building decoration
• Indoor Ceiling: Ceiling skeleton for public spaces such as offices, shopping malls, hotels, hospitals, etc.
• Partition system: Light steel partition walls for residential and office buildings, paired with gypsum board, calcium silicate board, etc.
• Light steel villa: load-bearing and non load-bearing keel frames for walls, floors, and roofs.
2. Industry and Public Facilities
• Factory/Warehouse: Roof purlins, wall studs, supporting color steel plates and insulation layers.
• Transportation infrastructure: Ceiling and partition walls in subway stations and tunnels have good corrosion resistance and fire resistance.
• Data center: computer room partitions, equipment rack support, meeting anti-static and load-bearing requirements.
3.Other fields
• Furniture manufacturing: shelves, cabinet frames, lightweight and high strength.
• Photovoltaic engineering: solar panel brackets and frames, suitable for outdoor corrosion resistance requirements.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
As your requirement
|
||
|
Diameter of shaft
|
60mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gear transmission
|
|||
|
Dimension(L*W*H)
|
7800*800*1200(customize)
|
|||
|
Weight
|
About 4.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
40-100m/min(customized)
|
Different speed designs for options.
|
||
Pattern diagram:
Core Features：
1.One machine for multiple uses, fast changeover:
can produce C/U-shaped keel, width 75-220mm, thickness 0.8-1.6mm adjustable; Automatic changeover of CNC input parameters without the need for roller replacement.
2.High precision, no debugging required:
PLC numerical control+servo drive, dimensional accuracy ± 0.2mm; roller shaft quenched and treated, long-term use without deformation.
3.Efficient and stable, low energy consumption:
molding speed of 15-40m/min, capable of 24-hour continuous production; Compared to traditional processes, it saves about 25% energy.
4.Durable and easy to maintain:
The frame is made of heavy-duty steel, and key components are imported brands; Modular design, easy troubleshooting and replacement of accessories.
5.Excellent finished product performance:
The keel has high strength, light weight, anti-corrosion and rust prevention, meets national standards, and is suitable for various decoration and steel structure projects.
