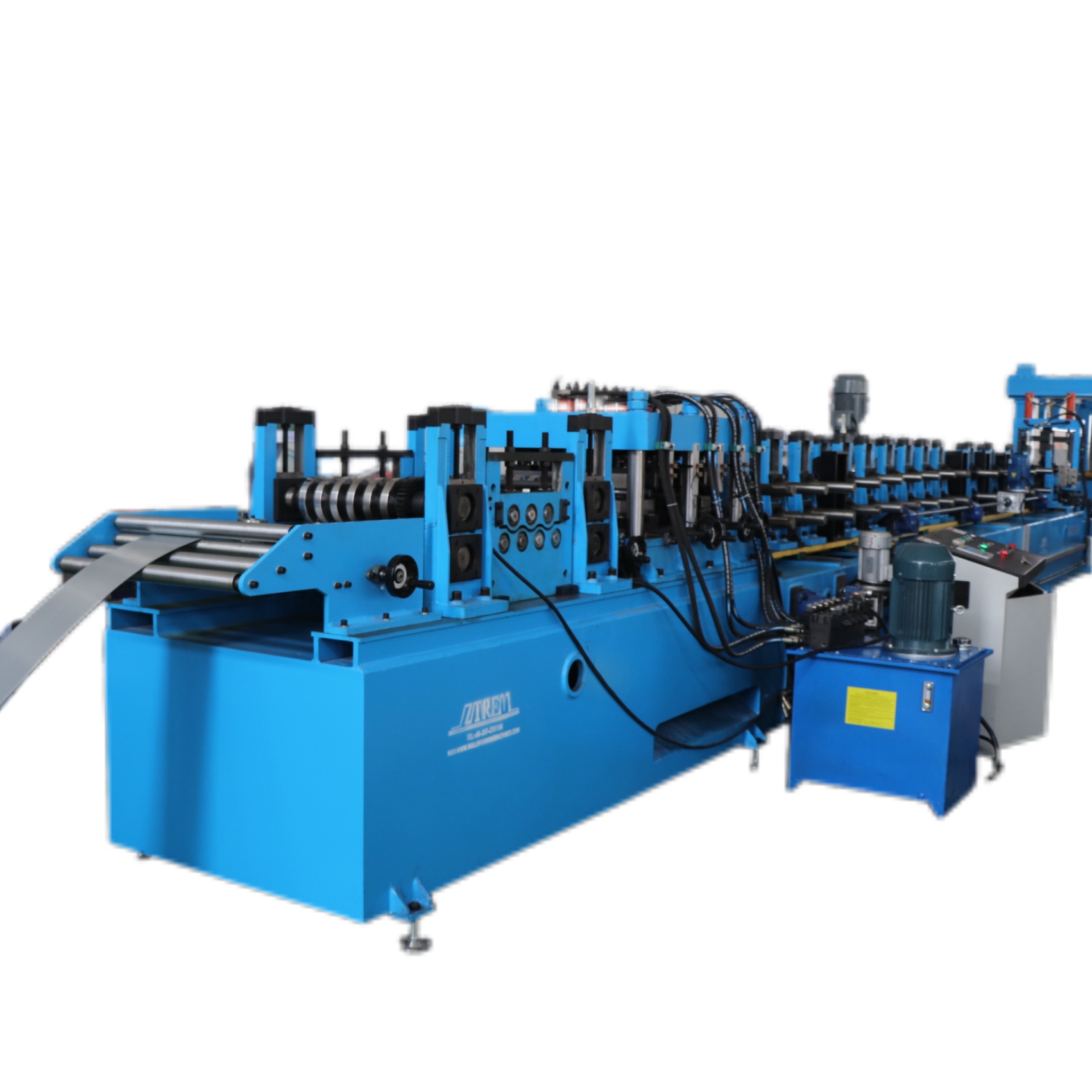

The c z purlin roll forming machine is an efficient cold bending forming machine designed specifically for the continuous production of building purlins. It completes processes such as leveling, punching, forming, and fixed length cutting in one go through continuous feeding of a single coil of steel, directly outputting C-shaped or Z-shaped steel products. Compared with traditional split equipment, its integrated design significantly improves production continuity and is regarded by the industry as a “revolution in steel structure source opening and throttling”.
The c z purlin roll forming machine has achieved a core breakthrough in flexible specification switching and continuous and efficient production through infinite technology and modular design, becoming a key equipment in modern steel structure manufacturing that combines flexibility and automation. Its technological evolution, such as fully automatic changeover and common blade cutting, continues to drive the development of construction industrialization towards low cost and high precision. Mainly used for mass production of purlins for steel structures such as industrial plants, storage buildings, bridges, etc., supporting standard and non-standard customization.

Equipment features：

• Quick changeover:
  The equipment can switch between C-shaped steel and Z-shaped steel in a short period of time, with some models taking only 1-3 minutes.
• Infinite adjustment:
  Within a certain range, infinite adjustment of steel specifications can be achieved without the need to replace the forming rollers.
• High degree of automation:
  The production process adopts automatic control, which is easy to operate and reduces manual intervention.
• Efficient production:
  The production speed can reach 20-30 meters per minute, improving production efficiency.
• Strong applicability:
  It can produce various specifications of C-shaped steel and Z-shaped steel to meet different building needs.


  Machine advantage:

  1.Cost saving:
  No need to frequently replace molds or forming rollers, reducing production costs.

  2.Improving efficiency:
  Rapid changeover and automated production have increased production efficiency.

  3.High flexibility:
  Strong adjustability, able to adapt to production needs of different specifications.



  Product Attributes :

  1.Formed Material	GI		Thickness:1.5-3 mm  (standard)
  2.Decoiler	3 Tons Hydraulic automatic decoiler		3 Tons Manual decoiler(will give you as free）
  3.Main body	Roller station		18 rows (As your requirement)
  	Diameter of shaft		80 mm solid shaft
  	Material of rollers		45# steel, hard chrome plated on the surface
  	Machine body frame		400 H steel
  	Drive		as your requirement
  	Dimension(L*W*H)		15000*1800*1600(customize)
  	Weight		5T
  4.Cutter	Automatic		cr12mov material, no scratches, no deformation
  6.Voltage	380V 50Hz 3Phase		As your requirement
  7.Control system	Electric Box		Customized(famous brand)
  	Language		English(Support multiple languages)
  	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
  8.Forming Speed	25 m/min		The speed depends on the shape of the tile and the thickness of the material.

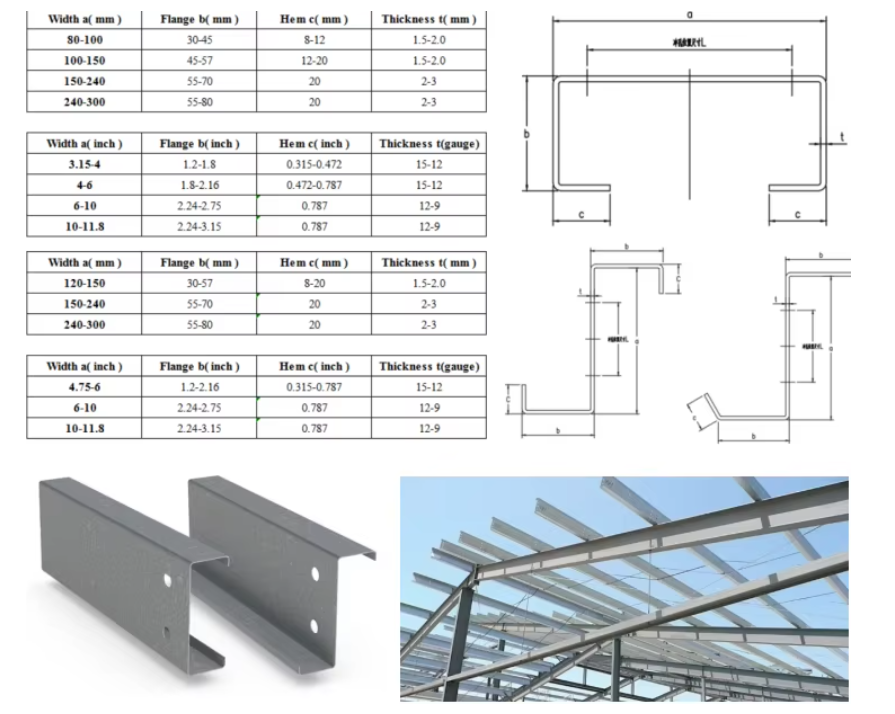

  Products Display：
