Below is a work flow video for you to watch：
Product Attributes :
|
Parameter and
Performance |
Suitable material
|
PPGI, GI, Nano film coated plate, Aluminium etc
|
|
Material thickness
|
0.3-0.8mm
|
|
|
Main components
|
5T decoiler, Roll forming machine, PLC control system, Hydraulic station, Receiving table
|
|
|
Production speed
|
0-20m/min( speed adjustable)
|
|
|
Feature
|
Main frame:350-500H beam Steel PLC: Delta or Siemens (or as your request)
Touch screen langauge: English/Chinese/as your request
Roller material: high grade 45# steel with hard chrome coated
Shaft material: 45# steel, solid
Cutting: Hydraulic cutting system
The unique feed inlet design can protect the coil paint surface and prolong the service life of roof tiles.
The cooling system on the hydraulic station can avoid overheat of hydraulic oil after long-time operate, ensure provide enough power.
|
|
|
Advantage:
1.More than 15 years’ experience, our products has been exported to more than 150 countries all over the world. 2.We supply manufacturing, design, installation, after-sales and other services. 3.Our annual production capacity: only for cold roll forming equipment: 30-200sets / year. |
||
Product Description：
The corrugated sheet roll forming machine is a device used for producing corrugated roof tiles, mainly used for manufacturing various arc-shaped roof tiles. Equipment usually has the characteristics of high efficiency and precision, which can meet different building needs.
Main functions and purposes：

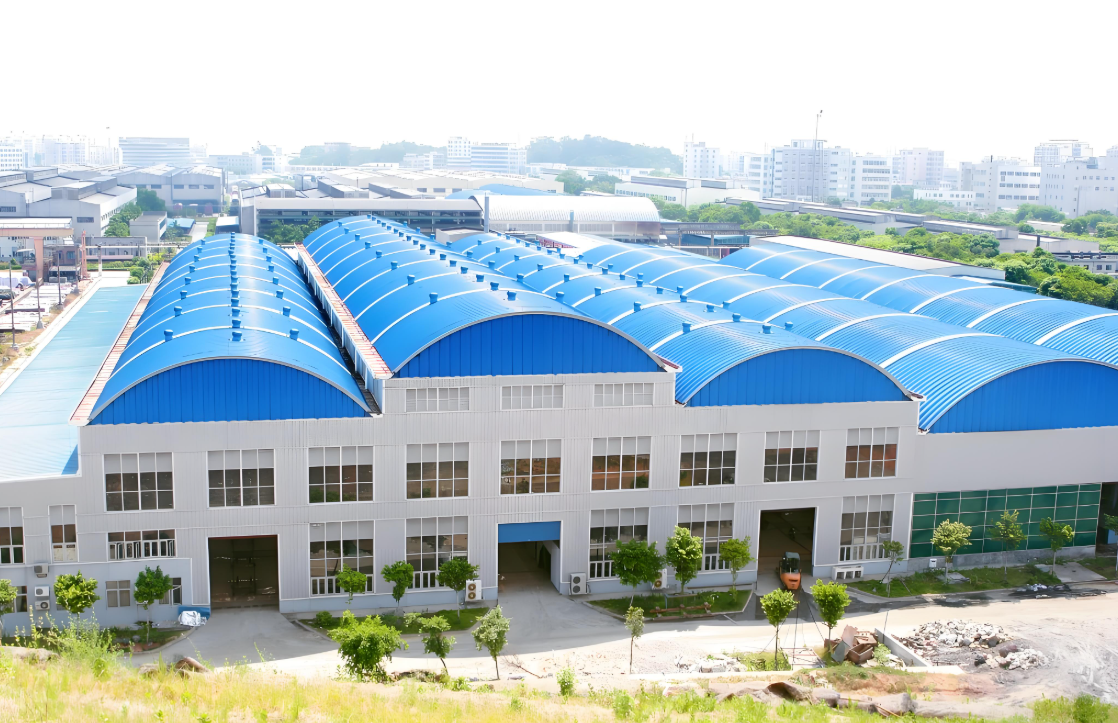

The main function of the corrugated sheet roll forming machine is to produce curved roof tiles. It is suitable for curved roofs of various buildings, such as factories, warehouses, sports halls, etc., and can provide beautiful and practical roof covering materials. The equipment usually adopts advanced control systems and hydraulic systems to ensure the stability of the production process and the accuracy of the tiles.
Characteristics and advantages：
- Various types:
The circular roof tile machine has a wide range of tile types, which can meet the needs of different building designs. - Rich colors:
There is also a wide range of color choices, and suitable colors can be selected according to the needs of architectural design. - Easy installation:
The installation process is simple and can quickly complete the roof laying work. - Strong functionality:
Not only does it have waterproof, fireproof, and noise reducing functions, but it can also provide insulation and warmth, and adapt to various climatic conditions.

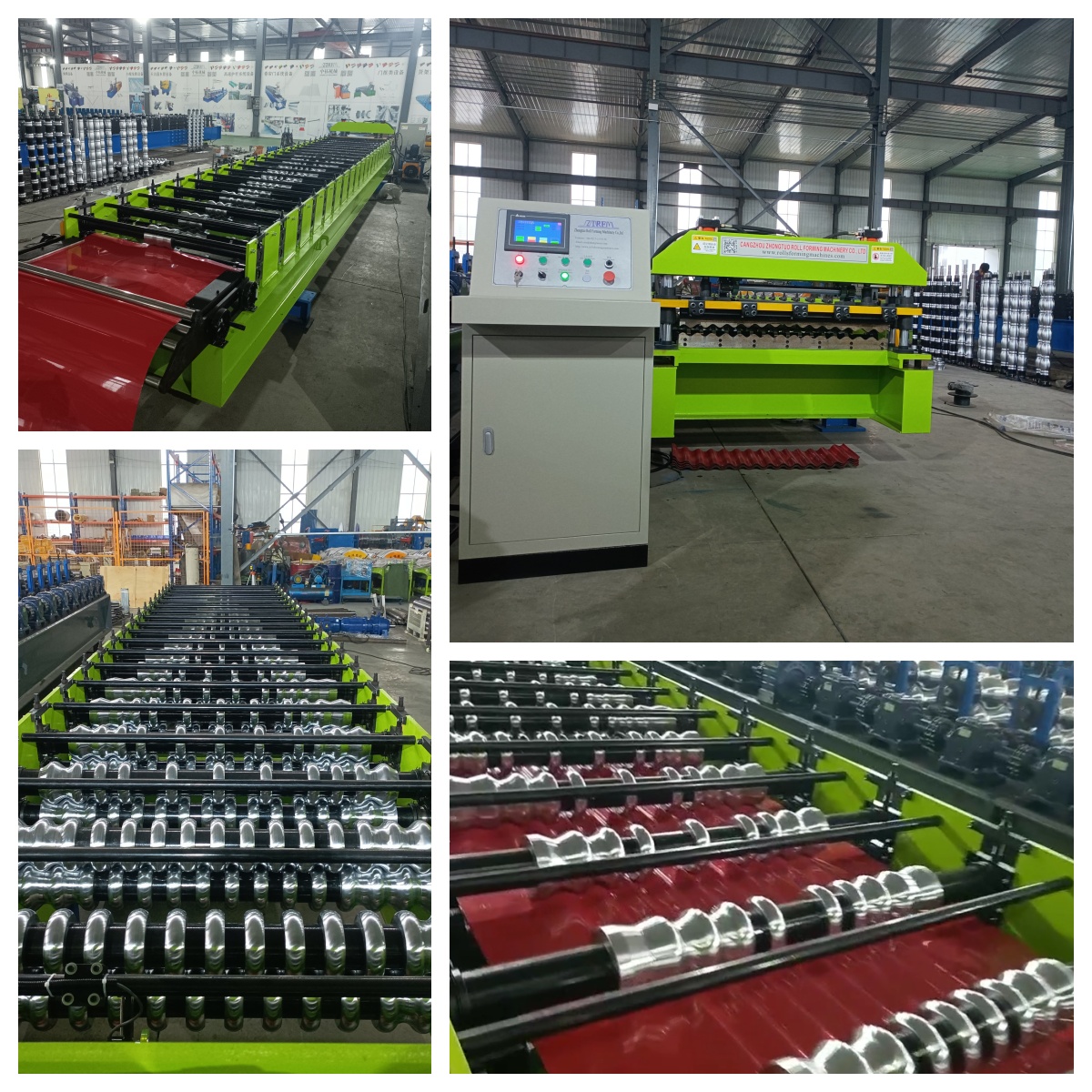

Products Display：

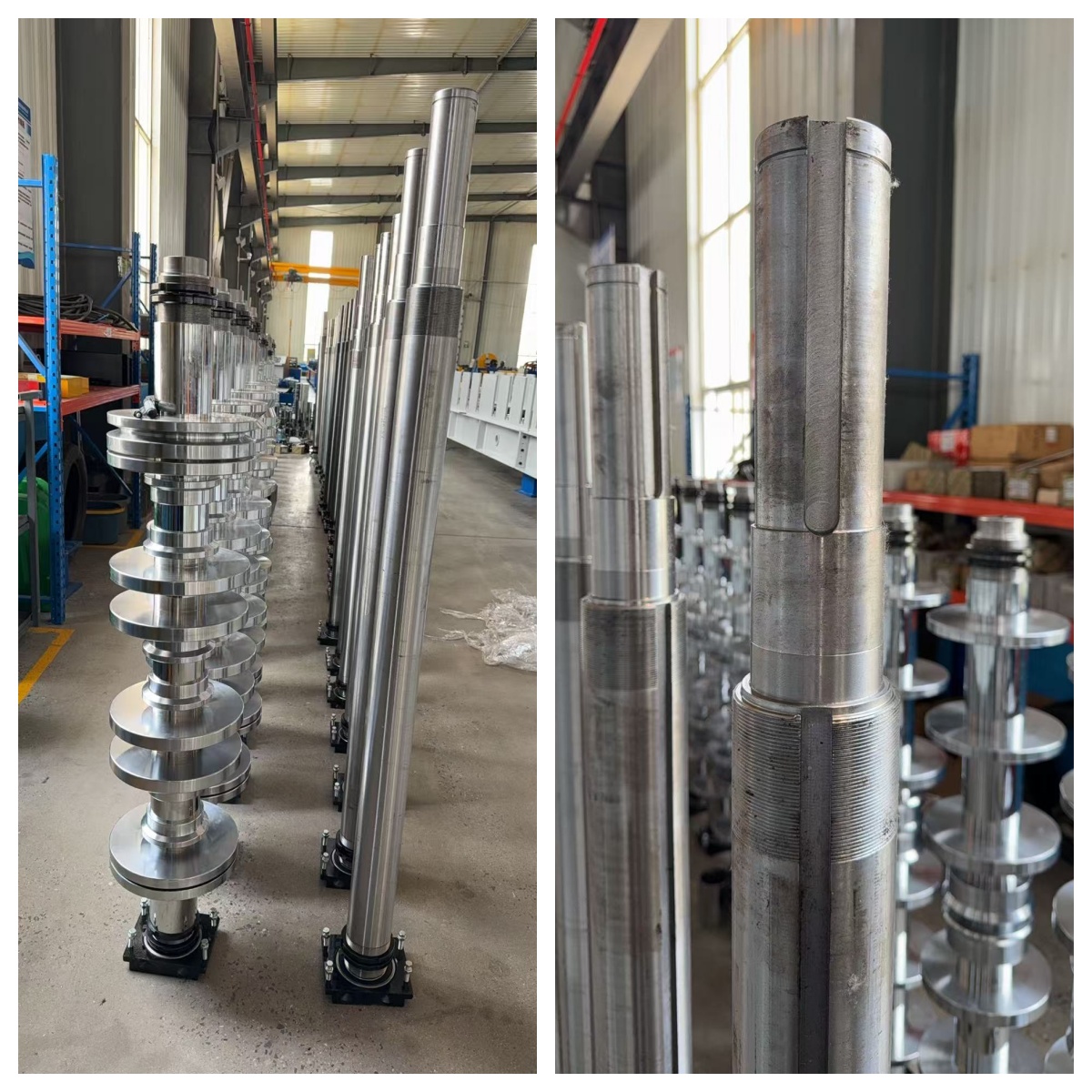

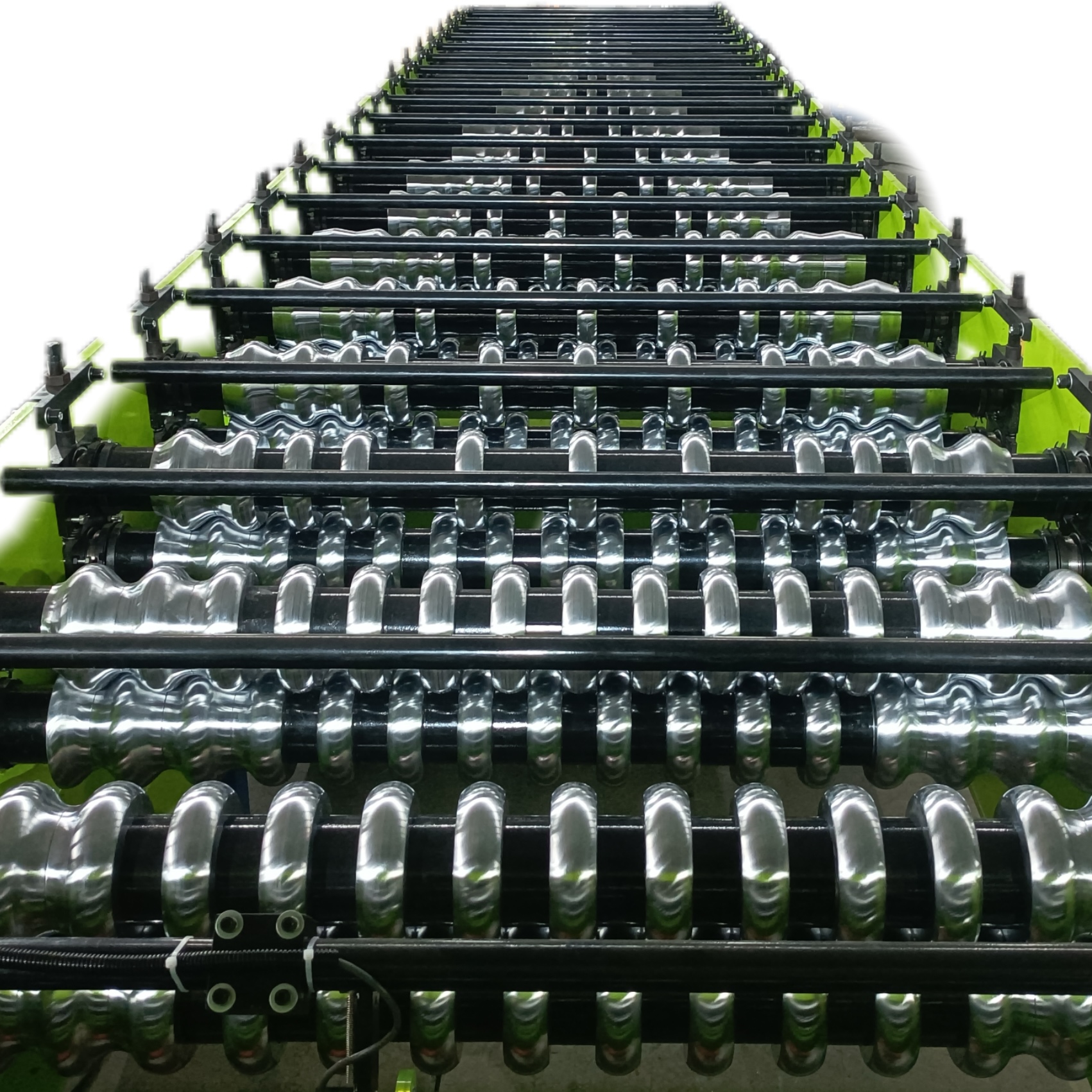

Our advantages：The keyway of the roller and the keyway of the shaft are tightly matched, and the roller will not slip. The shaft is processed twice by lathe, once by grinder, and twice by milling machine to ensure dimensional precision and roller fit accuracy.
