In the grand blueprint of modern industrial plants, large-scale warehousing and logistics, sports venues, and new agricultural buildings, C20 Roofing Sheet firmly occupy the mainstream position of metal roofs with their excellent structural mechanical performance, super strong drainage capacity, and excellent economic benefits. However, in the face of increasingly stringent requirements from the market for tile accuracy, production capacity rate, and delivery quality, traditional and outdated processing equipment has become a bottleneck that limits the leap of enterprises.
Change is imminent. We are well aware of your ultimate pursuit of efficiency, stability, and durability. The new generation of C20 Roofing Sheet Roll Forming Machine has made a strong debut, with the performance advantage of rolling grade, opening up an intelligent manufacturing overtaking lane for you.
Firmly formed, interpreting the beauty of the structure of trapezoidal tiles
The soul of C20 Roofing Sheet lies in their sharp and powerful ribbed structure. This equipment relies on finite element analysis and precision mold testing to carefully carve each roll profile:
• High load-bearing mechanical design:

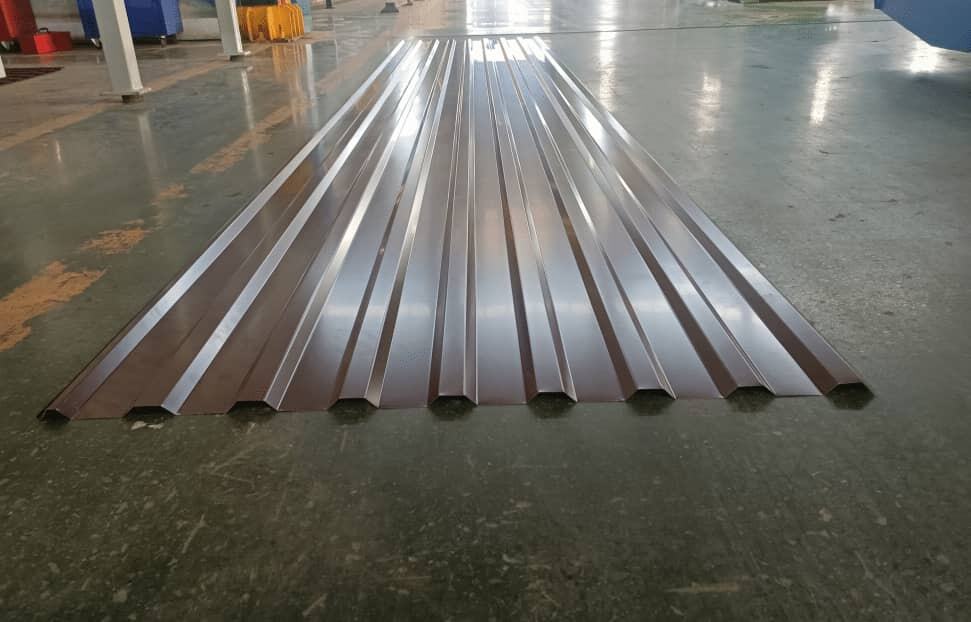

The unique multi pass progressive cold bending process ensures that the trapezoidal ribs are full and straight, and the ripples are flat and consistent, perfectly reproducing the optimal mechanical trapezoidal cross-section. The bending resistance and compressive strength of the formed tiles have been greatly improved, which can easily resist the attack of rainstorm and gale.
• Ultimate surface protection:
The rolling mill is made of high-quality alloy steel that has undergone vacuum heat treatment and precision chrome plating. The surface finish is mirror like, eliminating scratches and abrasions during production, and fully preserving the luster and anti-corrosion performance of the color plate coating, making every tile as bright and clean as a craft.
Intelligent driving makes high productivity the norm
Say goodbye to tedious manual debugging and inefficient semi-automatic operations, and give our equipment a smart ‘industrial brain’.
• Full touch screen intelligent CNC:
Industrial grade touch screen paired with programmable logic controller (PLC), with just one click input of length, batch and speed, the system automatically completes fixed length feeding, high-speed forming, flying saw tracking and cutting, with fixed length accuracy controlled within ± 1 millimeter and zero waste of tail material.
• High speed flying saw cutting:
equipped with servo tracking flying saw, online dynamic cutting without slowing down, smooth and burr free cutting, continuous production speed can reach 15-25 meters per minute. Combined with the strong power of the hydraulic station, the cutting is silent and vibration free, and the single shift production capacity easily exceeds 10000 meters, truly achieving non-stop human shutdown.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.45-0.5mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
18 stations
|
||
|
Diameter of shaft
|
70 mm
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|

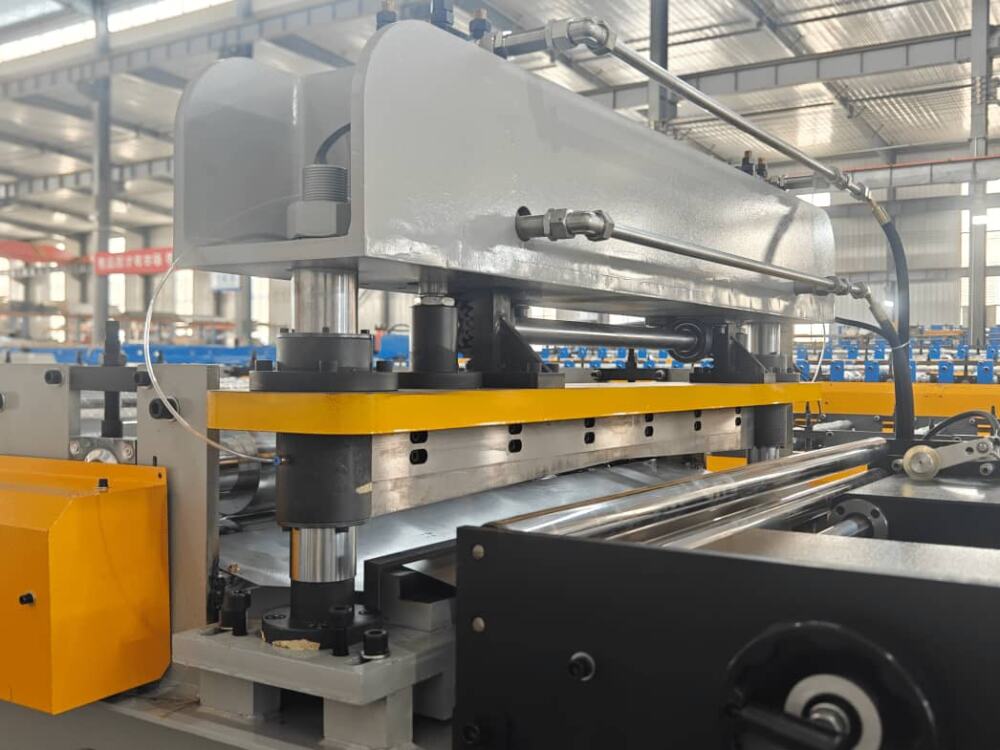

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW(normally)
|
||
|

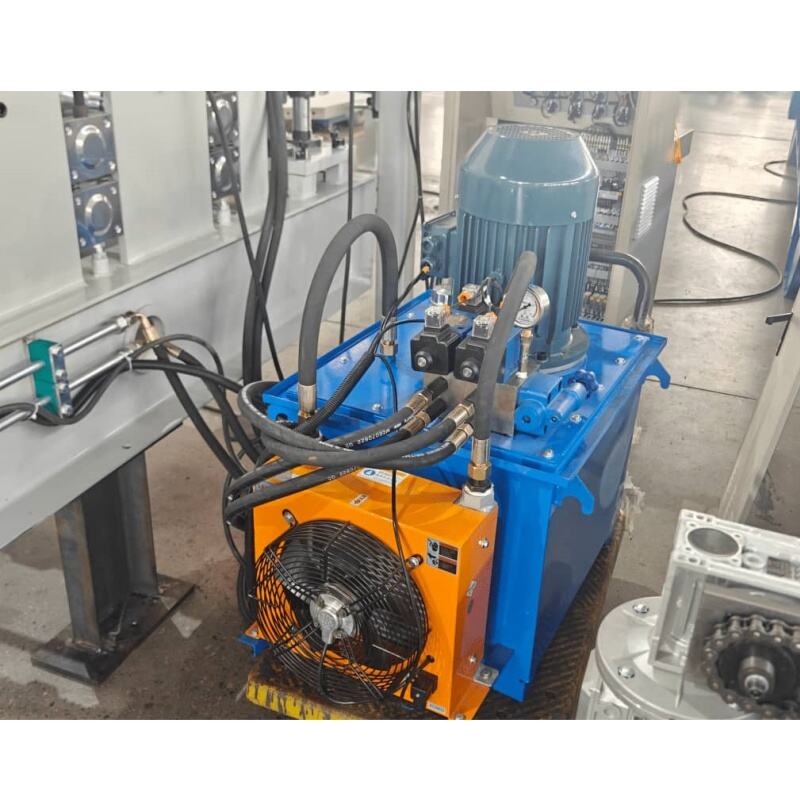

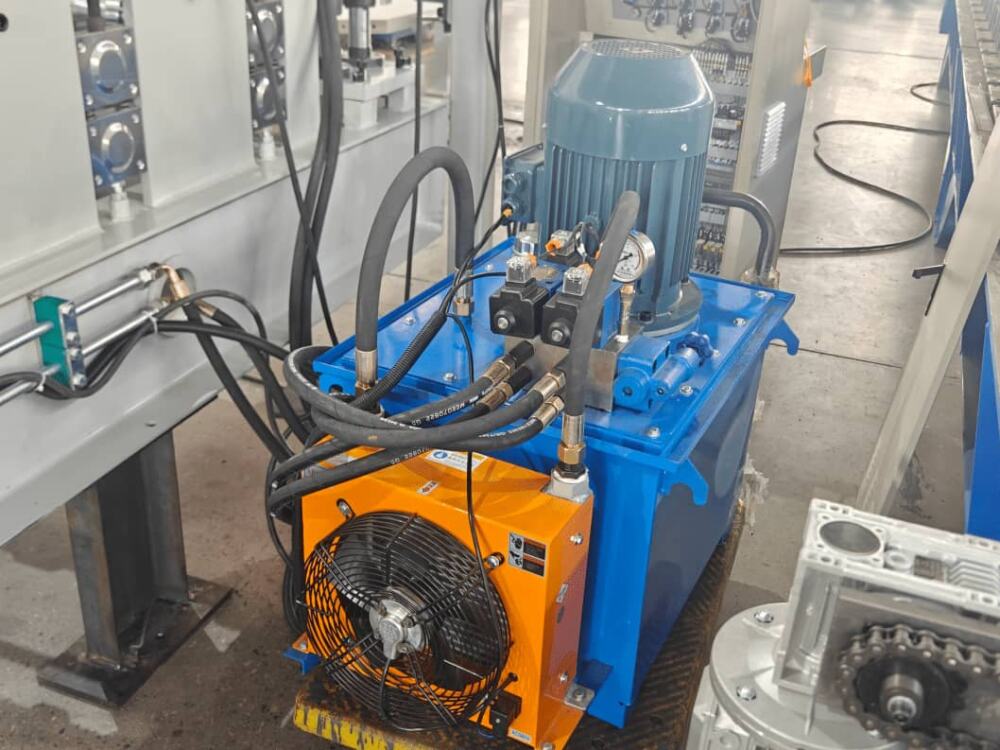

Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-20m/min
|
Provide customized
|
||

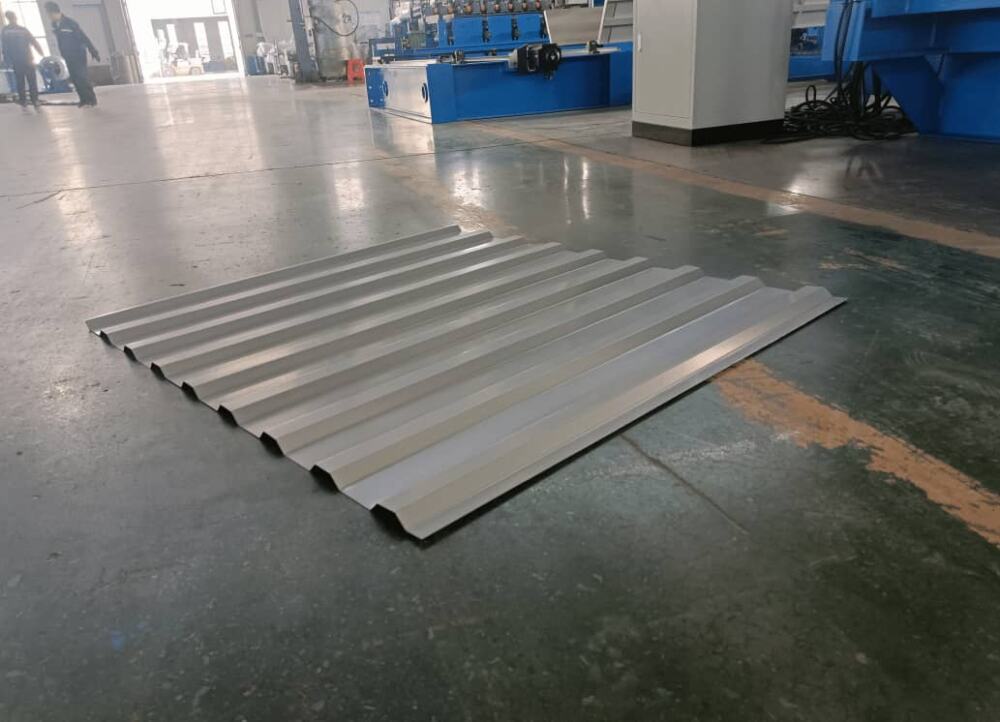

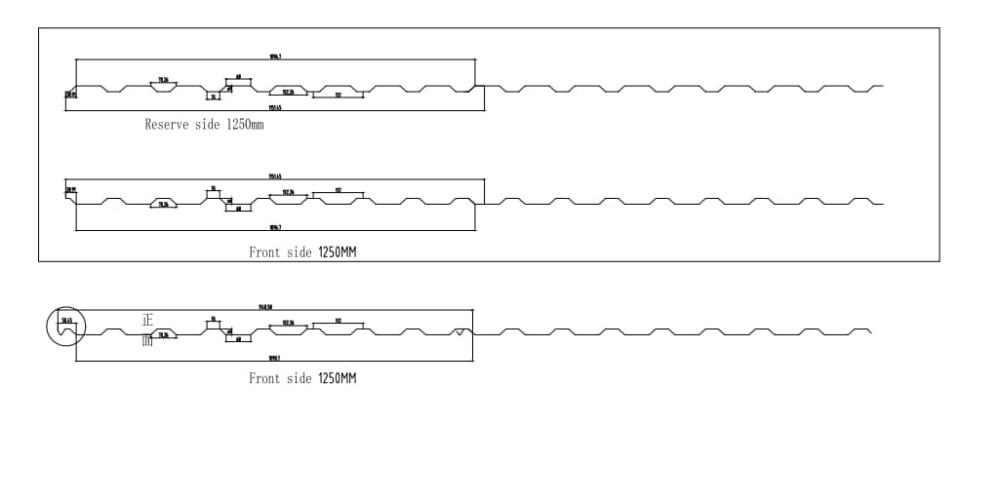

Pattern diagram:

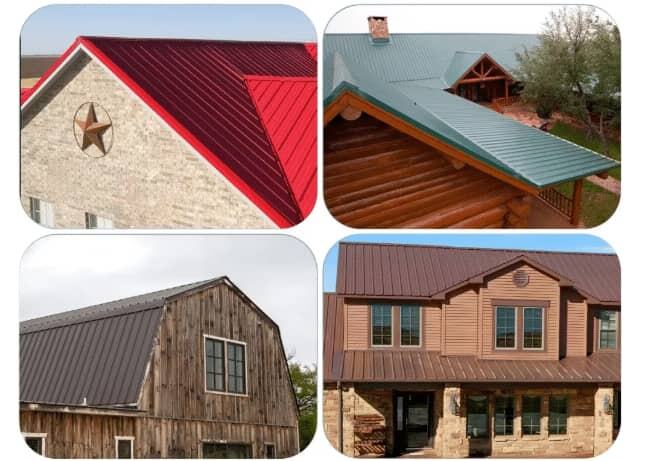

Full scene coverage, realizing unlimited building value
Whether you are in a coastal area with high temperature and humidity, or an inland industrial town with large temperature differences, we provide a one-stop solution covering unwinding, leveling, forming, cutting, and automatic stacking. Optional punching devices, laminating systems, and remote operation and maintenance modules are available. The finished tile types are widely compatible with various mainstream trapezoidal locking buckle plates and corrugated plates in the market (such as angular snap type, upright locking edge trapezoid, etc.), making your production line a leading force in regional building materials supply from the first day of entry.

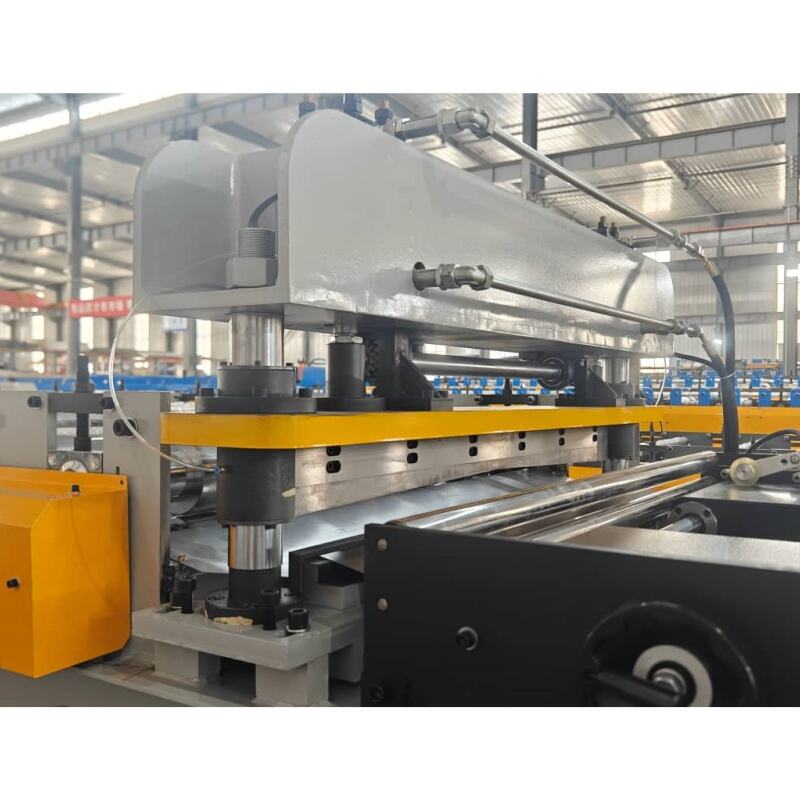

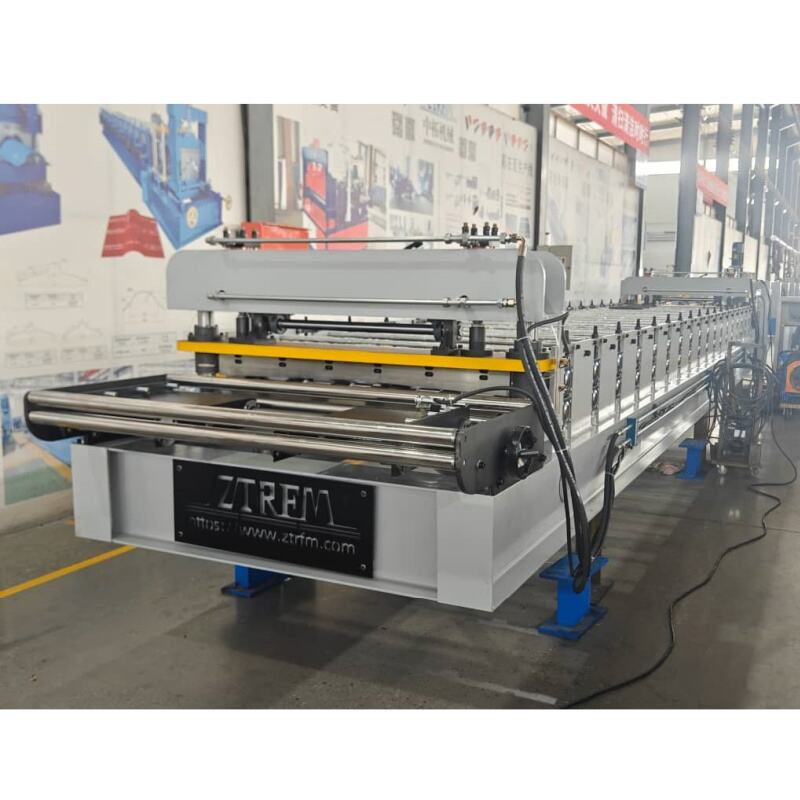

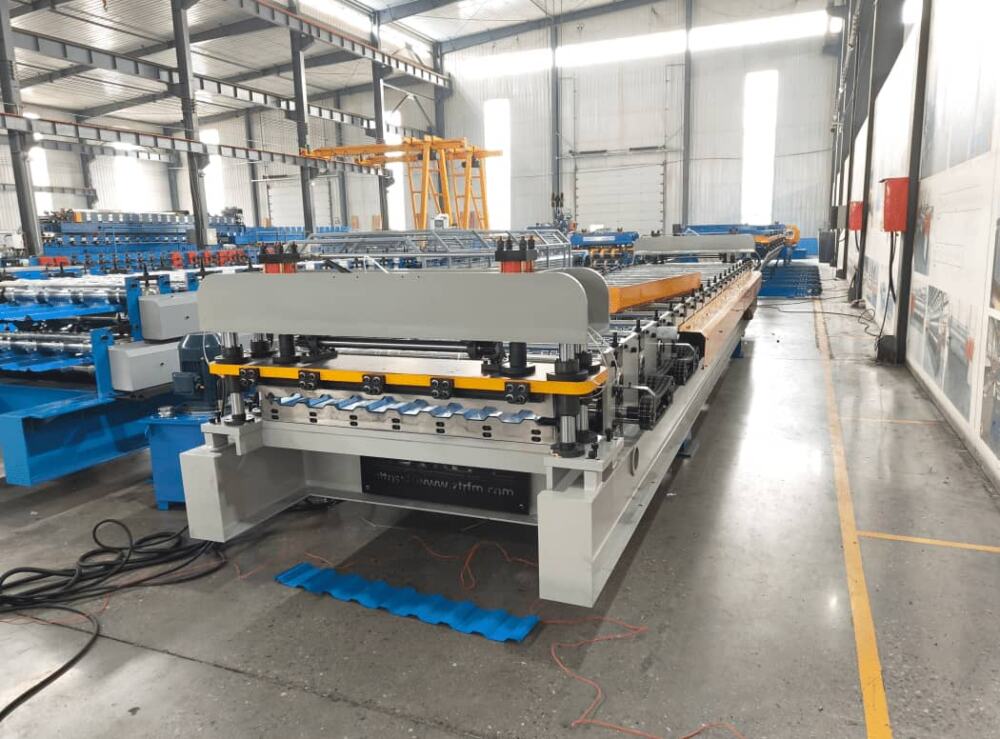

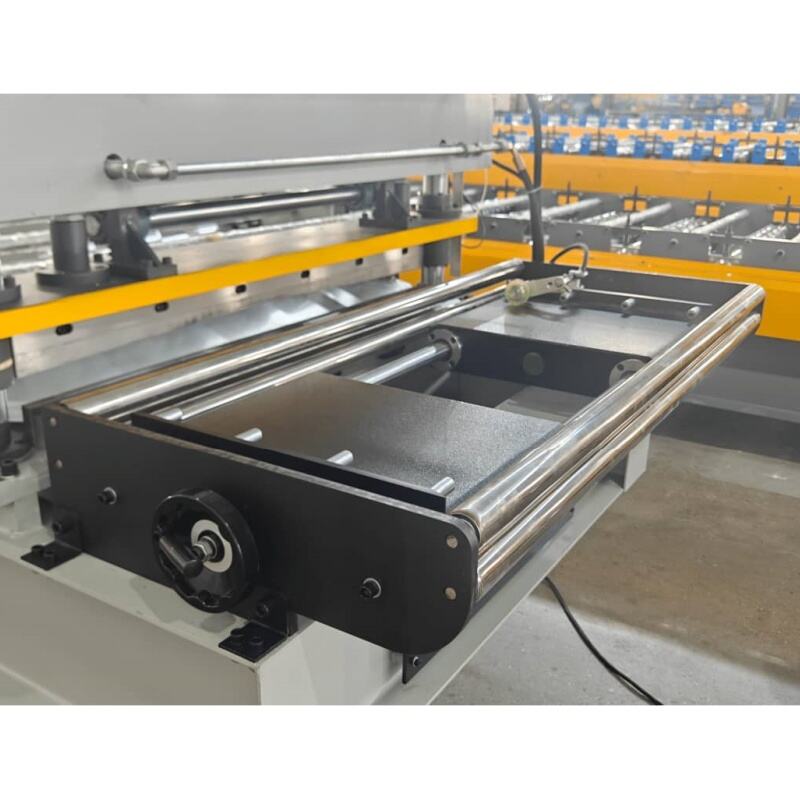

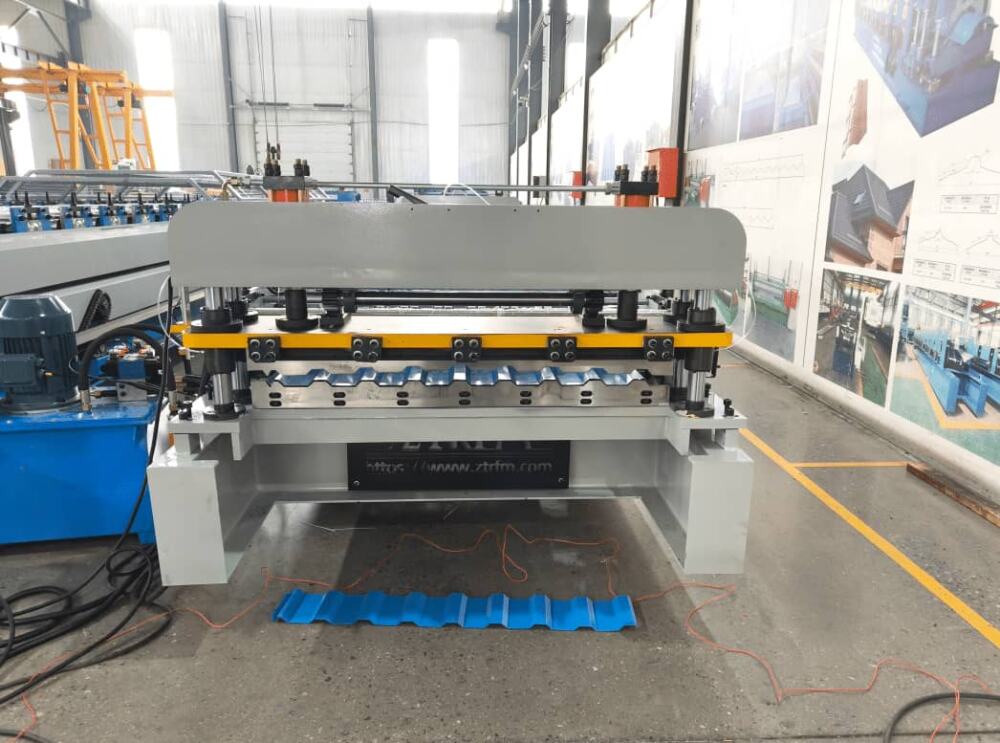

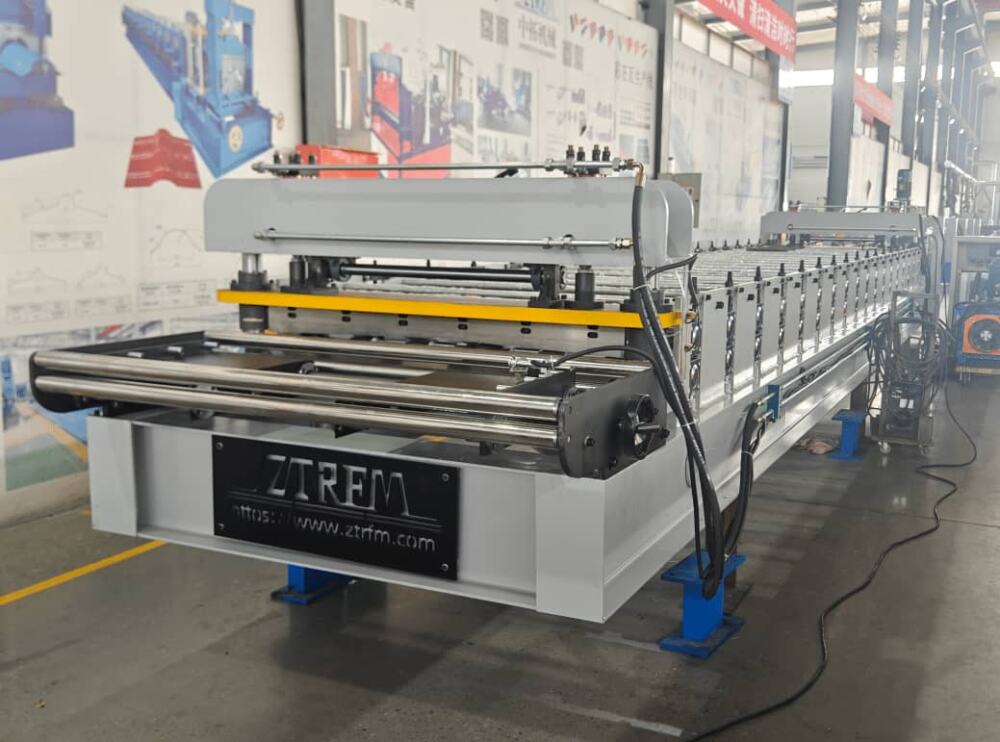

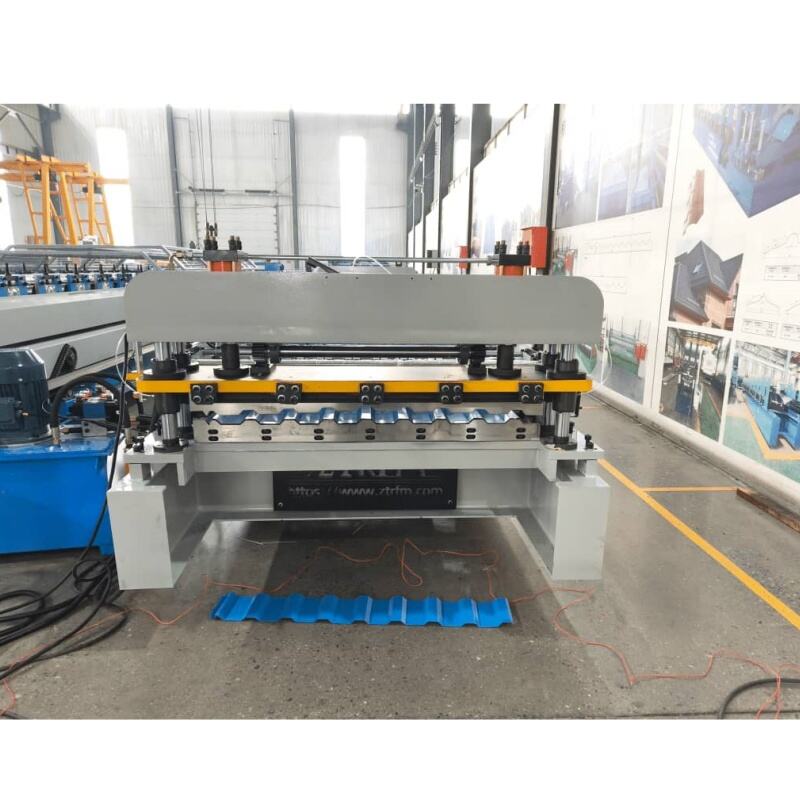

Machine photo
The roof of the strong is forged by the strong.
Now, let’s join hands and reshape the extraordinary quality of every inch of C20 Roofing Sheet with precision, sturdiness, and intelligence, seizing the high ground of your construction market.
Contact us immediately to obtain exclusive smart tile machine configuration solutions and product catalogs. Today’s wise choice is the source of tomorrow’s roaring wealth!
