The Indoor metal ceiling panel roll forming machine is a specialized equipment used for automated production of various metal ceiling panels. It mainly processes raw materials such as aluminum coils and galvanized steel strips into standardized decorative building materials such as aluminum buckle plates and integrated ceiling panels through cold bending roll pressing or hydraulic stamping processes. It is widely used in indoor decoration projects of homes, commercial spaces, and public buildings.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|

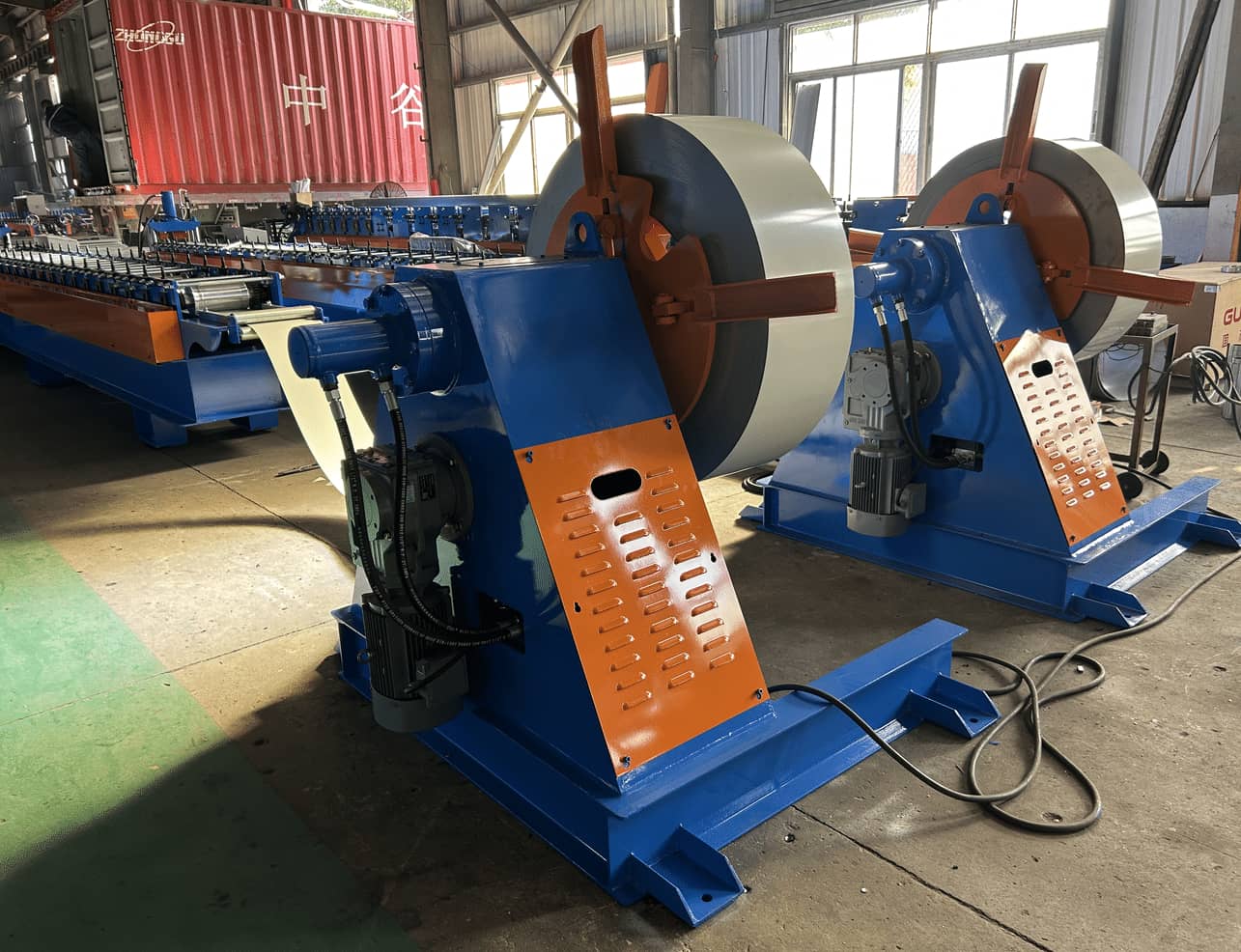

2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|

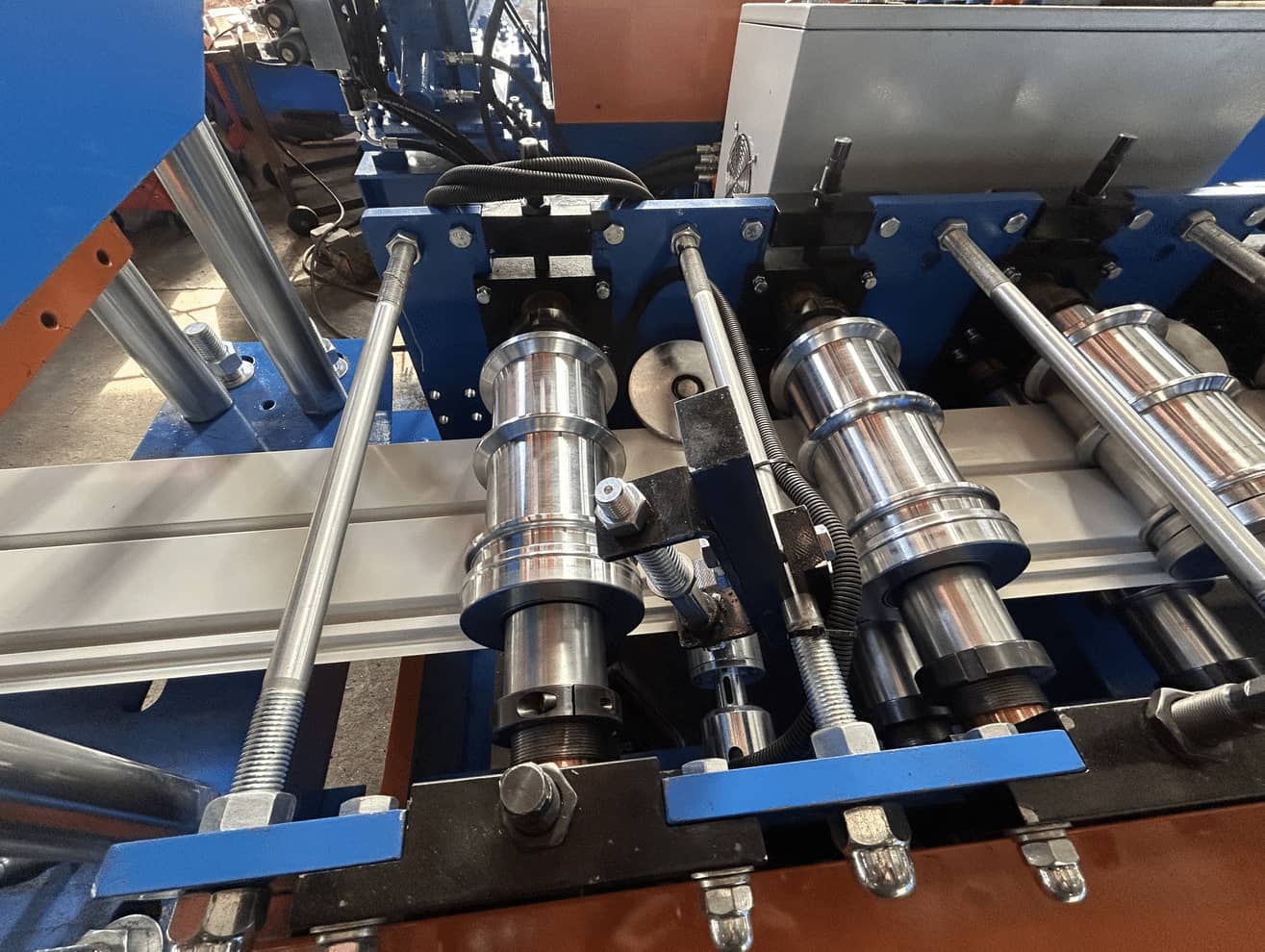

3.Main body
|
Roller station
|
As your requirement
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive way
|
gear
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 8T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
30m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Features：
1.Efficient automated production
The equipment integrates automatic feeding, feeding, forming, cutting, punching, folding, embossing and other processes, supporting continuous operation. Some models can achieve 24-hour uninterrupted operation, greatly improving production capacity.
2.High precision and stability
Using PLC programmable control system, touch screen human-machine interface and photoelectric positioning device, ensure that each board has consistent size, splicing gap is less than 1mm, and the surface is flat without deformation. Key components such as the spindle and rollers are made of GCr12MoV high hardness alloy steel and undergo heat treatment to extend their service life.
3.Energy saving, environmental protection and safety design
Equipped with voltage loss protection, overload protection, phase failure protection, and photoelectric induction safety protection system, the operation is safer. The device has low power consumption, and the main motor power is usually between 3-15kW. Some models support 220V household power supply, which is suitable for small and medium-sized processing plants.
4.Flexible compatibility with multiple specifications
The mold can be replaced to adapt to the production of ceiling panels of different sizes, with common specifications including 300 × 300mm, 300 × 450mm, 300 × 600mm, 450 × 450mm, etc., to meet the diverse needs of home decoration and tooling. Some devices support small and uniform R-angle compression molding, improving aesthetics and installation accuracy.
Typical application scenarios：
• Home decoration:
Used for the production of aluminum buckle ceiling in kitchens, bathrooms, and living rooms, supporting free color and texture matching, easy installation, moisture and fire resistance.
• Commercial space:
an integrated ceiling system suitable for shopping malls, hotels, office buildings, and other places, which is combined with the main keel (T-shaped) and side keel (U-shaped) to build a stable skeleton structure.
• Public buildings:
hospitals, schools, subway stations and other areas with high requirements for weather resistance and flame retardancy adopt high-strength aluminum ceiling system, which has the advantages of anti-aging, acid and alkali resistance, easy cleaning, etc.
• Outdoor decoration:
Some aluminum alloy composite materials can be used for door heads, canopies, and facade decoration, which are resistant to ultraviolet rays and sun and rain.
