In the field of modern architecture, vertical seam roofs have become the preferred solution for high-end commercial, industrial, and public buildings due to their smooth lines, excellent waterproof performance, and long service life. And the cornerstone of all of this is the Standing Seam Roof Sheet Roll Forming Machine For Metal Roof and Wall Systems. This is not a simple molding machine, but a comprehensive production platform that integrates standard mechanical design, precision CNC technology, and intelligent control system. It transforms metal coil into a roof system that combines structural strength and artistic beauty, endowing buildings with enduring value.
Application Scenario:
• Large public buildings
Meet the design requirements of large-span and irregular curved roofs, provide excellent waterproof and wind resistance performance, and a service life of over 50 years, reducing maintenance costs in the later stage.
• High end business and industry
Provide a simple and modern architectural appearance, and expedite construction to shorten the project timeline. Its excellent load-bearing capacity can be directly used as an installation base for photovoltaic systems, without penetrating the roof, perfectly matching the trend of green buildings.
• Boutique residences and cultural tourism
Endow the building with a unique modern aesthetic texture, materials such as aluminum, magnesium, and manganese can be used to create various shapes such as arcs and fan-shaped shapes, meeting the personalized creativity of designers and enhancing the overall value of the project.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.4-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 or Due to your requirement profile
|
||
|
Diameter of shaft
|
Due to your requirement profile
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
chain or as your requirement
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW(normally)
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
Provide customized
|
||

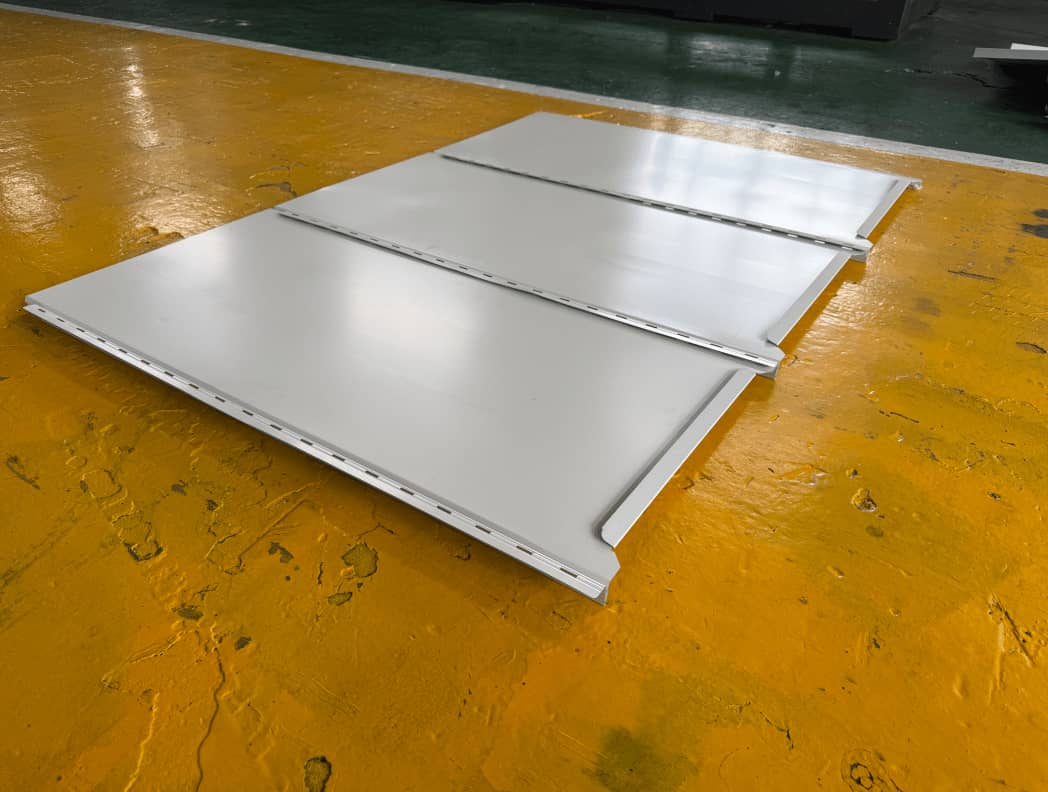

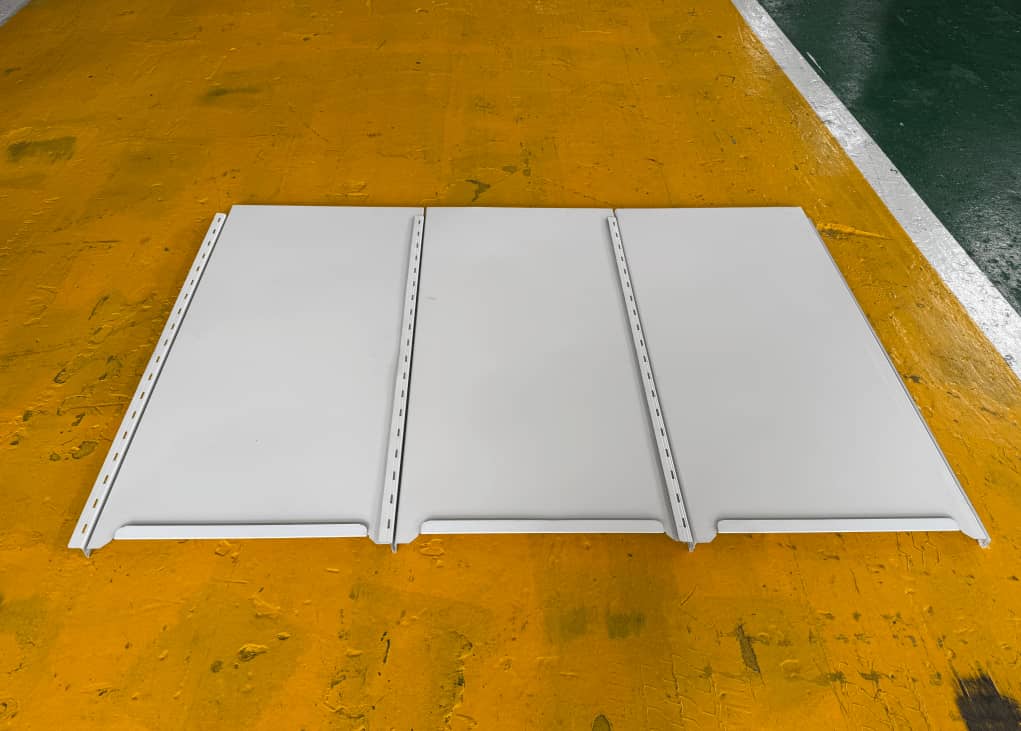

Finished product image:
Core advantage: Unity of efficiency, quality, and flexibility
Investing in high-end vertical seam roof tile equipment means that the enterprise has gained three core advantages that stand out in market competition.
1. Excellent production efficiency and finished product quality
• High speed continuous production:
The equipment is equipped with advanced hydraulic tracking edge cutters (flying saw system), which can achieve non-stop cutting at a high speed of 30 meters per minute. This not only improves production efficiency several times that of traditional equipment, but also ensures smooth and burr free cutting, significantly reducing material waste.
• Perfect sheet metal forming:
The progressive roll forming process with multiple passes (usually 18 or more) ensures that the metal sheet can smoothly and uniformly transition to the final vertical seam shape. Combined with polyurethane support rollers, it effectively avoids stress concentration and surface damage during the forming process of the board, resulting in precise rib height and flat board surface of the roof panel, providing a perfect foundation for subsequent on-site edge locking installation.
2. Unparalleled flexibility and customization capabilities
• Adjustable width and board type:
The equipment is usually equipped with a width adjustment device, which can adapt to different widths of raw materials and produce various specifications of roof panels. At the same time, by replacing different forming roller sets, a single host can produce multiple types of vertical seam boards to meet diverse project needs.
• Support on-site production mode:
High end equipment can be integrated into the vehicle mounted high-altitude tile pressing system. This “mobile factory” can be directly transported to the project site, and complete tiles up to 100 meters long without overlapping can be directly pressed at the roof height, completely solving the pain points of difficult transportation and easy lifting of ultra long panels, especially suitable for large-span factory buildings and airport terminals and other ultra large roof projects.
3. Ultimate roof system performance
• 360 ° upright locking edge:
The roof panels produced by the equipment are connected to the roof structure through dedicated fixed supports, and 360 ° mechanical interlocking is used between panels to form a continuous and dense waterproof barrier. The entire roof has no exposed screws, which fundamentally eliminates the potential leakage hazards caused by aging and loosening of fasteners.
• Excellent wind resistance and thermal expansion and contraction performance:
The sliding connection between the vertical seam roof panel and the fixed support can effectively absorb the thermal expansion and contraction stress caused by temperature changes, preventing roof deformation. Its strong wind resistance enables it to easily cope with extreme weather conditions such as typhoons, ensuring building safety.
