The Steel U Shape Purlin Profile Strut Channel Roll Forming Machine is a typical application equipment for cold bending forming process, which converts metal sheets into U-shaped grooves, U-shaped steel and other profiles through an automated process of “feeding leveling multi pass roll forming punching/cutting discharging”. The cross-section of the processed profile is in a “U” shape, which has the characteristics of structural stability, high strength, and precise size. Different specifications can be customized according to needs (such as groove width, groove depth, edge height, wall thickness, etc.).
Core Features：
1.Efficient automation
Integrated PLC control system, servo drive, automatic punching and flying saw cutting functions, realizing the full process automation from board loading to finished product unloading, reducing labor costs by more than 60%, and the forming speed can reach 8-30 meters/minute (depending on the model).
2.High-precision forming
Using GCr15 bearing steel rolling mill (hardness HRC55-58), combined with a five roll leveling system and straightening mechanism, the dimensional tolerance can be controlled within ± 0.5mm , and the profile straightness and section consistency are excellent.
3.Strong adaptability and flexibility
Capable of processing carbon steel, galvanized steel, stainless steel and other sheet materials with a thickness of 0.5-6mm, supporting customization of U-shaped profiles with a width of 80-500mm and a groove depth of 20-150mm; Quick mold replacement, specification switching can be completed within 30 minutes, suitable for small batch production of multiple varieties.
4.Stable, durable, and low energy consumption
The machine base is welded with I-beams and undergoes stress relief treatment. The main shaft and roller shaft are quenched and tempered, ensuring stable and wear-resistant operation of the entire machine; Chain transmission and cycloidal pinwheel reducer ensure power transmission efficiency and lower energy consumption than traditional machining methods.
Application scenarios：
1. In the field of building steel structures
• Production of U-shaped steel purlins, wall beams, and roof supports for buildings.
• Used for large buildings such as steel structure factories, warehouses, sports halls, shopping malls, etc.
2. Photovoltaic bracket industry
• U-shaped guide rails, bases, and crossbeams for processing photovoltaic brackets.
• Widely used in ground photovoltaic power stations and commercial rooftop photovoltaic projects.
3. Cable trays&electrical equipment
• Produce cable trays, wire ducts, and distribution cabinet skeletons.
• Suitable for power engineering, factory wiring, and municipal engineering.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 4.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Pattern diagram:

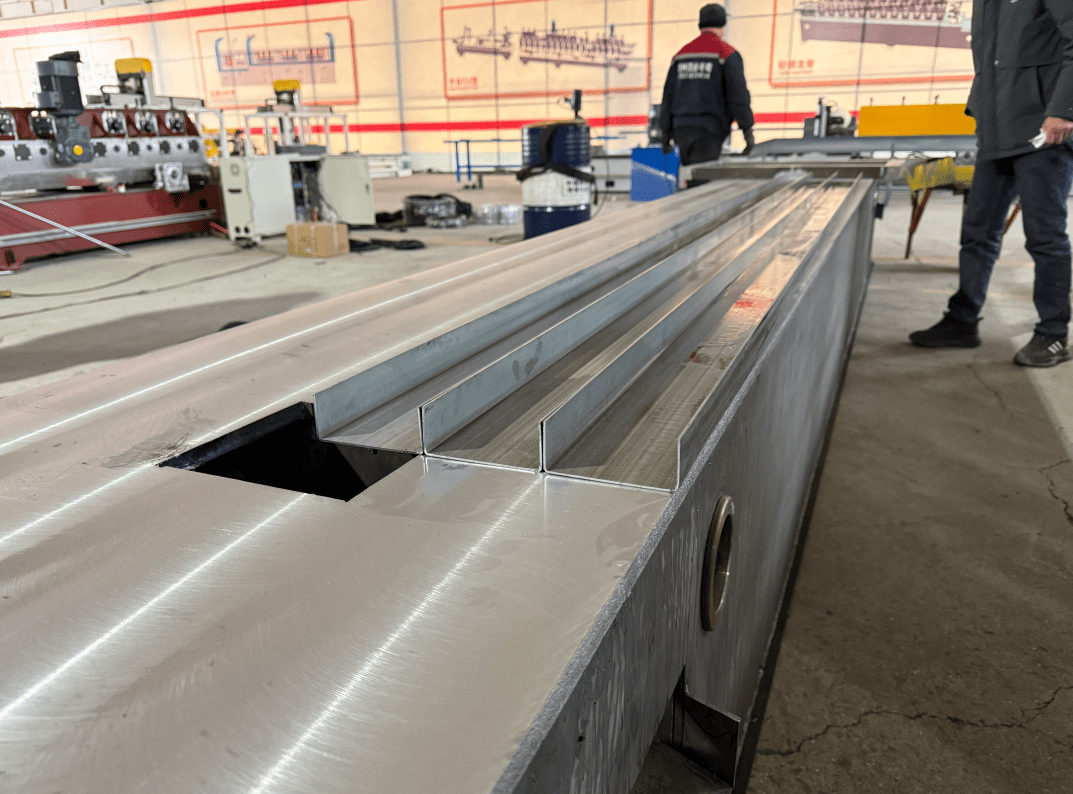

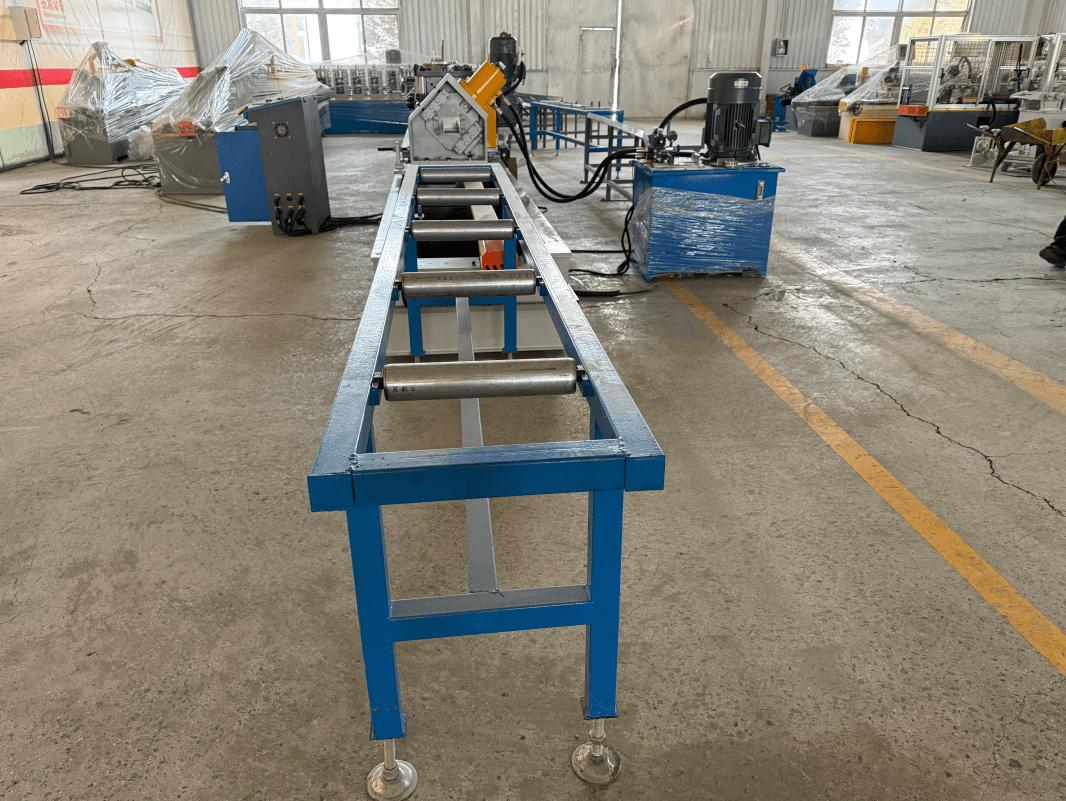

Products Display:
