In today’s rapidly evolving construction industry, efficient, precise, and intelligent production equipment has become the driving force behind sector advancement. As a standout among cold bending forming machines, the U Channel Light Steel Keel Stud and Track Roll Forming Machine is emerging as a star product in the field of building component manufacturing. Like a master craftsman, it transforms ordinary metal sheets into critical structural frameworks that support architectural spaces, playing an indispensable role in elevating the quality of modern construction.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.7-1.2mm
|
||
|

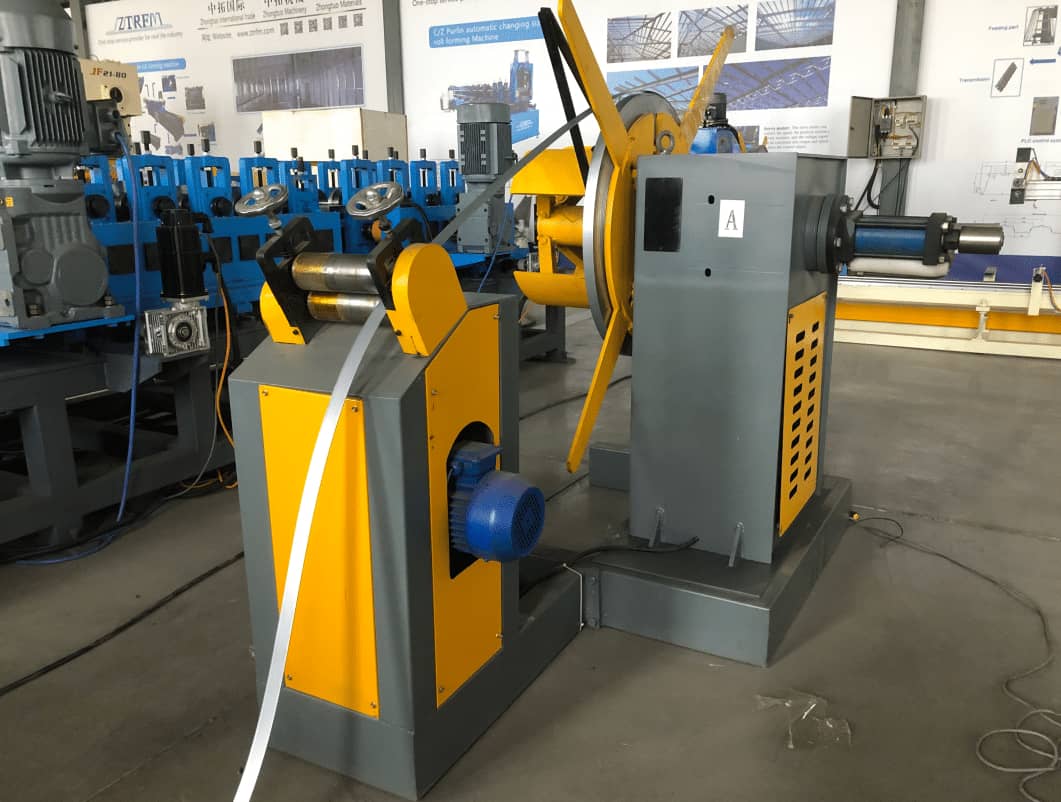

2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler
|
||
|
3.Main body
|
Roller station
|
As your requirement
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|

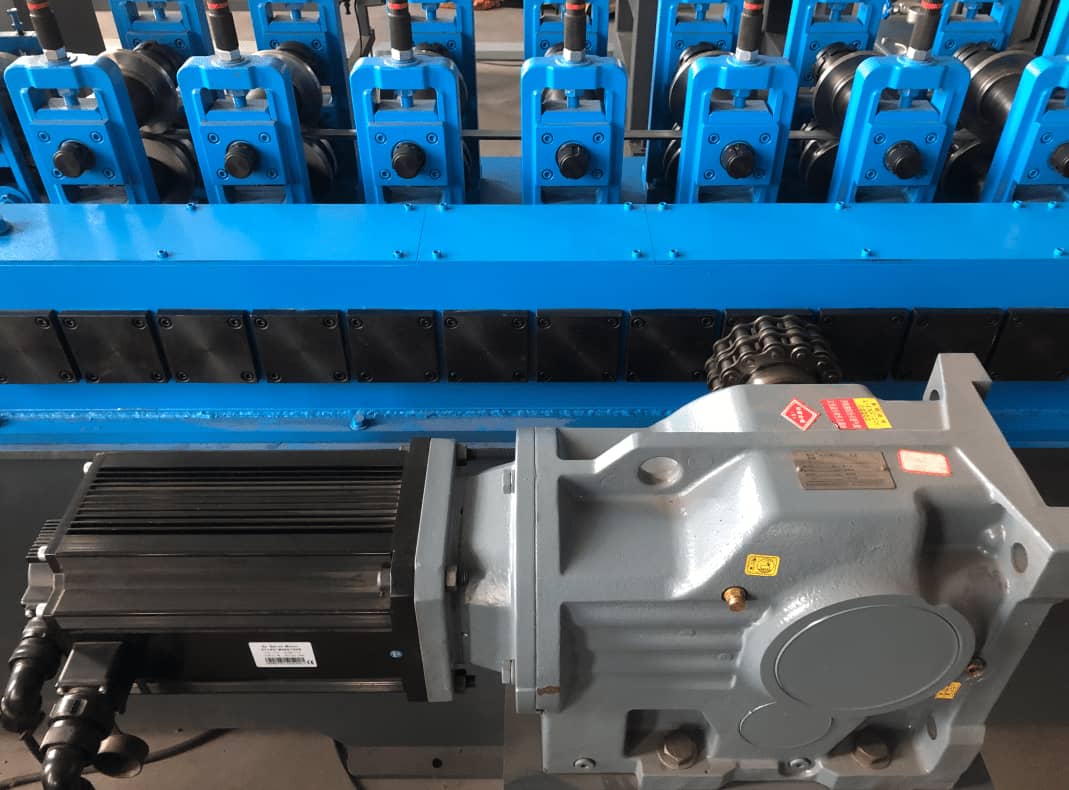

Drive
|
will give you as free
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
3KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
45m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Pattern diagram:
Excellent performance, forging the core advantage of efficient production
1.Intelligent control, precise and efficient.
Most modern U-shaped keel machines use PLC control systems and are equipped with advanced hydraulic systems, achieving intelligent and automated production processes. Operators can easily complete the production tasks of different specifications of U-shaped keels through simple parameter settings.
2.The versatile and flexible U-shaped keel machine has strong adaptability and flexibility.
By changing the mold, not only can standard U-shaped keels be produced, but also special shaped keels such as curved and wavy can be made to meet the personalized needs of different architectural designs.
3.A user-friendly U-shaped keel machine that is easy to operate and maintain.
For example, some models of U-shaped keel machines are equipped with three different sizes of rolling and cutting molds, which can meet the production requirements of three types of profiles without the need to adjust any rollers or molds. Operators can proficiently operate the equipment after simple training.
The main application scenarios are as follows:
• Ceiling system
The U-shaped keel, as the main or side keel of the ceiling frame, is widely used for ceiling installation in residential and commercial spaces such as shopping malls, office buildings, and hotels. Its structure is stable and easy to use in conjunction with T-shaped keels, achieving modular ceiling layout and improving construction efficiency and aesthetics.
• Lightweight partition wall system
In non load bearing partition walls, U-shaped keels are often used as the outer frame of top guide beams, bottom guide beams, or vertical columns, combined with C-shaped keels to form light steel keel composite walls. This structure is fast to construct, environmentally friendly and energy-saving, and is suitable for the internal space division of office buildings, hospitals, schools and other buildings.
