U Track Light Keel Frame Truss Frame Profile Roll Forming Machine are widely used in various construction scenarios, mainly including the following aspects:

• Partition wall system:
  U Track Light Keel is commonly used in the construction of indoor partition walls, especially in situations where rapid construction is required and there are certain requirements for sound insulation and thermal insulation, such as partition walls in office buildings, schools, hospitals, and other places.
• Ceiling system:
  U Track Light Keel also has important applications in ceiling systems, which can be used as ceiling frames in commercial buildings, residential buildings, hotels and other places, making it easy to install lighting fixtures, ventilation openings and other equipment. In addition, light steel keel ceilings are widely used in commercial buildings such as office buildings, shopping malls, supermarkets, etc. These places usually require large-scale ceiling installation and have high requirements for the fire resistance, earthquake resistance, and aesthetics of the ceiling.
• Exterior wall system:
  In some non load bearing exterior wall constructions, U Track Light Keel can be used as a skeleton, combined with various exterior wall panels, to form a beautiful and protective exterior wall system.
• Low rise residential buildings:
  For some low rise residential buildings with light steel structures (such as villas and small apartments),U Track Light Keel can be used as the main supporting material for the walls, simplifying the construction process and improving efficiency.


  Product Introduction:

  U Track Light Keel Frame Truss Frame Profile Roll Forming Machine are mainly used for producing light steel keels, which are widely used in ceiling and partition systems in the construction industry. Light steel keel machine is a specialized equipment for producing metal section profiles through cold rolling forming process. It is mainly used in the manufacturing of non load bearing partition wall systems and ceiling keel frames in the field of architecture. This equipment uses strip steel as raw material and forms complex cross-section keel profiles such as C-shaped, U-shaped, T-shaped, and L-shaped through continuous cold rolling. The machine adopts a PLC control system, which has the characteristics of high efficiency and high degree of automation, and the production speed can reach 6-13 meters per minute.


  Some pattern diagrams：



  Product Attributes :

  1.Formed Material	GI		Thickness:0.4-0.8 mm
  2.Decoiler	Hydraulic automatic decoiler		Electric double head decoiler
  3.Main body	Roller station		14 rows(As your requirement)
  	Diameter of shaft		50 mm solid shaft
  	Material of rollers		45# steel, hard chrome plated on the surface
  	Machine body frame		Metal steel welded
  	Drive		Gearbox transmission
  	Dimension(L*W*H)		5500*800*1200(customize)
  	Weight		About 3 T
  4.Cutter	Automatic		cr12mov material, no scratches, no deformation
  5.Power	Motor Power		5.5 KW
  	Hydraulic system power		5.5KW
  6.Voltage	380V 50Hz 3Phase		As your requirement
  7.Control system	Electric Box		Customized(famous brand)
  	Language		English(Support multiple languages)
  	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
  18.Forming Speed	40m/min(customized)		Speed is adjustable according to customer’s request

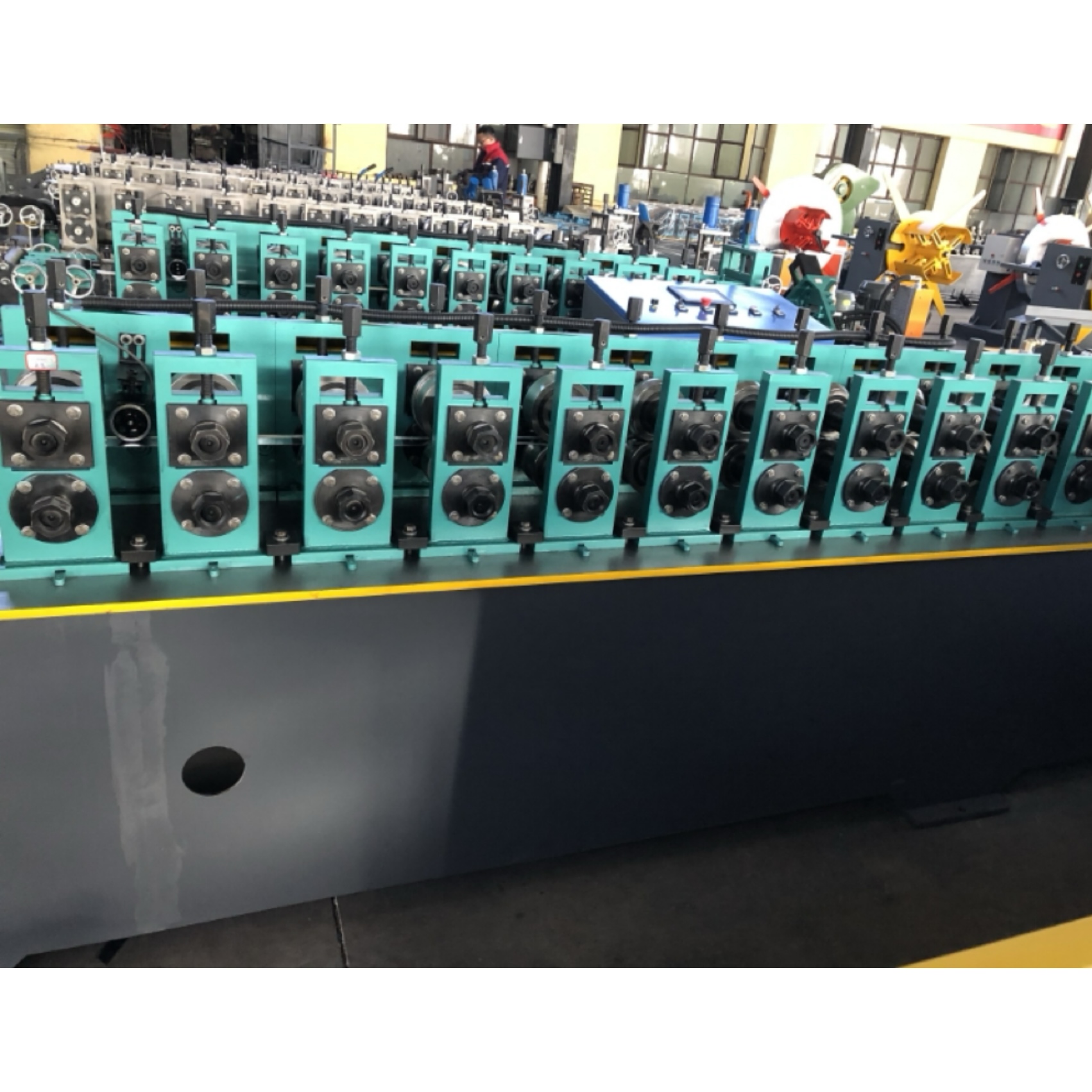

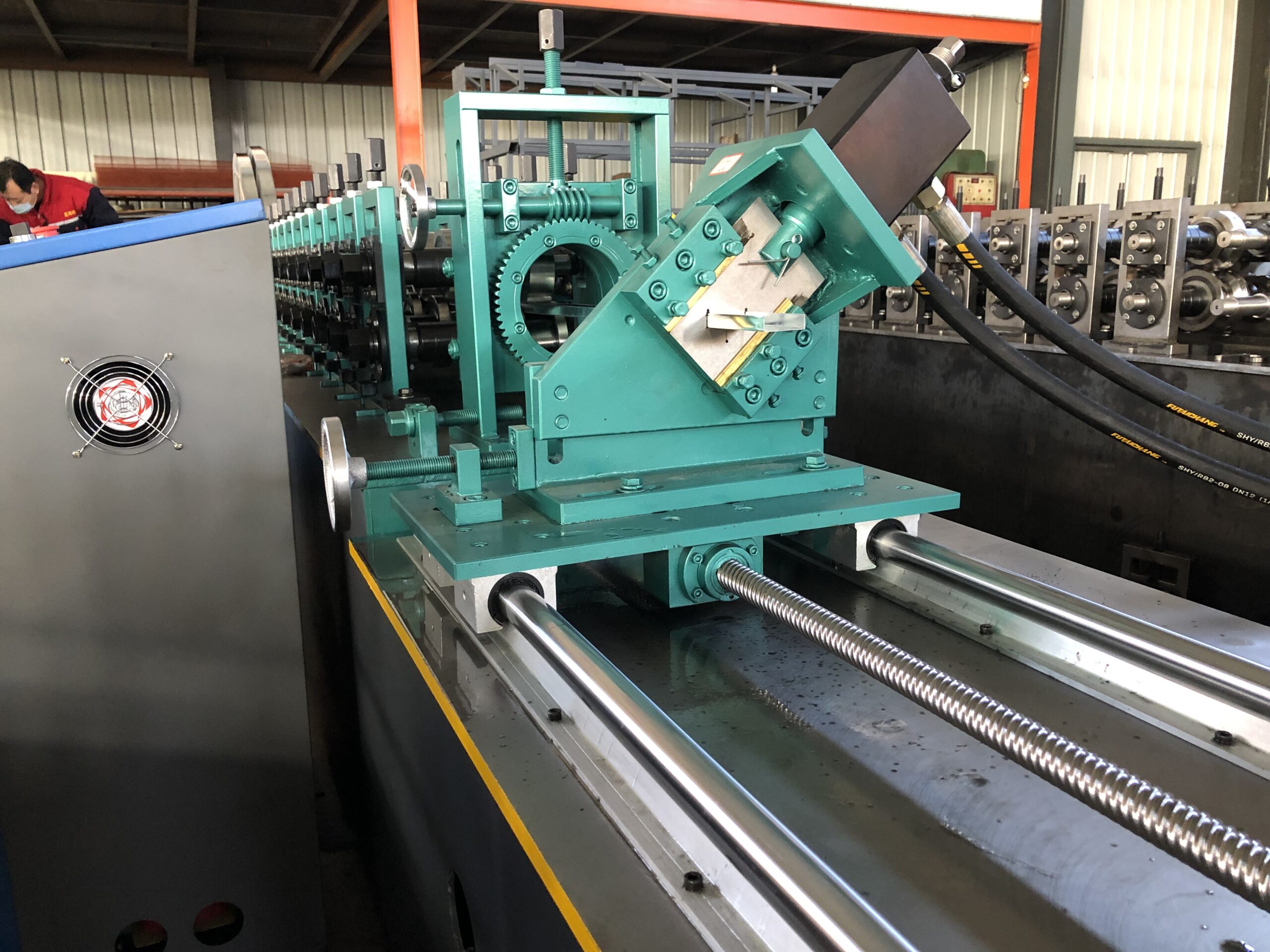

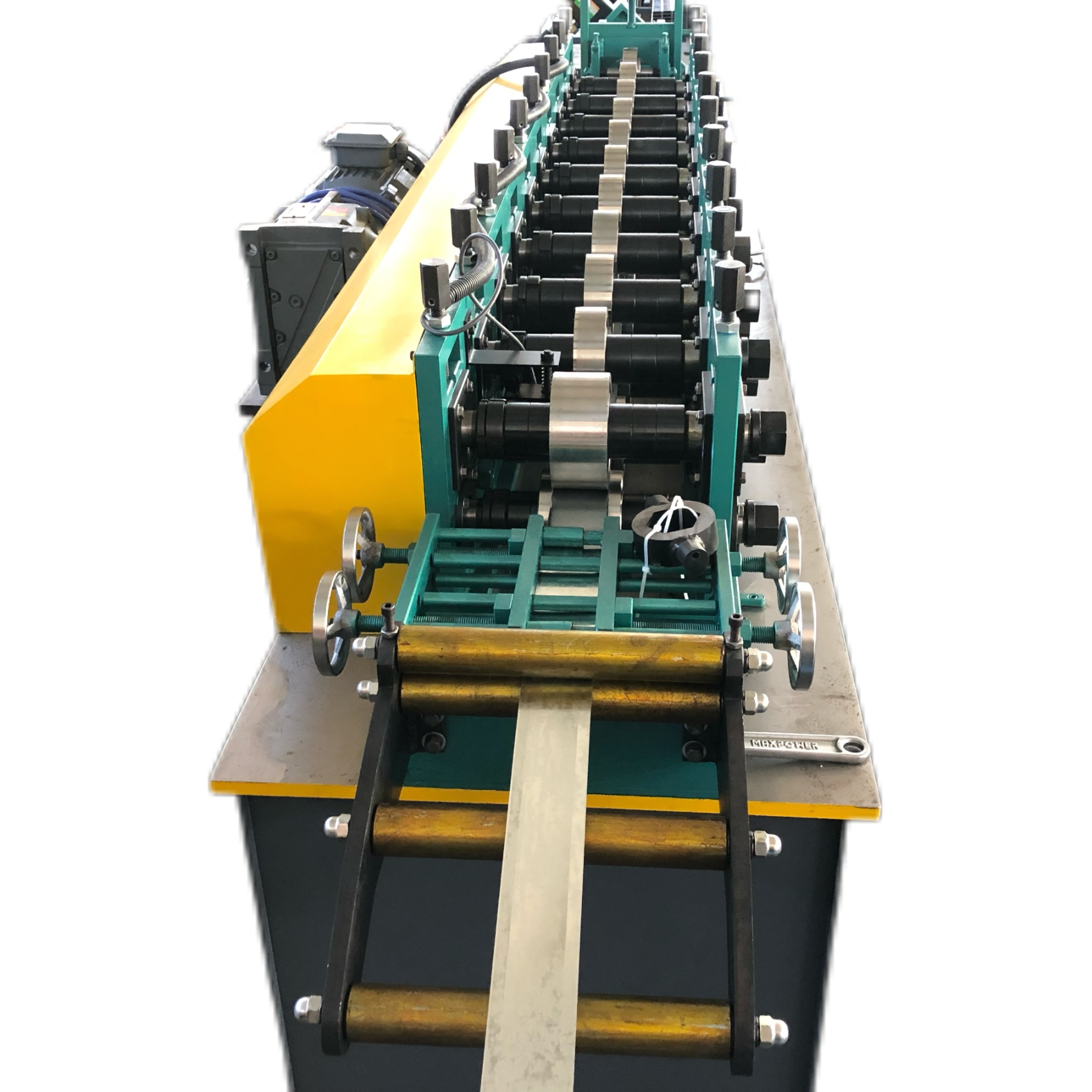

  Products Display：
