The Popular C Light Gauge Metal Stud and Track Roll Forming Machine is a cold bending equipment specifically designed for producing C-shaped light steel studs used in building partition systems. It continuously rolls and processes steel strips into specific cross-sections, widely applied in indoor partition construction for offices, shopping malls, and residential buildings. Such machines typically feature high automation, rapid forming, and precise dimensions, significantly enhancing stud production efficiency.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:2-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
will give you as free
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
40mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
customized
|
|||
|
Dimension(L*W*H)
|
customized
|
|||
|
Weight
|
About 3.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
10-25/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Pattern diagram:
Core Features and Application Scenarios：
The C-shaped keel serves as the vertical support framework of the partition system and must possess sufficient strength and stability. The forming machine gradually bends the flat steel strip into a C-shaped cross-section through multiple passes of rollers and automatically completes the precision-cutting process.
• Primary Use: Manufacturing C-shaped vertical studs for non-load-bearing partition walls, often used in conjunction with U-shaped top and bottom tracks.
• Applicable Areas: Factory workshops, office buildings, shopping malls, hotel rooms, and other areas requiring rapid installation of partitions.
• Processing Materials: Primarily processes galvanized steel strips or black steel strips, with a thickness range typically between 0.35mm and 2.5mm to accommodate various load-bearing requirements.
Key Parameters of Equipment and Selection Recommendations：
Different models of molding machines vary significantly in speed, power, and precision, requiring consideration of production capacity needs and site conditions during selection.
1.Molding speed:
High-speed models can reach 25-40 meters per minute, suitable for large-scale continuous production; standard models are approximately 16 meters per minute.
2.Power Configuration:
The motor power typically ranges from 5.5KW to 7.5KW, with some heavy-duty equipment equipped with a hydraulic shearing system to ensure a smooth cut.
3.Control System:
Modern equipment often employs PLC numerical control screens or touchscreens for operation, enabling automatic execution after parameter input to minimize manual errors.
4.Mold Material:
The key rollers and cutting tools are typically made of alloy tool steel such as Cr12Mov and undergo heat treatment, achieving a hardness of HRC58-62 to extend service life.

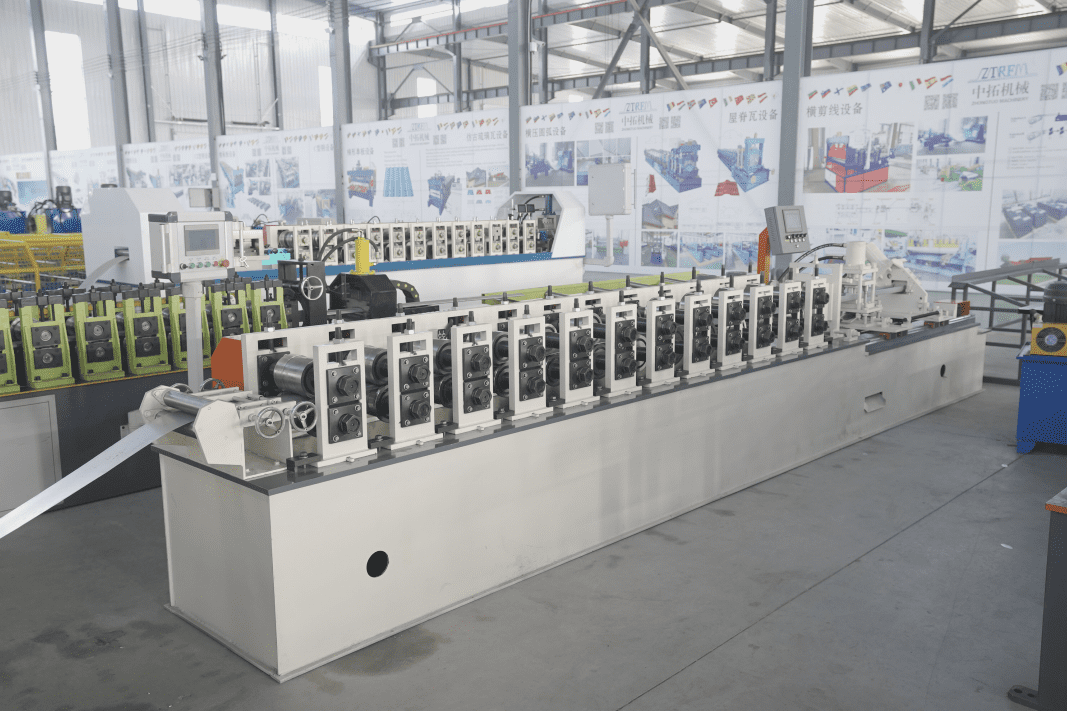

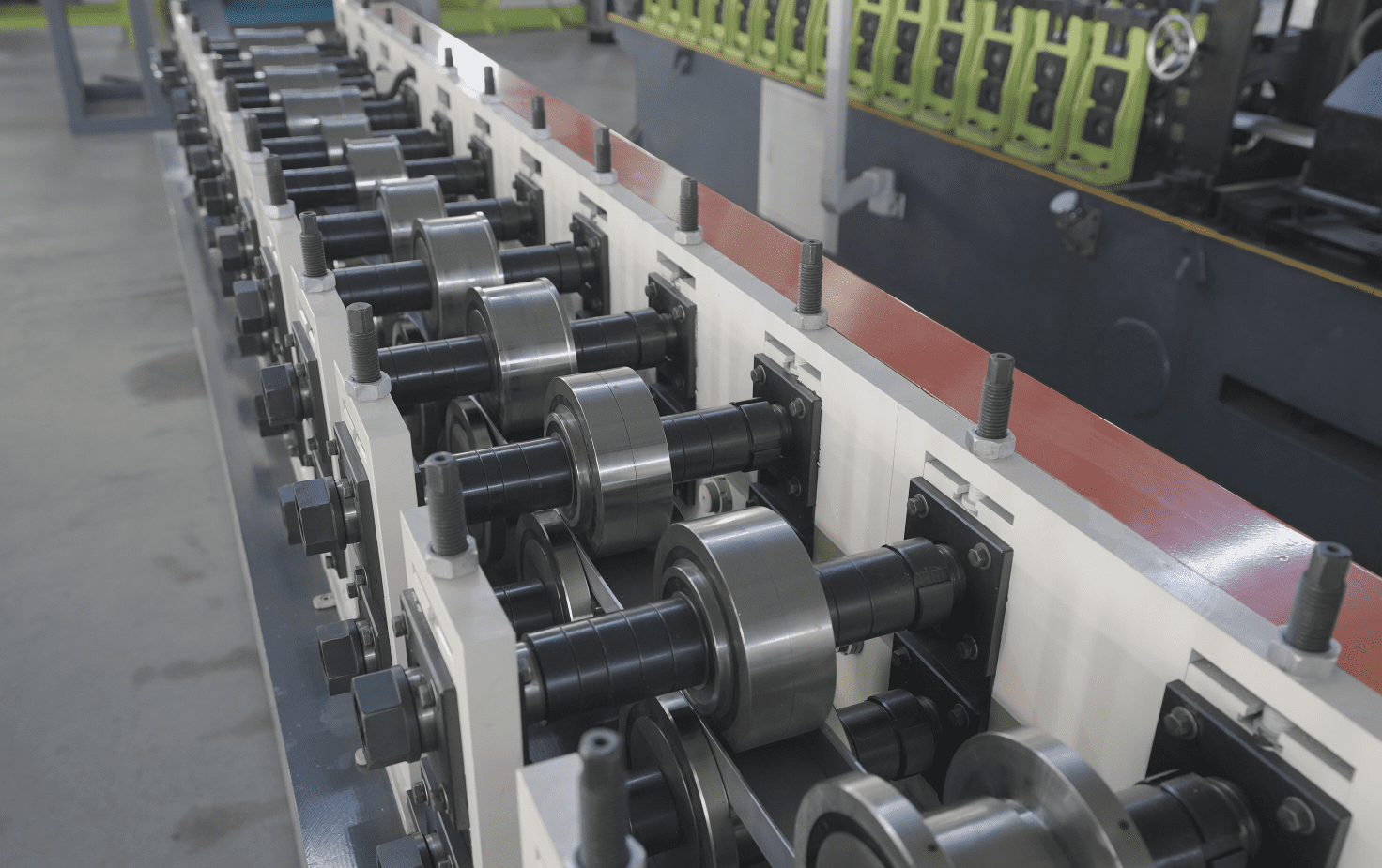

Machine image:
