The Double Line Two in One C U Channel Drywall Stud and Track Roll Forming Machine (also commonly known as double row keel machine or double output keel machine) is an efficient and flexible cold bending forming equipment. It can simultaneously or independently produce two different specifications of light steel keel on one device by integrating two independent forming systems, significantly improving production efficiency and equipment utilization.
Characteristics required：
The dual unit keel forming machine, with its unique design, has the following significant advantages:
1. Dual use, efficient and energy-saving:
One device integrates the functions of two machines and can simultaneously produce two different specifications or models of keels (such as C-type and U-shaped), with fast production speed and significant savings in labor and production costs, improving overall efficiency.
2. Strong flexibility and versatility:
By adjusting the rolling mill or changing the mold, the specifications of the produced keel can be quickly switched to meet diverse order needs. Some models support dual operating systems and dual oil pumps, which can independently control two molding channels, achieving true flexible production.
3. Compact structure and small footprint:
Compared to configuring two independent single unit devices, the dual unit design greatly saves factory space, has a more compact layout, and is easy to move and install.
4. High precision and high stability:
The frame and rolling mill are made of high-strength materials, and undergo heat treatment and precision machining to ensure the stability and forming accuracy of the equipment under long-term high-speed operation.
Application scenarios：
The light steel keel produced by the double unit keel forming machine is an important material in the construction industry, widely used in the internal structure and decoration engineering of various buildings
• Indoor partition wall system:
C-shaped keel serves as the vertical keel frame, and U-shaped keel serves as the top and ground keel, together forming a non load bearing partition wall.
• Ceiling keel frame:
T-shaped keel serves as the main keel, L-shaped keel serves as the side keel, used to construct various indoor ceiling systems.
• Commercial and public buildings:
widely used for interior decoration in office buildings, offices, shopping malls, hotels, hospitals, schools, and other places.
Pattern diagram:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

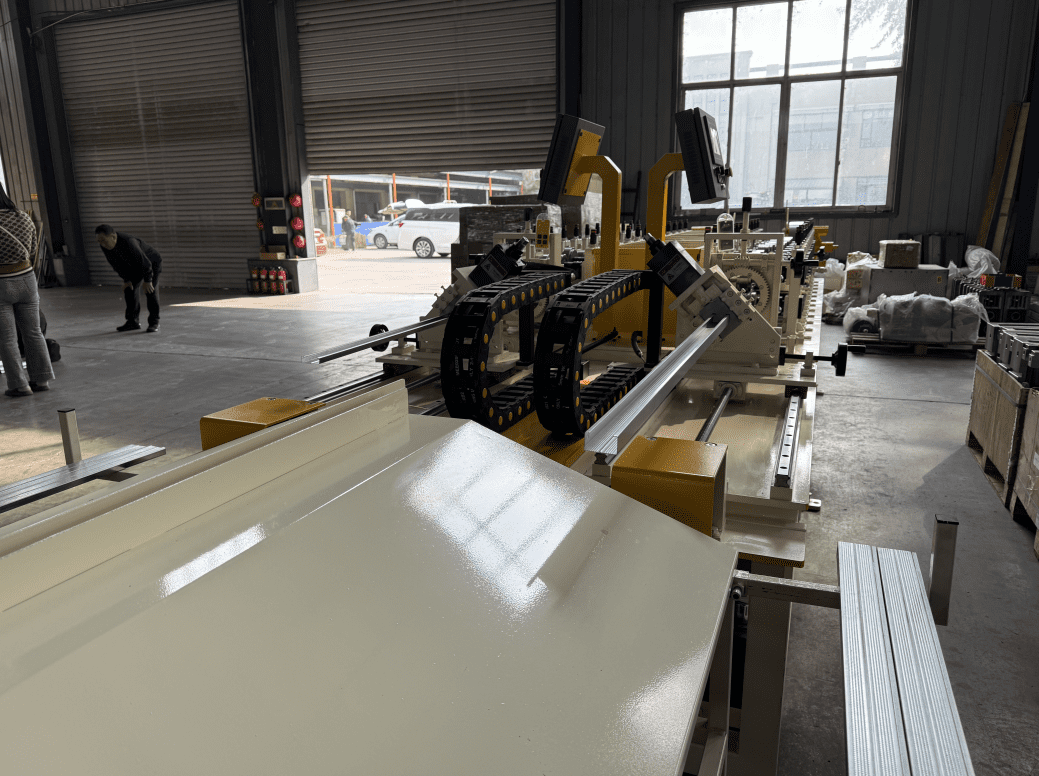

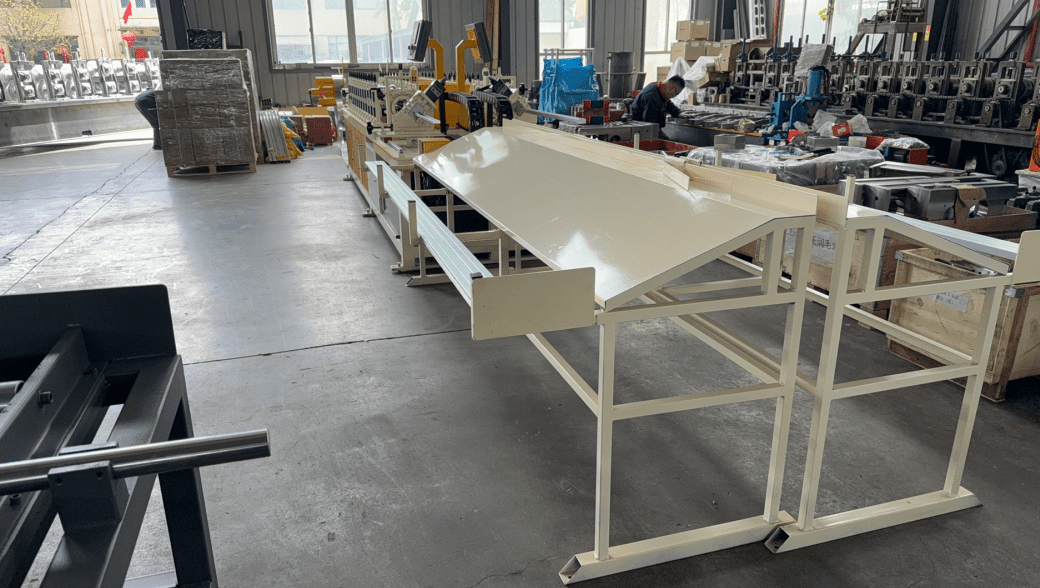

Machine photo:
