The Automatic Light Steel Keel Stud and Track Drywall C Channel Making Machine belongs to the cold bending forming equipment, with its core function being the gradual and continuous bending of flat metal sheets into predetermined C-type keel shapes through a series of precisely arranged roller molds.

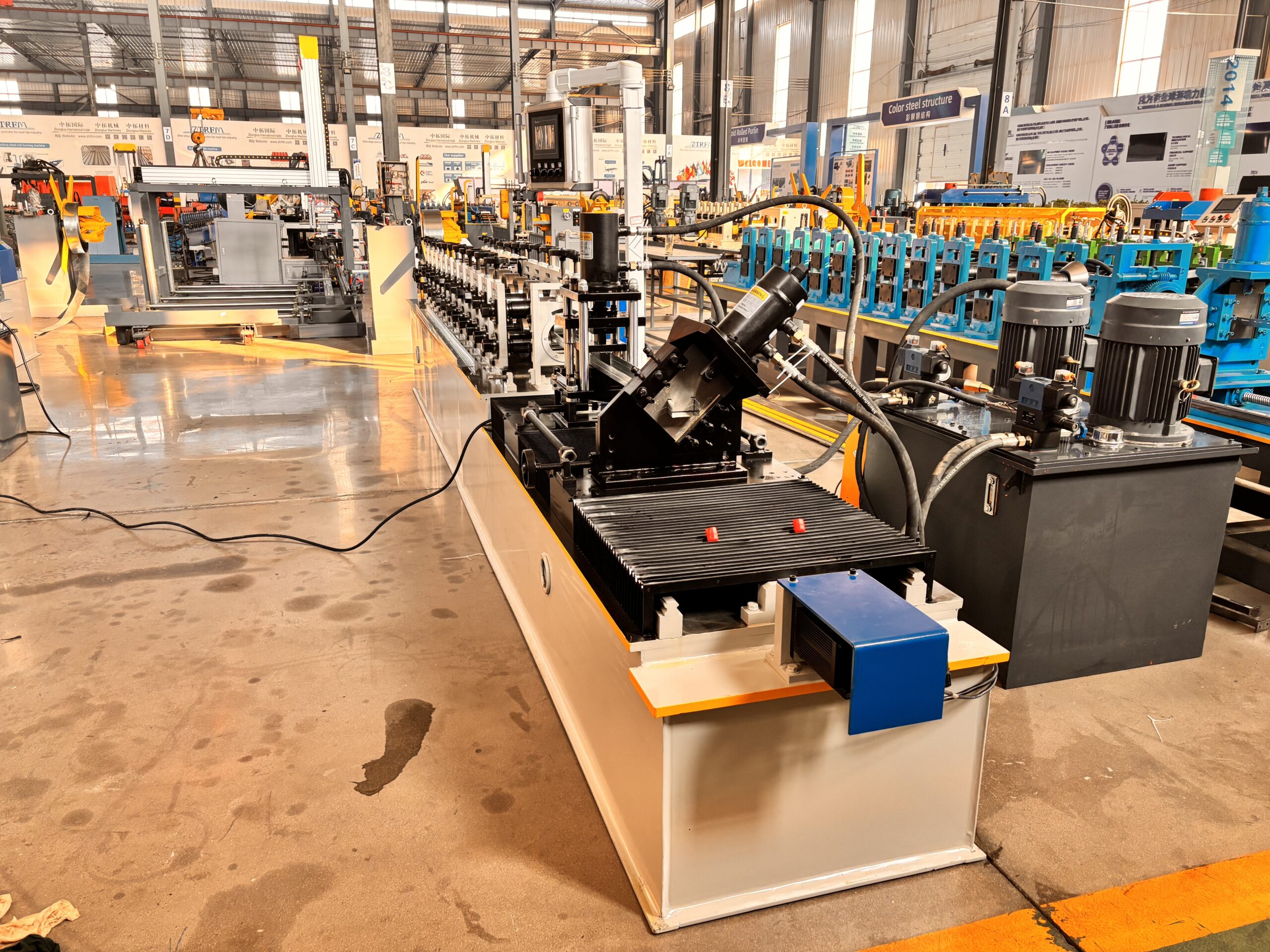

Modern C-type keel forming machines typically consist of an automated production line, integrating the following key components:

1.Uncoiler: Used for placing and unwinding coiled metal strip steel.
2.Forming host: The core component of the equipment, which continuously cold bends the strip steel through multiple sets of forming rollers.
3.Control System: Utilizes PLC (Programmable Logic Controller) and touch screen for automated operation, parameter setting, and fault diagnosis.
4.Cutting System: Automatically cuts the finished product to the set length. Advanced equipment employs “continuous cutting” or “no-stop cutting” technology, enabling cutting during material movement to ensure high efficiency.
5.Receiving rack: Used for collecting and stacking the finished keel products.

Application scenarios：

The C-channel formed by the C-channel forming machine, as a high-quality metal skeleton material, is widely used in various fields:
• Interior Architecture and Decoration
This is the primary application field. As a vertical keel, the C-shaped keel works in conjunction with U-shaped top and bottom keels to construct lightweight partition wall systems. It is also commonly used for the framework of suspended ceiling systems and the support structure of integrated ceilings.
• Steel Structure and Main Building
In light steel villas, commercial complexes, and other buildings, C-shaped studs can serve as load-bearing or non-load-bearing skeletons for walls and floors. Additionally, they can be used as structural components such as roof truss beams.
• Other industrial sectors
C-shaped steel sections are also widely used in the manufacturing of products such as warehouse shelving columns and beams, photovoltaic support structures, highway guardrails, and steel-lined door frames.

Product Attributes :

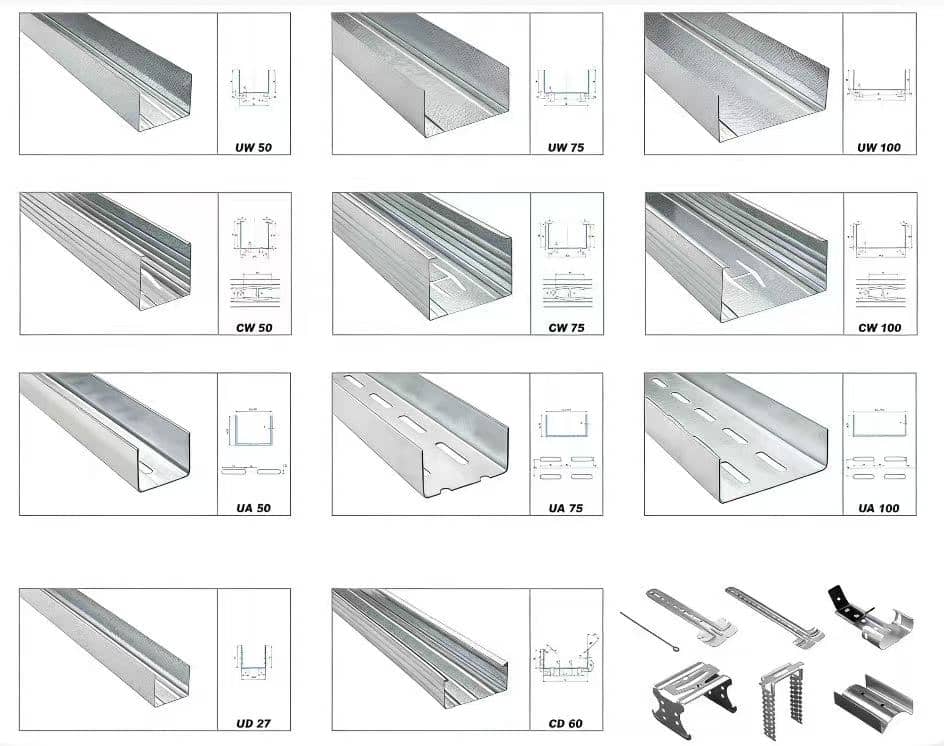

Pattern diagram:

Main Features：

The C-type keel forming machine plays a crucial role in modern production due to its technical advantages, with the following main features:

1.High-efficiency automated production
The equipment enables full automation of the entire process, from raw material feeding and roller forming to fixed-length cutting and finished product collection. Production speed varies significantly depending on the model, with conventional equipment operating at approximately 6-15 meters per minute, while high-performance fully automatic models can achieve speeds of 30-120 meters per minute, capable of continuous operation for 24 hours, significantly enhancing production capacity.

2.High precision and high quality
The imported precision roller mold and servo drive system are employed, with the rollers undergoing heat treatment and precision grinding to ensure high dimensional accuracy (up to ±0.1mm) of the formed C-channel, along with a smooth, wrinkle-free surface, fully meeting stringent construction quality standards.

3.Multifunctionality and Flexibility
Many modern machine models adopt a modular design, supporting “one machine for multiple uses.” By quickly replacing molds or inputting data on the control panel, they can produce C-shaped profiles with varying specifications (e.g., heights ranging from 38mm to 200mm and thicknesses from 0.5mm to 3.0mm), as well as other cross-sectional shapes like U-shaped and L-shaped profiles, meeting the market demand for “small batches and diverse varieties”.

4.intelligent control
Equipped with an industrial-grade PLC control system and a touch screen HMI, it supports multilingual operation. Users can set production parameters with a single click, while the system monitors operational status in real time, performs fault warnings and remote diagnostics, significantly reducing operational complexity and maintenance costs.
