In modern architectural decoration engineering, light steel keel serves as the skeleton material for ceiling and partition systems. Although concealed inside, it carries the structural safety of the entire space. The U-shaped keel (also known as edge keel, sky and earth keel) is an indispensable basic component, and its dimensional accuracy and production efficiency directly determine the progress and quality of subsequent projects.

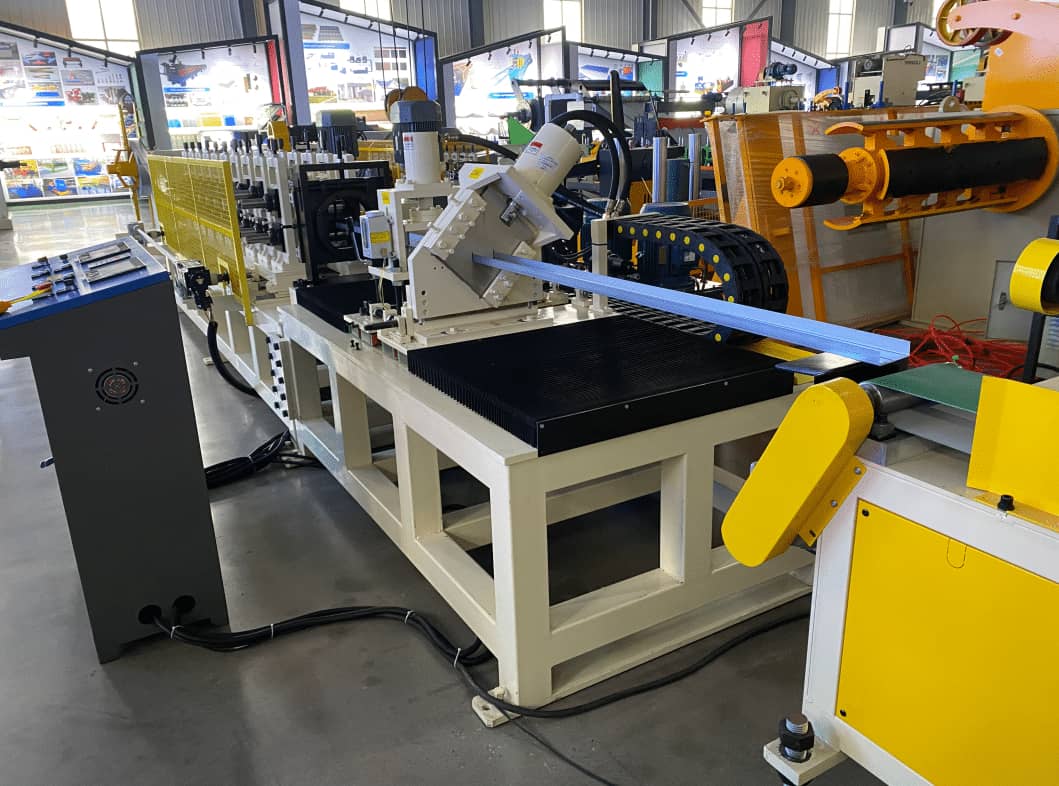

The High Speed U Channel Stud and Track Roll Forming Machine has emerged. It provides a solid and reliable “invisible support” for ceiling systems, partition engineering, clean workshops, and other scenarios by continuously processing rolled galvanized sheet metal into standardized U-shaped section keels with high efficiency, precision, and stability.
Application scenario: Ubiquitous invisible support
U-shaped keel and vertical keel are widely used in the interior spaces of various buildings.
1. Light steel keel partition wall system
In the partition walls of office buildings, hotels, hospitals, and residential buildings, U-shaped keels are fixed between the floor slab and the ground as “sky and earth keels”, and vertical keels are inserted into them to form a skeleton grid. After the two sides are sealed, the wall is formed. The flatness of the U-shaped keel directly determines the verticality and stability of the entire wall.
2. Ceiling system
In mineral wool board ceilings, gypsum board ceilings, and aluminum buckle board ceilings, U-shaped keels are used as edge keels to fix around the walls, supporting the edge stress of the entire ceiling system while also providing aesthetic finishing.
3. Cleanroom and Laboratory
Electronic factories, pharmaceutical factories, food workshops, and other places that require high cleanliness often use purification board partitions. The U-shaped keel serves as a connecting groove between the purification board and the ground or ceiling, providing structural support and playing a key role in sealing and fixing.
Why choose our U-shaped keel machine?
• Mature design: compact model, small footprint, suitable for small and medium-sized processing plants
• Easy to operate: PLC control, parameterized input, general worker training to start working
• Easy maintenance: Chain/gear transmission, simple structure, low failure rate
• Quick delivery: Standard models are well stocked and can be delivered within 15-20 days
• Complete supporting facilities: can be equipped with C-type keel machine, maintenance port mold, etc. at the same time
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:2-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
will give you as free
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
40mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
customized
|
|||
|
Dimension(L*W*H)
|
customized
|
|||
|
Weight
|
About 3.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
10-25/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core feature: Technology accumulation of seeing big through small things
1. Regular cross-section and precise dimensions
Although the U-shaped keel has a simple structure, indicators such as slot width, flange height, and straightness directly affect the fitting effect with the vertical keel. This equipment uses high-precision rollers and heavy-duty frames to ensure that the U-shaped keel groove after forming is flat, the height of the flanges on both sides is consistent, and the straightness error per meter is controlled within ± 0.5mm, achieving a “tight fit” with the vertical keel for insertion and matching.
2. Roller exchange, one machine with multiple types
By quickly replacing the roller set or adjusting the roller gap, one main machine can produce various specifications of U-shaped keels. From small specifications with a width of 28mm to large keels with a width of 150mm, they can all be produced on the same equipment, flexibly responding to the order requirements of different construction sites and reducing equipment investment costs.
3. Integrated punching and cutting, precise hole positioning
According to the requirements, hydraulic punching devices can be configured for the production and installation of fixed hole positions or threading holes. The servo feeding system ensures precise control of hole spacing with small errors, and the finished product comes with holes at the factory without the need for secondary processing on site, greatly improving construction efficiency.
4. High speed stability and considerable output
The equipment design and production speed can reach 8-15 meters per minute, with stable and reliable continuous operation. Combined with automatic palletizing or material collection racks, one person can easily operate, and the daily output can meet the keel needs of medium-sized decoration projects.
5. Material saving and high yield rate
The equipment adopts a reasonable roll bending forming process, with minimal damage to the material edges and no waste generated. Compared to traditional cutting and folding techniques, it can save material loss and reduce single piece production costs.
