The Metal Light Keel C Shape Stud Channel Drywall Roll Forming Machine is an automatic cold bending forming equipment used to continuously roll-formed galvanized steel strips, color-coated steel strips, and other coil materials into C-shaped lightweight steel studs. The entire process is cold-rolled, weld-free, and distortion-free.
Main Features：
• High-efficiency fully automatic: Speed 15–40m/min, PLC-controlled, achieving both fixed-length cutting and punching in one operation, saving labor.
• High Precision: Roller CNC machining with dimensional accuracy of ±0.5mm and cutting precision of ±1mm, ensuring excellent product consistency.
• Multi-functionality: Quick changeover for producing C-shaped, U-shaped, and I-beam profiles, compatible with various thicknesses and widths.
• Strong material adaptability: Capable of processing galvanized steel plates, color steel plates, aluminum plates, stainless steel, and more.
Energy-saving and environmentally friendly: Cold bending does not require heating, resulting in low energy consumption and no exhaust pollution.
• Solid Structure: Thick-walled frame + bearing steel rollers, wear-resistant and durable, with a long service life.
Application scenarios：
1. Architectural decoration
• Indoor ceiling/partition skeleton (office buildings, hotels, shopping malls, home decoration).
• Light steel villa wall/floor/roof load-bearing framework.
• Roof purlins and wall beams for factories, warehouses, and venues.
2. Steel structure engineering
• Steel structure house beams, columns, trusses, and support systems.
• Photovoltaic power station bracket and guide rail; Municipal billboards and guardrail frames.
Pattern diagram:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:14/12 gauge
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
5 ton
|
||
|

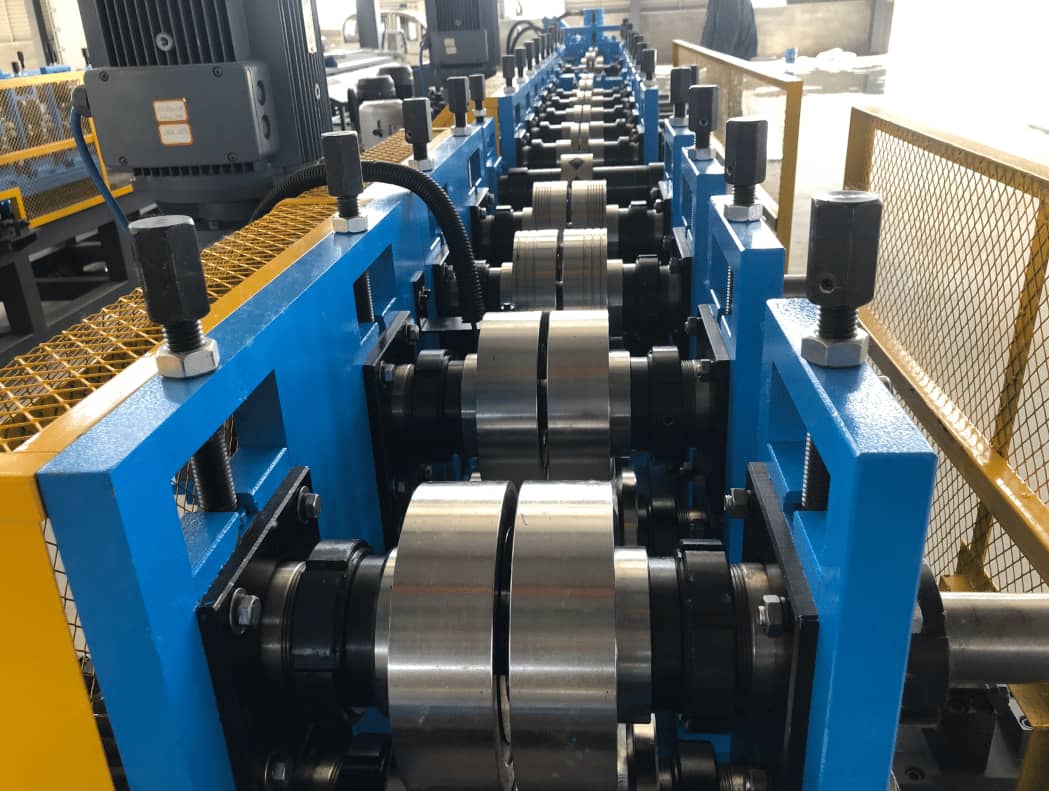

3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
75 mm solid shaft
|
|||
|
Material of rollers
|
Gcr 12 with quenched teeatment
|
|||
|
Machine body frame
|
use screw fix on the frame
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
6500*800*1200(customize)
|
|||
|
Weight
|
About 5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
25/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
