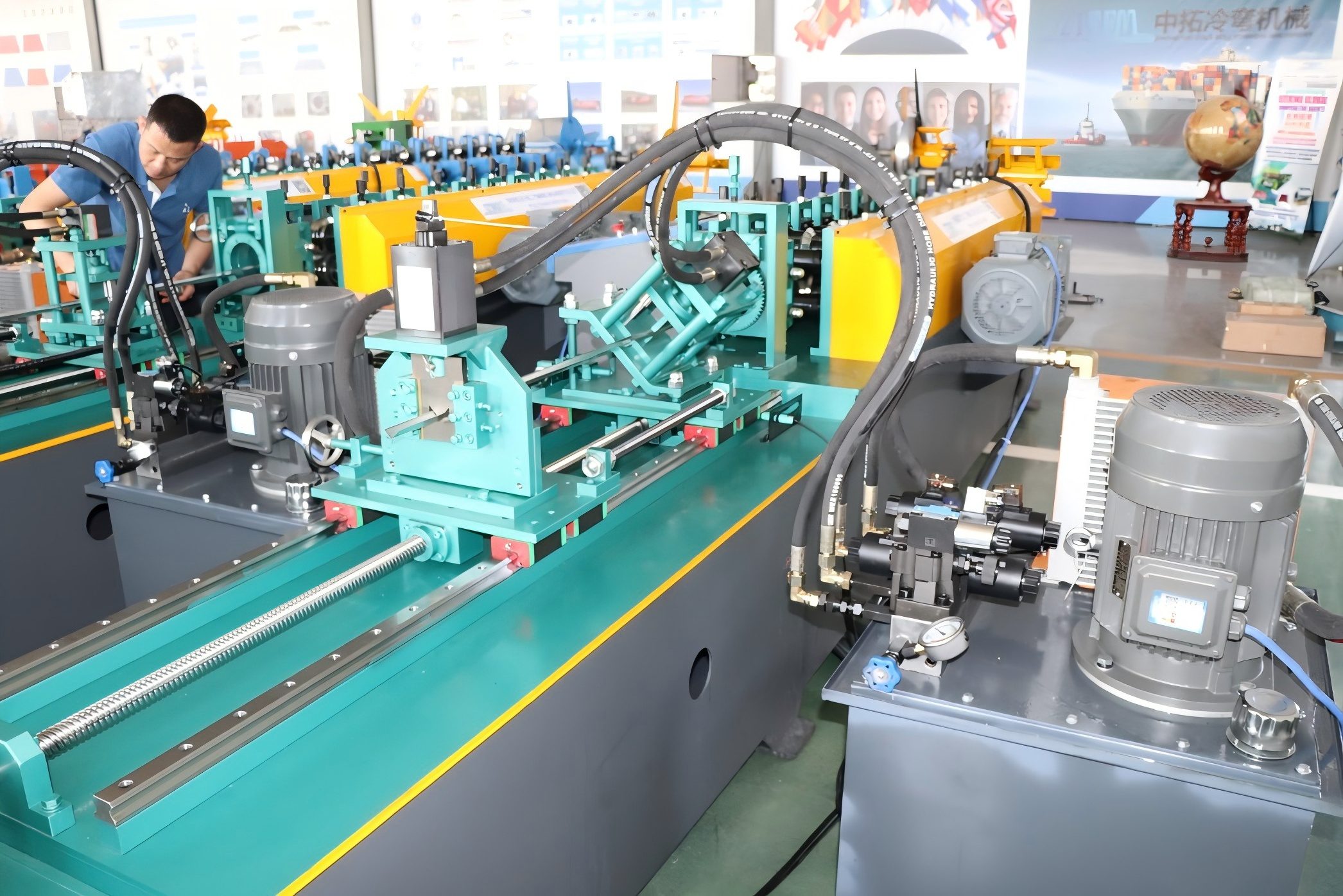

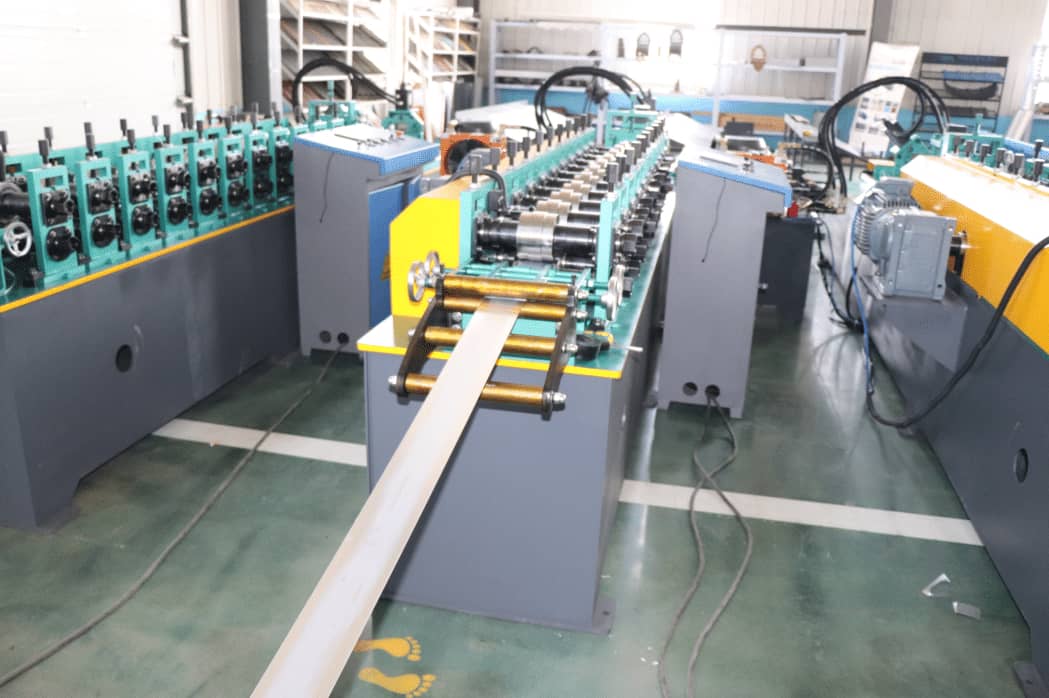

In today’s industrial manufacturing field that pursues ultimate efficiency and excellent quality, Wall Angle Roll Forming Machine Iron Slotted Angle Beads Making Machine, as important equipment for metal processing, are becoming the “productivity responsibility” of industries such as power and electrical, building curtain walls, and automobile manufacturing due to their significant advantages of high precision, high efficiency, and low energy consumption. It not only replaces traditional and outdated manual welding and polishing processes, but also leads sheet metal and profile processing towards intelligent manufacturing with integrated automated forming technology.
Application scenarios: Covering multiple industries, solving real pain points
1. Power and electrical equipment and chassis cabinet industry
This is the most mature field of application for CNC corner forming machines. Whether it is high and low voltage distribution cabinets, switchgear cabinet doors, cover plates, or data center machine room cabinets, this equipment can perfectly cope with four sided bending and corner forming, not only solving the problems of difficult recruitment and high manual welding costs, but also eliminating the hidden danger of rust at welding points after a long time.
2. Architectural decoration and curtain wall engineering
In the field of architectural decoration, aluminum veneer curtain walls, ceilings, and suspended ceilings have extremely strict requirements for product appearance. The products processed by the corner forming machine are not only precise in size, but also have smooth and beautiful transitions at the corners, effectively enhancing the overall texture of the building facade.
3. New energy and household appliances
With the outbreak of the new energy industry, the demand for energy storage cabinets, new energy charging pile casings, and air conditioning outdoor top covers has surged. The angle steel forming machine provides efficient and low-cost sheet metal processing solutions for the new energy and home appliance industries, thanks to its good adaptability to various types of plates such as cold-rolled sheets, galvanized sheets, and stainless steel.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.2-0..4mm (customized)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
70m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Pattern diagram:
Core feature: Targeting pain points and empowering efficient production
1. Simplify complexity and form it in one go
Traditional corner processing heavily relies on manual welding and polishing, which not only results in low efficiency but also makes the welds prone to rusting and rough product appearance. The CNC angle forming machine uses a unique cutting and pressing device and a programmable mold system to instantly complete the cutting and forming of the workpiece, with a smooth and bright cross-section, without the need for subsequent polishing treatment, greatly improving product grade and consistency.
2. Intelligent CNC, fast mold change
In response to the production needs of multiple varieties and small batches, advanced corner forming machines have broken through the limitations of traditional designs. The equipment can achieve multi position roller rotation, square mold rotation, and automatic adjustment of forming clearance through a numerical control system. The system can automatically match molds and parameters according to different material thicknesses and process requirements, greatly reducing mold replacement and debugging time, making production more flexible and efficient.
3. High rigidity body, stable and reliable
Accuracy is the lifeline for measuring the quality of molding. Modern angle steel forming machines have been deeply optimized in terms of body structure, adopting a large guide column design to improve the overall rigidity of the equipment, and equipped with protective devices such as safety windows, which not only ensure the machining accuracy under high-speed operation, but also ensure the personal safety of operators.
4. Automated connection, reducing costs and increasing efficiency
For angle steel production lines, a highly integrated automation control system is their soul. By utilizing PLC control, servo motor drive, and fully hydraulic clamping system, the equipment can achieve uninterrupted automatic feeding and high-precision tracking shearing. The fully automatic angle iron machine can achieve a production speed of 30 to 40 meters per minute, transforming the heavy process that originally required multi person collaboration into unmanned operation, greatly reducing labor and auxiliary material costs.
