The Full Automatic Flush Roofing Soffit Panel Roll Forming Machine dust guard panel forming machine is an industrial forming equipment specifically designed for manufacturing metal or plastic dust guards. Its core function is to process raw materials (such as 1.5mm low-carbon steel, acrylic, PVC, etc.) into protective covers with specific geometric shapes through cold stamping, hot forming, or injection molding processes. In the industrial systems of the United States and globally, the 630-ton four-column hydraulic press is the mainstream model, widely used for mass production of semi-trailer axle dust guards. Powered by a hydraulic system, the equipment achieves rapid descent, pressure holding, and automatic return stroke through the coordination of the main cylinder and sub-cylinder, significantly reducing energy consumption. It is suitable for high-precision, high-efficiency cold stamping operations.

Product Attributes :

Core Features：

1.High strength four column structure:
Adopting an integral welded four column frame, it has strong resistance to eccentric loads, ensuring the stability of the stamping process and extending the service life of the equipment.
2.Energy saving hydraulic system:
The crossbeam and cylinder body have a short no-load stroke, the oil pipeline is compact, and with a self weight return design, energy consumption is reduced by more than 30% compared to traditional models.

3.Precision mold integration:
using a composite mold of material dropping, deep drawing, and punching, multiple processes are completed in a single stroke, with high material utilization rate (edge overlap is only 2-3mm), and the finished product accuracy reaches ± 0.1mm.
4.Surface treatment process:
The finished product is treated with electrophoretic paint, which has excellent rust resistance, weather resistance, and smooth appearance, suitable for outdoor and high humidity environments.

5.Automation control:
Integrated PLC control system (such as UniMAT, V80 series), supporting parameter preset, pressure closed-loop adjustment, fault self diagnosis, achieving unmanned continuous production.
6.Multi material adaptability:
In addition to low-carbon steel, non-metallic materials such as hard rubber, plywood, acrylic, PC board, etc. can also be processed, expanding the application boundaries.

Detailed explanation of typical application scenarios：

•  Automobile manufacturing

Typical products: semi-trailer axle dust cover, wheel hub cover.
Process method: Use a 630 ton four column hydraulic press for metal cold stamping.
Technical points: The material is mostly 1.5mm low carbon steel, which needs to achieve a deep drawing depth of ≥ 15mm, with no surface cracking and controllable rebound. The finished product is treated with electrophoretic paint and has excellent anti rust performance.

•  Architecture and Infrastructure

Typical products: Color steel plate rain cover, corrugated plate dust cover.
Process method: Cold bending forming (such as Xinghe Mechanical Rolling Line).
Technical points: Made of galvanized coil or stainless steel material, with a thickness of 0.6mm and a forming curvature accuracy of ± 0.5 °, suitable for long-term outdoor exposure environments.

•  Industrial equipment protection

Typical products: Machine tool guide dust cover, conveyor moisture-proof cover.
Craftsmanship: Organ style/telescopic structure forming.
Technical points: Compression ratio can reach 10:1, operating speed ≥ 200m/min, with oil resistance and chip impact resistance characteristics, ensuring stable operation of precision equipment.

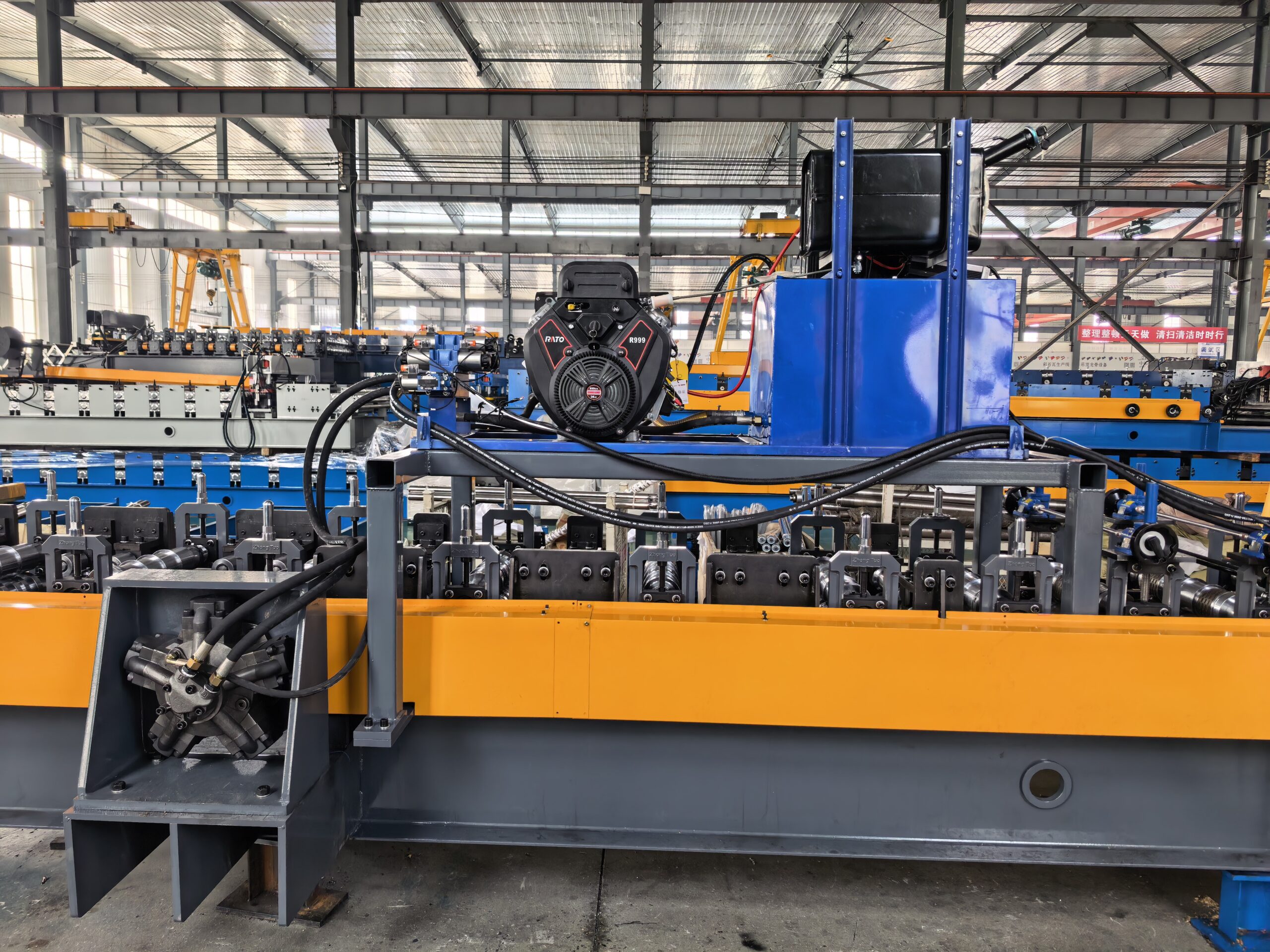

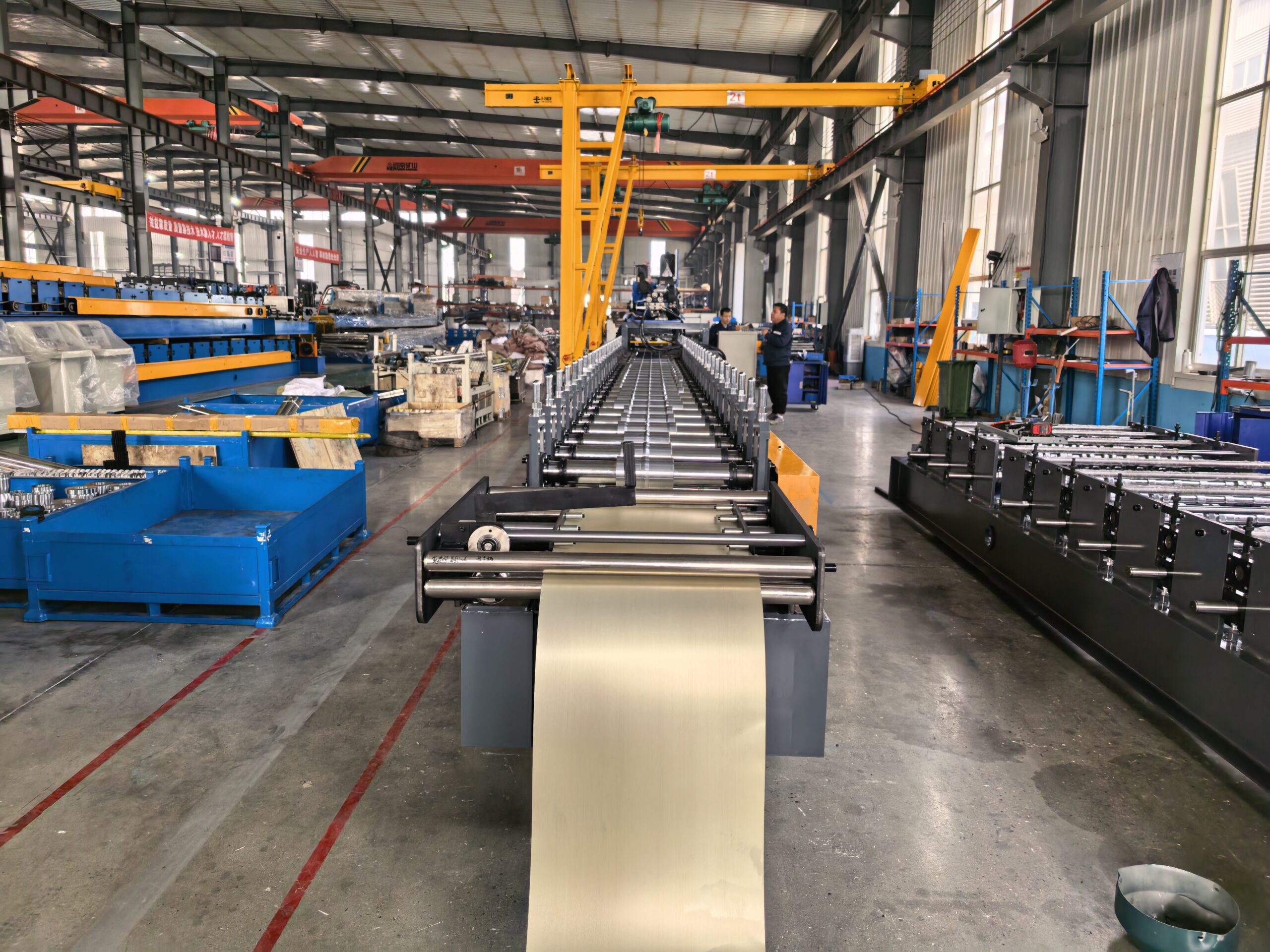

Machine image:
